suitcase wheel with axel replacement

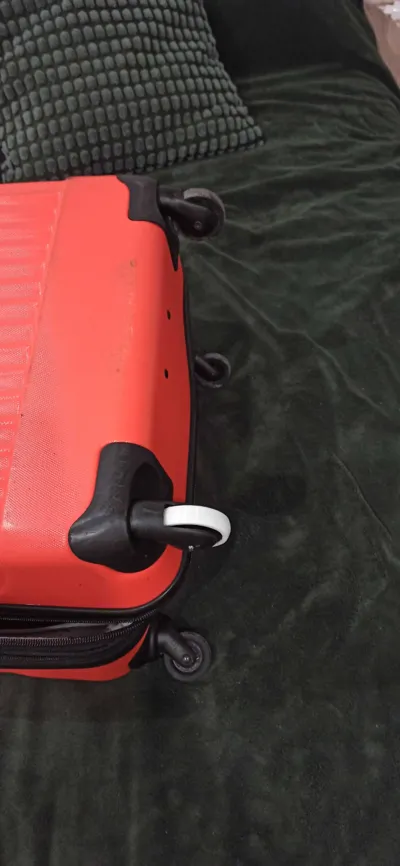

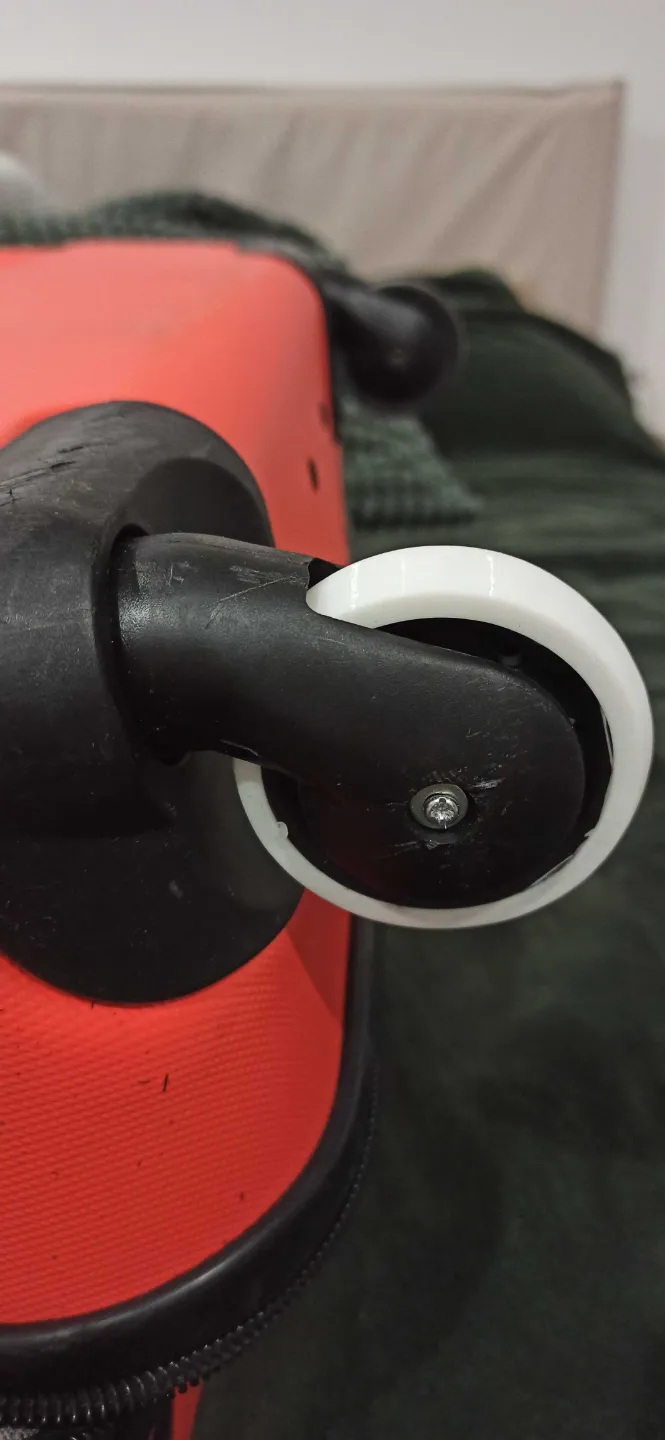

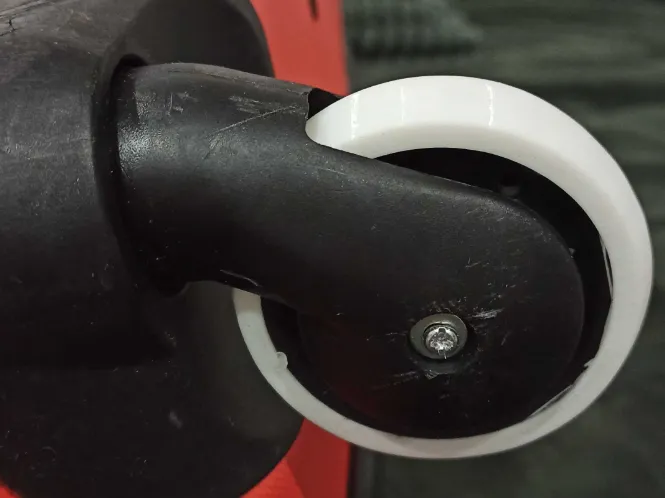

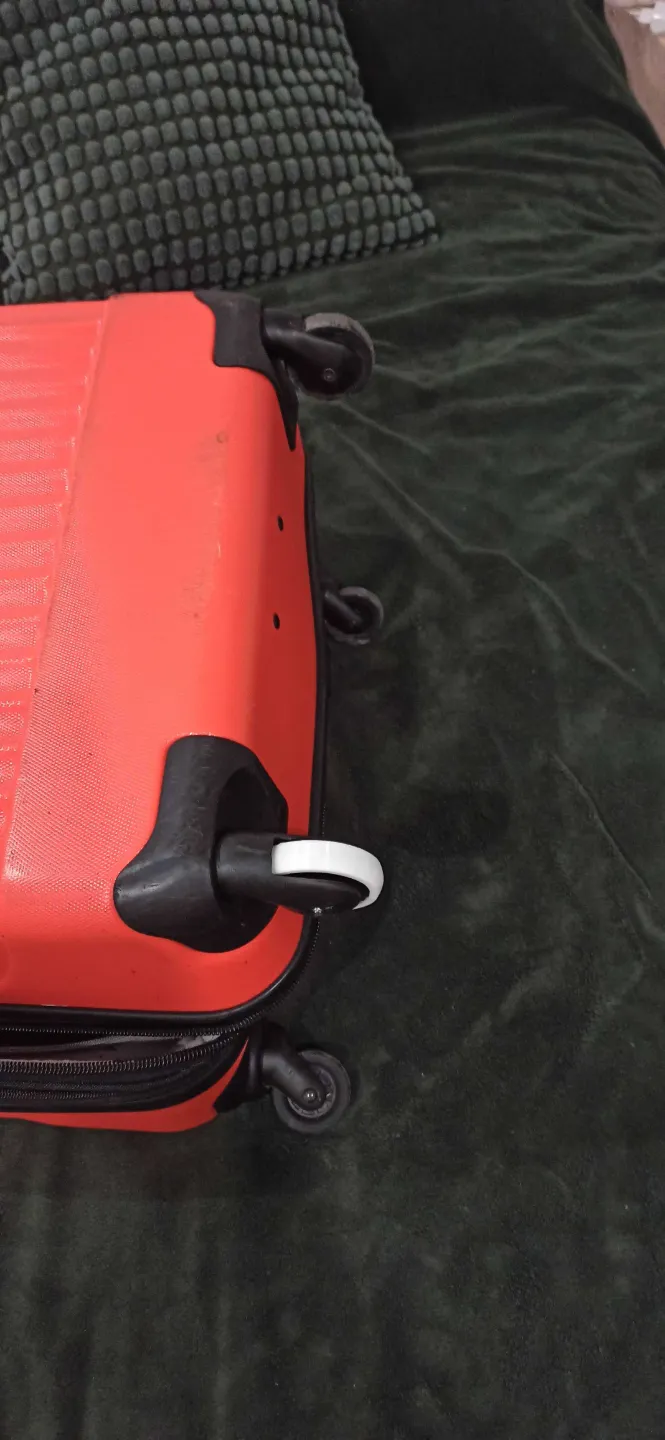

This model is a replacement tyre for large suitcase wheels, designed for ease of use and durability. It is not a complete wheel replacement—only the tyre is included (and bushing-axel replacement). If you need the entire wheel model, leave a comment, and I’ll create one for you.

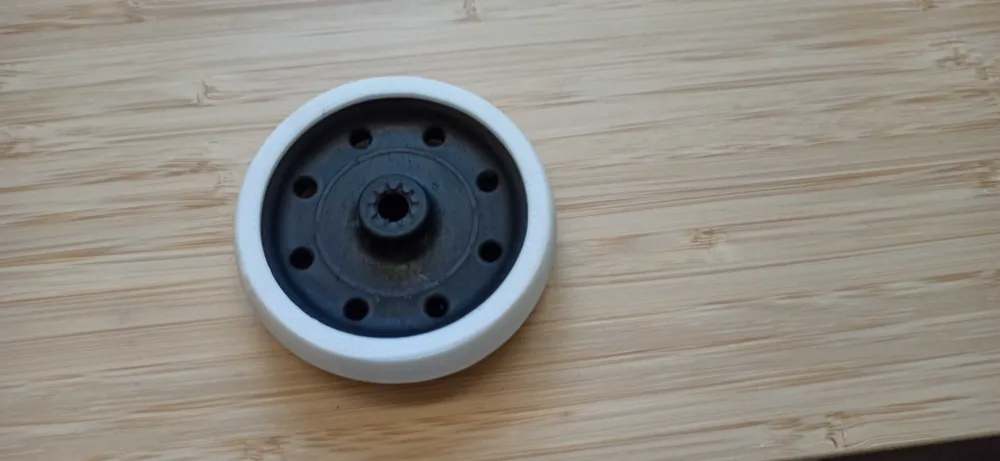

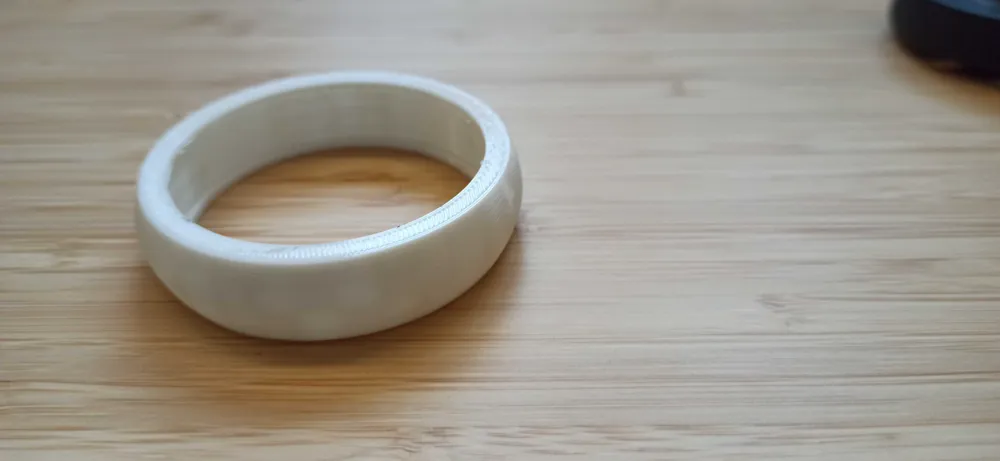

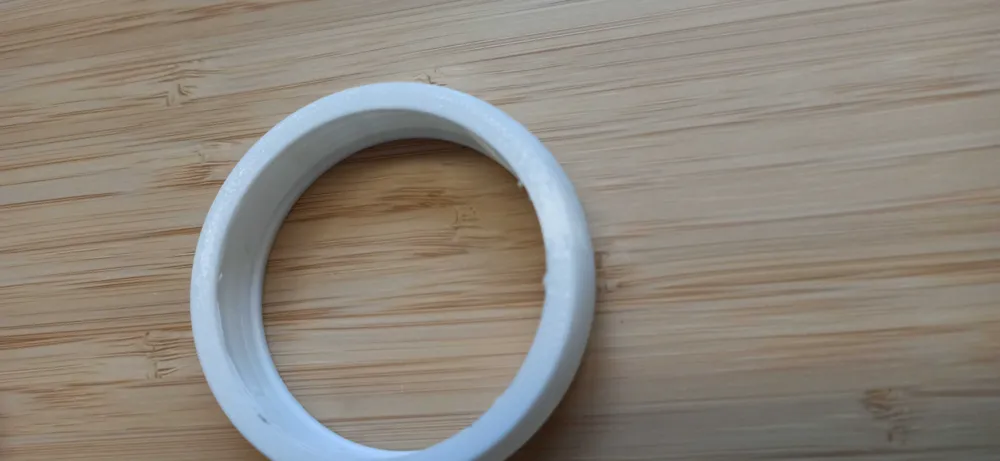

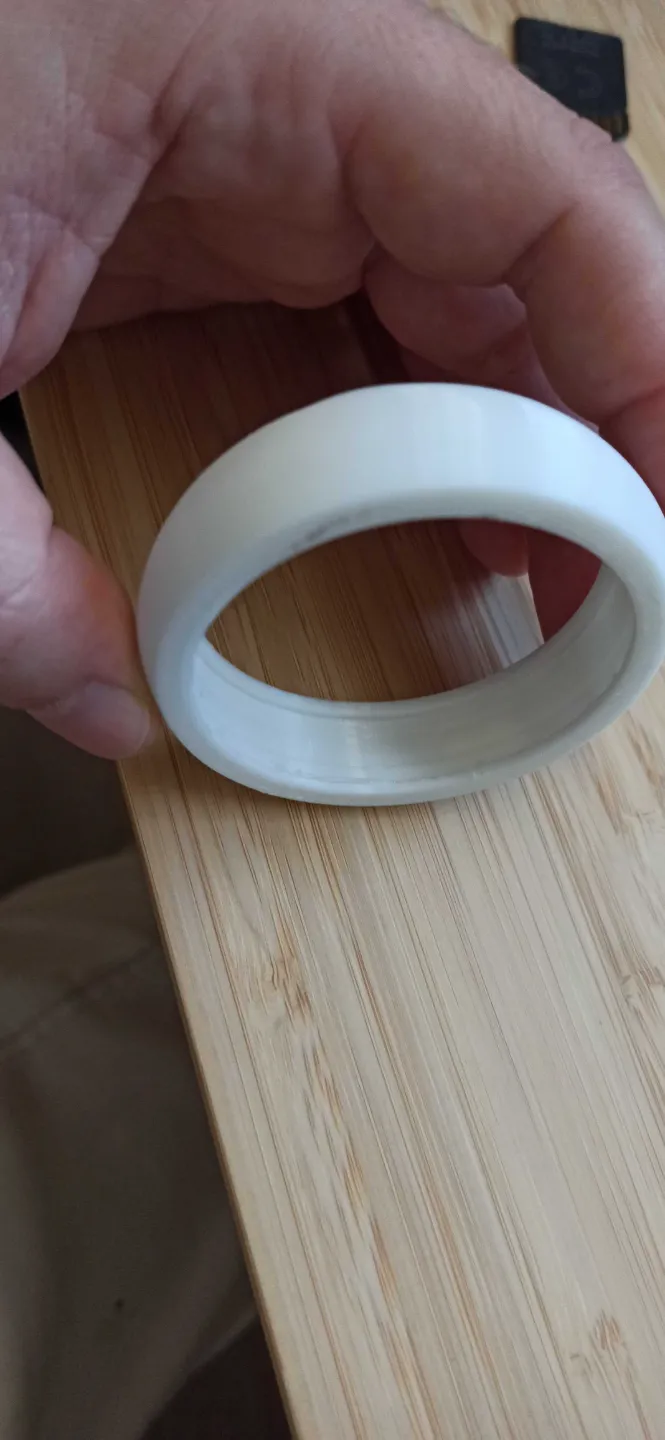

Tyre (Wheel)  Parameters:
- Outer Diameter: 65mm
- Inner Diameter: 55mm
- Axle Diameter: 5.5mm
- Width: 15mm
- Material: TPU 95A
- Print Settings: 15% infill (can be increased for additional durability, but 15% works well)
- Layer height 0.2 mm
- Nozzle: 0.4 mm
- No supports.

Additional Notes:
When disassembling the wheel, you’ll need to remove the rivet holding it in place. This model includes a replacement for the rivet you’ll take out.

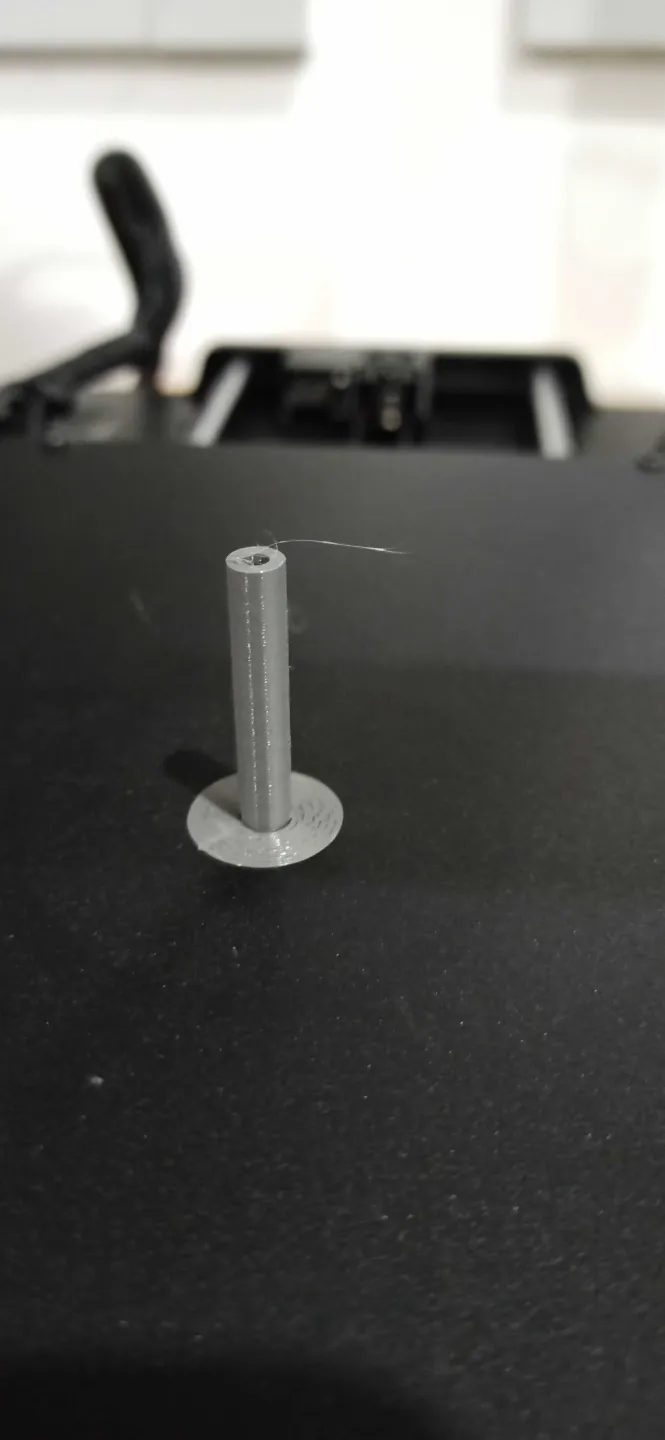

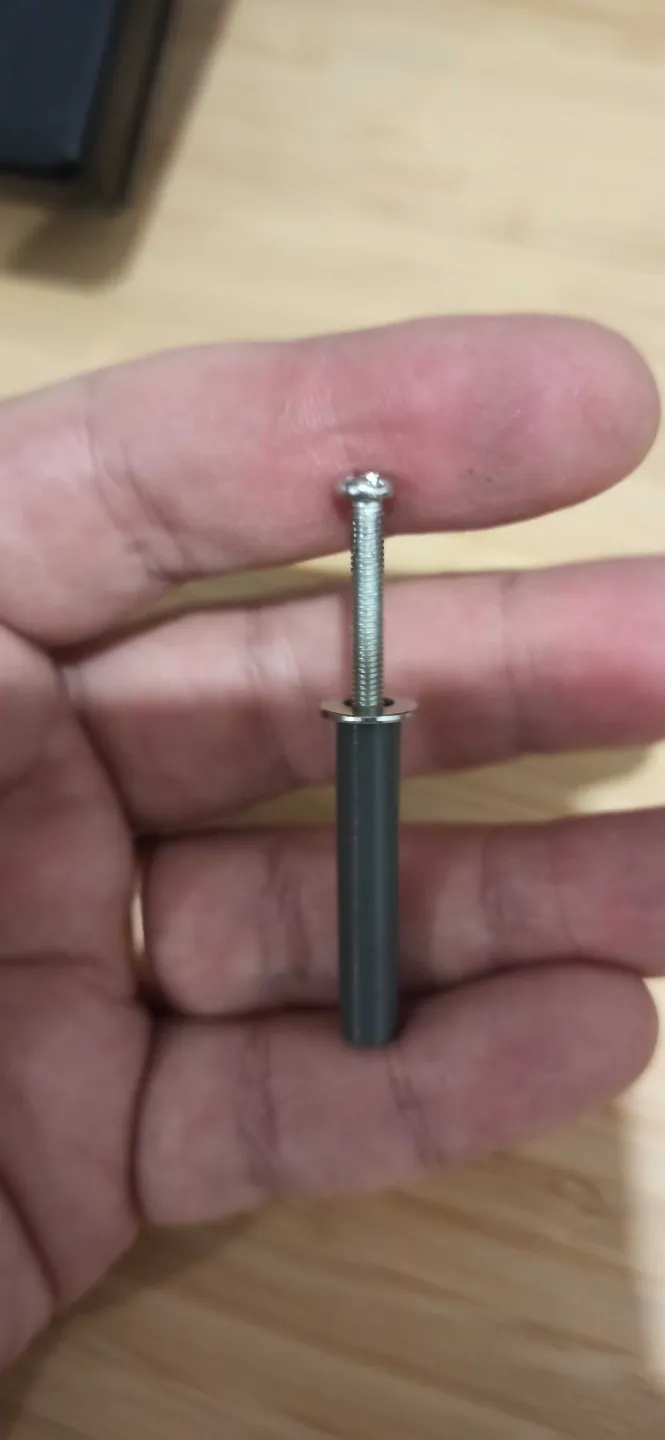

For the bushing (axle) replacement:
- Print it using PETG or ABS for better strength.

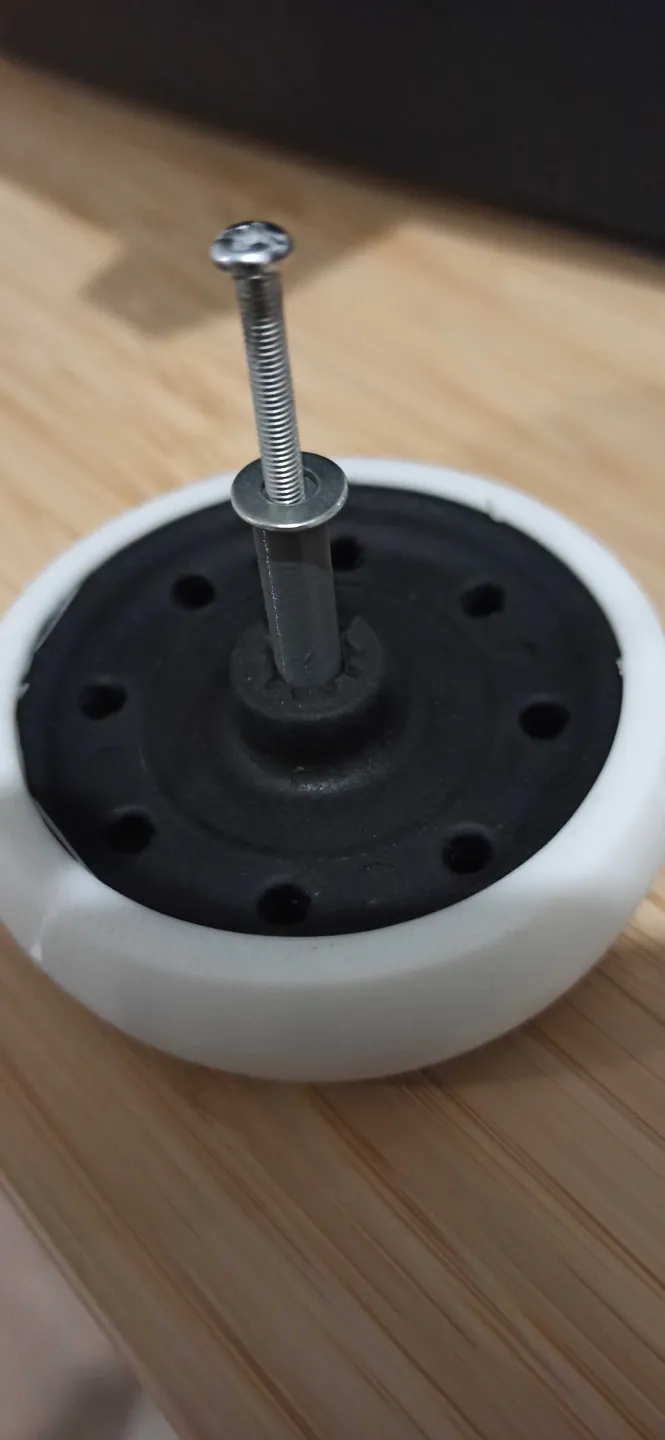

- It is designed to accommodate a 3x35mm screw and an M3 nut for secure and easy assembly.


This design ensures a sturdy and functional replacement for your suitcase wheel tyre. All parts can be scaled.
