Nobsound Amplifier Bluetooth Case
Print Profile(1)
Description

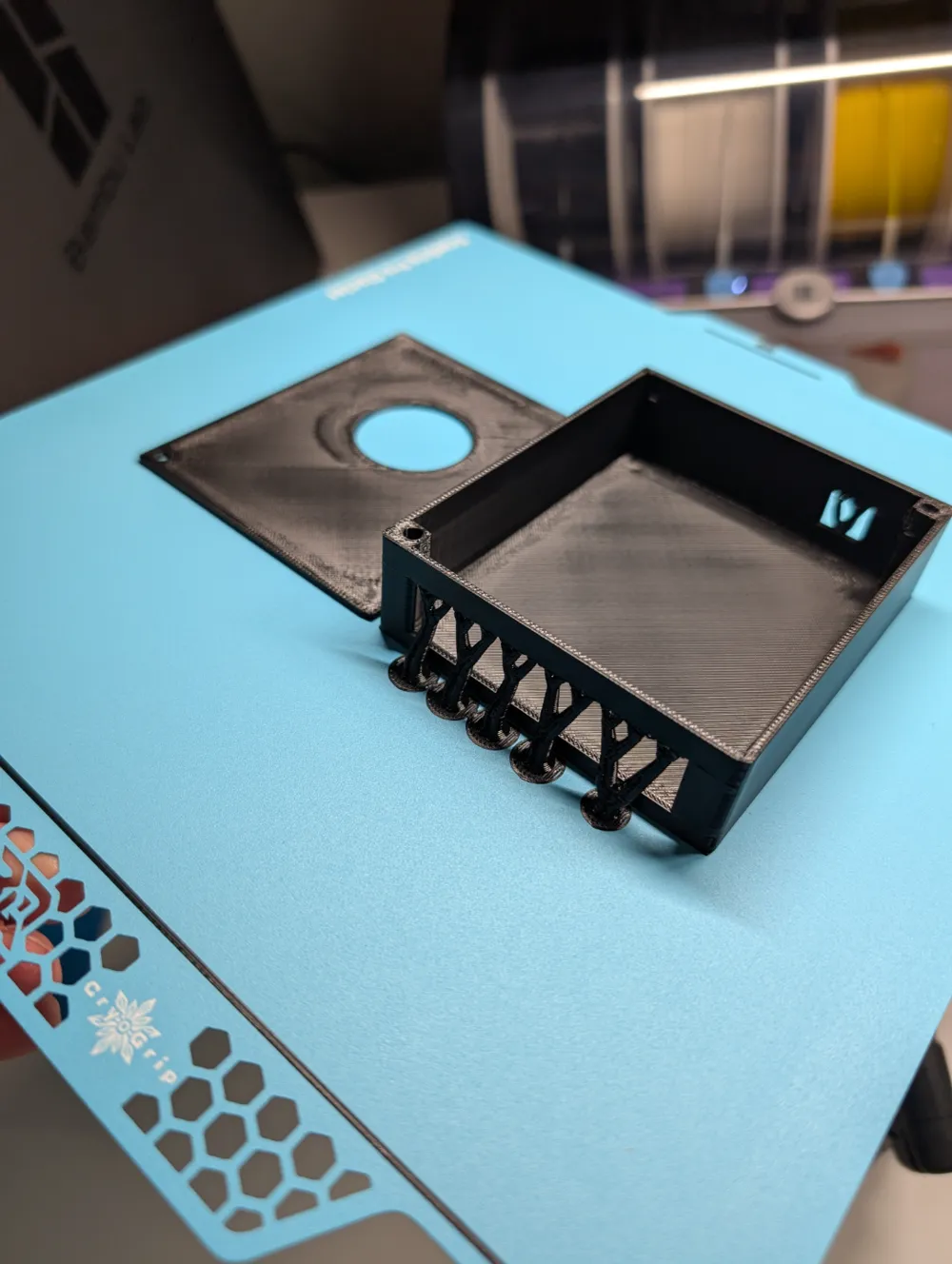

An enclosure for the Nobsound amplifier.
Important this enclosure is solely for Bluetooth functionality, as the side with the jack and USB connection is sealed.
You can easily create the hole on the opposite side within your slicer software.

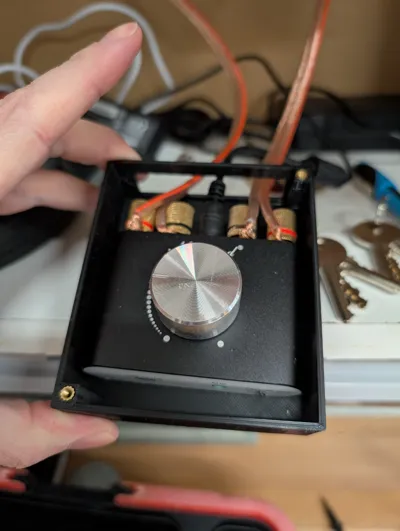

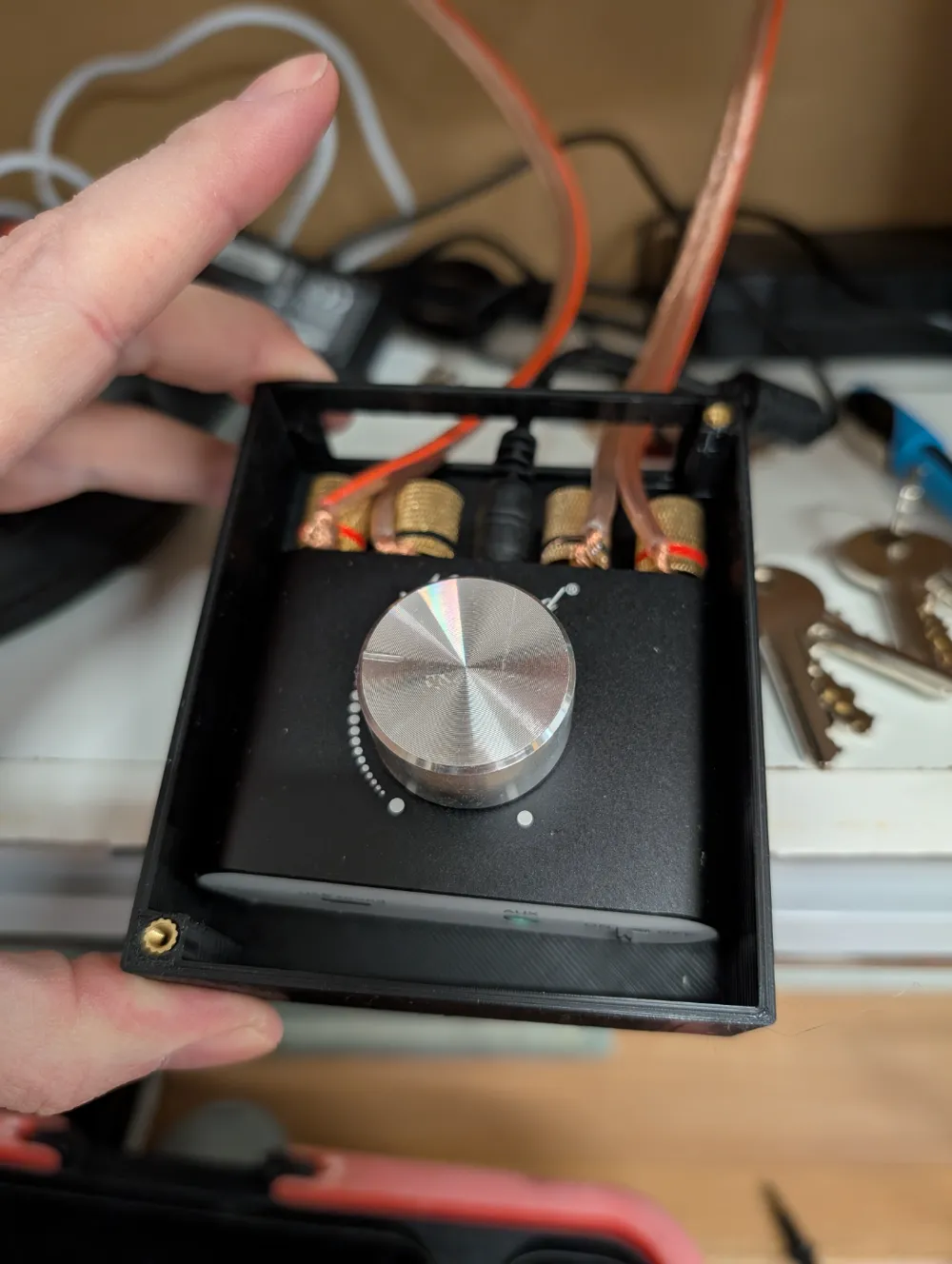

I secured the amplifier using double-sided adhesive tape.

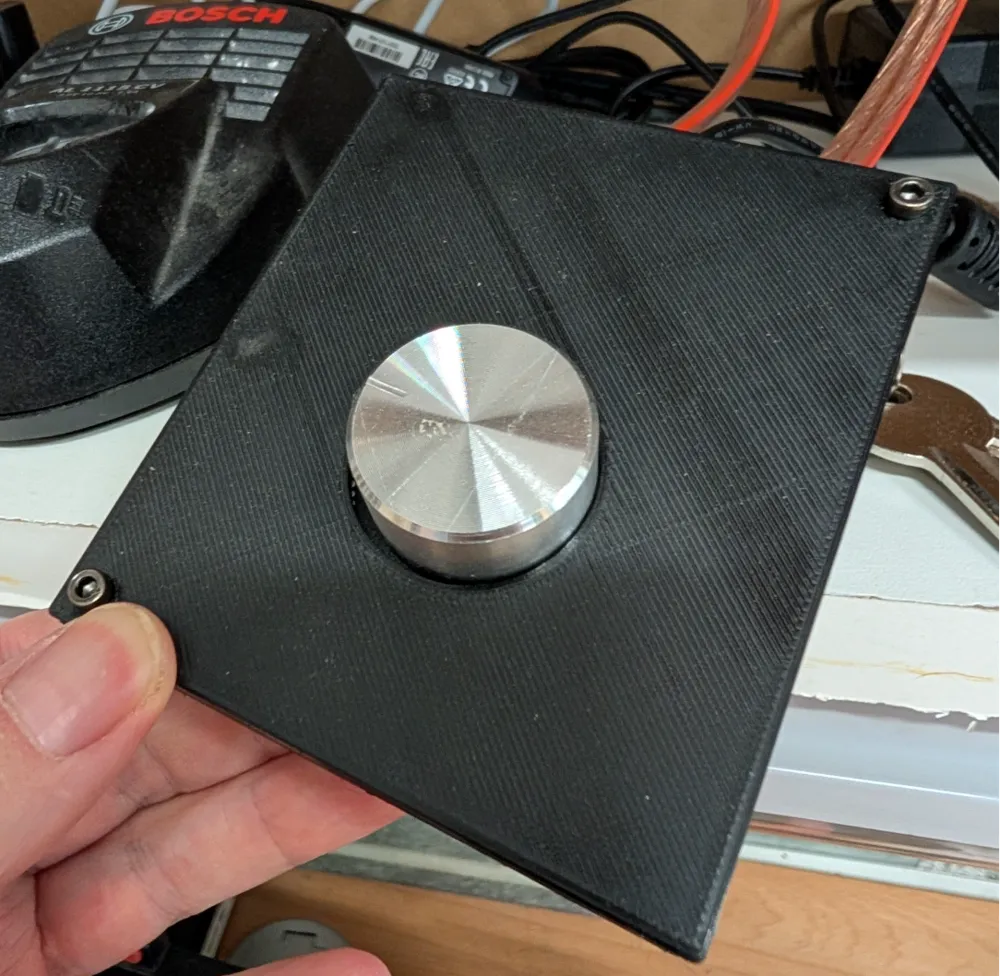

The apertures are designed for M3 heat-set inserts.
In the final image, I created a USB port aperture using the slicer—this is omitted in the current design.
An enclosure for the Nobsound amplifier.
Important this enclosure is solely for Bluetooth functionality, as the side with the jack and USB connection is sealed.
Within your slicer software, you can easily create the hole on the opposite side.
I simply affixed the amplifier with double-sided adhesive tape.
The holes are for M3 heat-set inserts.
In the last image, I created a hole for the USB connection using the slicer—this is missing here.
