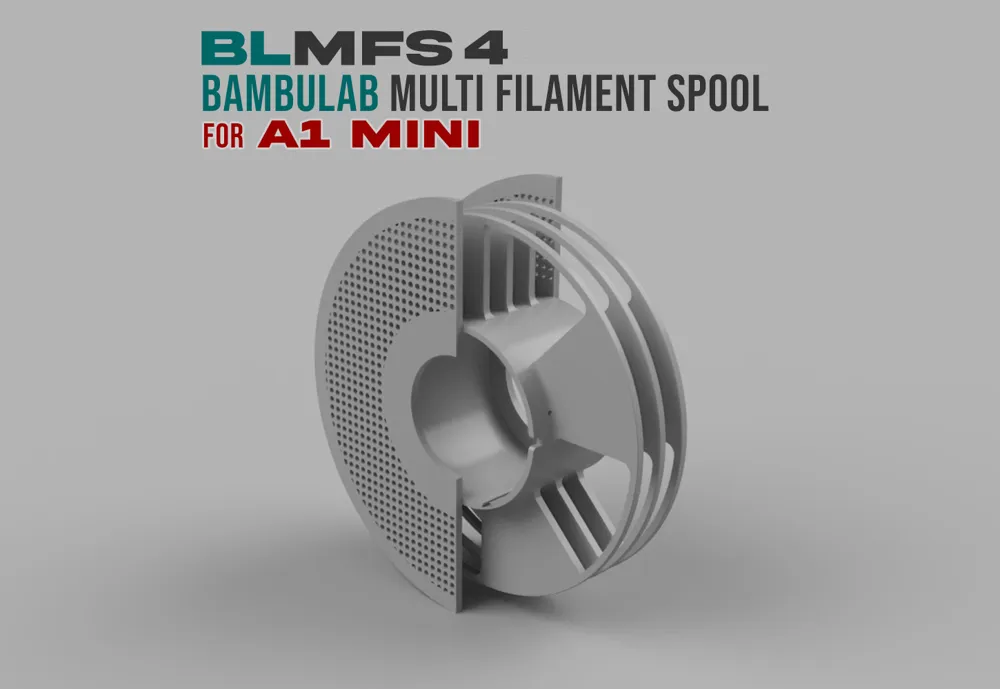

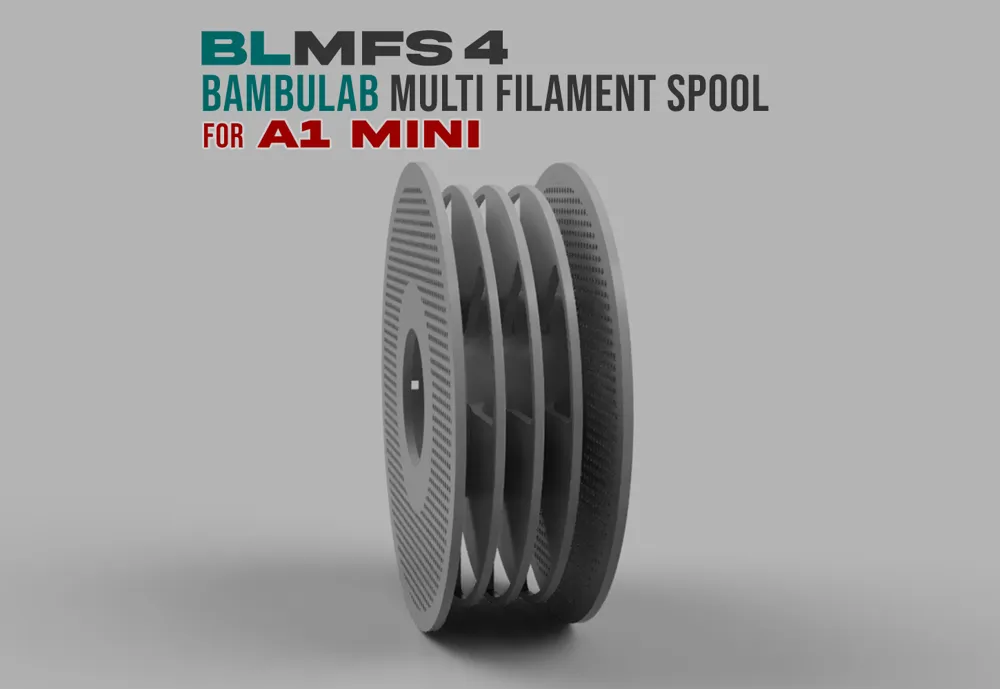

Bambu Lab Multi Filament Spool for A1 MINI ONLY
Introduction

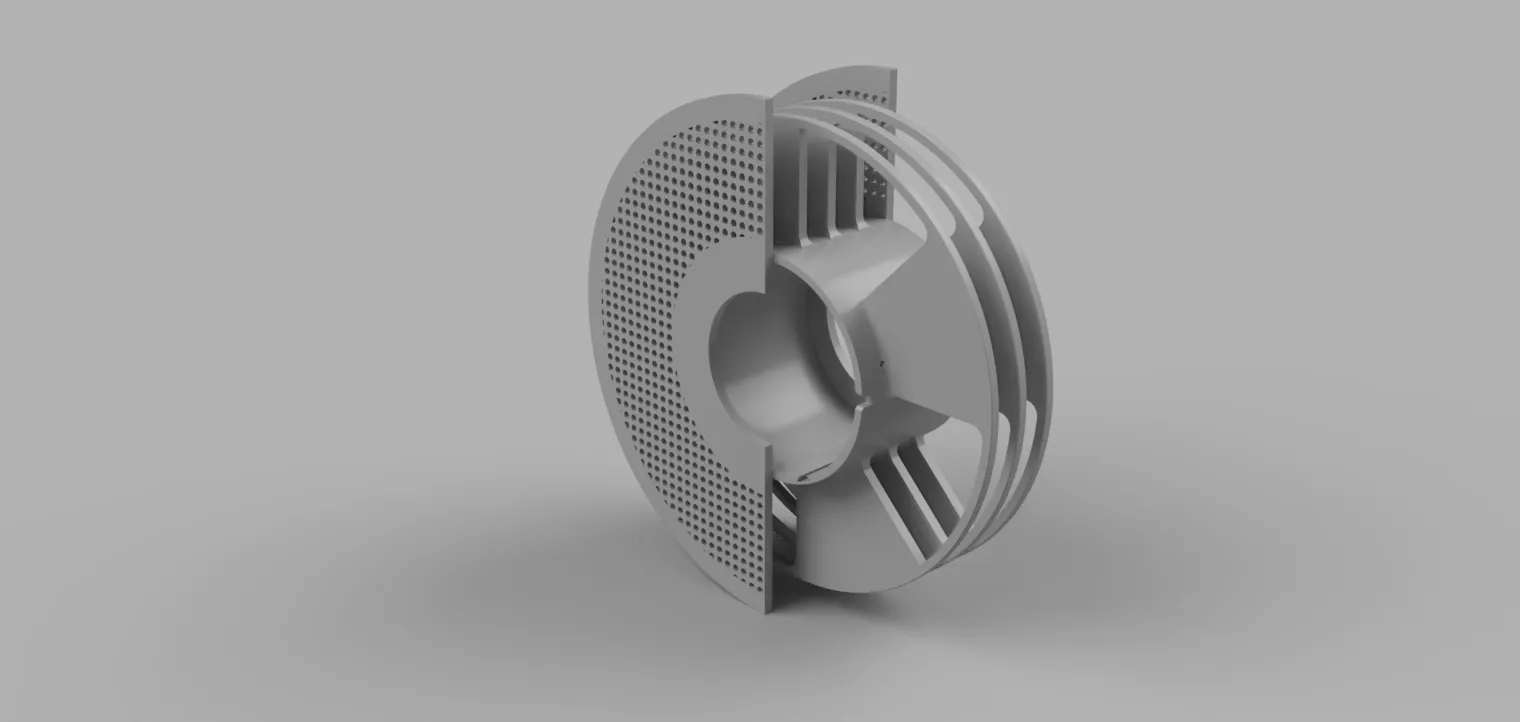

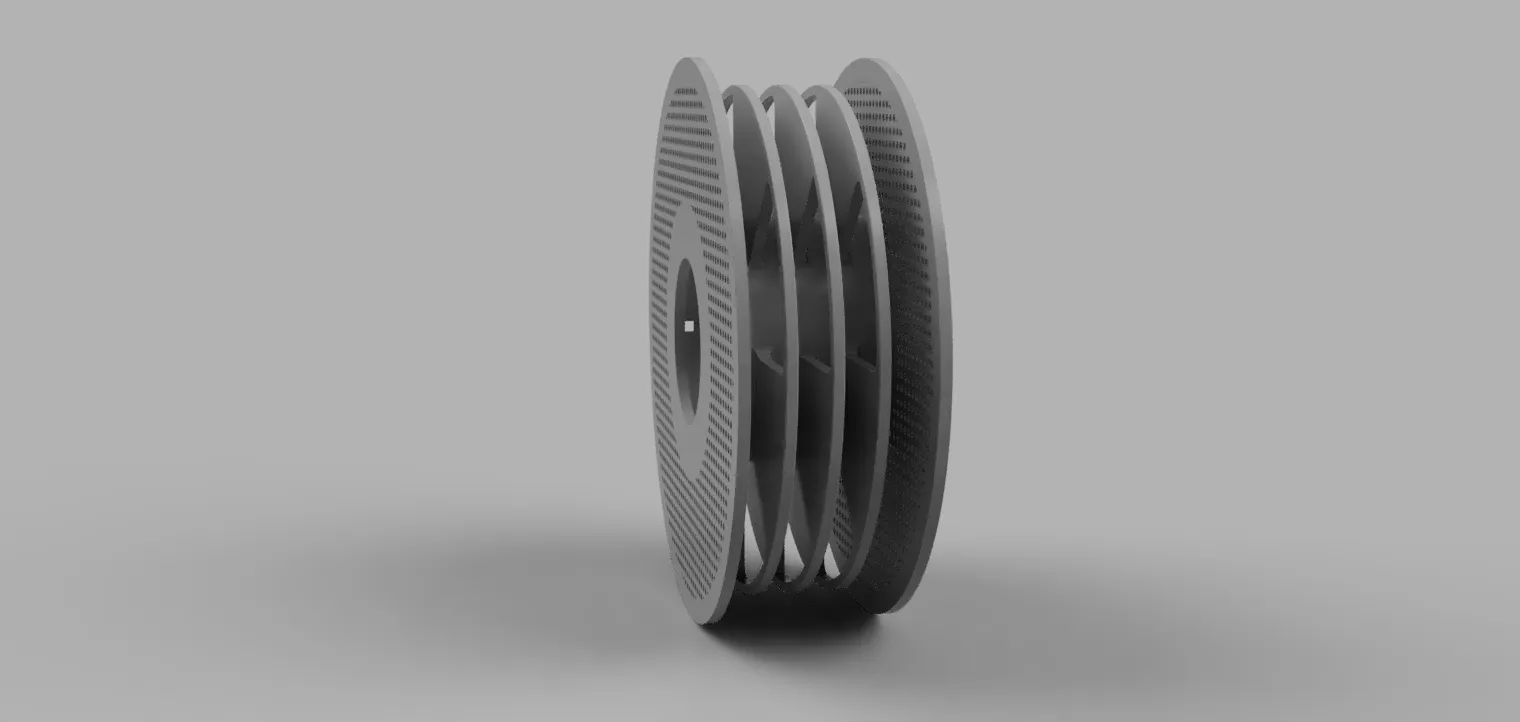

A multi-filament drop-in replacement for the bambulab spool. This model is an adaptation for the A1 Mini Buildplate.
You'll be able to insert up to 4 different filament in a single spool. Useful if you have samples or leftover on many spools.
It is also available a 2 Filament Spool Version here
What you'll need:

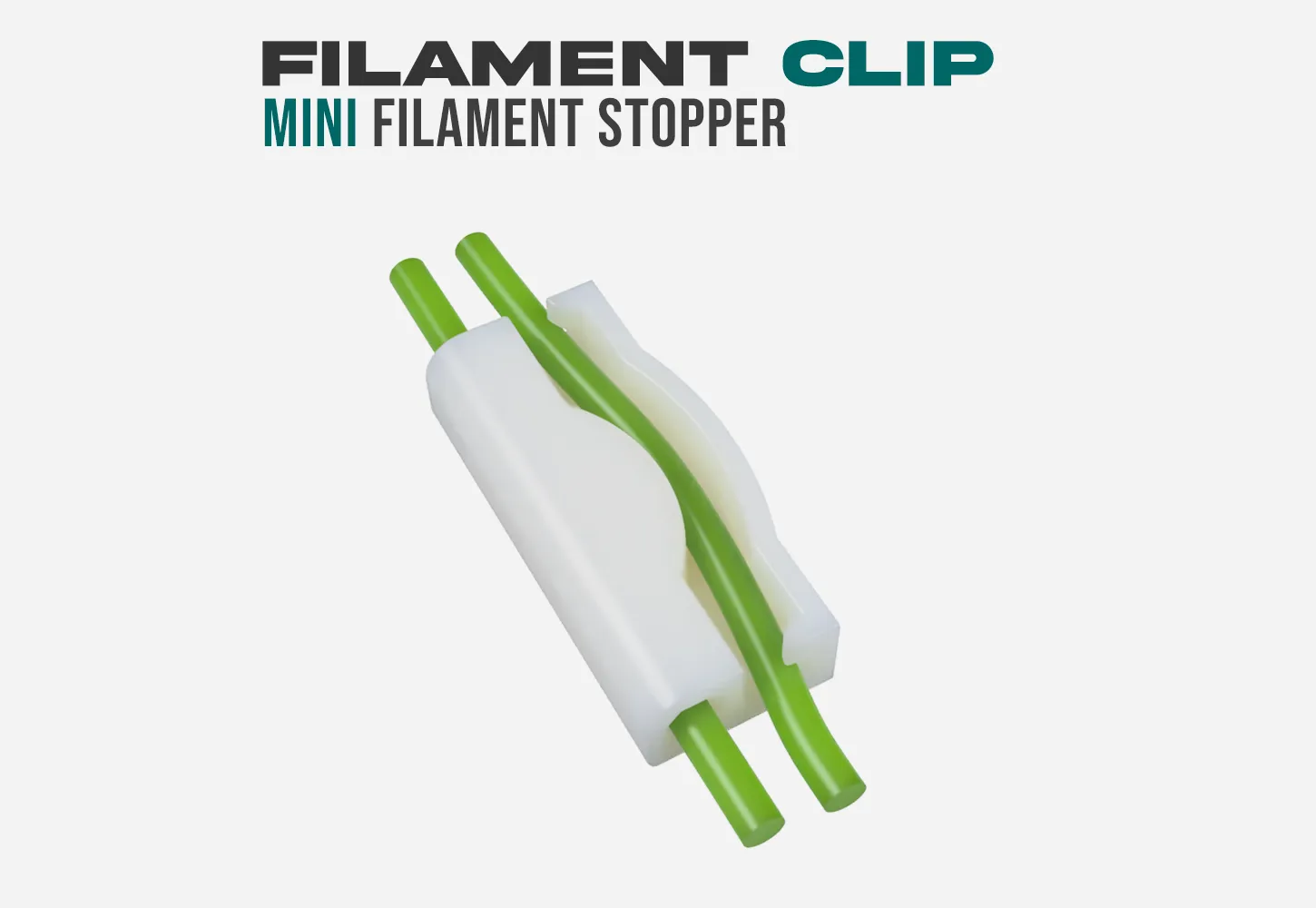

Filament Clip
To stop the filament from unwinding you'll need this filament clip:
Assembly instructions
- twist the bambulab spool to open it in half

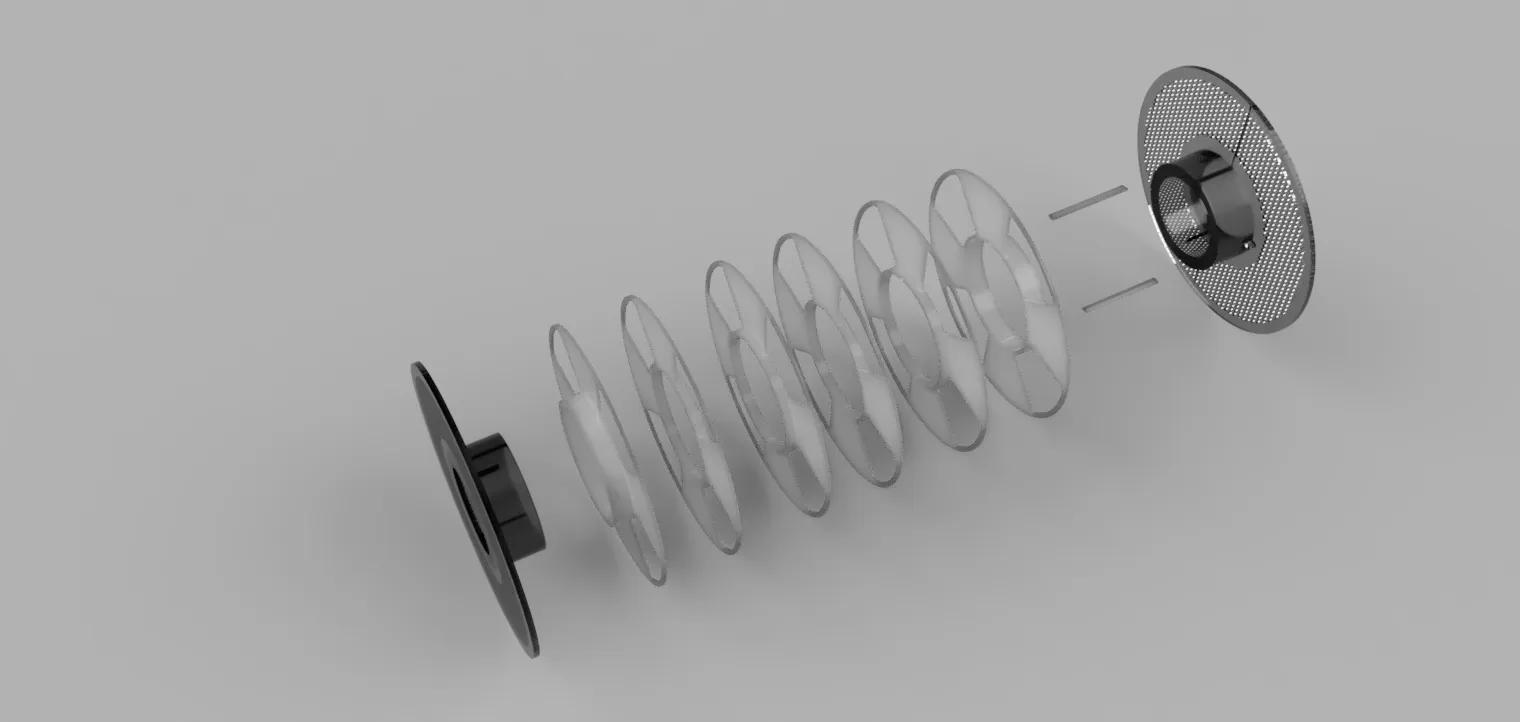

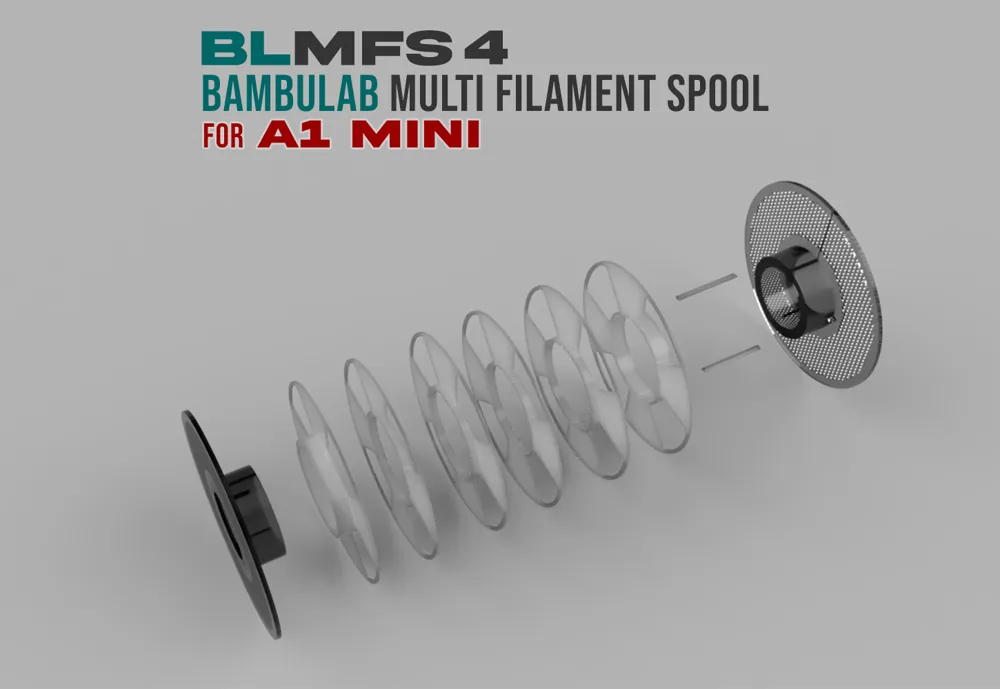

- align every spool disk as shown in the illustration, taking care to align the internal channels
- insert the dovetail stoppers (the 2 trapezoid pieces) inside the channels
- put together the bambulab spool and twist it back in position the 2 halves

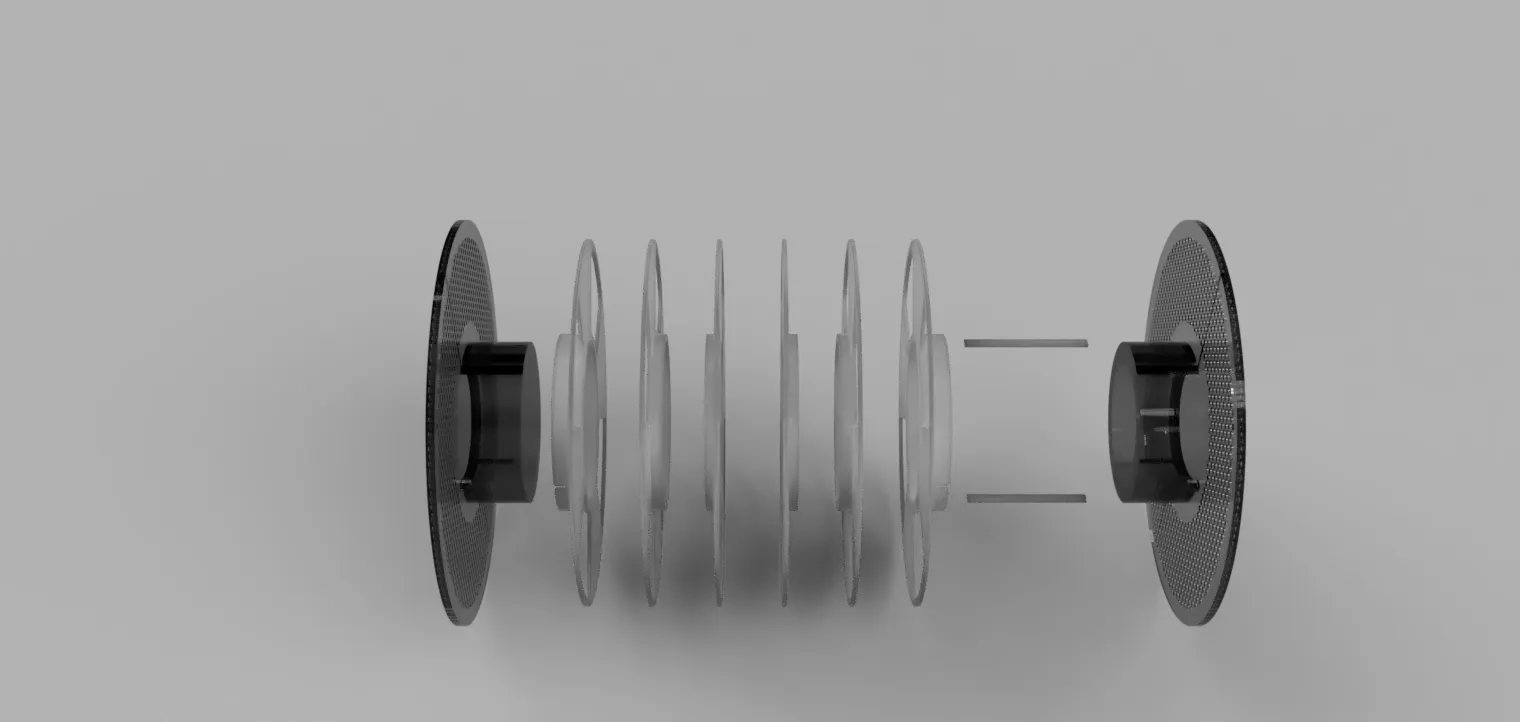

Correct order:

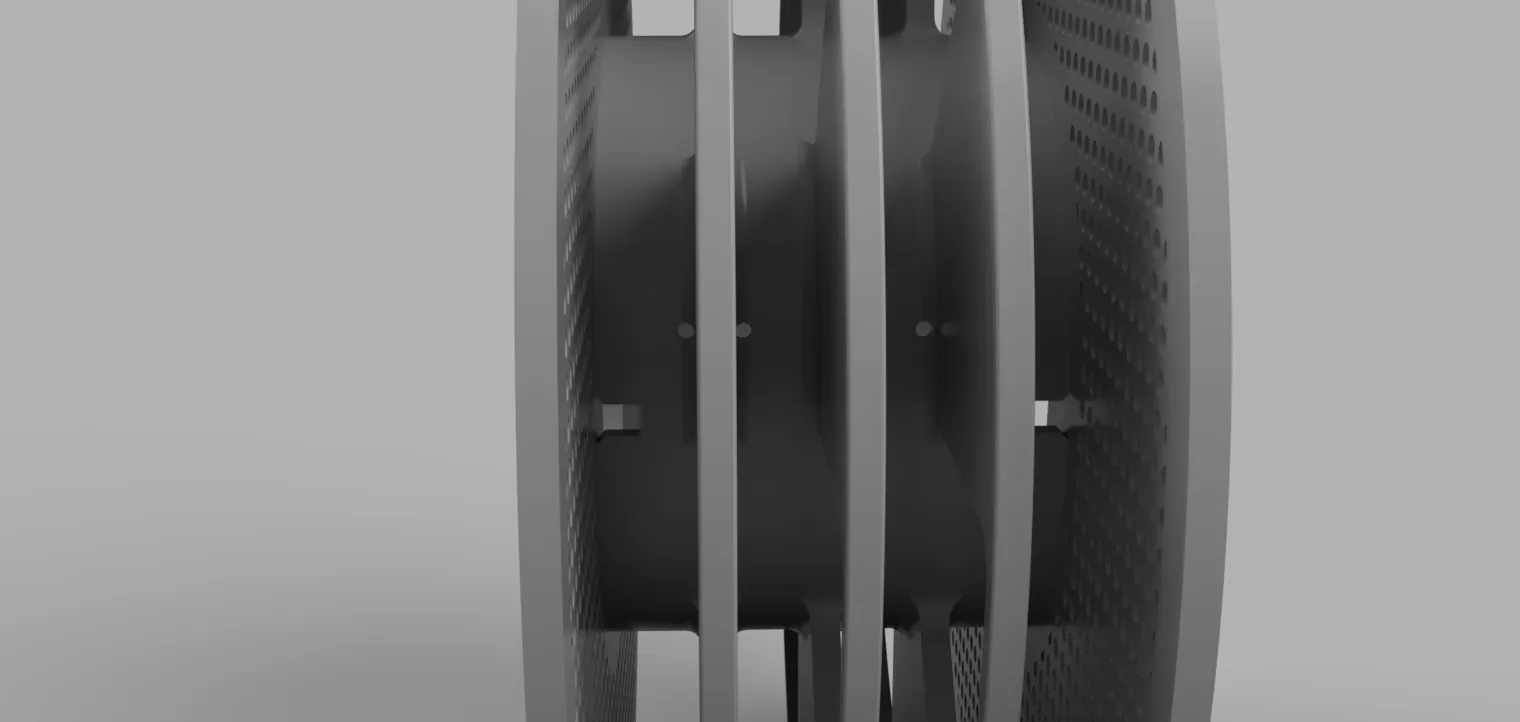

N.B. Align all the holes as shown in the figure below
Filament insertion
- Straighten up the end of the filament
- Fold at 90 degree angle the last 2-3 mm using a plier.
- Put the curved filament in the hole
- Start winding it mantaining tension on the spool for the first couple of turns
