- 4mm steel rod x 1: length is 125mm
Description

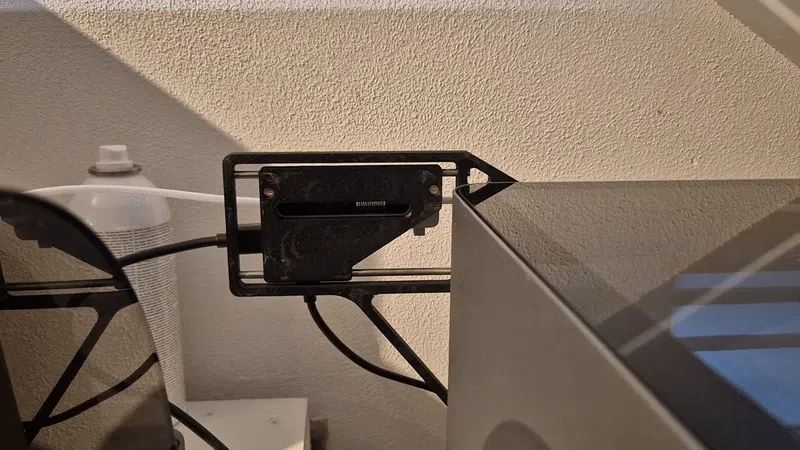

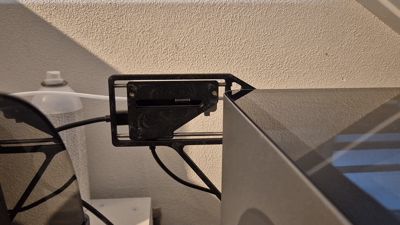

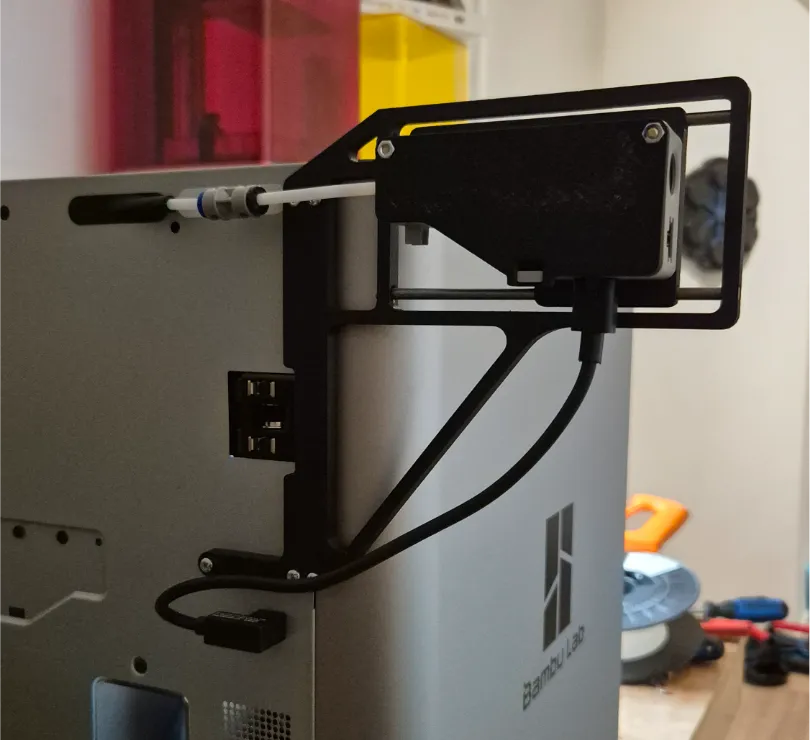

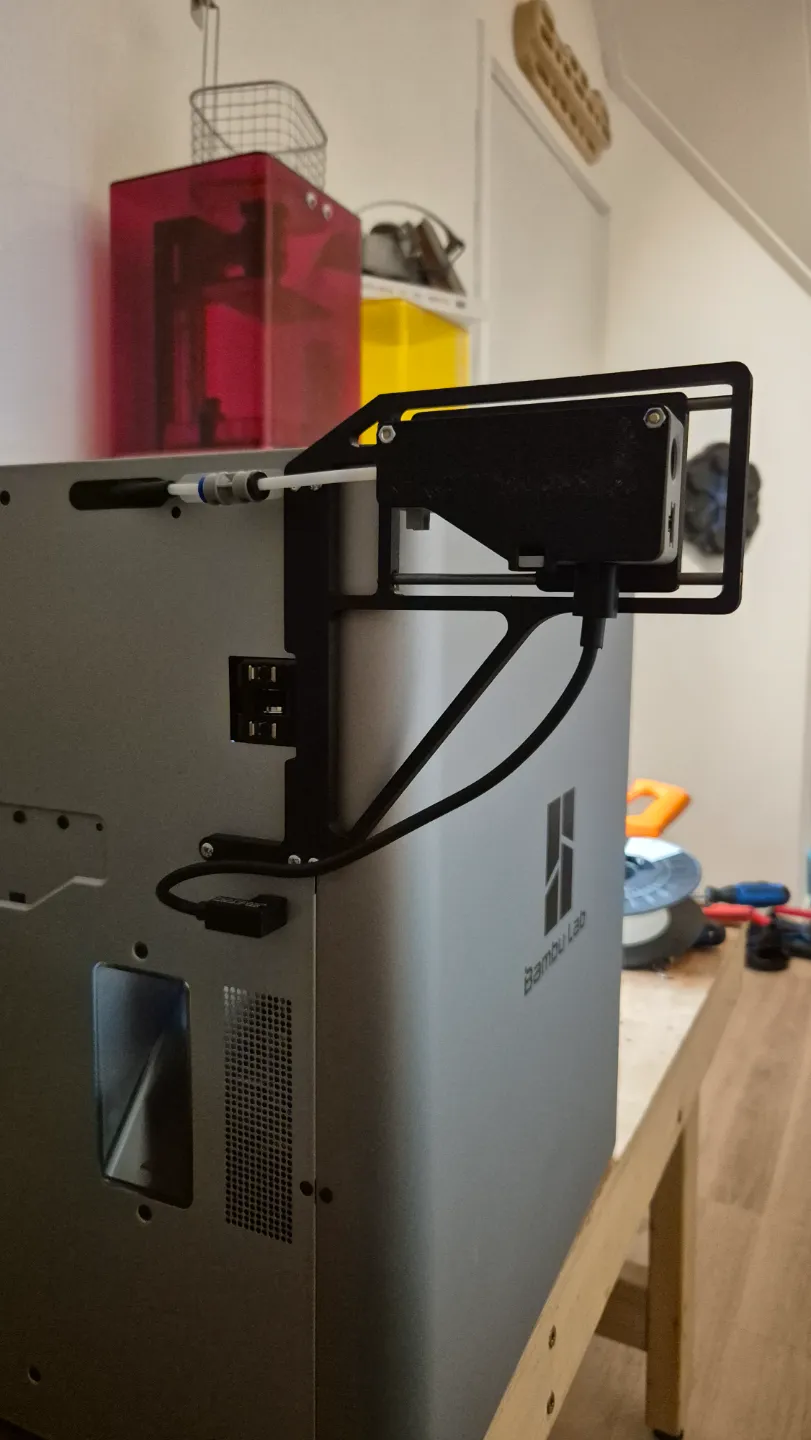

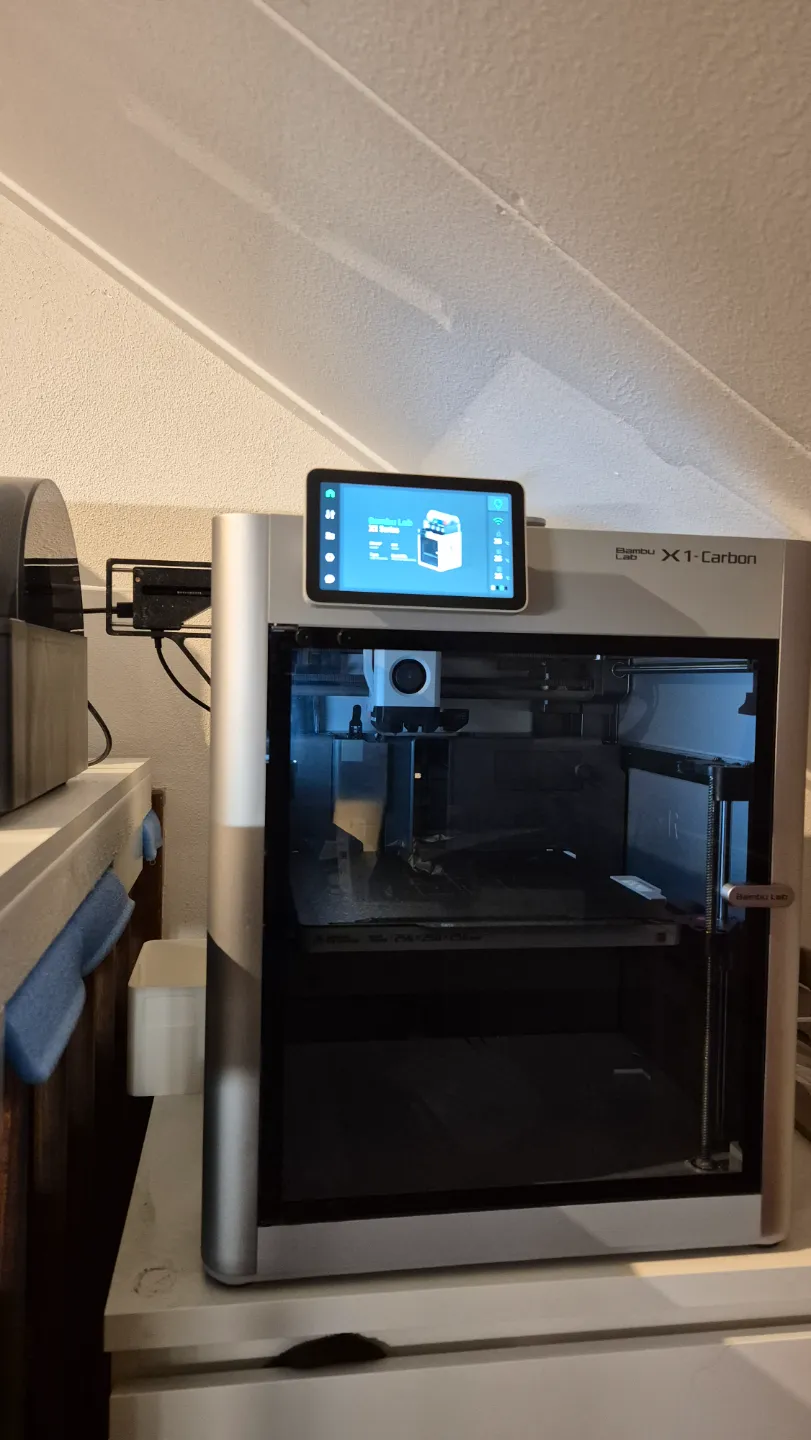

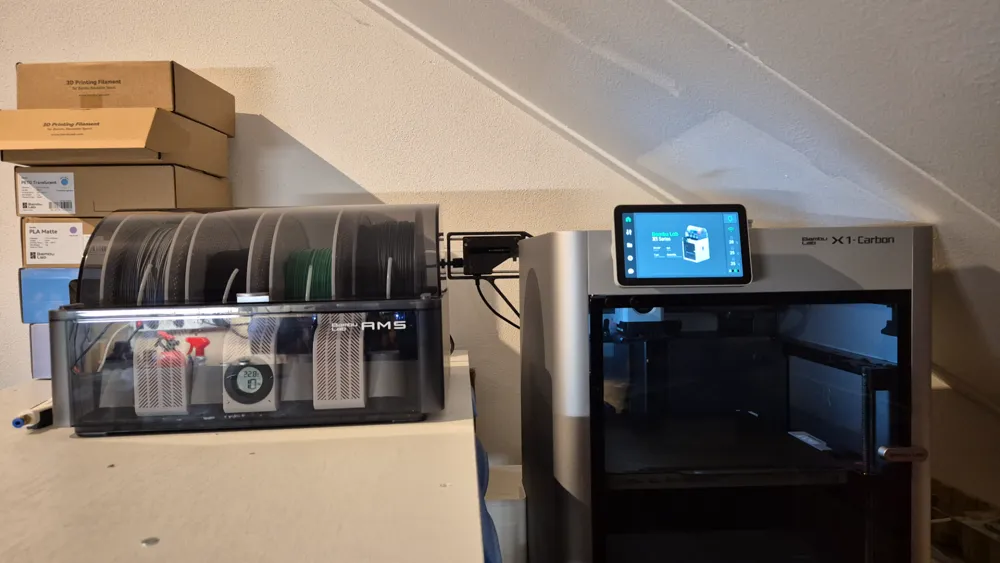

In my current setup, the AMS is positioned on the left side and elevated above the printer itself. To address this, I designed this custom bracket. The AMS buffer is able to slide smoothly along two 4mm steel rods (125mm length), ensuring proper functionality. I used 3x12mm bolts to secure the bracket to the printer. Additionally, there is a spacer for the spool holder, though I have not tested this yet—longer bolts will be needed for this setup.
I also plan to create an updated version that will be compatible with the Smoothie Splitter.
I hope this solution proves helpful for anyone facing a similar challenge!
