Description

Ultimate challenge OTF NANO keychain box opener x-acto.



Have a knife day!   Branched from Over-engineered OTF into mini version. Good for benchmark test. Also very nice as a gift!

Lots of patterns. Fully 3D printed. Upgradeable.

(This is a over-engineered model. Please always print using a print profile and DO NOT try to slice it yourself!)

Boost Me (for free)

After boosted, message me to get the handle with cutout windows!

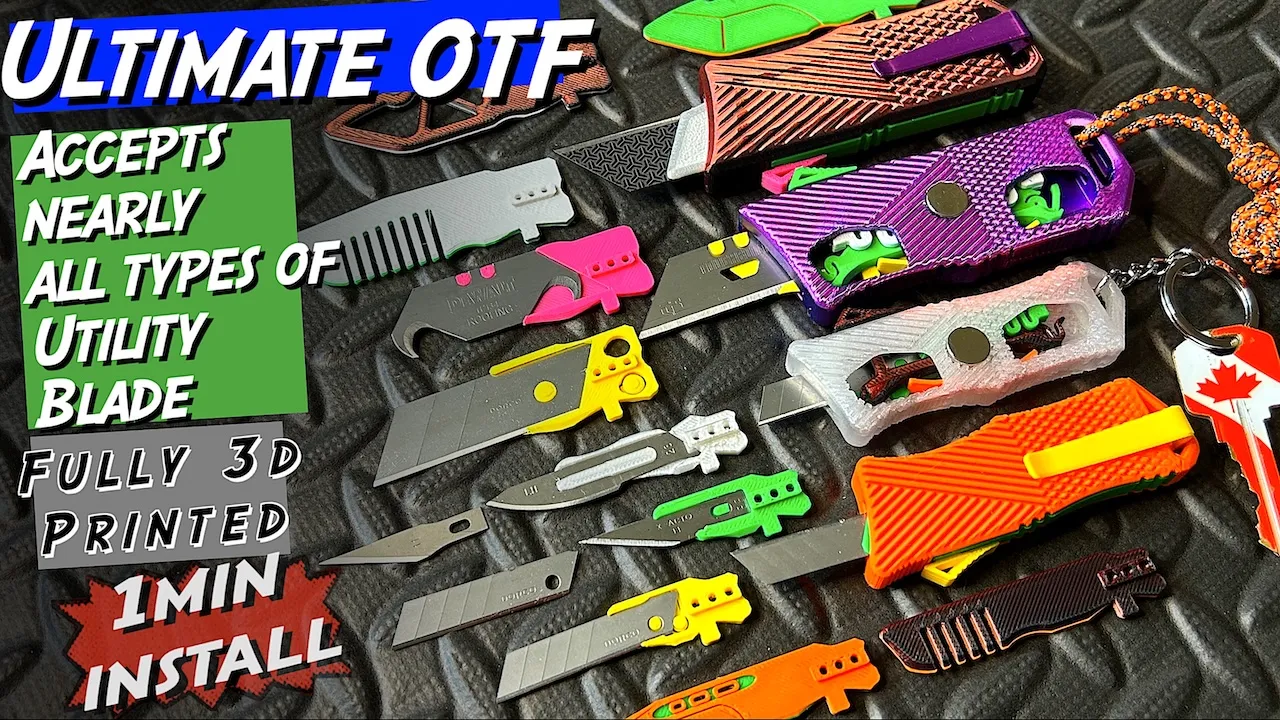

Looking for the right Utility Blade Holder, Xacto, 9mm, 18mm, trapezoid? Check my model list. :P

This accurate model requires printing using the most reliable filament and printer settings. Good as a benchmark testing your machine and filament setup. If you are confident in your settings, you may want to try changing the filament. But you can also try the spring kit profile. This will, to some extent, force the overturning of certain errors. Please let me know the results. Good luck.

The main problem is warping: The front cut out becomes smaller. The blade failed to catch the spring for ejection.

Filament issues: The push lever is difficult to move(a common problem with silky), or if the parts need to sanded, this means you need to try a different filament colors/types.

Installation issues:  The latch lever is oriented in a "V" shape, not an "A" shape. Pull the blade all the way out (reference time 1:06 in the video) and the latch lever will prevent it from returning. Now you can install the top cover.

(Don't blame a model or print profile by giving a low rating. It won't help you to be successful with your next print at all!)



Based on the review feedback, you'll definitely want to print more than one to show off. So consider using monochrome printing and then mixing the parts. Save both times and materials.

****No hardware required.  But if you want to use metal spring, here you go the upgrade kit using BA001, BA002

****Based on my experience, not all PLA filaments are suitable for precision printing.

**** Profile well testing using PETG-HF and PLA Basic, Sparkle and Marble. Strongly suggest PETG-HF, especially for the spring. And the PLA Silk Dual Color is not good for this precision print.
****If mixing filament types (e.g. PETG with PLA) for multiple colors, it is best to disable flow calibration.



Yet another OTF fidget, Anti-anxiety, ADHD.

More pattern and print profile to be updated.



This one shares the same Build video link of the full-size version.

Or using metal spring upgrade kit.

Total 6 Parts



4+1 types of handles

Many patterns (to be released. Follow me, stay tuned! And you can always suggest patterns.)



Get the OTF Mini Comb Kit



Bill of Materials

Bambu Filaments
A00-K0-1.75-1000-SPLFREE
× 1
A00-A0-1.75-1000-SPLFREE
× 1
A00-W1-1.75-1000-SPLFREE
× 1
A00-Y0-1.75-1000-SPLFREE
× 1
A00-G6-1.75-1000-SPLFREE
× 1
Buy Now
Download BOM

Comment & Rating (251)

Please fill in your opinion
(0/5000)

This looks like a beautifully designed set. As a suggestion, would you be able to create a version that accepts a standard utility blade? See image attached.
The designer has replied
3
Reply
Alright, so many similar request. As you are all wish. A new one will be release with this blade. Follow me, stay tuned!
4
Reply
Replying to @iczfirz :
That would be great! Thanks for the quick reply. I’ll stay tuned 😊
(Edited)
0
Reply
Replying to @kolect :
As you wish! https://makerworld.com/en/models/1010158 Don't forget to boost and post your made.
2
Reply
Print Profile
Slim Pattern E. Must use less warping filaments
The amount of purge waste is a bit unnecessary. Would prefer the parts to be split into plates to reduce purge waste and save on time too.
The designer has replied
2
Reply
Why? We don't need to split into plates. You can always unselect parts to print in studio or handy app.
3
Reply
Replying to @iczfirz :
That would mean it's just another step someone has to be aware of before hitting print otherwise there'll be a lot of purge waste. It would be a bit more organised and clearer to understand what exactly I'm printing if certain parts are split into plates. There are a lot of print profiles that don't make it clear what is what especially when all pictures are the same. A possible alternative is to simplify it to 3 profiles with one that has different handles + spring, one that has the main latch, and one that has different blade options. This will ensure low purge waste whilst having a clearer overview of what to be printed.
(Edited)
0
Reply
Replying to @iczfirz :
Consider something like this with print by object on, you can print the entire knife with blade in a little over one hour with 4 filament swaps. Faster and less waste than the way you are providing it to people.
(Edited)
0
Reply
Boosted
my blade is not coming out completely. This is as much as it comes out i don't know what the problem is becouse when I reverse the blade it moves perfectly
The designer has replied
0
Reply
Reverse the blade?
0
Reply
Boosted
how would I reverse the blade?
0
Reply
Boosted
Replying to @iczfirz :
i followed the introduction exactly it's just the blade doesn't want to come out for some reason
0
Reply
Print Profile
Slim Pattern A. Must use less warping filaments
cute little knife. not all filaments print accurate enough! keep that in mind if it doesn't work. I recommend just regular pla. that's worked the best in my experience.
The designer has replied
1
Reply
Is it silk/metal pla and black basic pla?
0
Reply
Replying to @iczfirz :
it was silk rainbow, but as you see it's small so it wasnt able to use enough material to switch colors. and the blade is regular black yes. both off brand filament but works great. I just have to print a seperate spring because if I recall correctly it uses the same material for the spring as the body, and silk is too fragile for that.
0
Reply
Replying to @user_753067569 :
No wonder. Coz all silk parts will stick together. :P
0
Reply
Print Profile
Standard Inflate Pattern E. Must use less warping filaments
I was skeptical at first but wow, some pretty cool engineering you put into this. no wiggle or anything. Works better than my real OTF knife made in China lol. This will be a great tool to have for opening packages or other various cutting activities. make sure you put the blades in the right way. I'm a dodo and was trying to put it in backwards wondering why it wouldn't fit :)
The designer has replied
1
Reply
Also good as a print bed scraper
1
Reply
Replying to @iczfirz :
Are there any plans to make it so once the blade that is being used, goes dull, you can pop it off and use the next 2? Not sure if putting one little blade in at a time will work? Hate to throw away 3 blades because 1 is dull
0
Reply
Replying to @Texas3DPolymers :
For safety issue. Coz it need good contact point to secure the blade. Base on my test and development, 3 segments is the minimal. 1 segment will pop off easily.
1
Reply
Print Profile
Just a Dummy Blade
Printed fine but having either blade or latch seems to be getting stuck. Any suggestions to get it smooth?
The designer has replied
2
Reply
Latchplate and blade updated. Please reprint. :P
2
Reply
Replying to @iczfirz :
Updated model works much better, thanks!
1
Reply
Print Profile
Standard Inflate Pattern A. Must Use less warping filaments
Printed the 75% one this time and it is siggity sick!! Super clean print that works incrediballs. Love it and keep up the good work! My son(7) is obsessed and is gonna get suspended from school for playin with these in class 🥴. Not really, we live in Utah and we encourage things like that here.
The designer has replied
2
Reply
Get him a comb blade upgrade and he will be more than happier.
0
Reply
Boosted
Great quality print!
The designer has replied
1
Reply
Parts updated. Next print will be smooth fidget. :P
0
Reply
You can now get a matching mini comb upgrade for your mini!
0
Reply
turned out a little big
The designer has replied
0
Reply
LoL. 2x'ed?
1
Reply
Replying to @iczfirz :
yea 200%
0
Reply
Print Profile
Slim Pattern A. Must use less warping filaments
Printed very well! these things are very fun and fidgety (added vegetable oil for better sliding)
2
