Gridfinity Bin - Infill Reference

🔬 My Physics Education Contest Entry: Exploring Infill Patterns

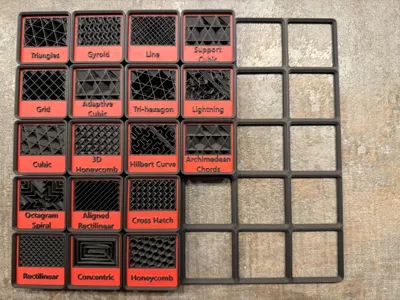

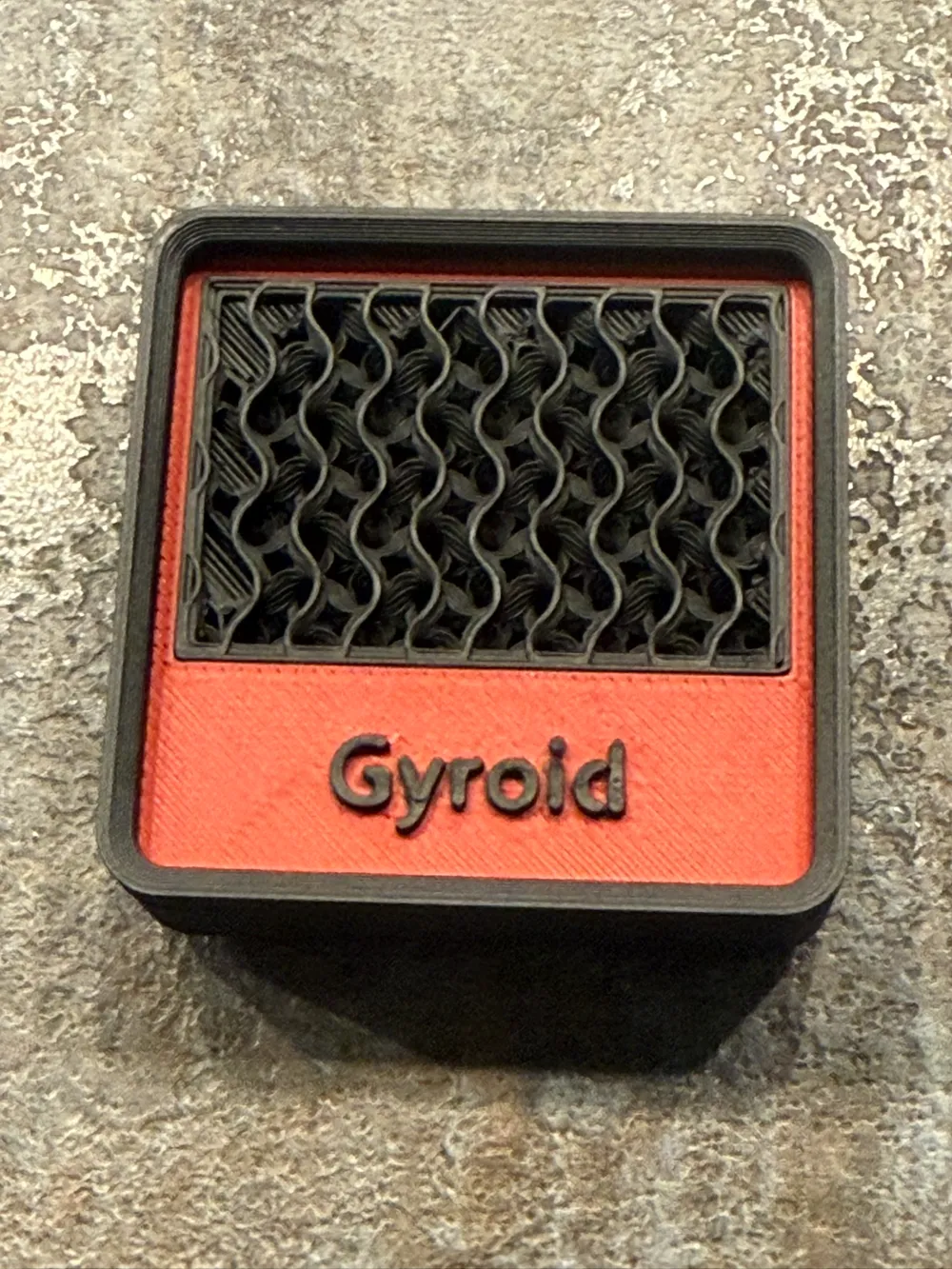

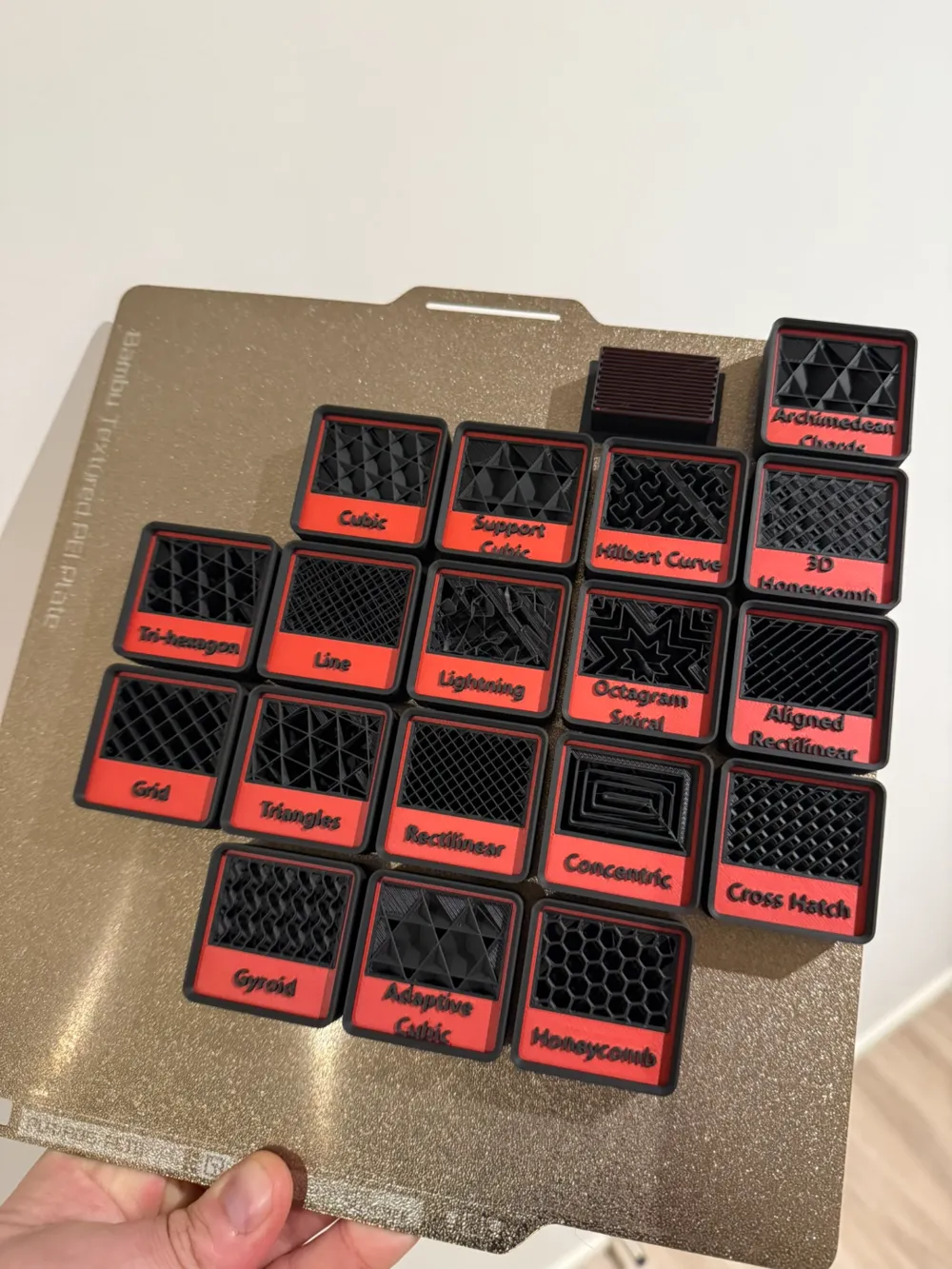

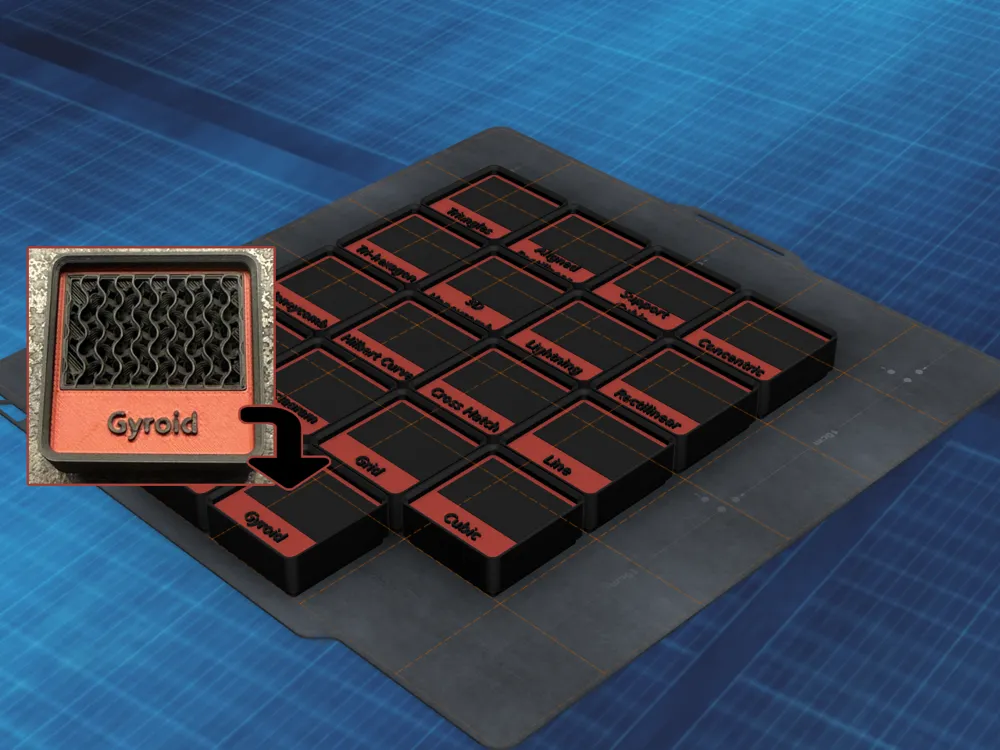

Ever wondered how different infill patterns affect the strength, weight, and overall performance of a 3D print? This 1×1×2 Gridfinity model is my official entry in the Physics Education contest. It’s designed to help you explore key concepts in density, structural integrity, and material usage—making it a perfect learning tool for both physics enthusiasts and curious makers alike.

🌟 Support My Work

I would greatly appreciate it if you boost my models! Your support helps me keep creating and sharing new designs. 😊

📝 About the Model

Please note❗ -This model is 2U High, instead of the 5U I normally use in my models.

I design all my own Gridfinity bins because the quality, height, and features of those I’ve found vary a lot. These bins are made for my personal use, but I’m happy to share them with the community.

📦 More Gridfinity Models

Explore my full collection of Gridfinity models here.

🎨 Two-Color Support

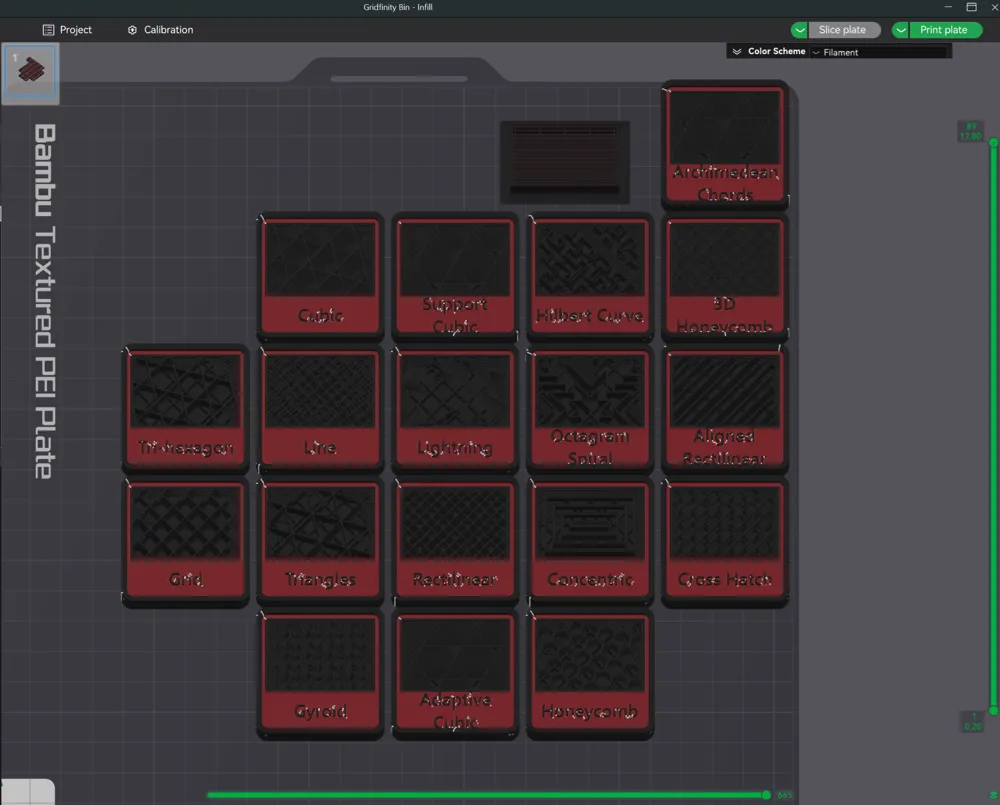

All my models support two-color printing as a default, such as Bambulab Matte PLA Charcoal (11101) and Overture Grass Green PLA. However, it’s not a requirement to use both colors—you can simply select the same color for both in Bambu Studio.

📄 Specifications

• Screw holes fit M3 screws
• Magnet sockets are designed for magnets with 6 mm diameter and 2 mm thickness
• For detailed Gridfinity specifications, refer to Gridfinity Specification

🛒 Recommended Supplies

These are affiliate links for Amazon.

• M3 Screws: M3 Screws - Amazon Affiliate Link
• 6x2 mm Magnets: Magnets - Amazon Affiliate Link

💬 Feedback

I’d love to hear your thoughts and suggestions! Feel free to comment or message me directly to provide feedback or ideas for improvements.

📜 Version History

• v1.1 (2025-01-14): Archimedean Chords was set to a wrong infill type, Thanks to blank_lemur for letting me know.
• v1.0 (2025-01-13): Initial Version
