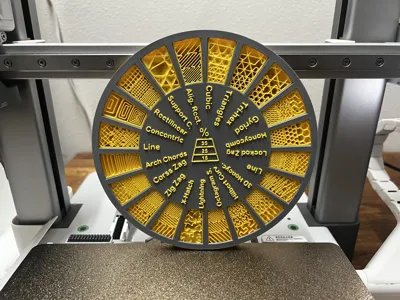

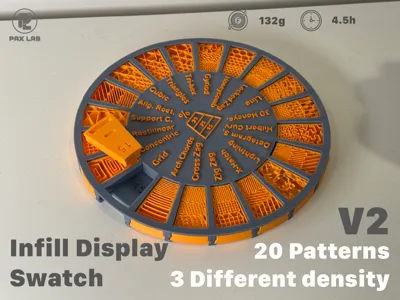

A comprehensive infill reference tool featuring 20 different infill patterns, each displayed at three density levels: 15%, 25%, and 35%.

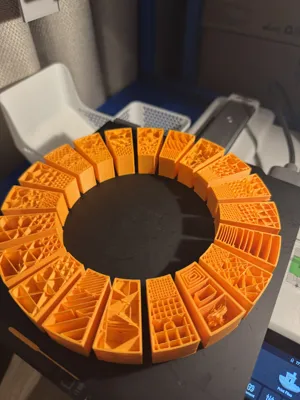

This rounded swatch board helps you visualise and compare how different infill patterns look before committing to a full print. Perfect for:

Choosing the right infill for strength, flexibility, or material savings
Understanding how density affects appearance and structural properties
Educational purposes and material testing
Quick reference when planning your prints
