Description

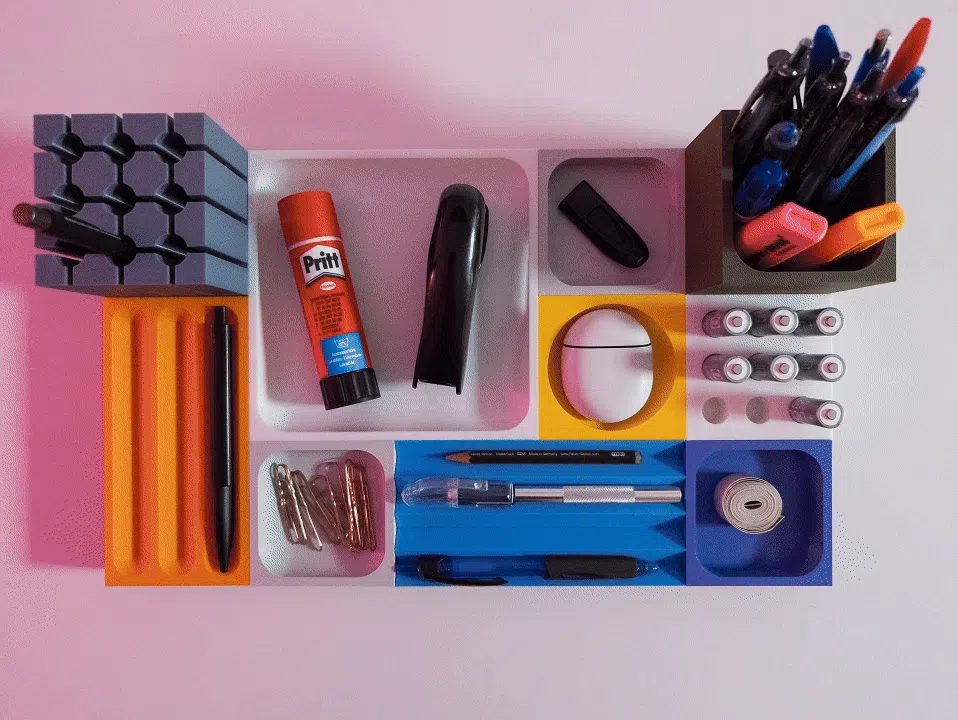

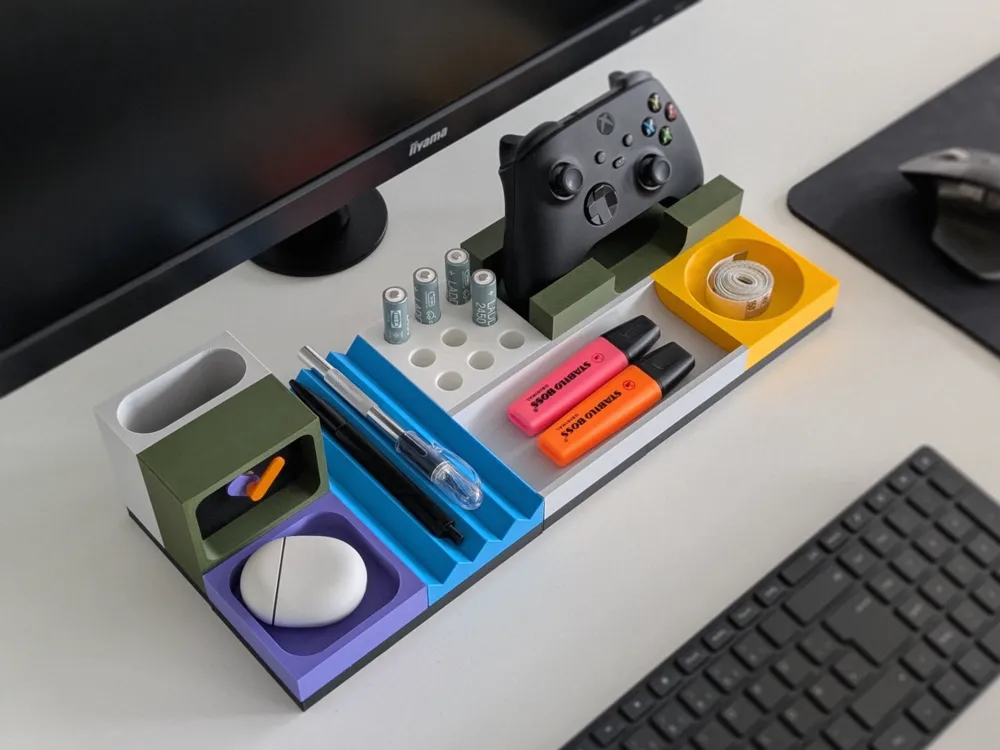

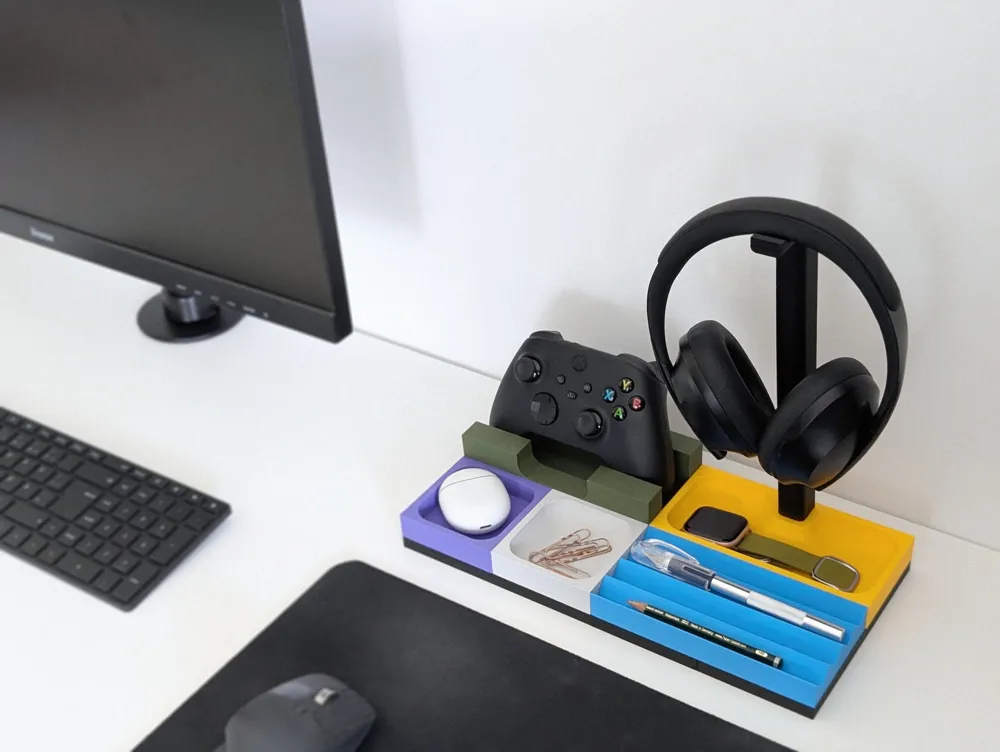

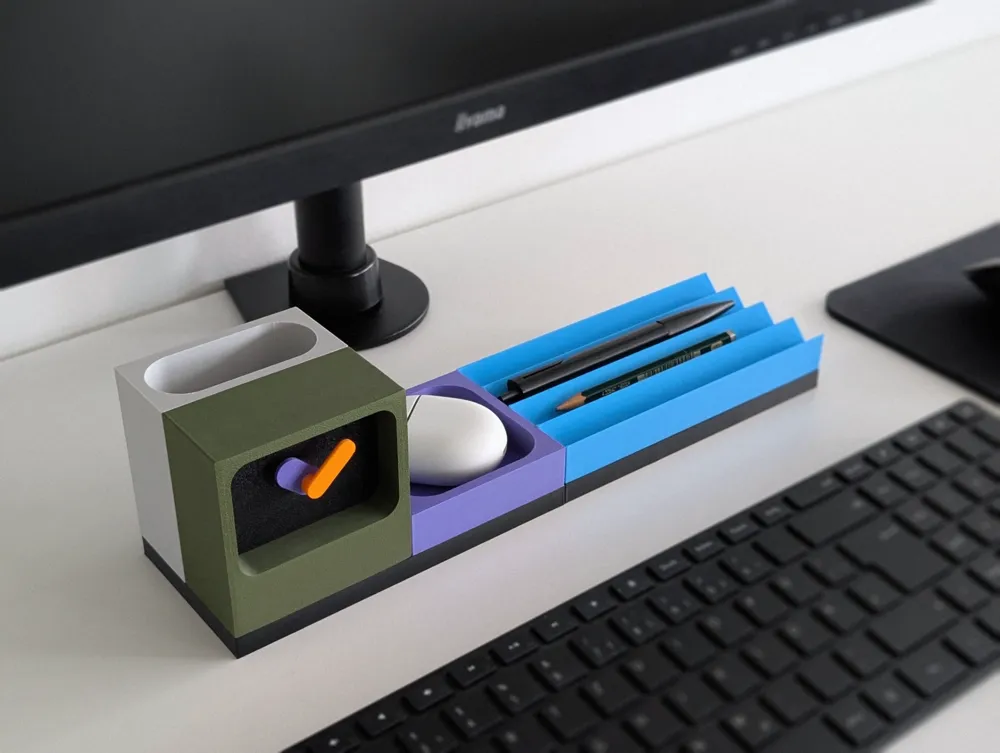

snap.mdo - Modular Desk Organizer

snap.mdo is a minimalist, modular desk organizer (mdo) that can be assembled and expanded as desired using various modules. snap.mdo consists of two components: the Base and the Modules.



All modules are magnetically connected to the Base. Magnets are integrated into the bottom of the modules, while the Base has corresponding counterparts on its surface. The Base can be customized in shape and size by combining different Base sizes, which are also connected via magnets invisibly built into the Base.



snap.mdo - Modular Desk Organizer



Compatible with snap.mdo
Cube Lamp Kit 001 - snap.mdo

Cube Lamp Kit 001 - snap.mdo



The Cube lamp was developed for the Bambu Lab LED Lamp Kit 001 and is also compatible with the Modular Desk Organizer - snap.mdo.



Go to Cube Lamp 🡢

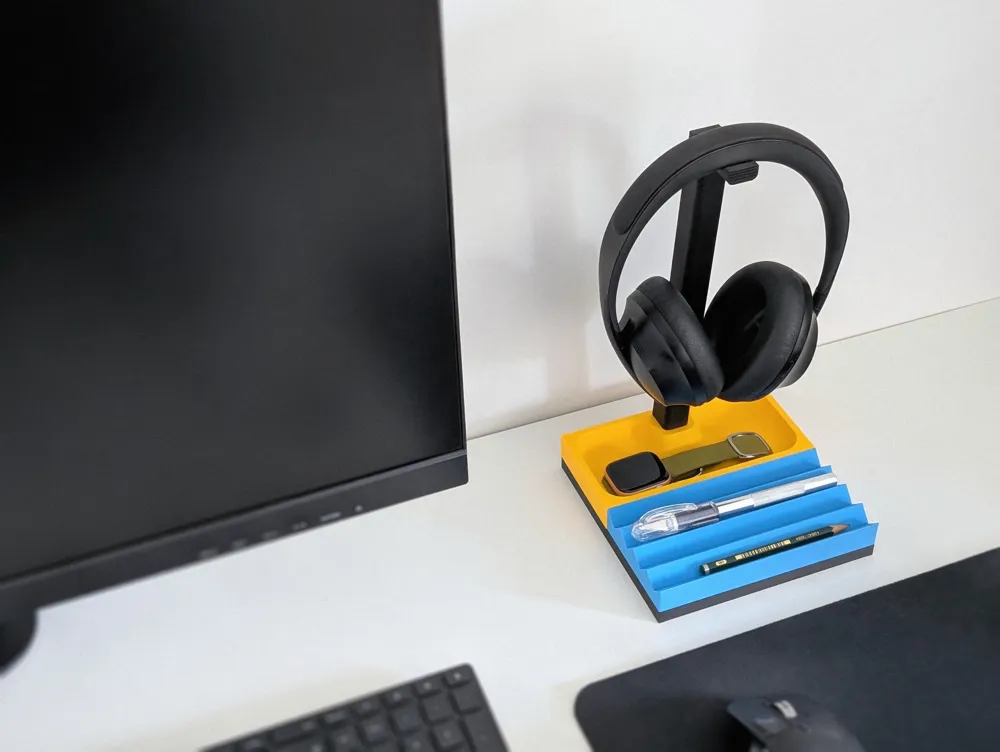

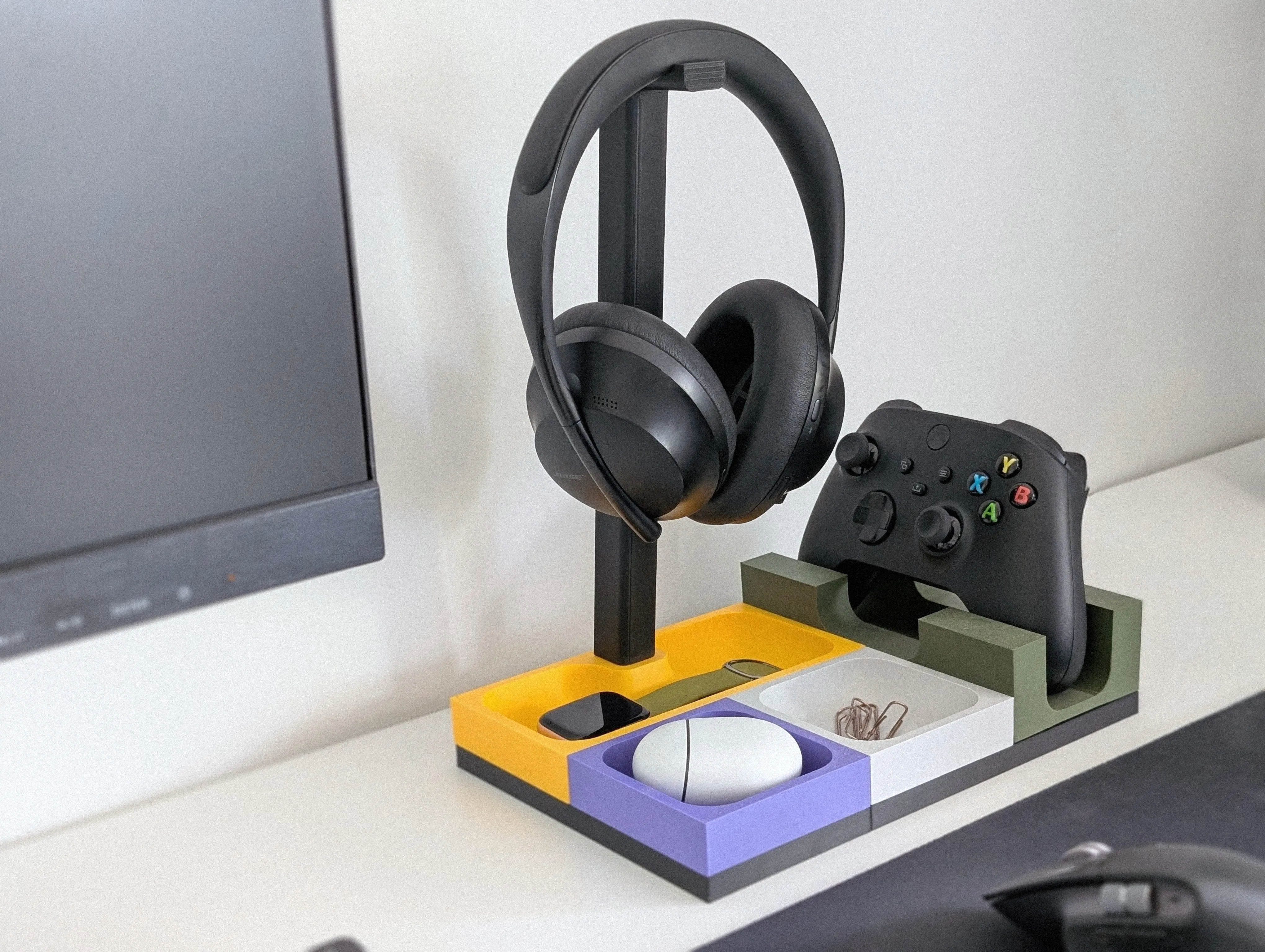

Headphone stand - snap.mdo

Headphone stand - snap.mdo



The headphone stand was created from the snap.mdo project, the modular desk organizer. This means that the headphone stand is not only a great place to store headphones on its own, but can also be optionally integrated into your own snap.mdo desk organizer.



Go to Headphone stand 🡢

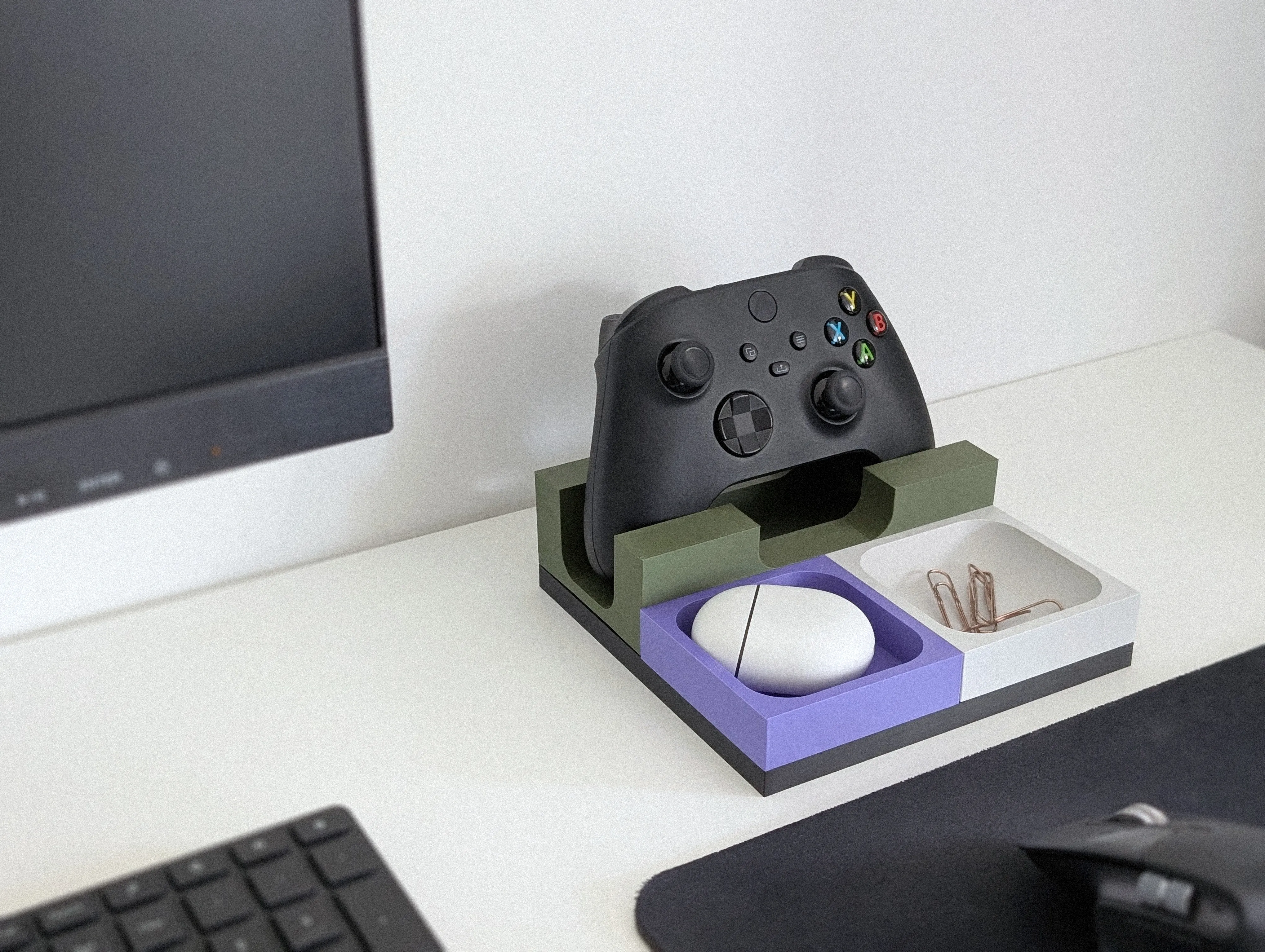

Controller Stand - snap.mdo

Controller Stand - snap.mdo



The Controller Stand was created from the snap.mdo project, the modular desk organizer. This means that the Controller Stand is not only a great place to store controllers its own, but can also be optionally integrated into your own snap.mdo desk organizer.



Go to Controller Stand 🡢

Simple Phone Stand - snap.mdo

Simple Phone Stand - snap.mdo



The Phone Stand was created from the snap.mdo project, the modular desk organizer. This means that the Phone Stand is not only a great place to store Phone its own, but can also be optionally integrated into your own snap.mdo desk organizer.



Go to Phone Stand 🡢



Sizes

Module:

  • 160 x 160 mm – up to 16 magnets (Recommended: 4)
  • 160 x 80 mm – up to 8 magnets (Recommended: 4)
  • 80 x 80 mm – up to 4 magnets (Recommended: 4)
  • 80 x 40 mm – up to 2 magnets (Recommended: 2)

Base:

  • 160 x 160 mm – up to 32 magnets
  • 160 x 80 mm – up to 20 magnets
  • 80 x 80 mm – up to 12 magnets

Magnets:

  • 6 x 3 mm



Assembly

Tip:
Mark all magnets on either the north or south side with a permanent marker. This will help you keep track of the magnets’ orientation.



Info:
The holes for the magnets are designed for magnets measuring 6 x 3 mm. These should fit securely in the holes on their own. If not, you can use a strong adhesive to fix them in place.

Assembling the Base
snap.mdo - Modular Desk Organizer base
The Base has magnets on its surface that correspond to the ones in the modules. It is recommended to first equip the Base with magnets and then add the modules to avoid potential issues with magnet alignment.
snap.mdo - Modular Desk Organizer base
Multiple Bases are also connected via magnets. To help with this, markings ("N" and "S") are provided on the underside of each Base to guide you in properly aligning the magnets.
Assembling the Modules
snap.mdo - Modular Desk Organizer modul
Depending on the module size, up to 16 magnets can be used per module. However, using four magnets per module is recommended. The option to use more magnets has been intentionally included to allow for stronger magnetic adhesion when needed.
snap.mdo - Modular Desk Organizer modul
If you followed the tip and started with the Base, you can now place the magnets on the Base where they will align with the module. Always start with the outer corners. This makes it easier to insert the magnets into the module and ensures proper magnet alignment.



FAQ
Why are the Bases connected with magnets?
The reason is to maintain the minimalist design. Any other connection method would require visible cutouts for the connectors, which would compromise the clean surface.
Why aren't the modules connected directly by magnets?
The simple reason is to allow free customization of your personal desk organizer and the positioning of the modules. Connecting the modules directly would limit flexibility and result in a poor user experience.
Can I design my own modules?
Yes, I have uploaded the blank modules (.step) here
