Python AMS Riser-double and single enclosure width

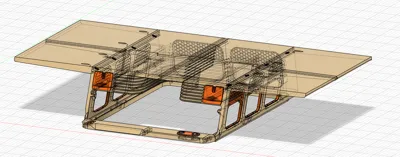

Riser for X1C/P1P with wings
you can of course use it as a Riser for standard AMS or whatever else you need to put on top.

can hold/support 2 sets of Python AMS enclosures on top, side by side. different size wings to come.
6 slots for plate storage.
2 long draws.

Based around the BLV riser by BenLevi (he explicitly allows remixs on his introduction “Please, if you publish a remix, make sure to link it to the original project as a remix so that others can benefit from your effort”) https://makerworld.com/en/models/19535

Python AMS conversion is by Humbeam, https://makerworld.com/en/models/515113

Support for this model (RifRaf on discord) and Python AMS are available on the official Python Support Discord channel https://discord.gg/6U95tXPC

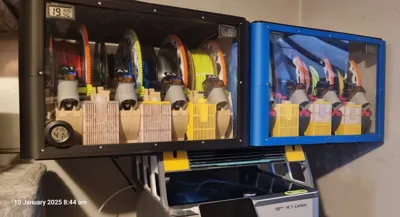

The Wings on the main file make the riser double width, which is big enough and strong enough to support 2 Python AMS enclosures full of spools etc. i have tested it for over 2 months with that and a large sack of potatoes on top lol to make sure its strong.

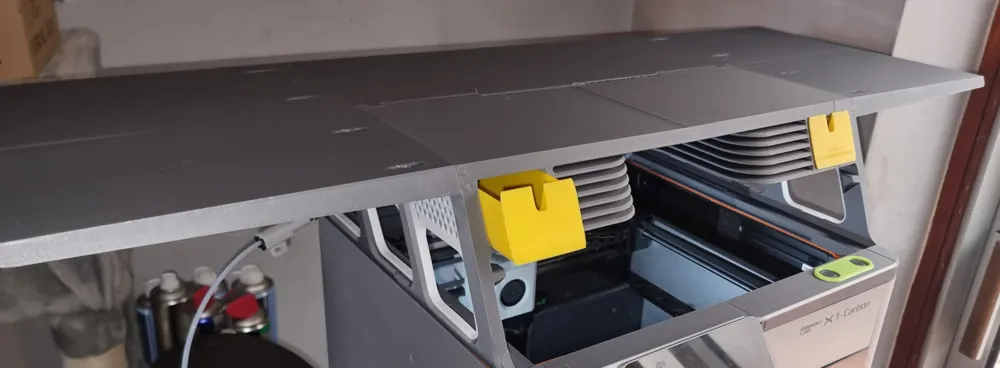

On the print plates there are 2 different sizes of wings, 1 big set for if you have 2 enclosure's side by side, and another for if you only have 1 enclosure, no need to print both of course.


To Do
Done - 1/Add smaller wings for those with 1 Python set instead of 2. these will just slot into the dovetail and be small and chubby. You can print without of course and just let the enclosure sit on top of it anyway. (added to files 13th January 2025)
2/Add gasket for glass
3/waiting for suggestions or any issues
4/rewrite this description
5/add stl files, 3mf already here
6/make better print profile

7/make wings for the mega python & mini python

Support is needed on the main 4 parts of the riser only.
don't use rubbish filament as you'll never get the dovetails on the wings to interlock.
if putting 2 Python enclosures on top i recommend (and tested with) 3 walls, 15% gyroid infill



the dovetails on the wings may be a very very tight fit. make sure you remove any crud and overprint before fitting or you'll never get them off. they should be tight but not to the extend of hitting with a hammer.
any questions or help needed .. python support discord is where i'm at :)
happy printing

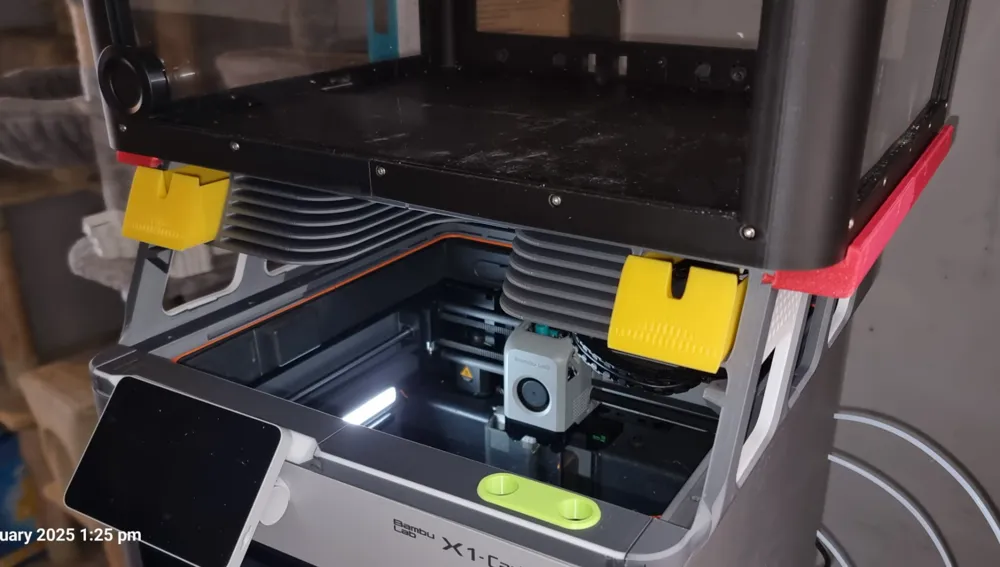

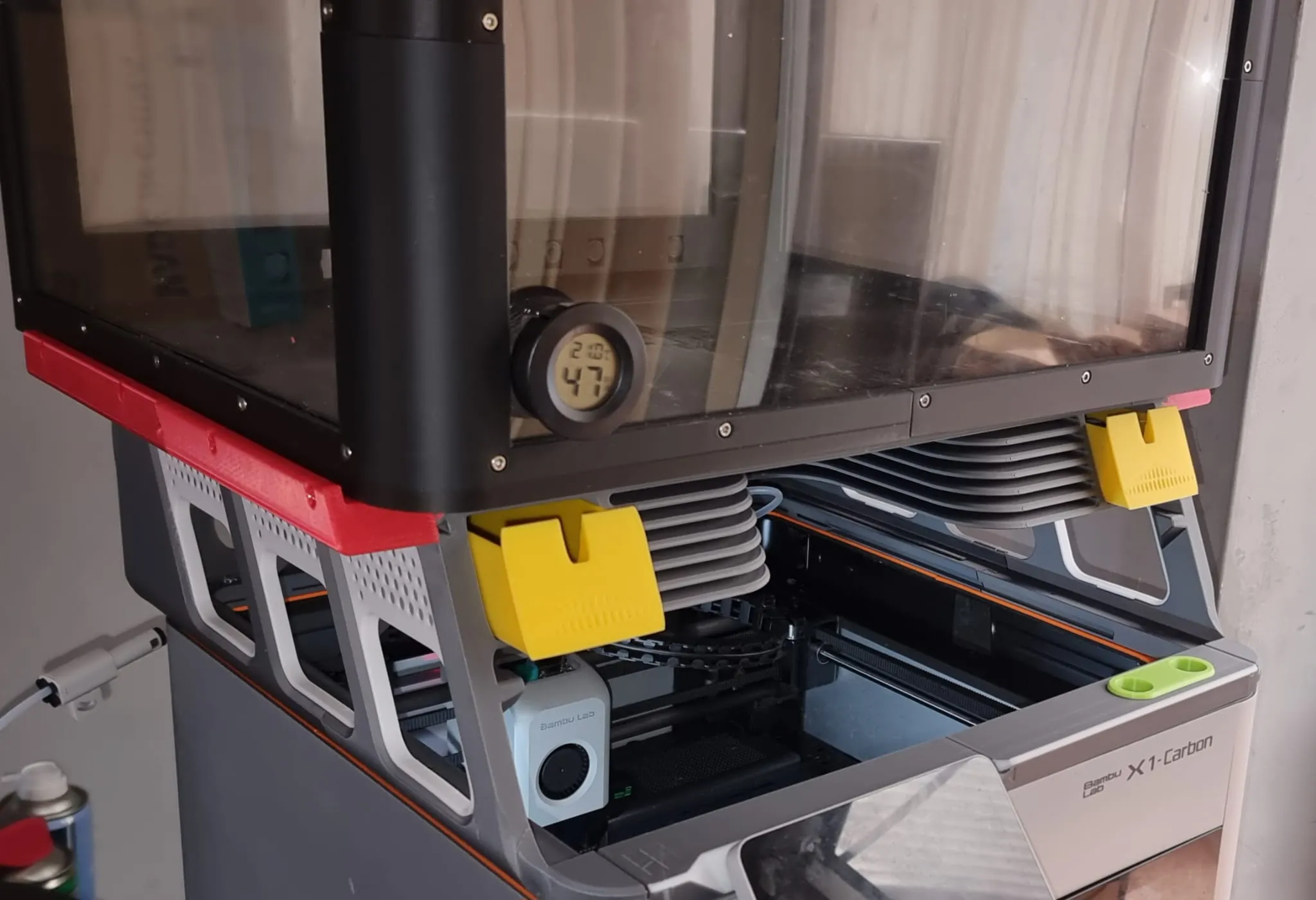

with single python adapter wings


See my other models for more Python AMS mods. and other useful bits.
