Gridfinity baseplates (various size) with magnet
Print Profile(1)
Bill of Materials
Description

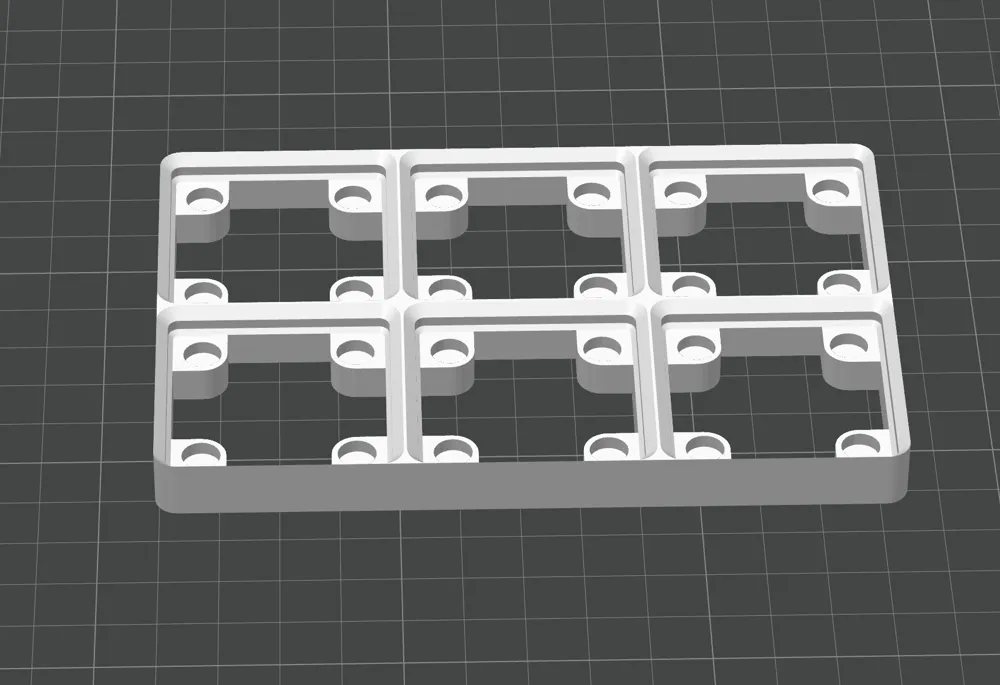

Each plate features integrated slots for 6x2 mm magnets, allowing for precise alignment and secure attachment. The design includes various configurations ranging from 1x1 to 3x4 grid sizes, making it highly adaptable for multiple organizational needs.
Key Features:

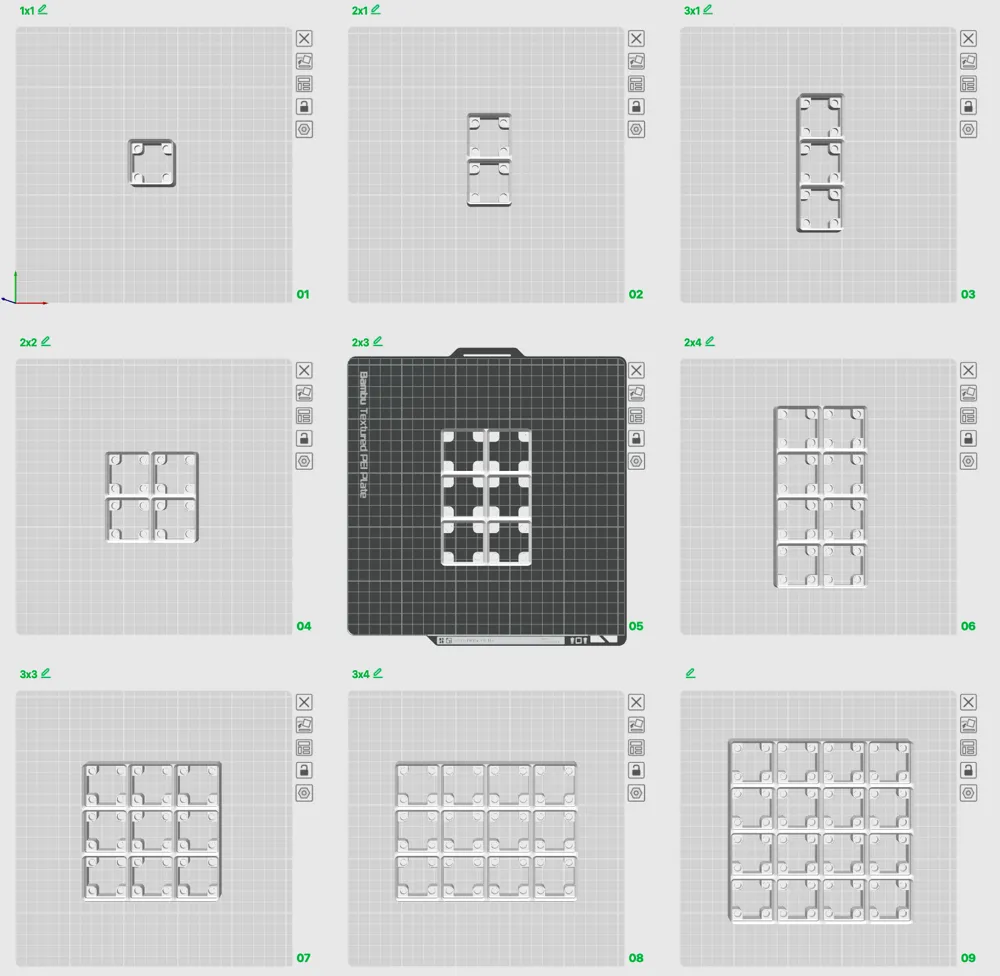

- Versatile Grid Sizes: Includes 1x1, 2x1, 3x1, 2x2, 2x3, 2x4, 3x3, and 3x4 plates, enabling you to customize storage solutions for different tools or items.
- Magnetic Alignment: Embedded slots designed for 6x2 mm magnets ensure a robust and seamless connection between plates, keeping them aligned and stable.
- Scalability: Plates can be expanded and interconnected to cover larger areas for extended storage needs.
Battery Holder Add-Ons:
Complement your Gridfinity system with customizable battery holders that fit perfectly within the grid. Check out these designs for organizing various battery types:
- AAA Battery Holder
- AA Battery Holder
- LR44 Battery Holder
- CR2032 Battery Holder
- CR2025 Battery Holder
- CR2016 Battery Holder
- CR1616 Battery Holder
- CR123A Battery Holder
- 18650 Battery Holder
Baseplate Link:
To download the Gridfinity Baseplate, visit:
Gridfinity Baseplate
Assembly Tips:
- Use 6x2 mm magnets for all slots to ensure proper alignment.
- For enhanced durability, secure the magnets with strong adhesive (e.g., cyanoacrylate glue).
- Check tolerances after printing to ensure magnets fit snugly without wobbling
