Stackable Soil Sieve System
Boost Me (for free)
If you found this model useful, please consider leaving a Boost, thanks!

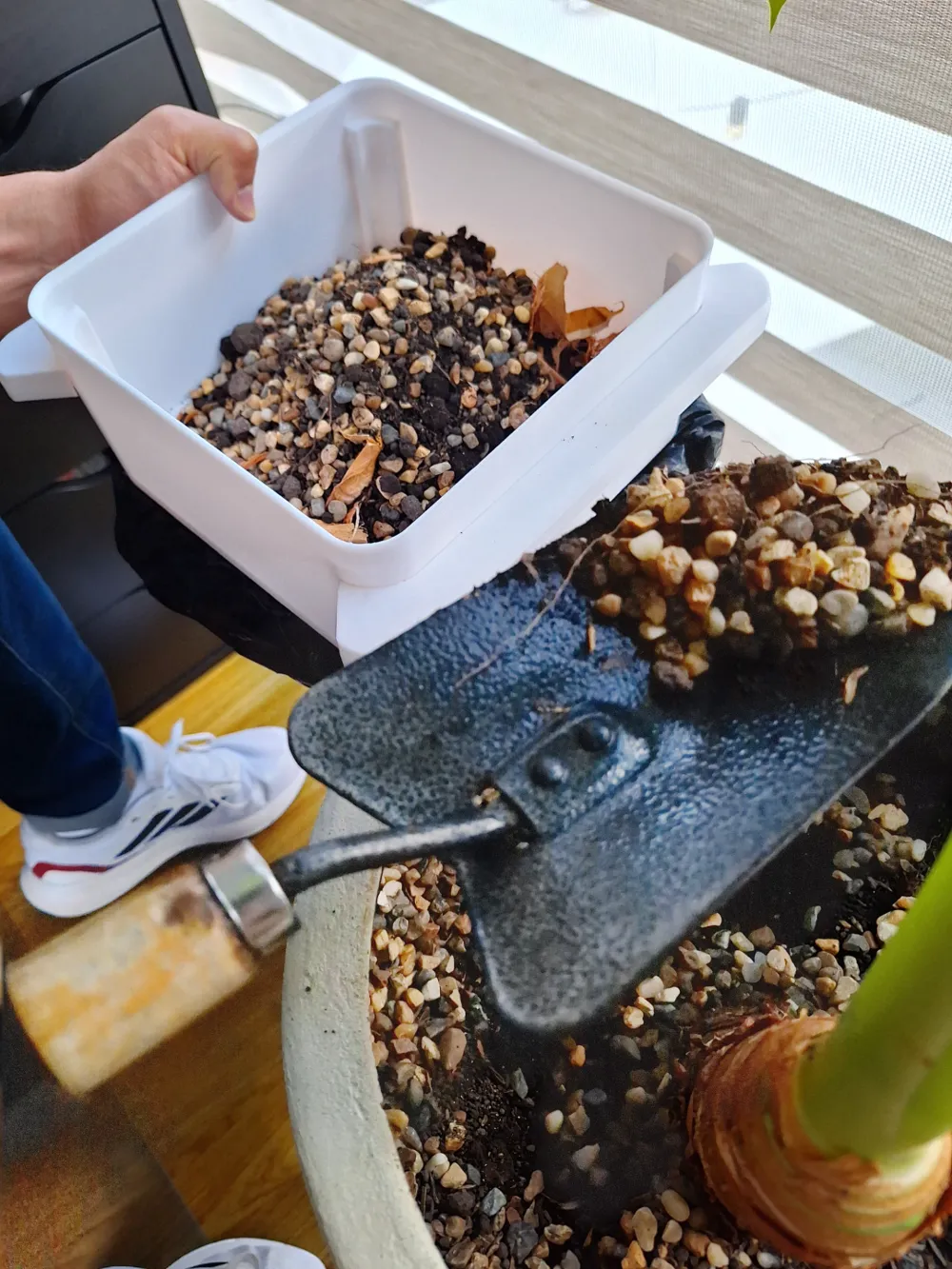

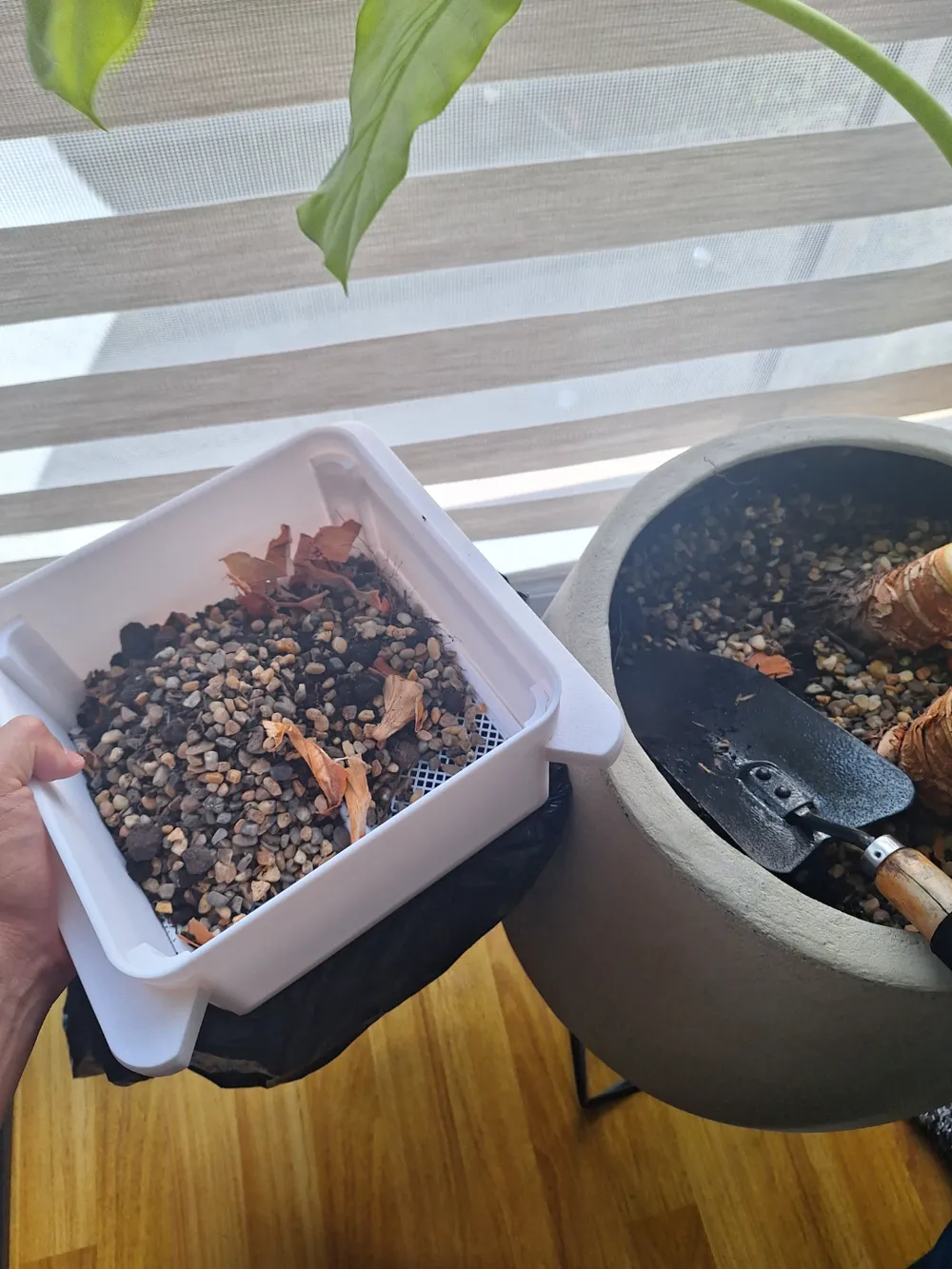

This 3D-printable stackable sieve system is designed with flexibility, ease of use, and heavy-duty performance in mind. Perfect for gardening, construction, or any project requiring material separation!
Features

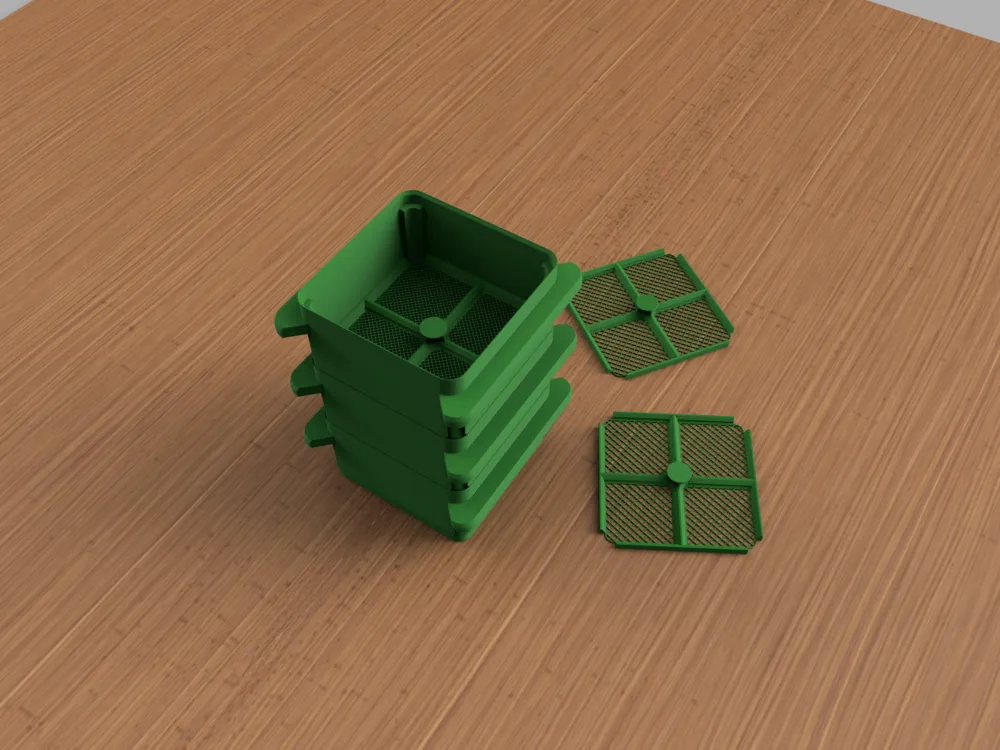

- Interchangeable Filters: Quickly swap filters for different particle sizes.
- Adjustable Filter Size: Modify filter dimensions directly in your slicer software—no need for CAD!
- Handles for Easy Use: Ergonomic design for convenience.
- Heavy-Duty Design: Optimized for durability and repeated use.

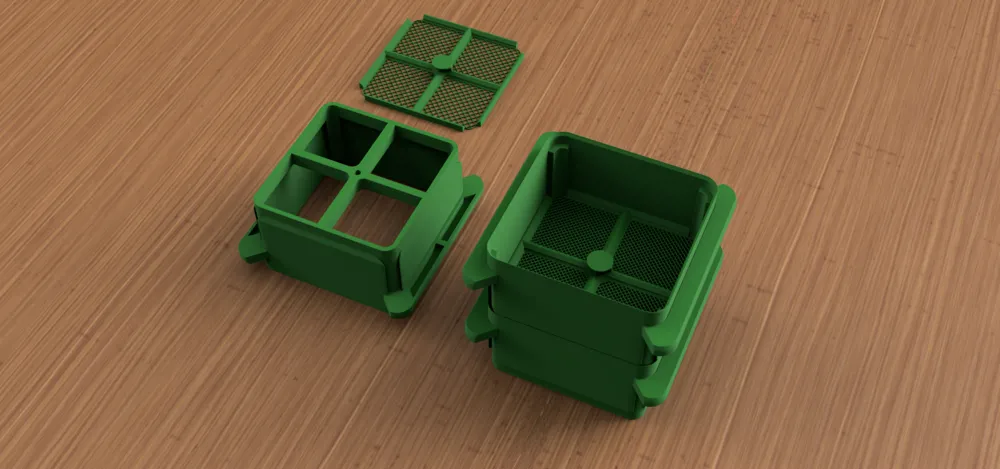

- Stackable: Multiple sieves can be stacked to sort materials into various sizes simultaneously.

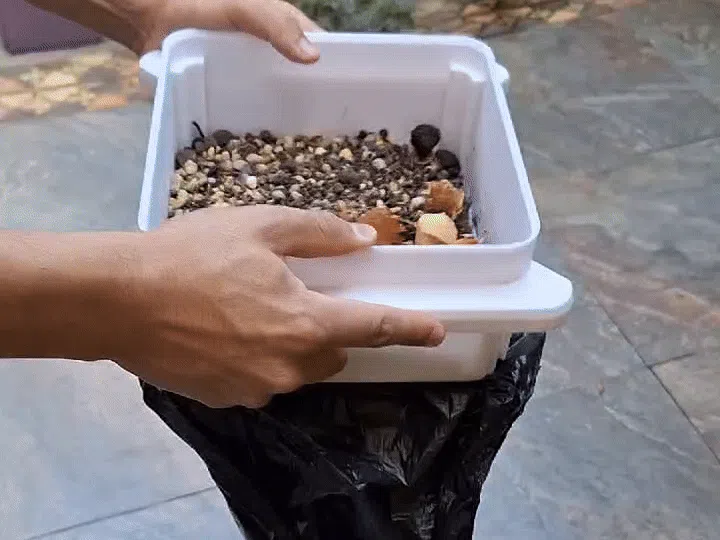

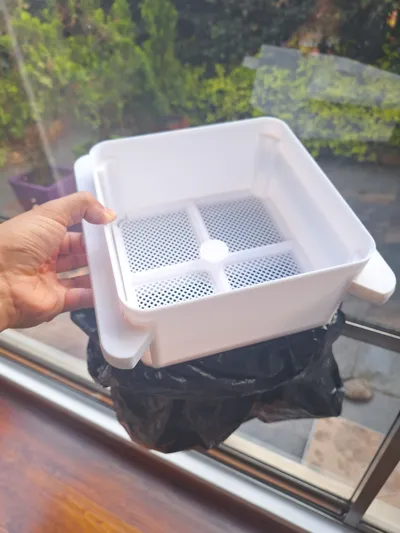

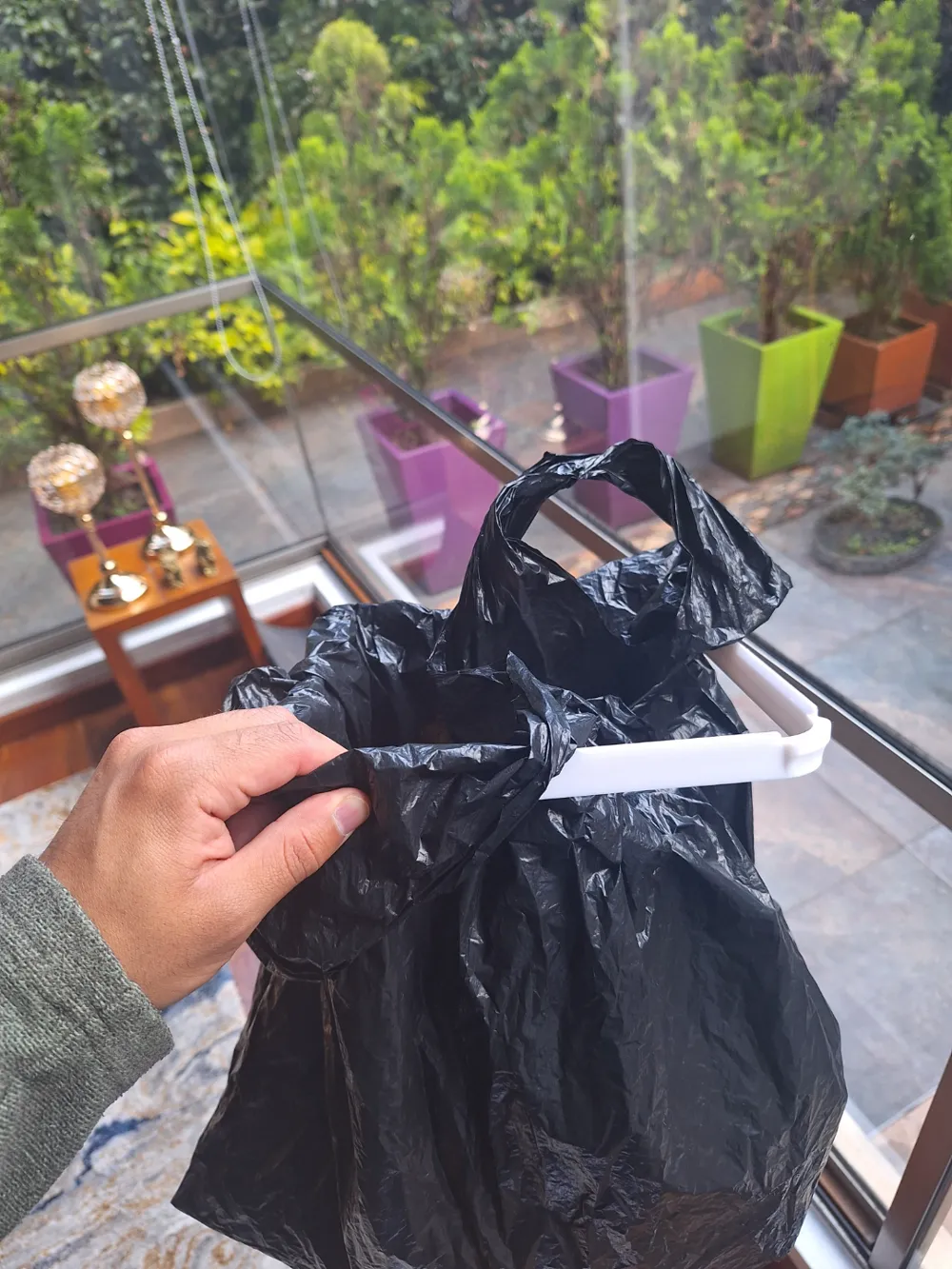

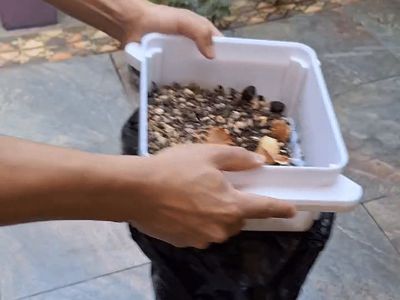

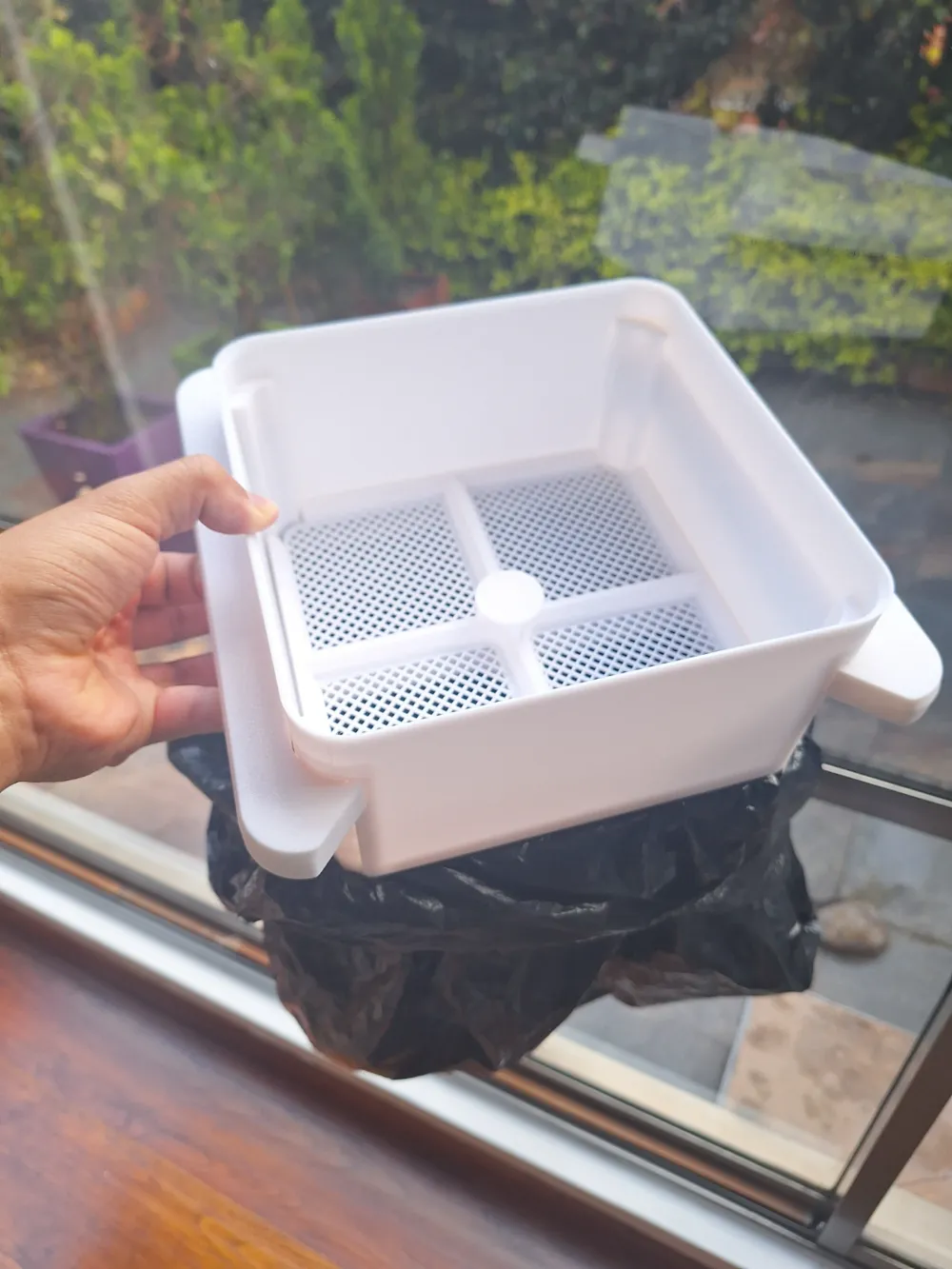

- Bag Adapter: Attach a plastic bag to the bottom to collect sifted material neatly.
- Resizable Design: Easily scale the sieve if the default size is too large for your needs.
Printing Recommendations
- Nozzle: Use a 0.6 mm nozzle for optimal strength and durability.
- Layer Height: If you are using a 0.6 mm nozzle, use 0.42mm layers as configured in the provided 3MF file.
How to Adjust Filter Size

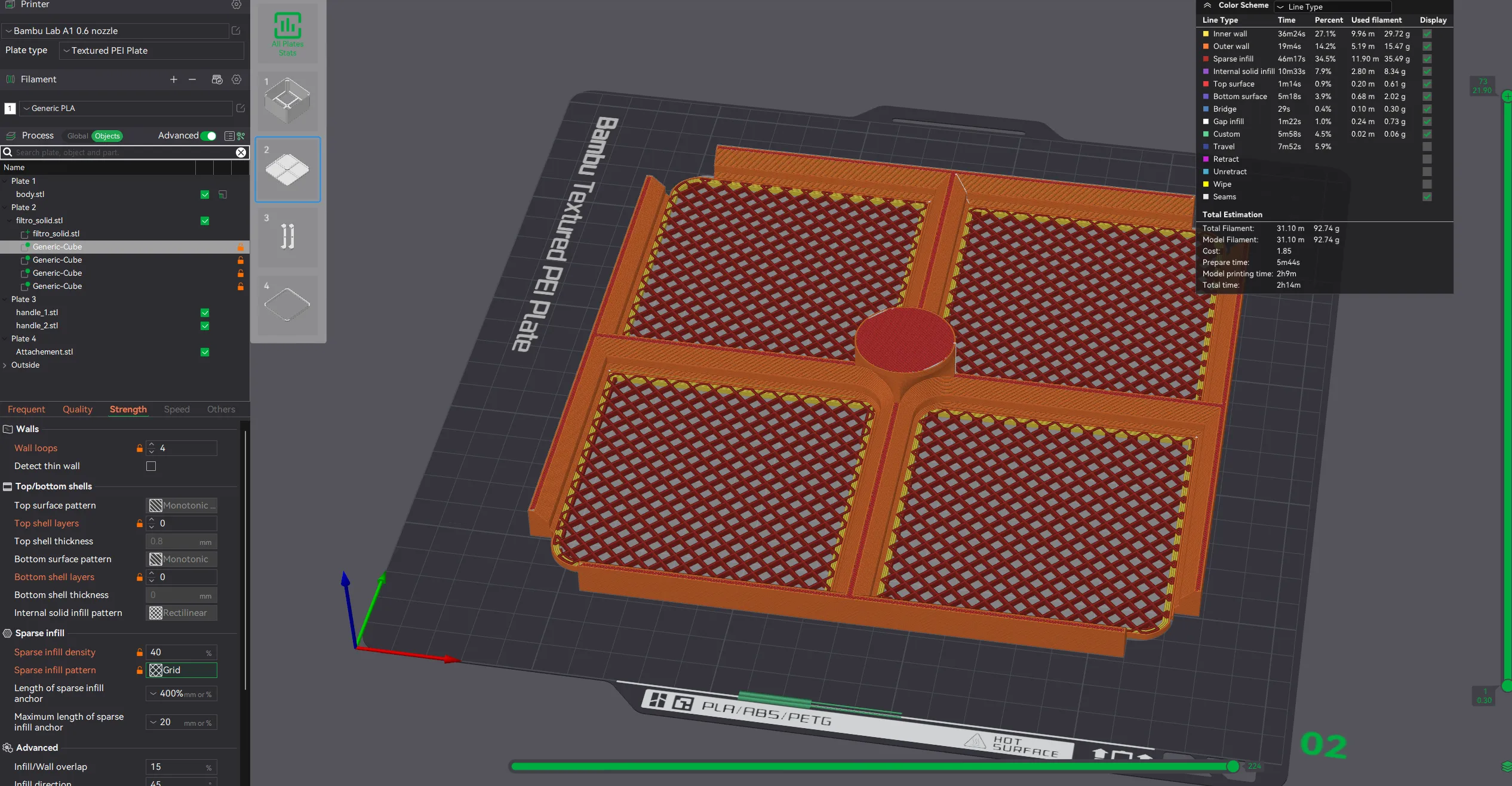

- Open the slicer software and load Plate 2 (where the filter is visible).
- Locate the four "Generic-Cube" modifiers.
- Change their type to Infill by navigating to the Strength tab.
- In the Sparse Infill field, modify the desired value for the filter size.
- Do not adjust any other settings to maintain compatibility.
Enjoy!!
If you like this model, buy me a coffee! https://buymeacoffee.com/juangonzale
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
