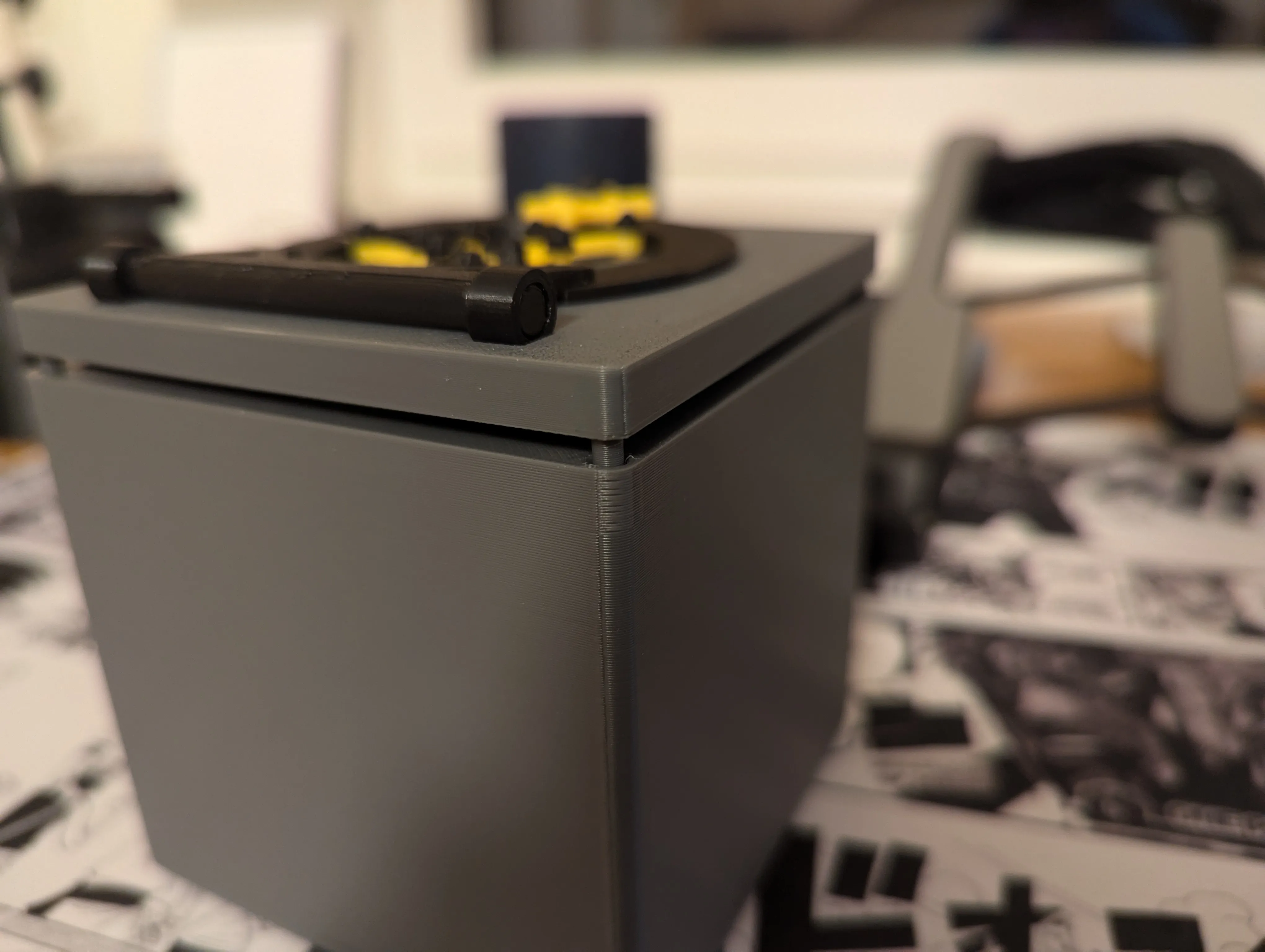

Mini Vault

This mini vault is a storage with a simple locking mechanism.

Assembly:

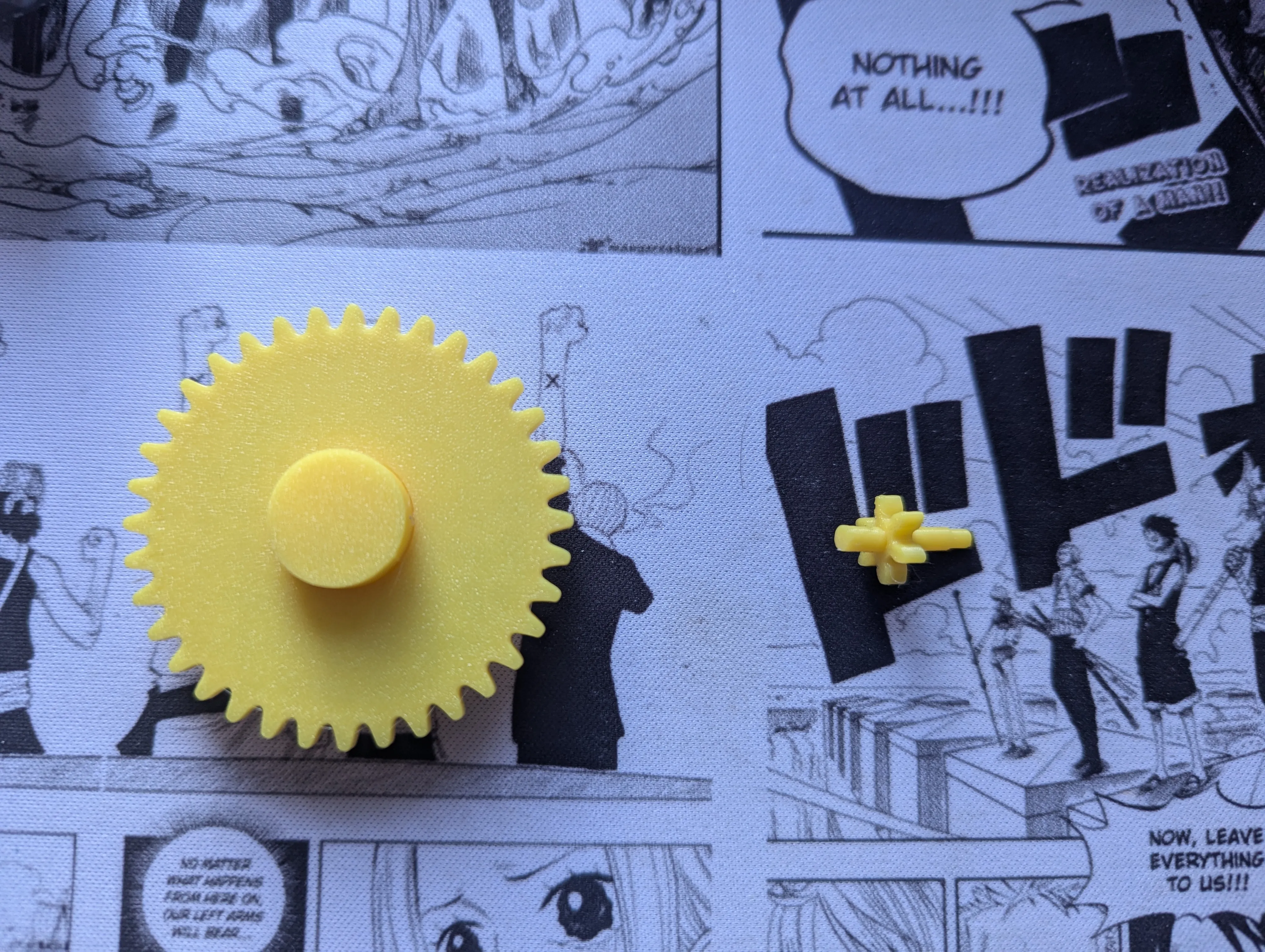

1. Glue the “connectors” to the two gears

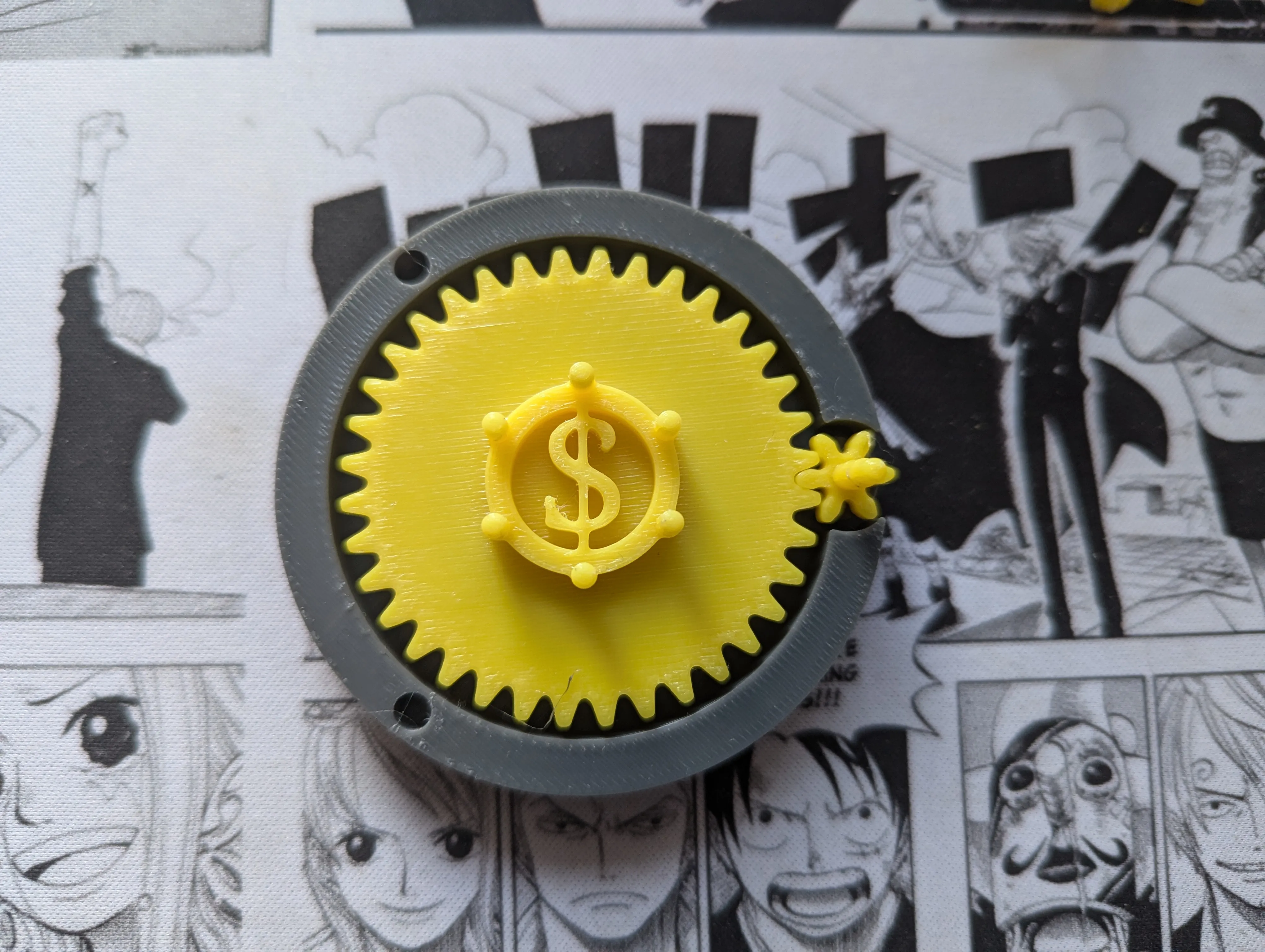

2. Put the gears into the door

3. Put the outer lock on

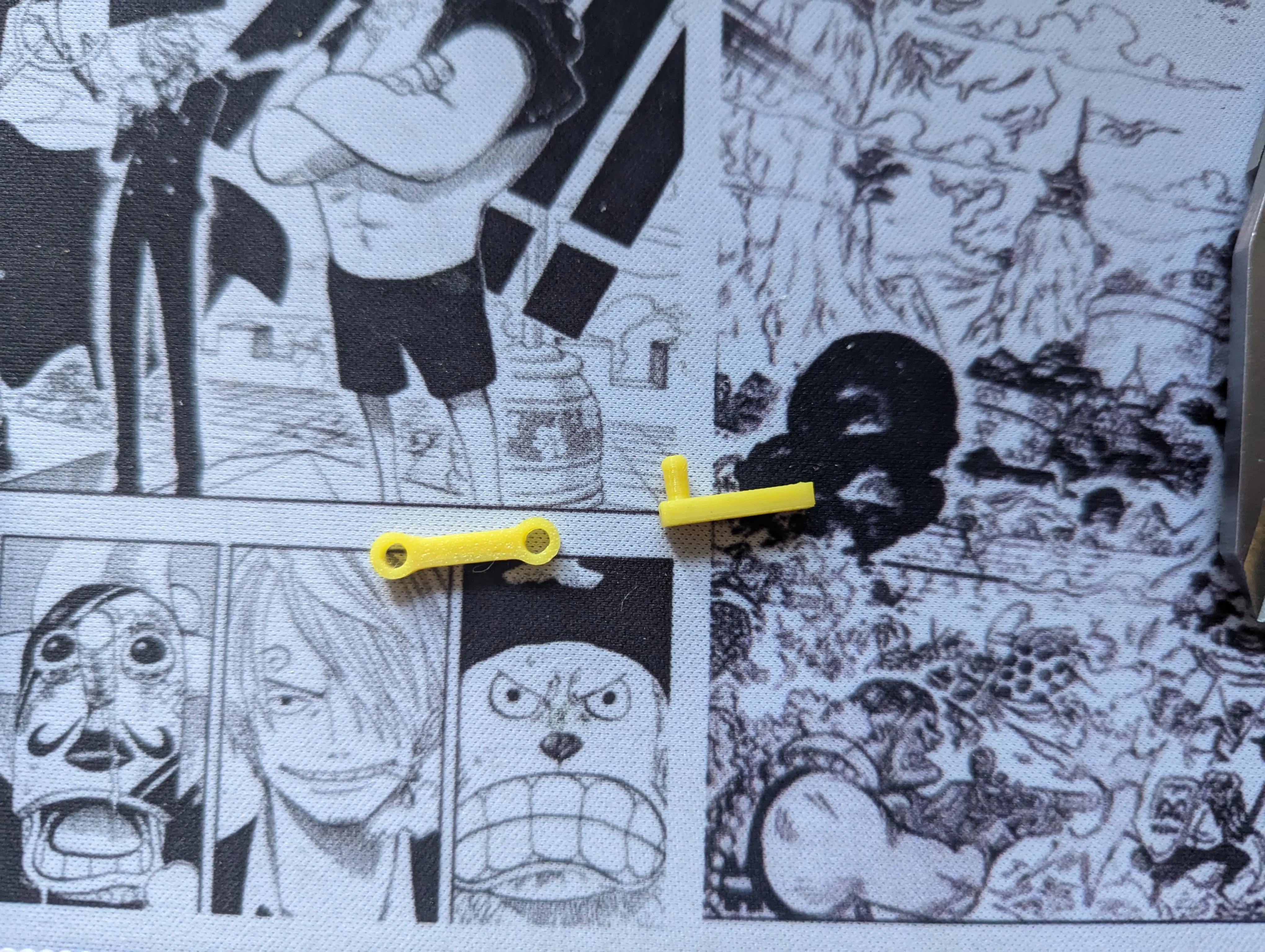

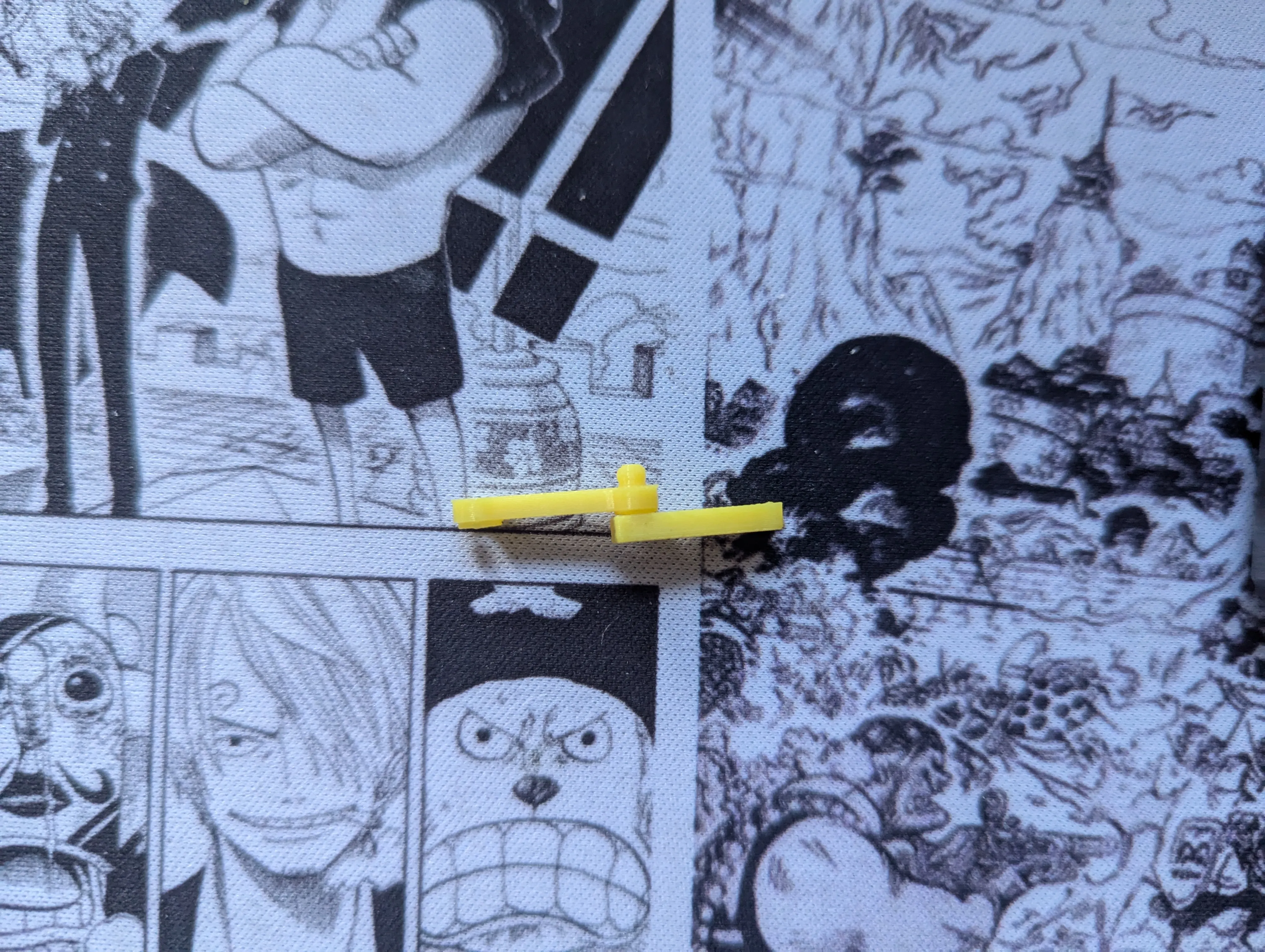

4. Assemble the slider and the slider-lock and the connector lock (3 times)

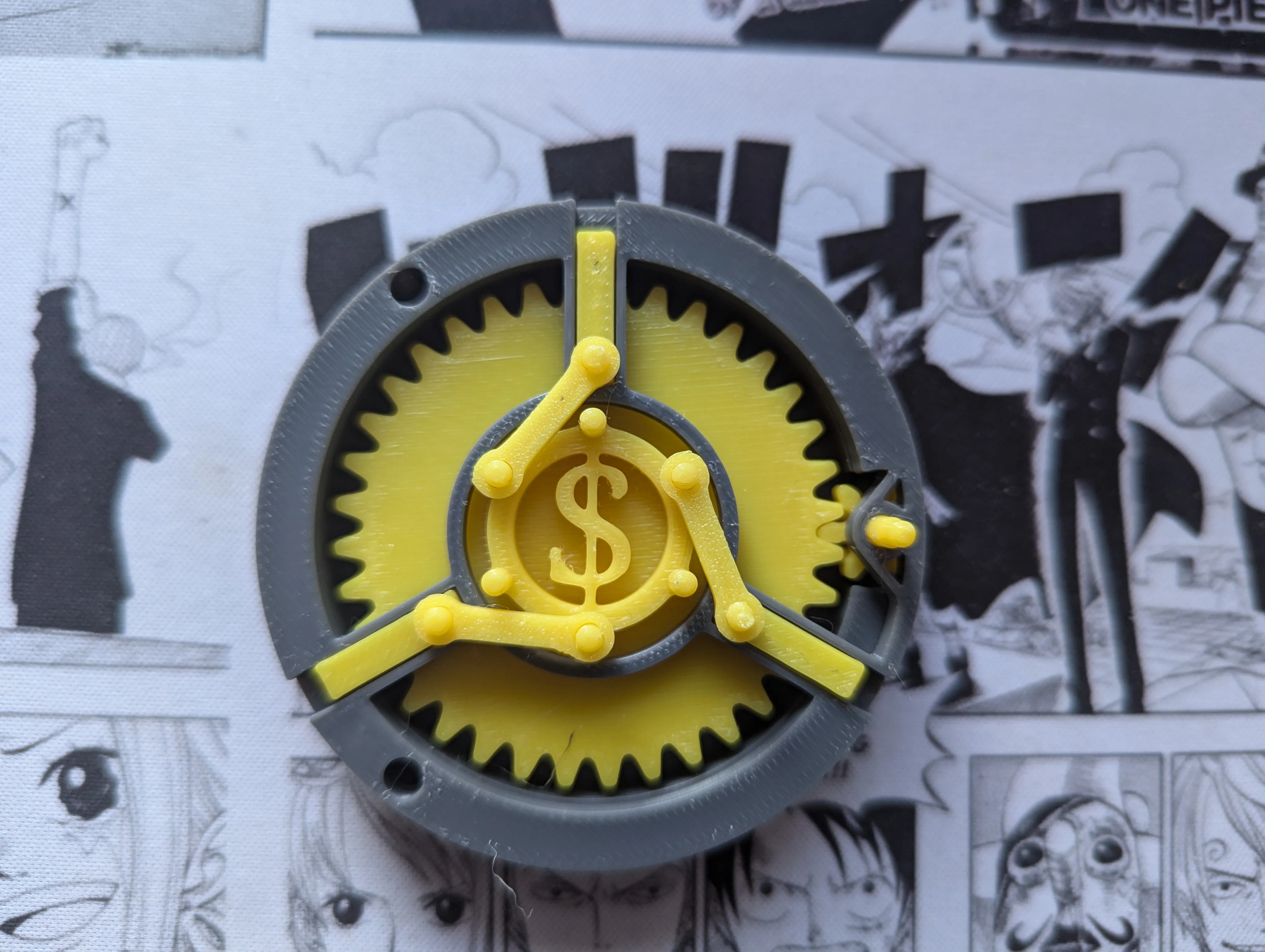

5. insert the sliders into the outer lock and connect them to the Gear

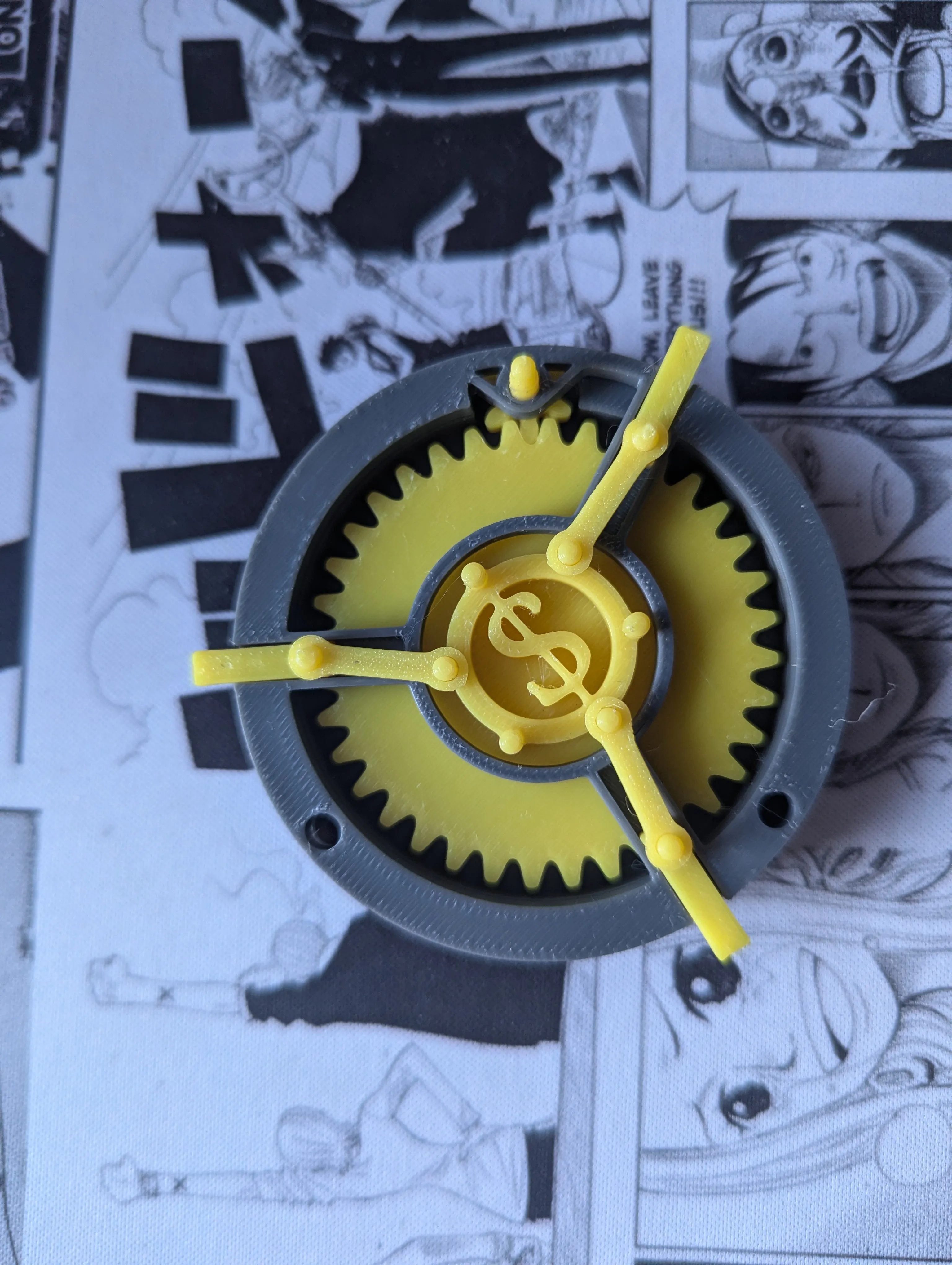

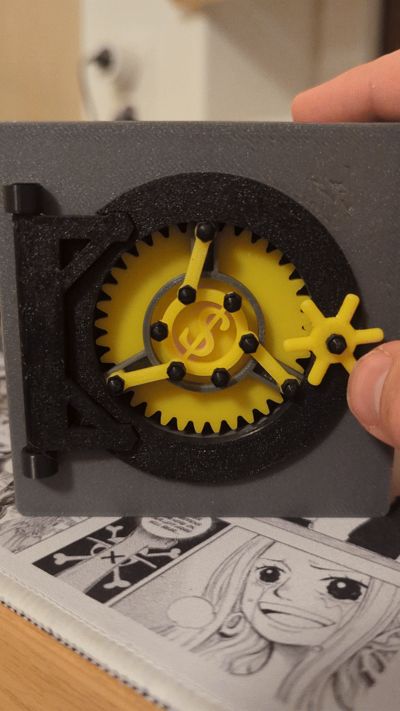

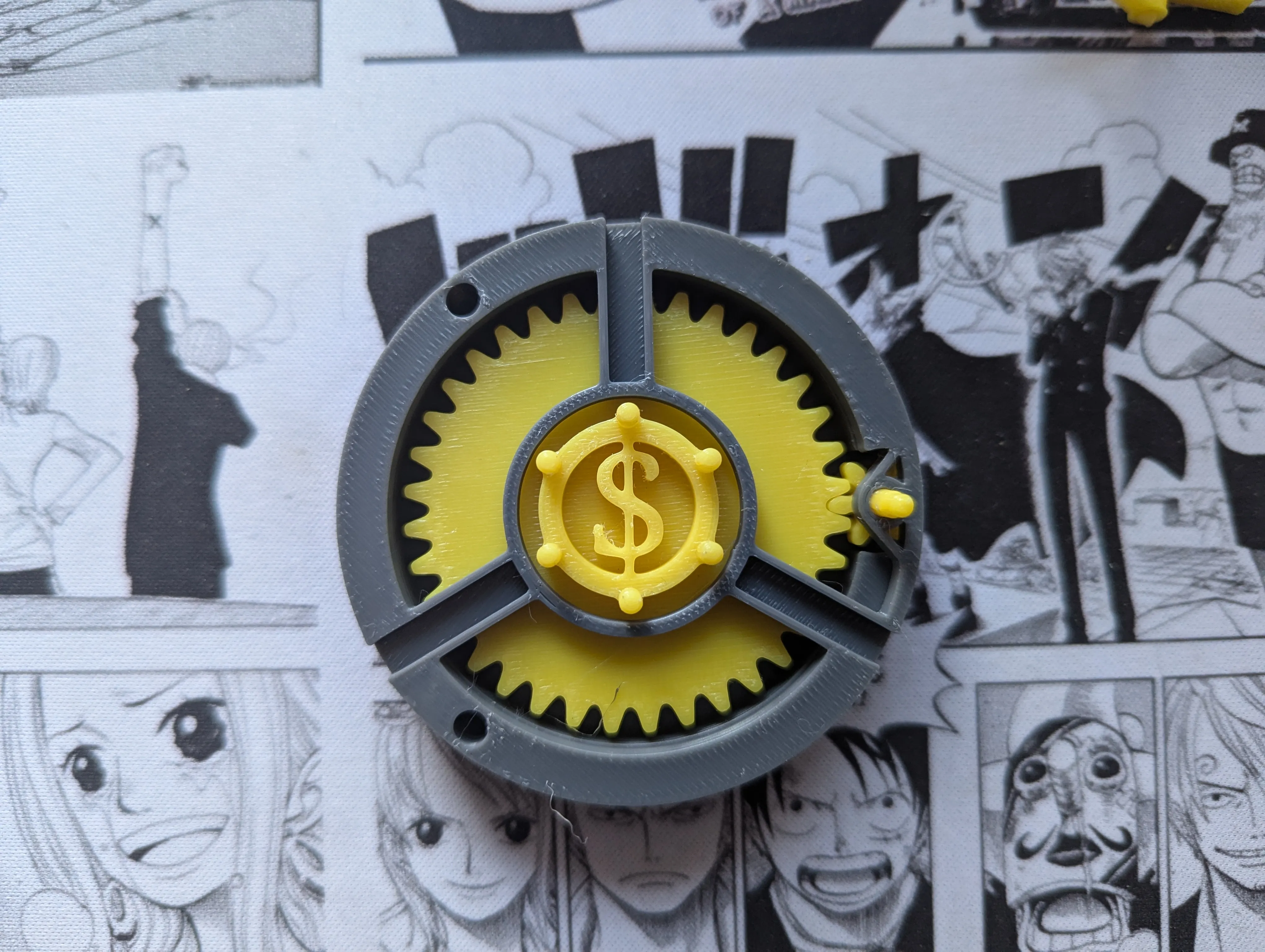

Now you can test the locking mechanism by turning the gears

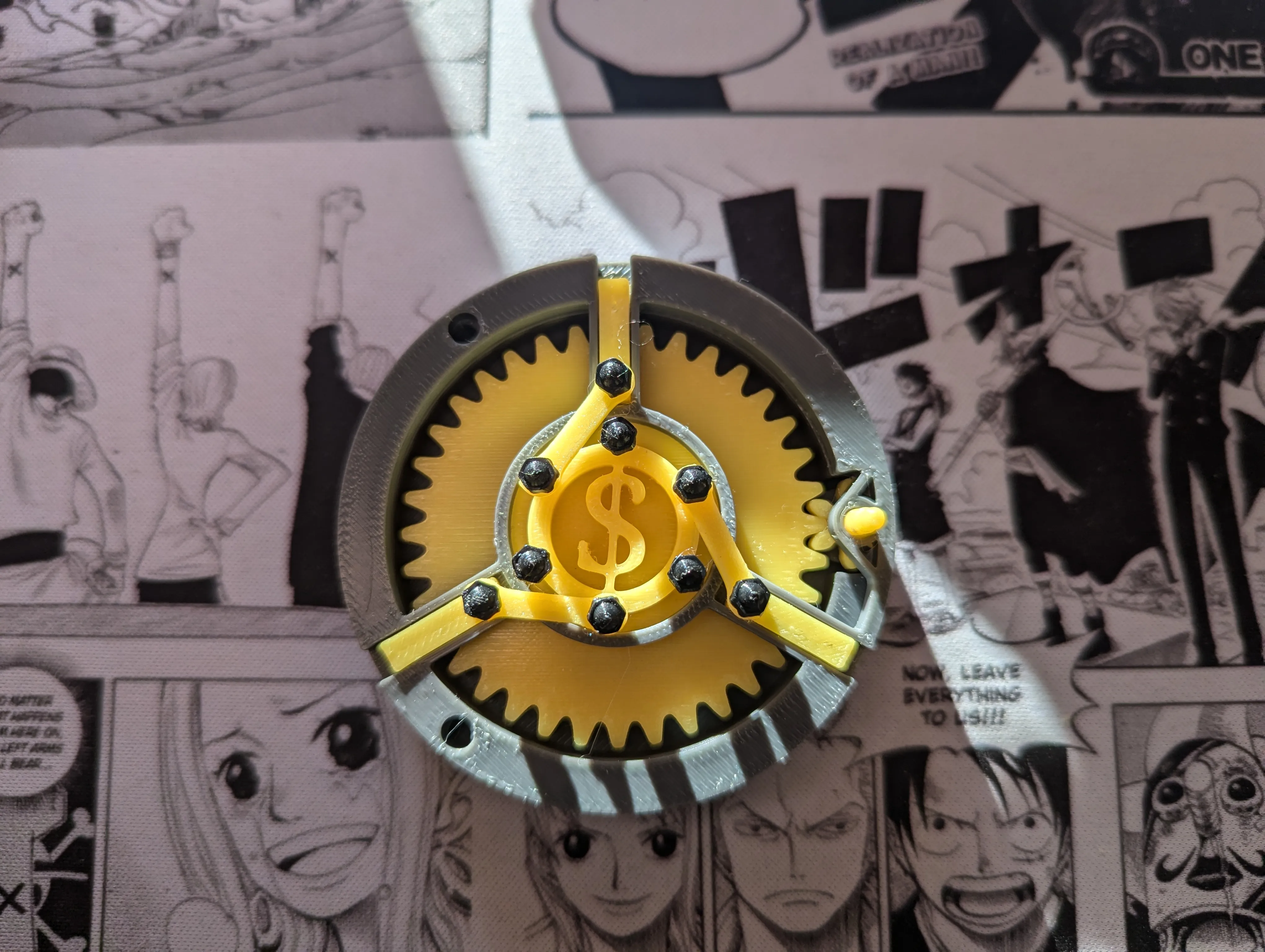

6. Add the nuts onto the gear and the sliders

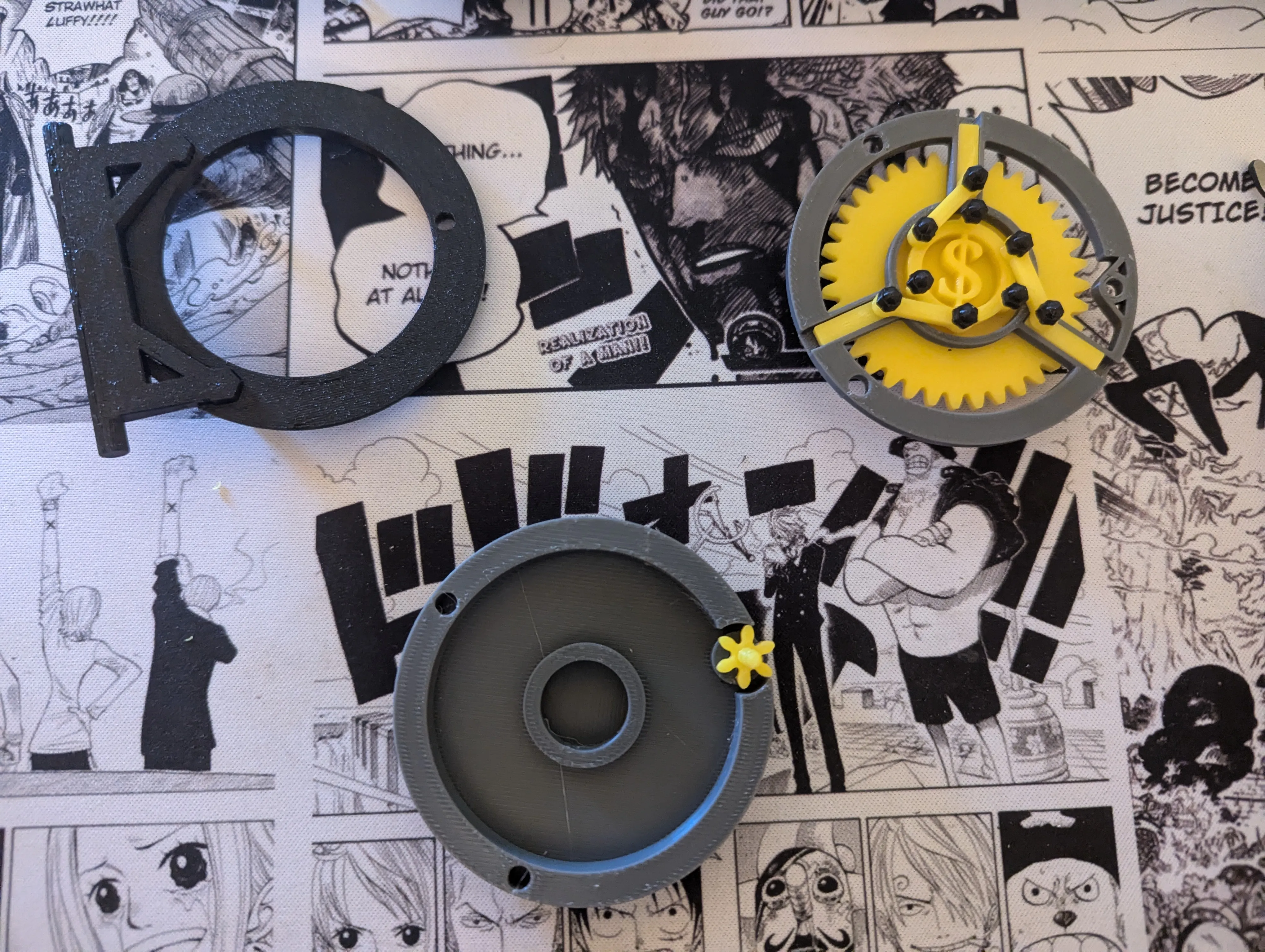

7. Take the big gear out of the door. Connect the hinge-door to the lock-cover. Set the part up to glue them together

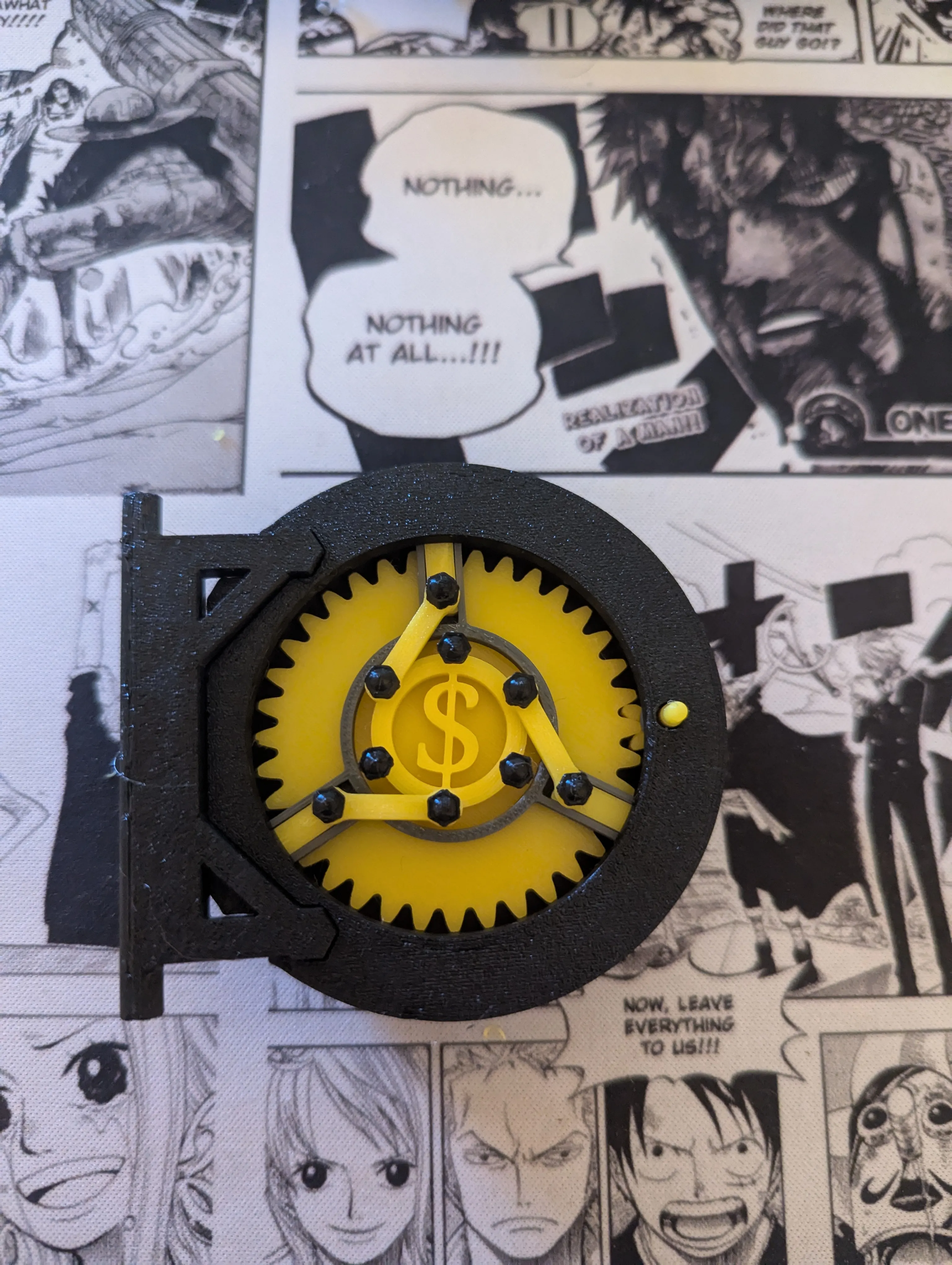

8. Glue the Assembly with the big on the door, then Glue the Cover-Hinge onto it. The hinge has 2 bolts that go through the outer lock and into the door. Be careful to not glue the sliders or the small gear to the cover. The result should look like this:

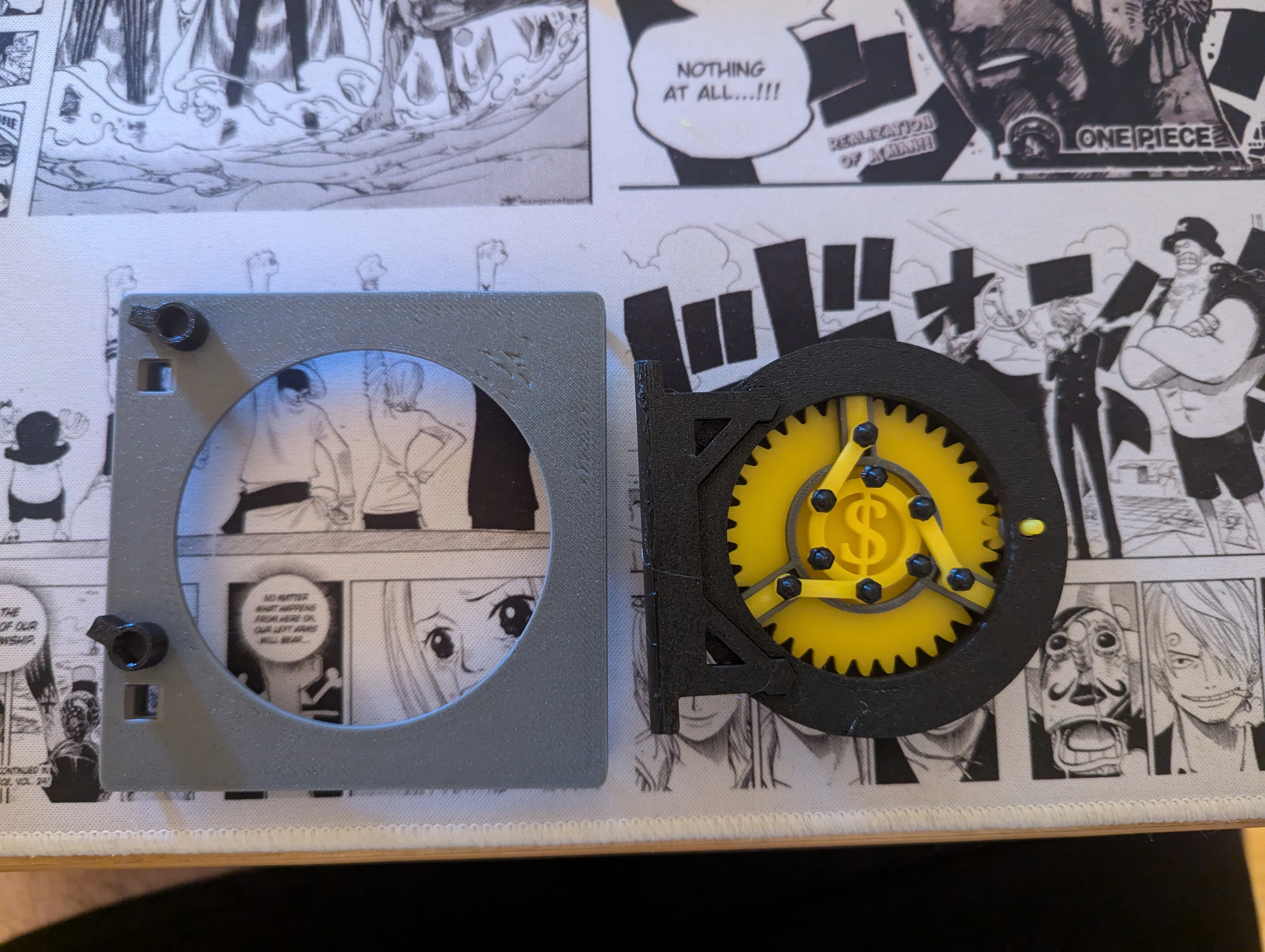

9. Prepare the front wall and the two missing parts for the hinge (hinge-wall)

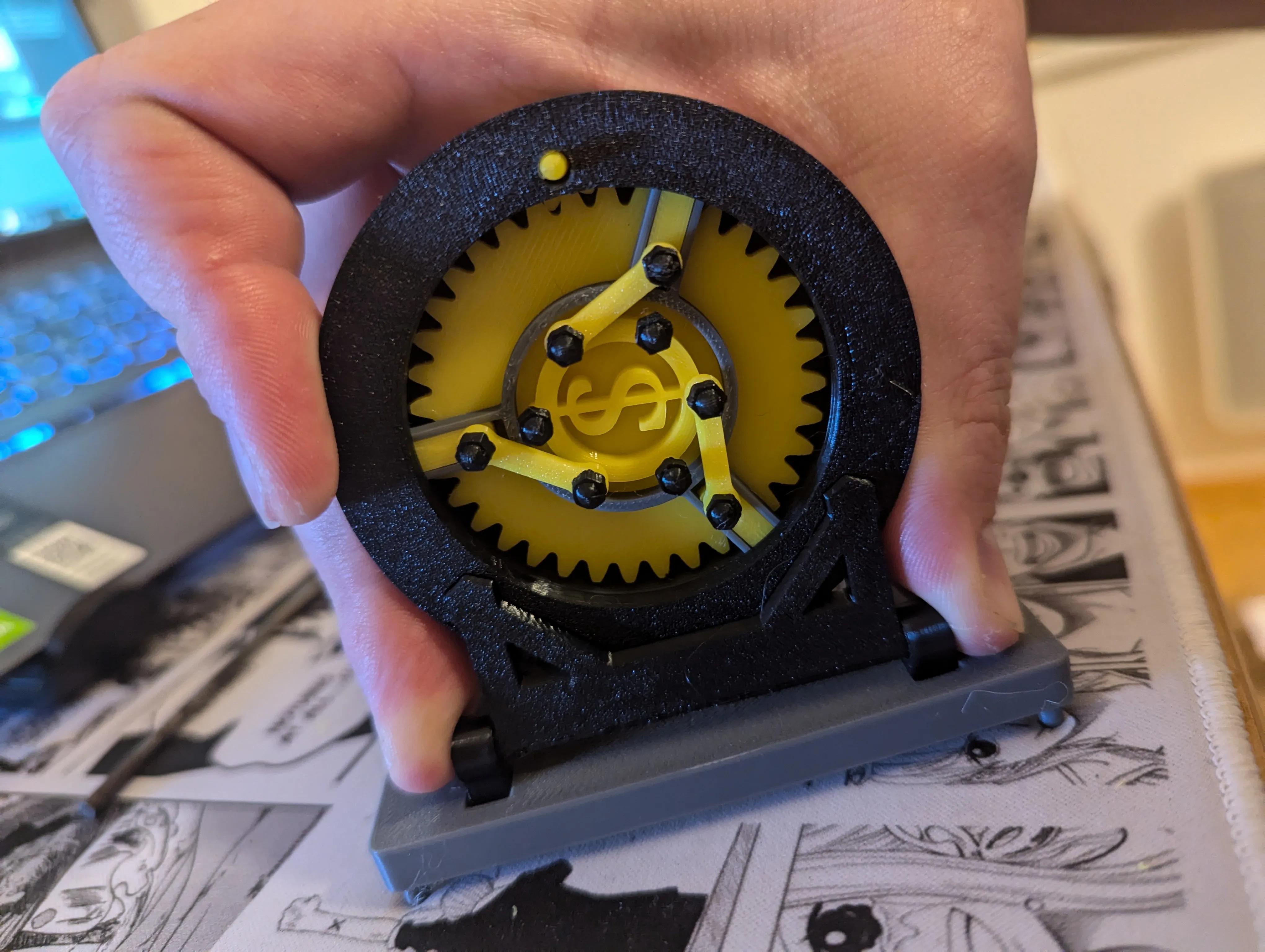

10. Put together the hinge and insert it into the wall (should fit and hold without glue)

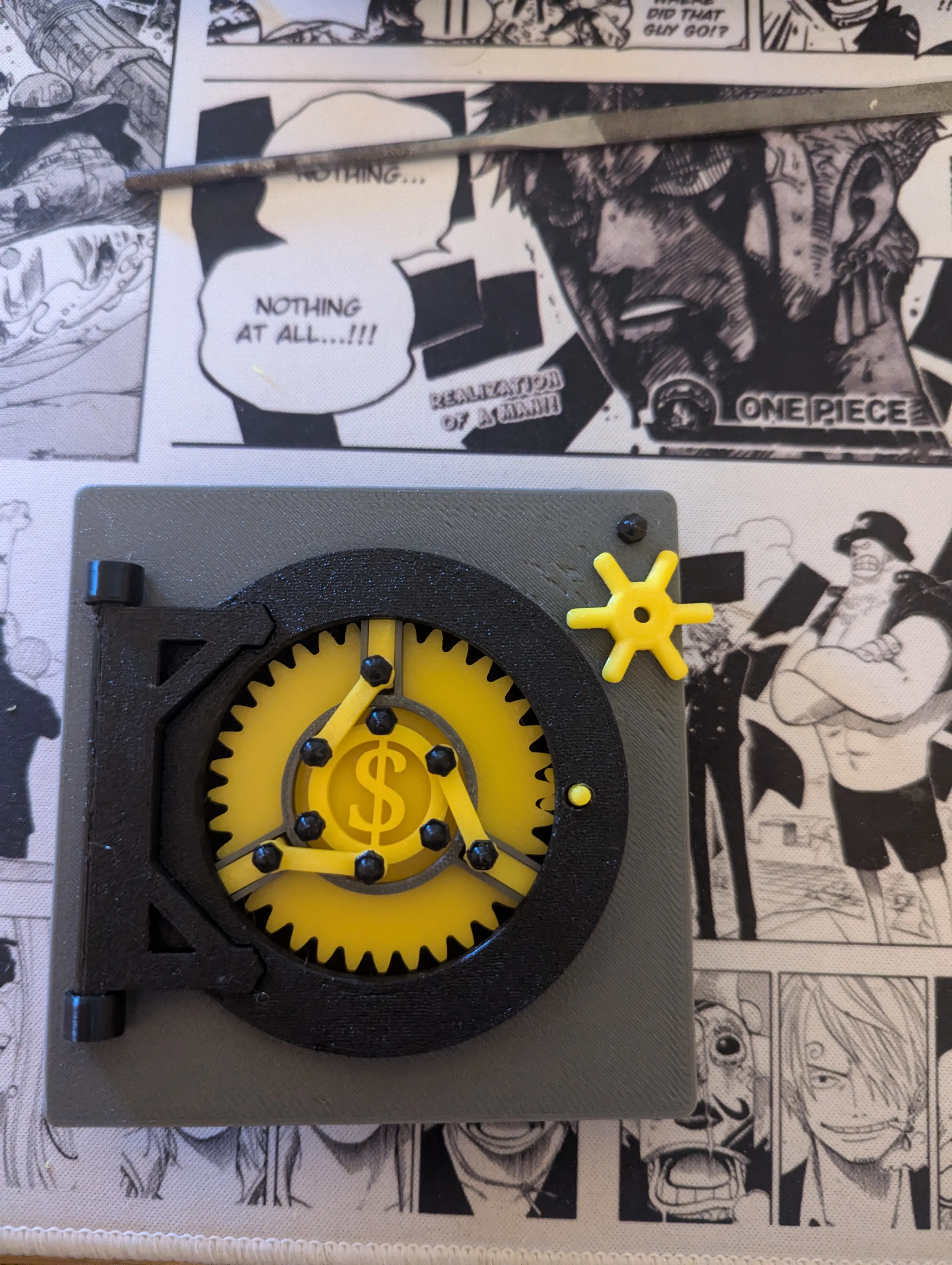

11. glue the wheel and a not ontop of the bolt of the small wheel. Be carfull to not glue the weel onto the lock cover.

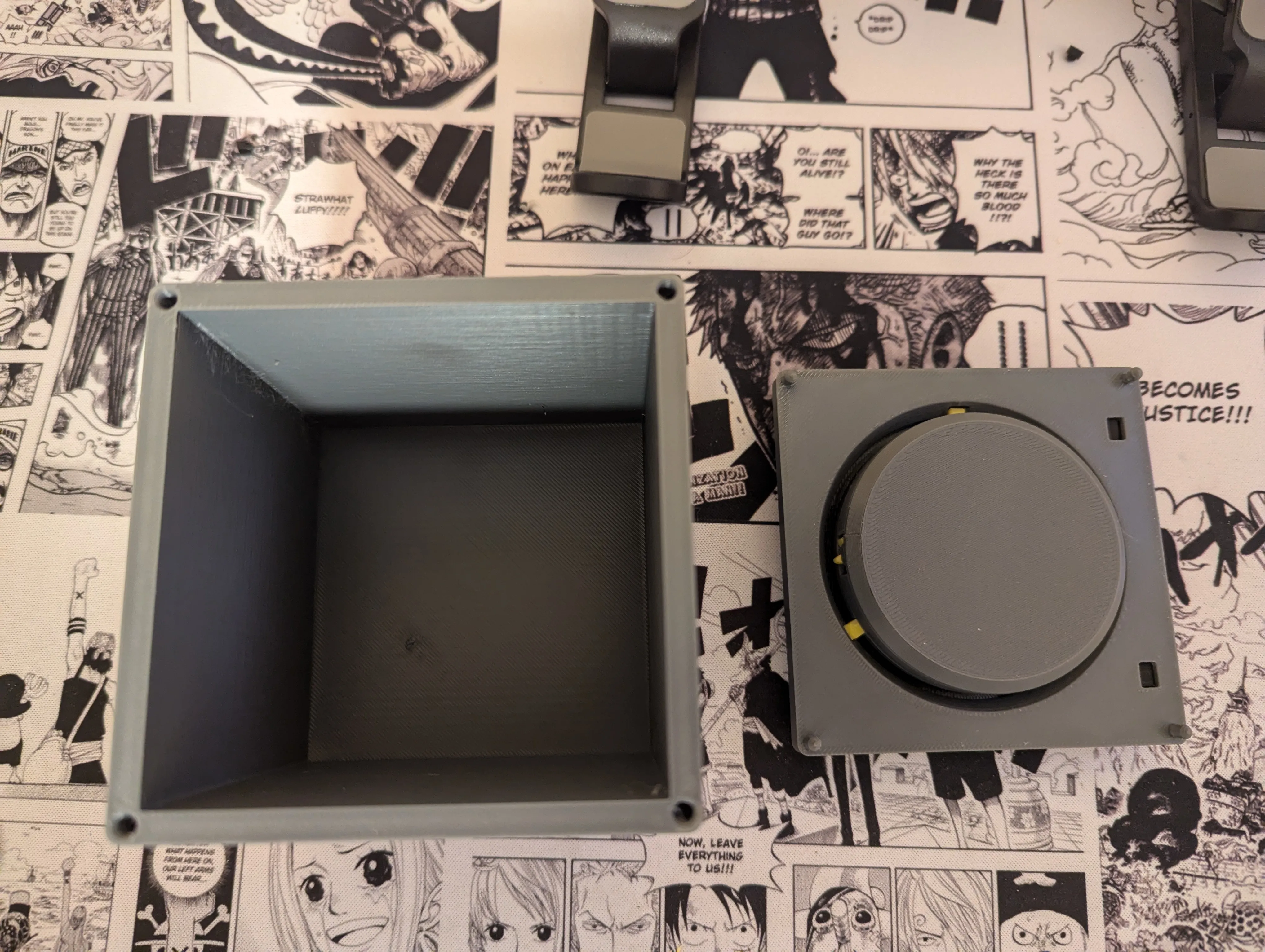

12. Final step is to glue the front wall to the base

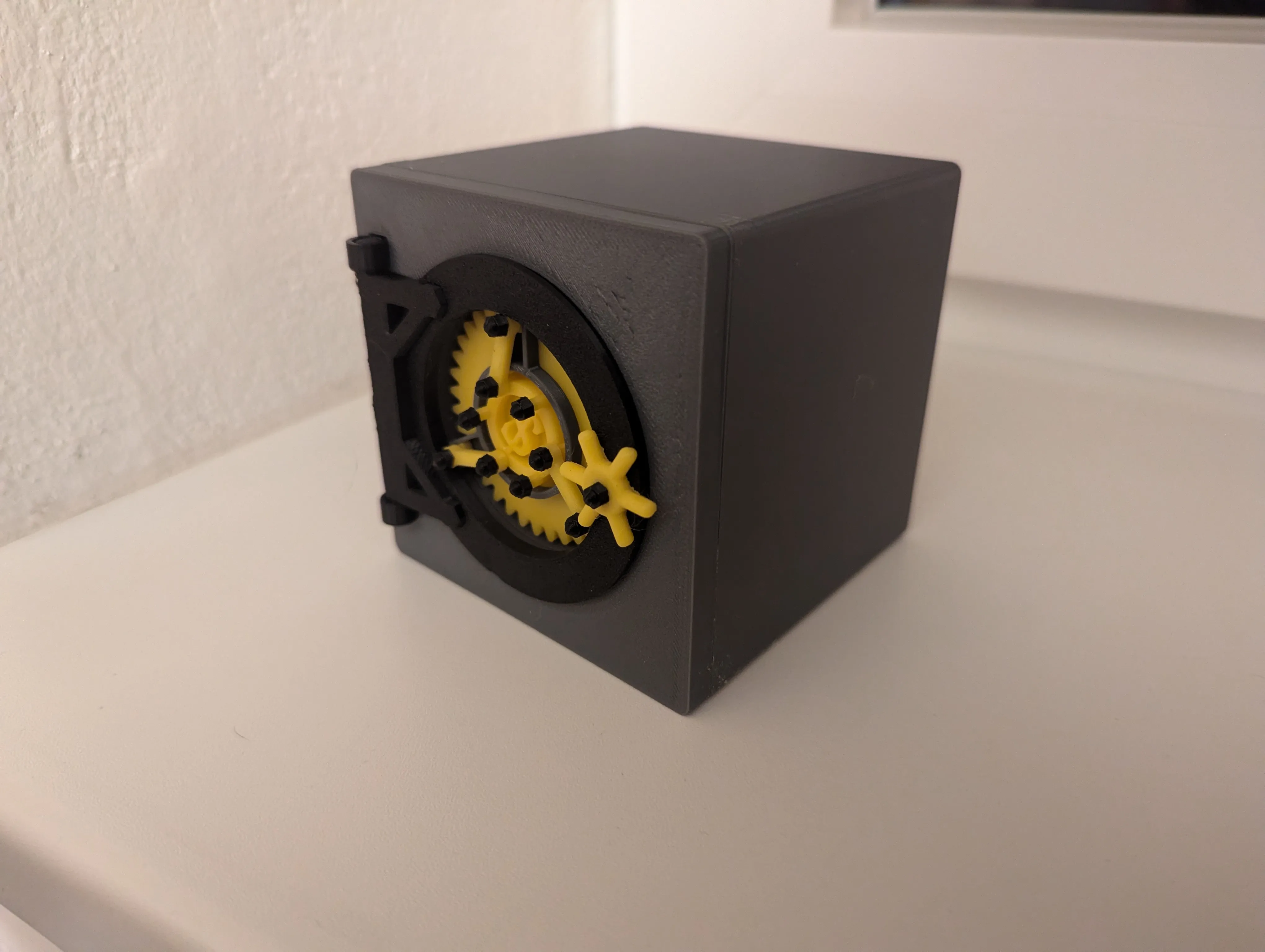

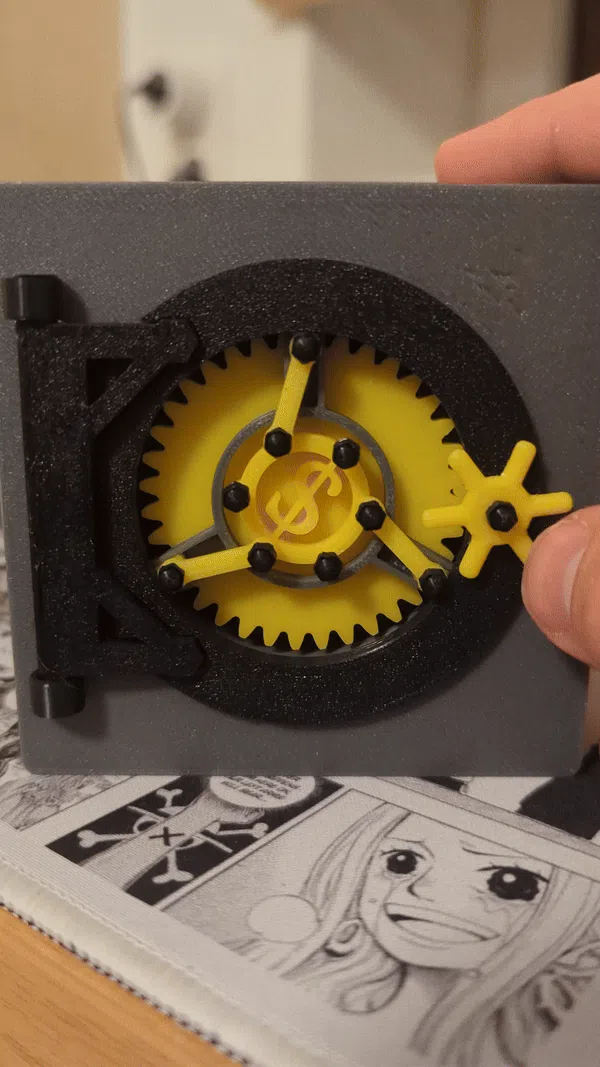

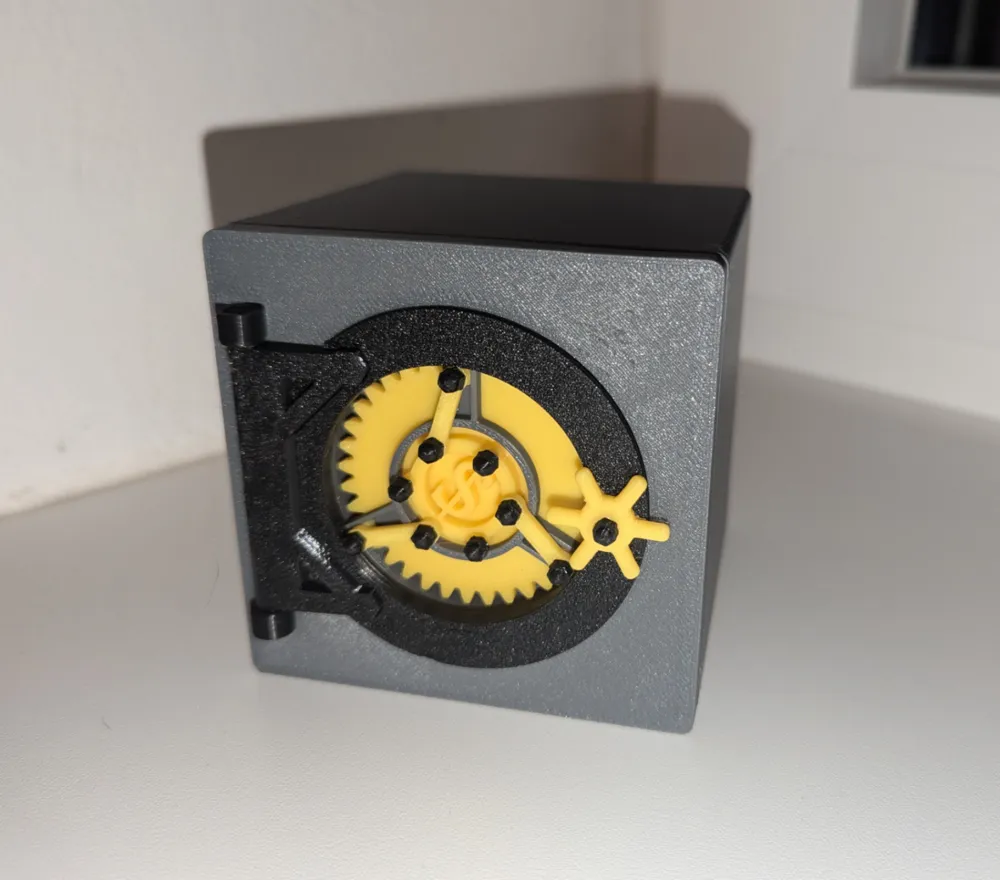

Now your mini vault is complete.

I used a special 3d-print glue to put it together: https://www.amazon.de/dp/B0CBSGWZRW?

I split the printprofiles into the 3 different colours.

Filaments i used:

Bambu PETG HF dark grey

GEEETECH PETG black
GIANTARM PETG yellow
