Xtool F1 and F2 centering jig
Print Profile(4)
Description

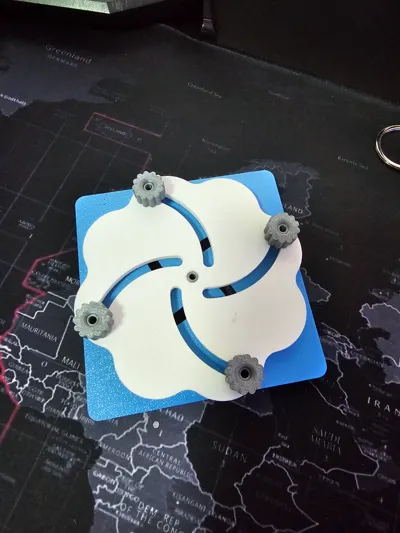

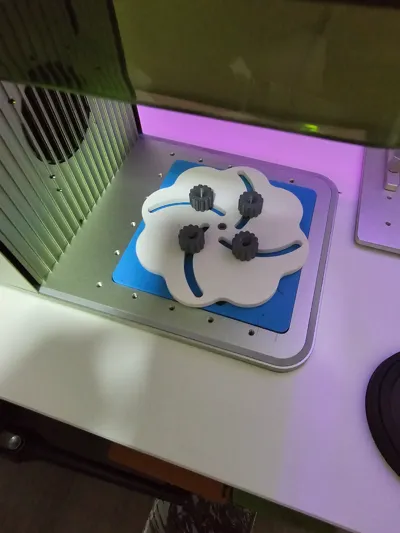

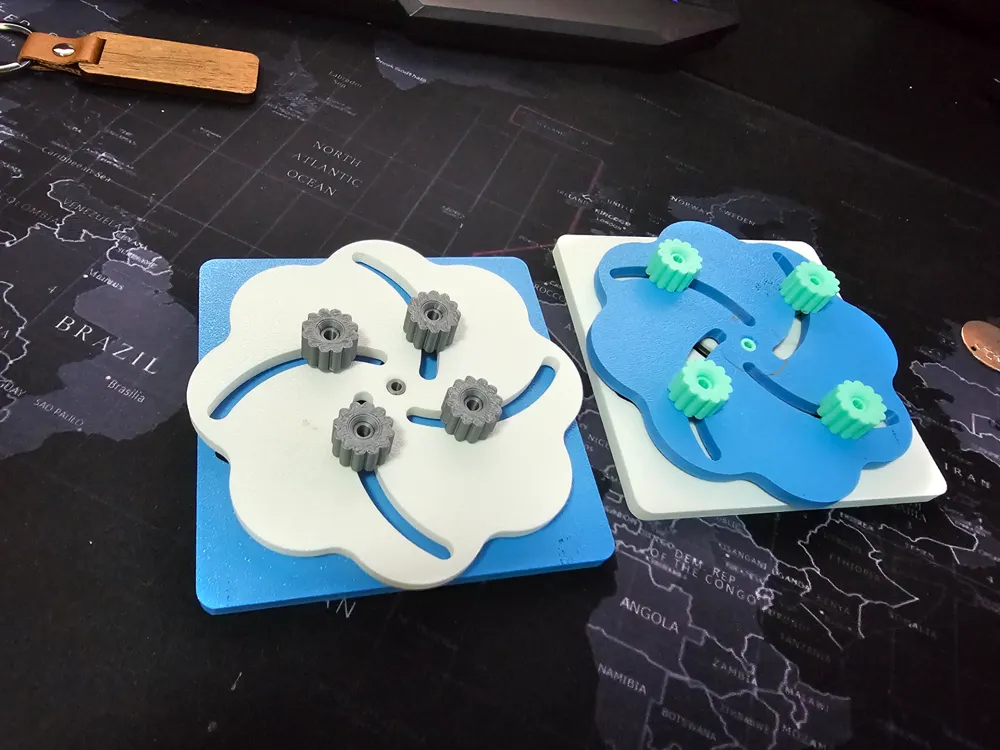

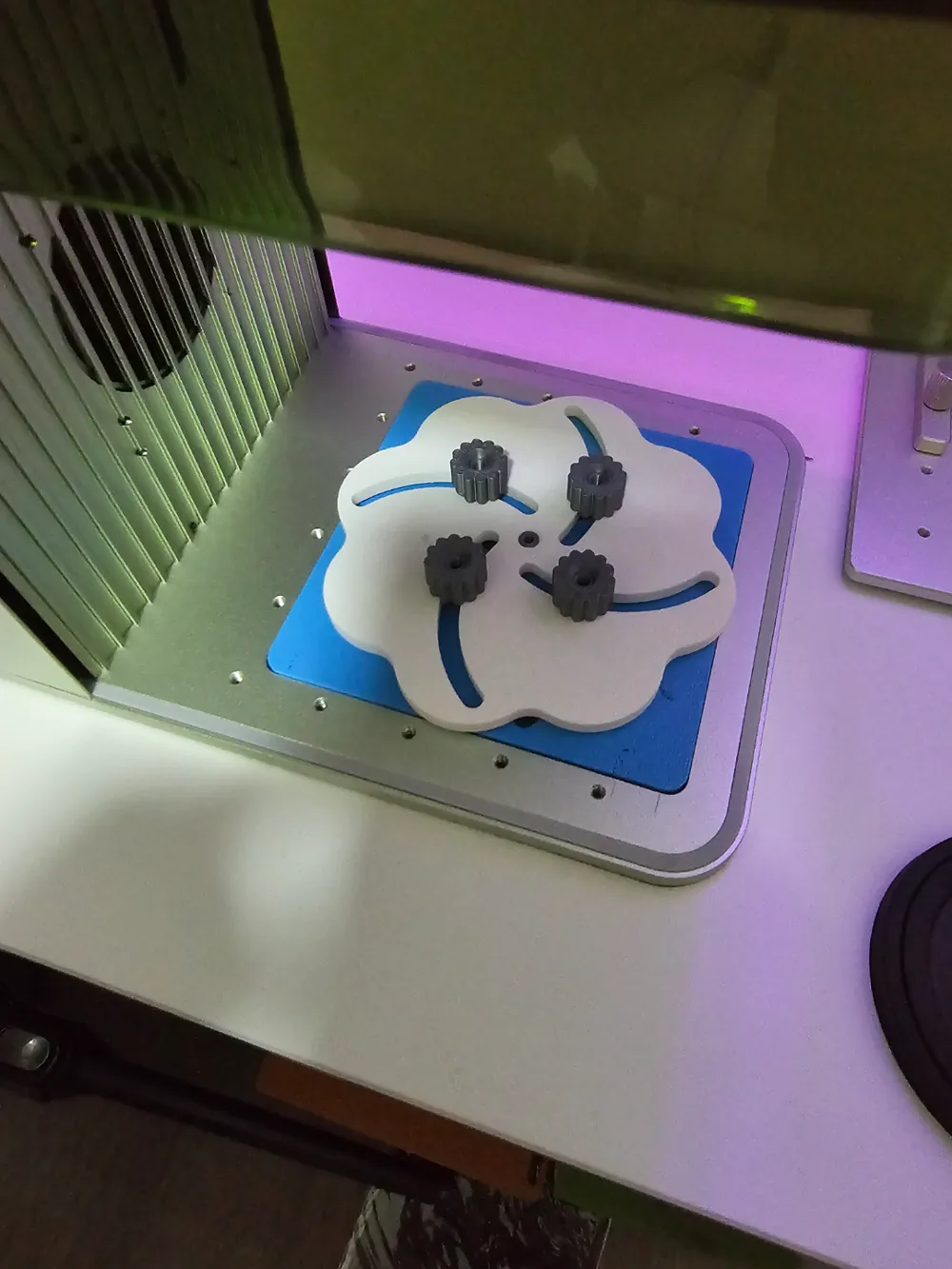

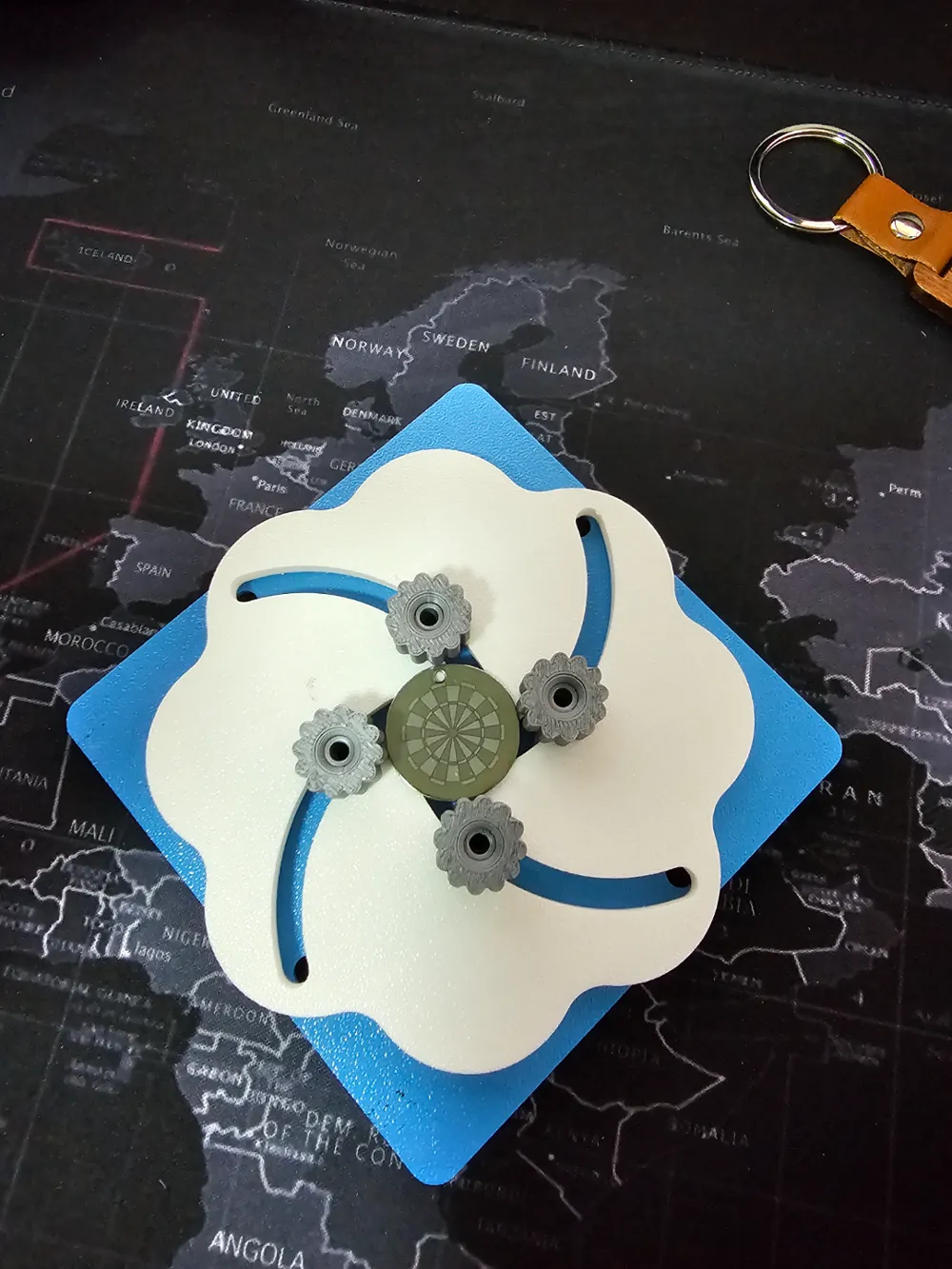

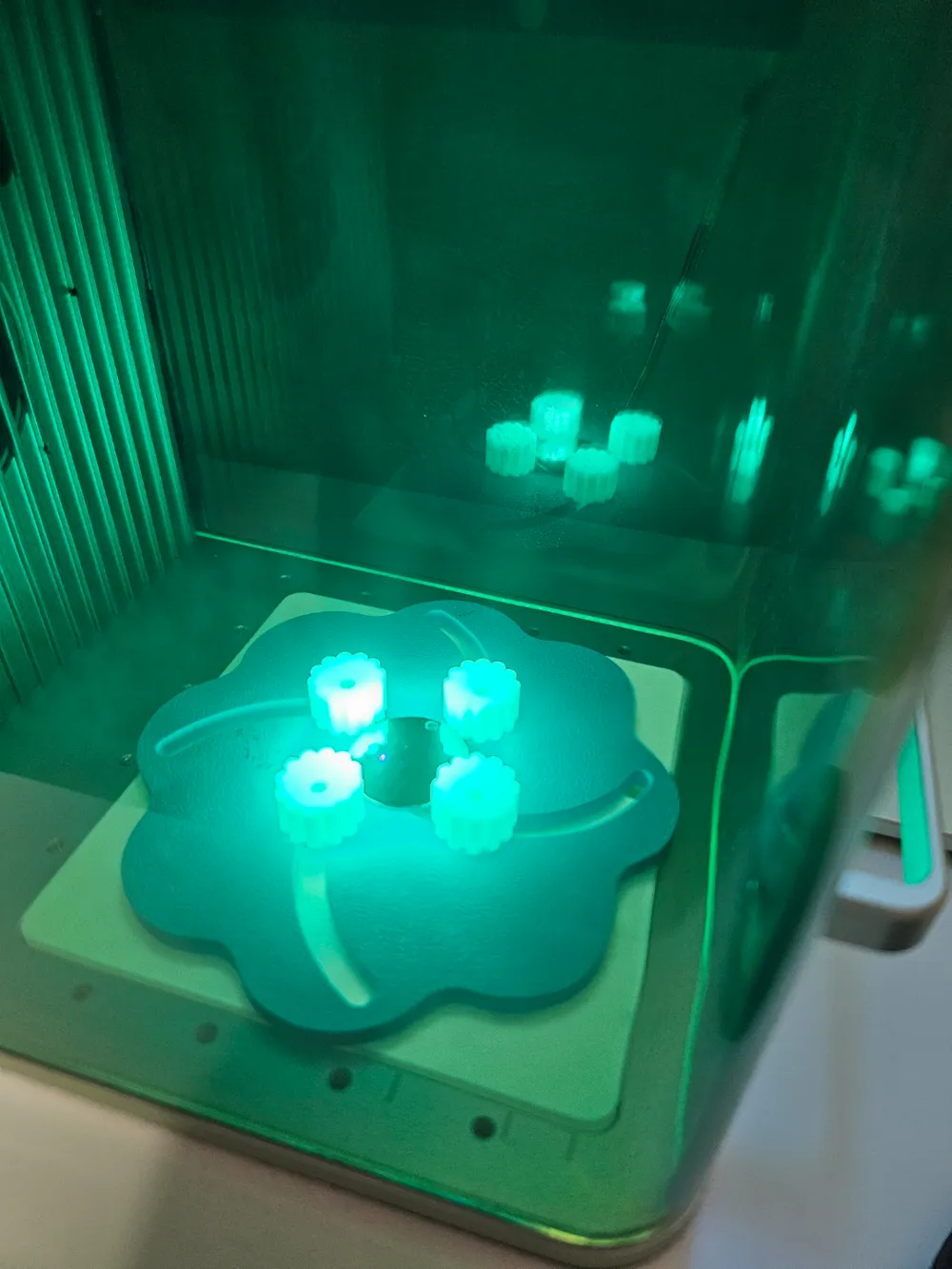

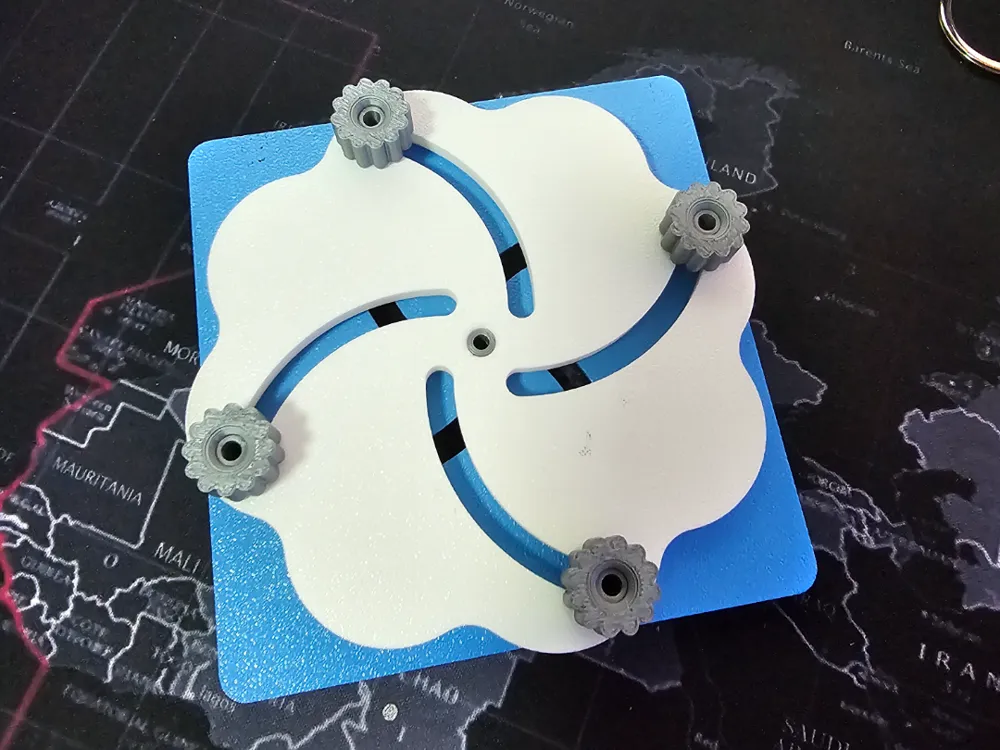

This model i designed for my Xtool F1 laser module for centering items for engraving.
i designed it so that u dont need any hardware like bolts and nuts. (press in place)
It will have a very nice tight fit, but the design is made so that if for some reason ur printer settings wouldnt be like mine and parts would come loose u can still use nuts and bolts M3 to keep everything in place. if u have any questions just send me a private message.
it came to my attention that using pla for everything is ok unless ur planning to engrave metal coins that will get hot.
i printed the big parts in ABS and the rest in normal pla, this worked for me.
video of putting the F1 jig together: https://www.instagram.com/p/DEK_NlusFdJ/
Boost Me (for free)
if u appriciate my design just hit the button.
For the F1 Ultra go here: Xtool F1 Ultra centering jig by ID_Tag - MakerWorld
