Xtool F1 and F2 Ultra centering jig
Print Profile(1)
Description

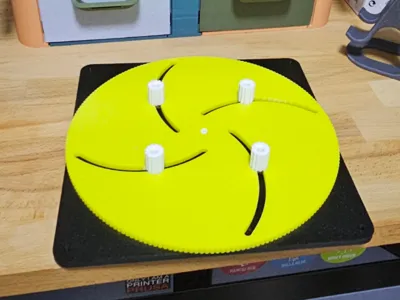

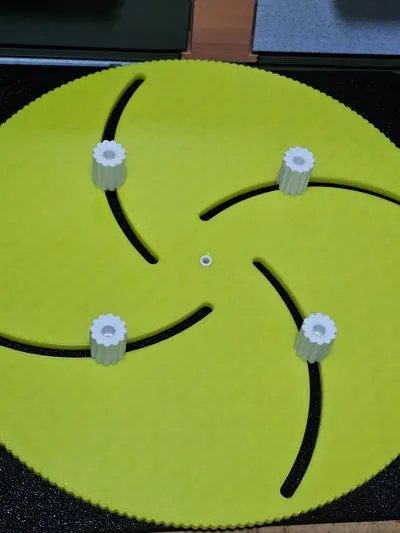

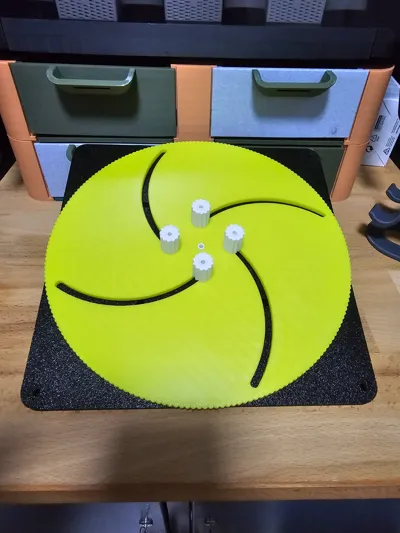

centering Jig for the Xtool F1 Ultra.

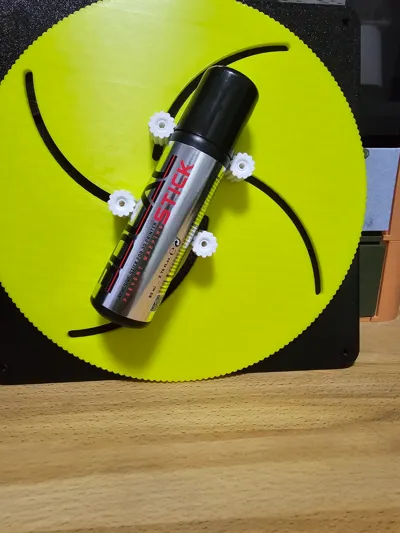

This model is designed for the Xtool F1 Ultra laser module for centering items for engraving.
apperently it also fits on the F2 ultra. (i did not test it myself, but i heard from people)
i designed it so that u dont need any hardware like bolts and nuts. (press in place)
It will have a very nice tight fit, but the design is made so that if for some reason ur printer settings wouldnt be like mine and parts would come loose u can still use nuts and bolts M3 to keep everything in place.
video of putting the F1 jig together, same works for this tool: https://www.instagram.com/p/DEK_NlusFdJ/
Boost Me (for free)
if u appriciate my work just hit the button!
for the regular F1 go here :https://makerworld.com/en/models/919267#profileId-881152
