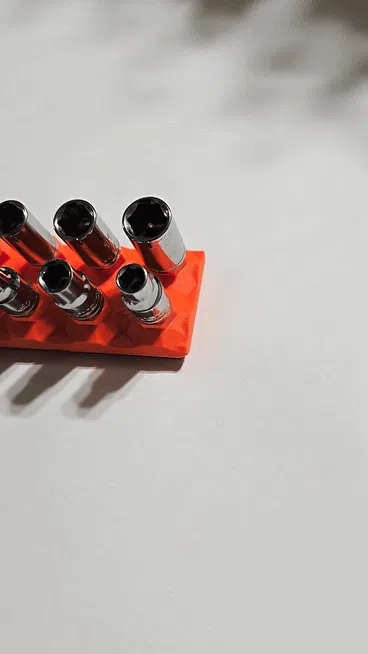

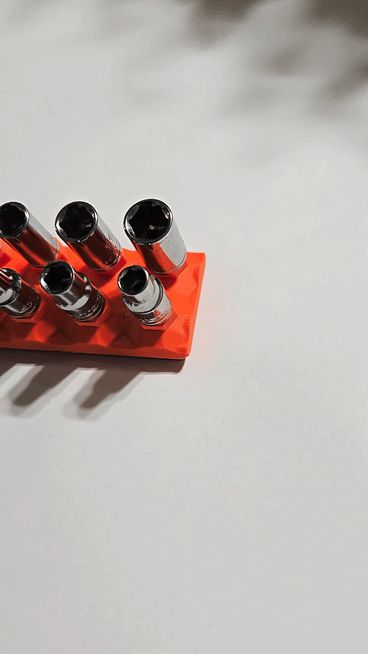

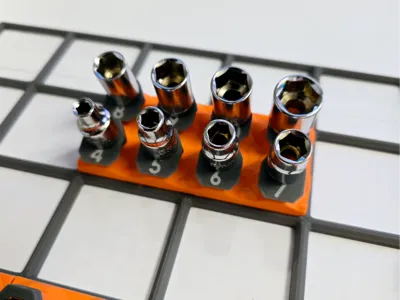

Tileable 1/4 Drive Socket organizer compatible with Gridfinity!
Highlights:
- Fat Finger Friendly
- Ample room
- The objective was NOT to fit as many sockets as possible…
The objective is ERGONOMICS.
- 5 sizes currently available
More to come (please tell me if there's a particular size you're needing)
Magnetic

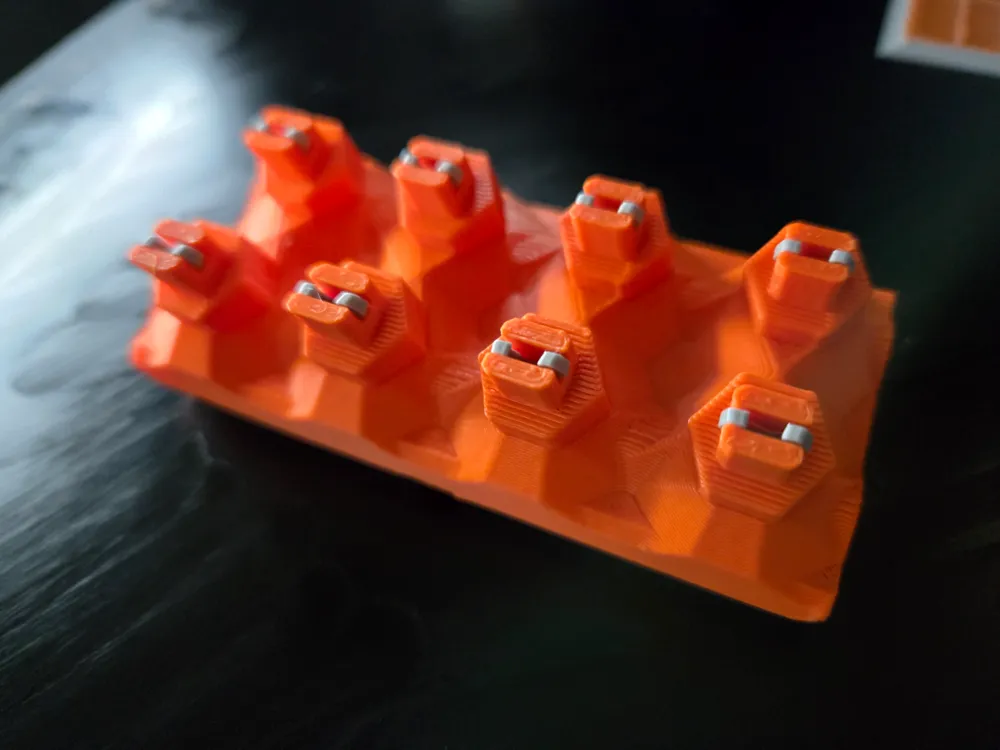

- Optional embedded magnets per grid.
- Qty (4) Ø6x2mm magnets to interface with your magnetic Gridfinity bases (and/or to attach to your toolbox, car, or fridge).

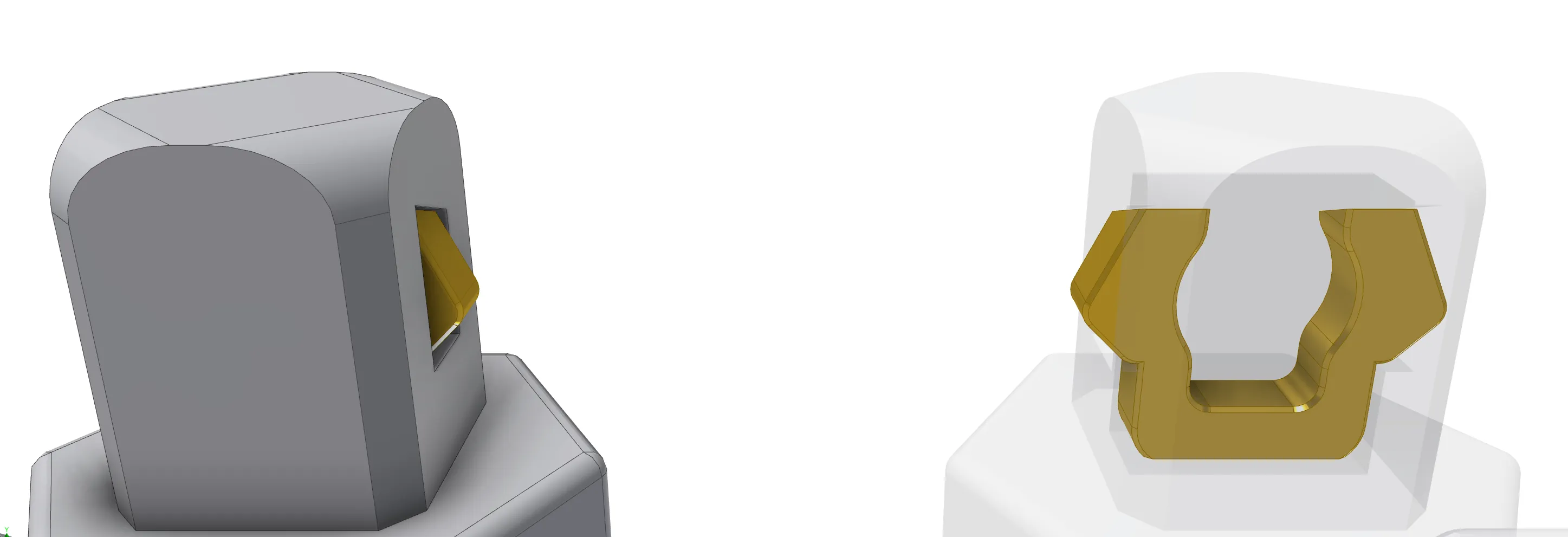

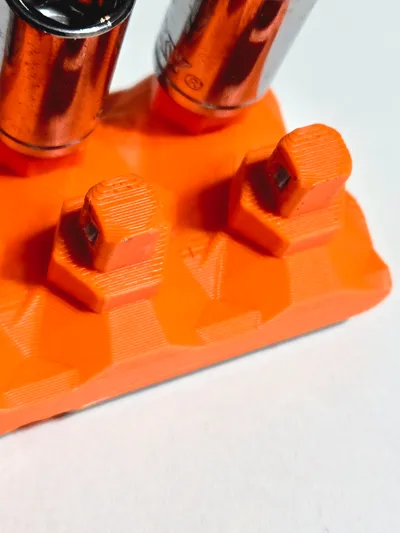

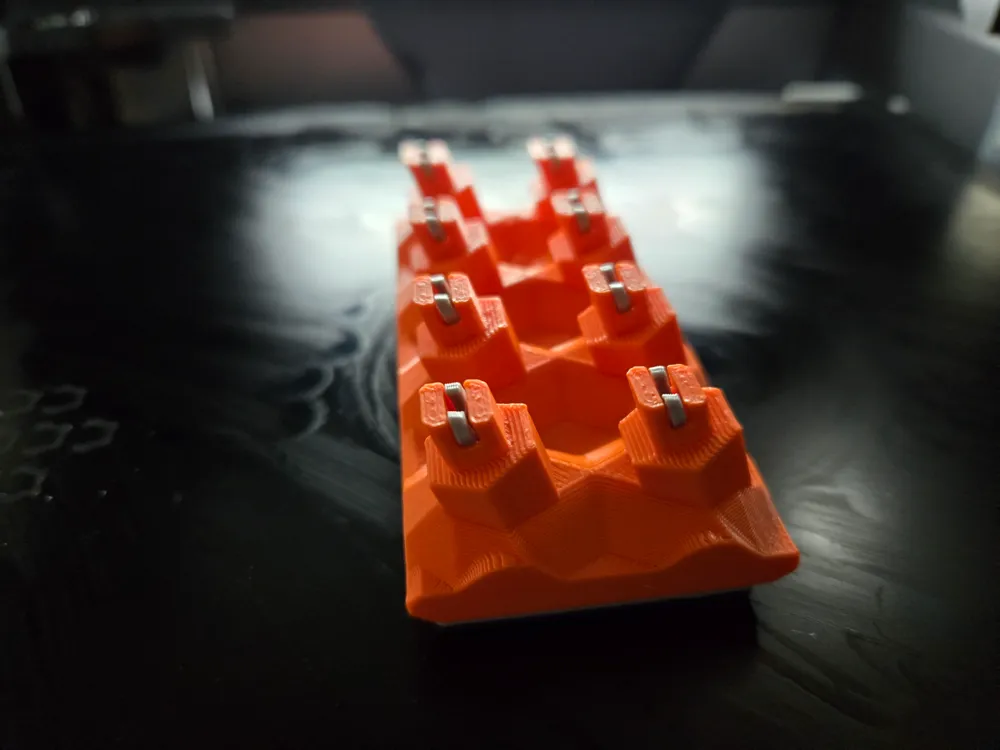

- Printed spring keepers:

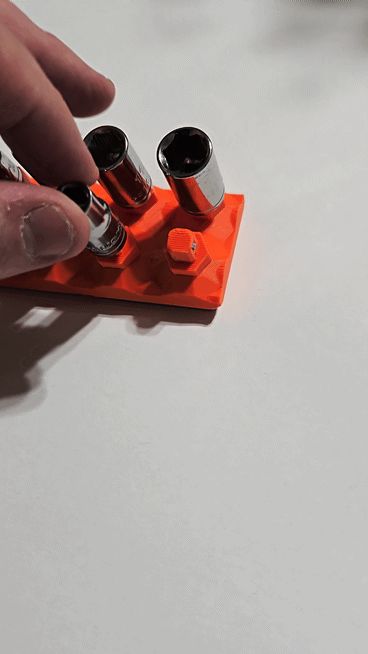

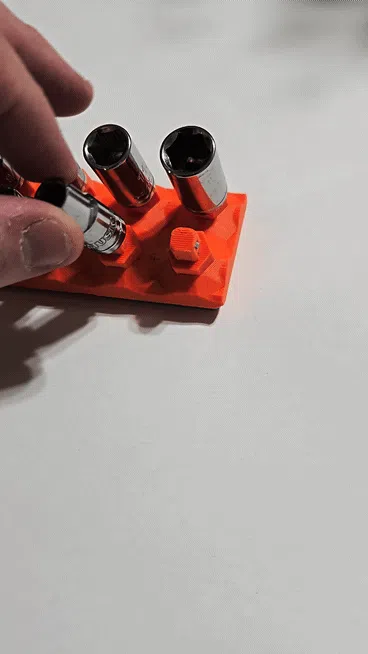

- Sockets click onto mounts with a satisfying CLICK.
- Pauses at layer 138 (25.2mm) to insert printed spring keepers.
Spring keepers can be printed with the socket organizer or separate (prior to printing socket organizer). If printed with the socket organizer, carefully pry them off when it pauses!

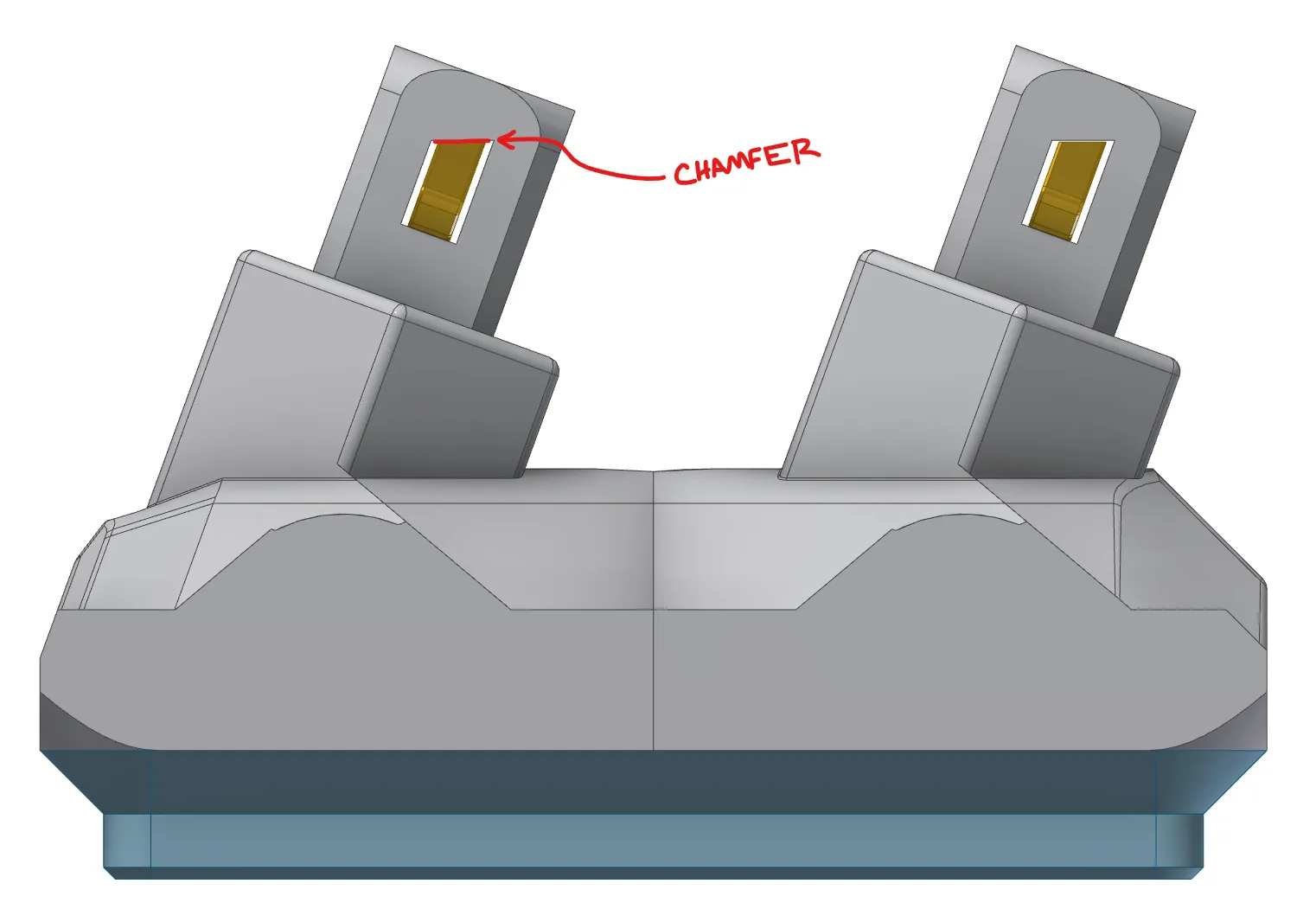

Ensure that keepers are inserted with the chamfer up; so the chamfered surface is parallel to the buildplate.
- Robust Design
If you break it, I'd like to know HOW.🙃

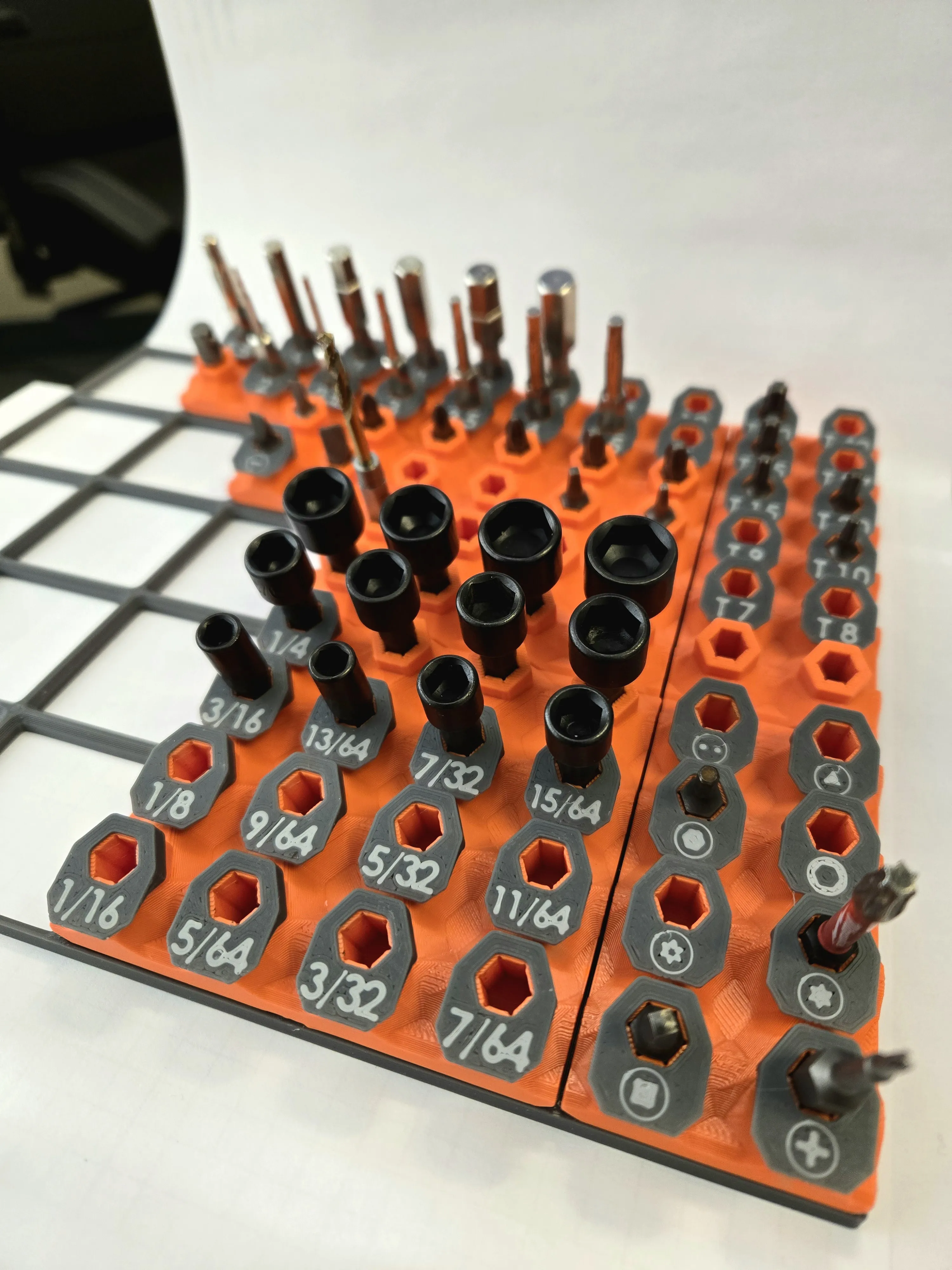

Also check out Screw Bitfinity, the ultimate tileable bit organizer!
Feedback is welcome!
ENJOY!!
