Simple Split Flap Display
IP Report
GIF
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
17
26
2
2
30
7
Released
Description

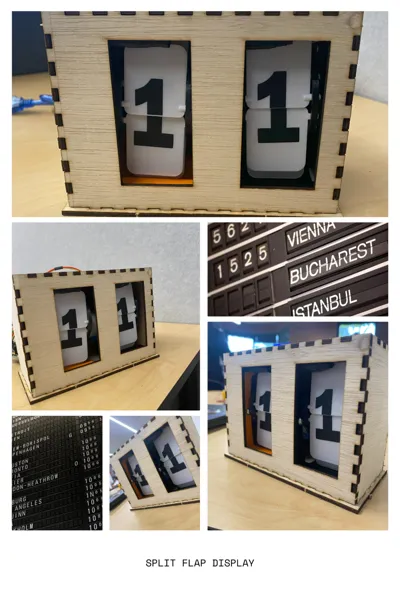

This is a simple split flap display that uses 10 flaps (I have used numbers 0 - 9) Which runs off of a single arduino Uno.
The split flip is designed for a basic 28BYJ-48 Stepper motor and all parts can be printed without supports and all in one build plate making this a super easy display to make.
What makes this display different to others i have seen is its simplistic nature. Other split flap displays end up being quite complex when it can be kept simple.
The code ive written for it uses the Arduino IDE and you enter in 2 numbers and those numbers are then displayed on the corresponding displays.
I used laser cut adhesive vinyl for the numbering.
