Modular Brick Wall

Modular Brick Wall

Description:

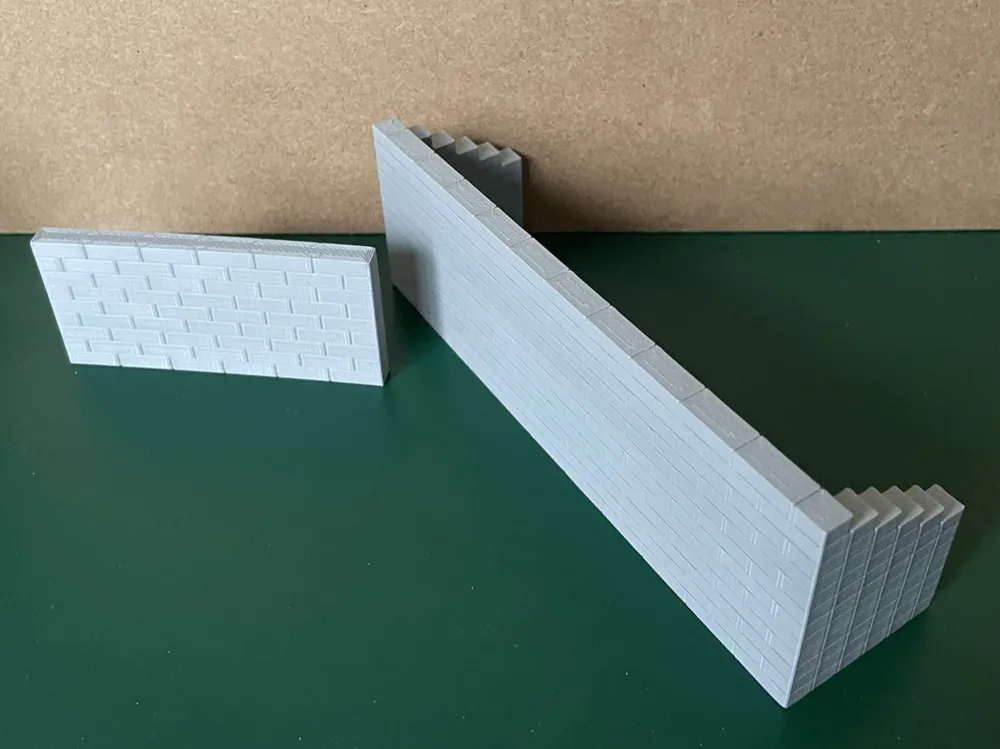

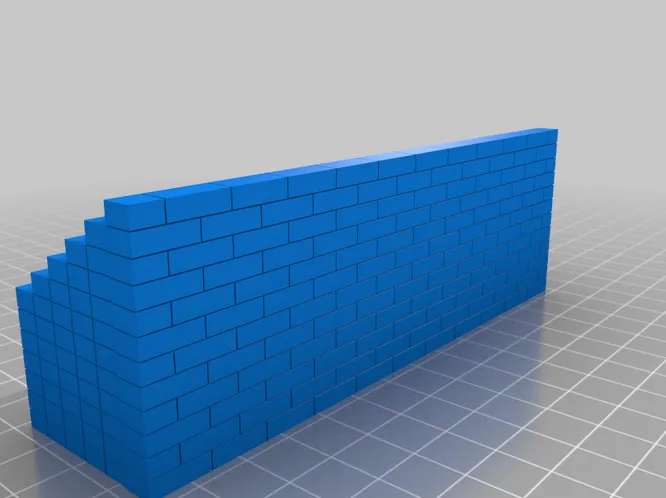

A customizable wall project featuring small and large wall designs. Each type includes versions with and without sides.

Note:

Please note that the 'Modular Brick Wall' project is currently a work in progress with future versions and extensions planned, and both the STL files and SCAD code are subject to change.

Files:

• [wall_big.stl]: Large wall version without sides.
• [wall_big_sides.stl]: Large wall version with sides.
• [wall_small.stl]: Small wall version without sides.
• [wall_small_sides.stl]: Small wall version with sides.
• [wall.scad]: SCAD file for customization.

Printer and Print Settings:

• Printer: Artillery Sidewinder X2
• Material: PLA
• Nozzle: 0.4mm
• Profile: Super Quality – 0.12mm
• Infill: Cubic – 10%
• Print Speed: 60mm/s

Instructions:

Choose your desired wall size and version. For customization, use the SCAD file to create a personalized wall design.

Important Note:
If you opt for side walls, ensure that the value for numBricksVertical is set to a minimum of 7; otherwise, the wall may not function correctly.

Change Log:

• 2024-09-22: Changed the project name and description for improved clarity.

Feedback:

Your feedback is highly appreciated! Feel free to suggest enhancements, changes, or leave positive feedback.
