Description
A low profile caliper tray for Gridfinity System, remixed from https://makerworld.com/en/models/628336
Size: 6U x 2U x 2U
Changes:
- Made it as short as possible to fit short drawers, only 2U (14mm) height. It also prints faster and uses less material.
- Raised bed in the ruler section for better stability.
- Enlarged the pen slot.
Not a very tight fit due to being generic, but should fit most 6" calipers.

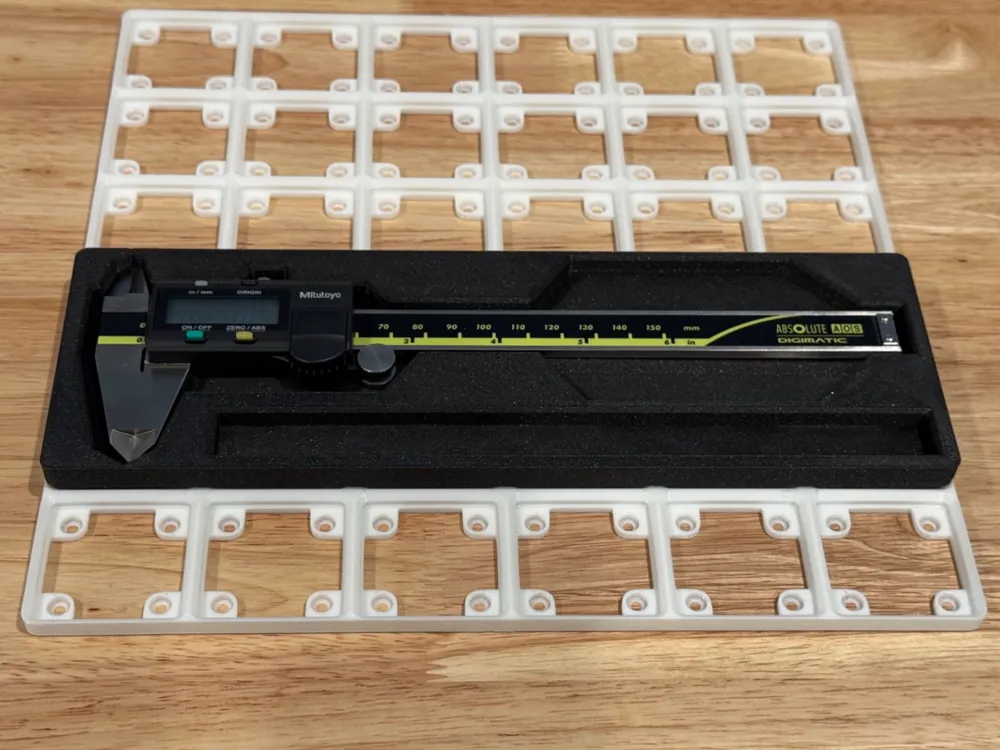

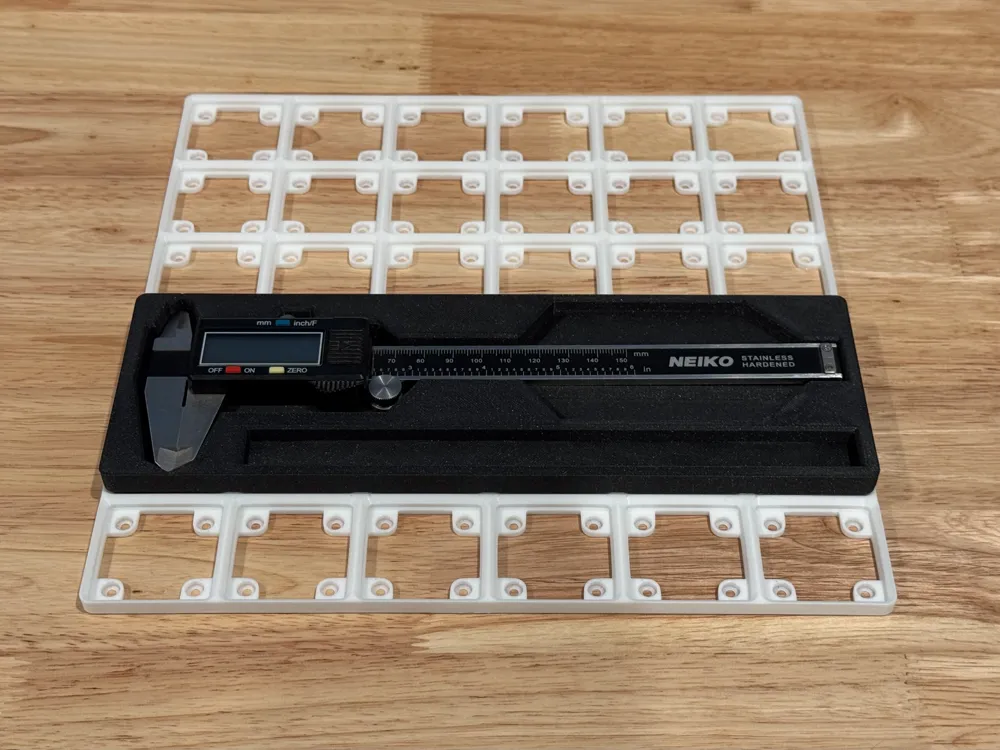

Tested with my Mitutoyo 500-196-30 and NEIKO 01407A.
A slightly different version available at Low Profile Gridfinity 6" Caliper Tray v2
A rethinked minimalist version available at Minimalist Gridfinity Caliper Holder
