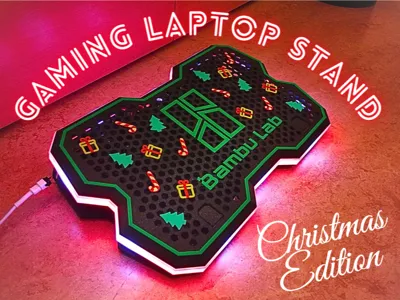

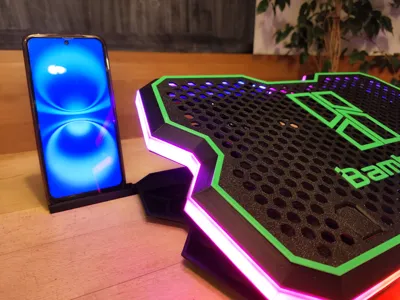

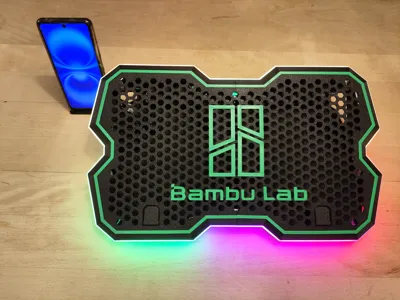

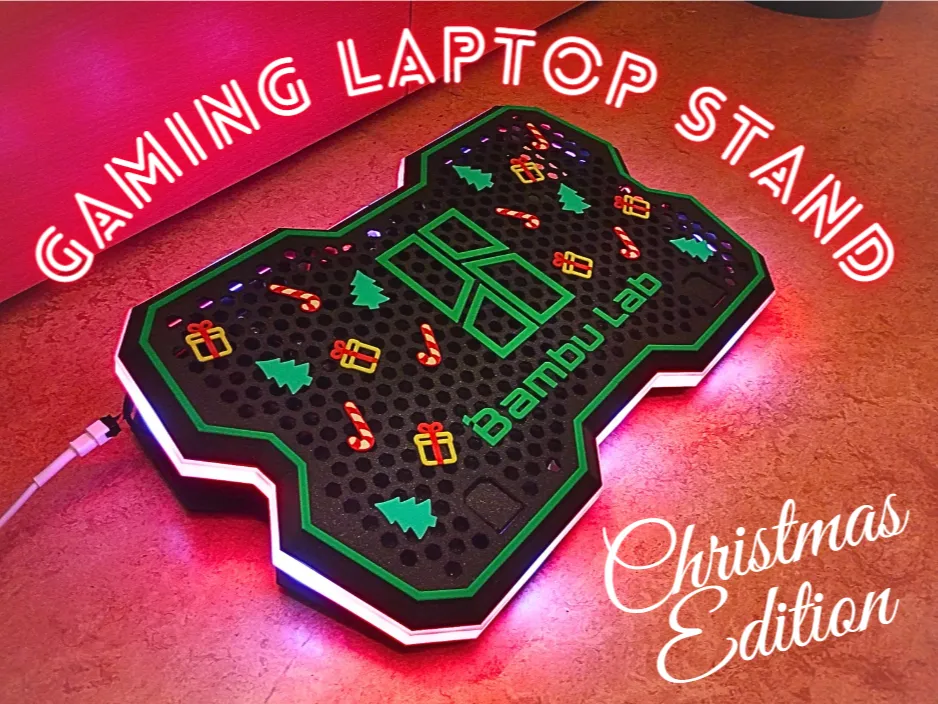

Laptop Stand CHRISTMAS EDITION+Fans/RGB/Phone Hold

IP Report

Print Profile(1)

All
A1
P1S
P1P
X1 Carbon
X1E
X1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
30.2 h

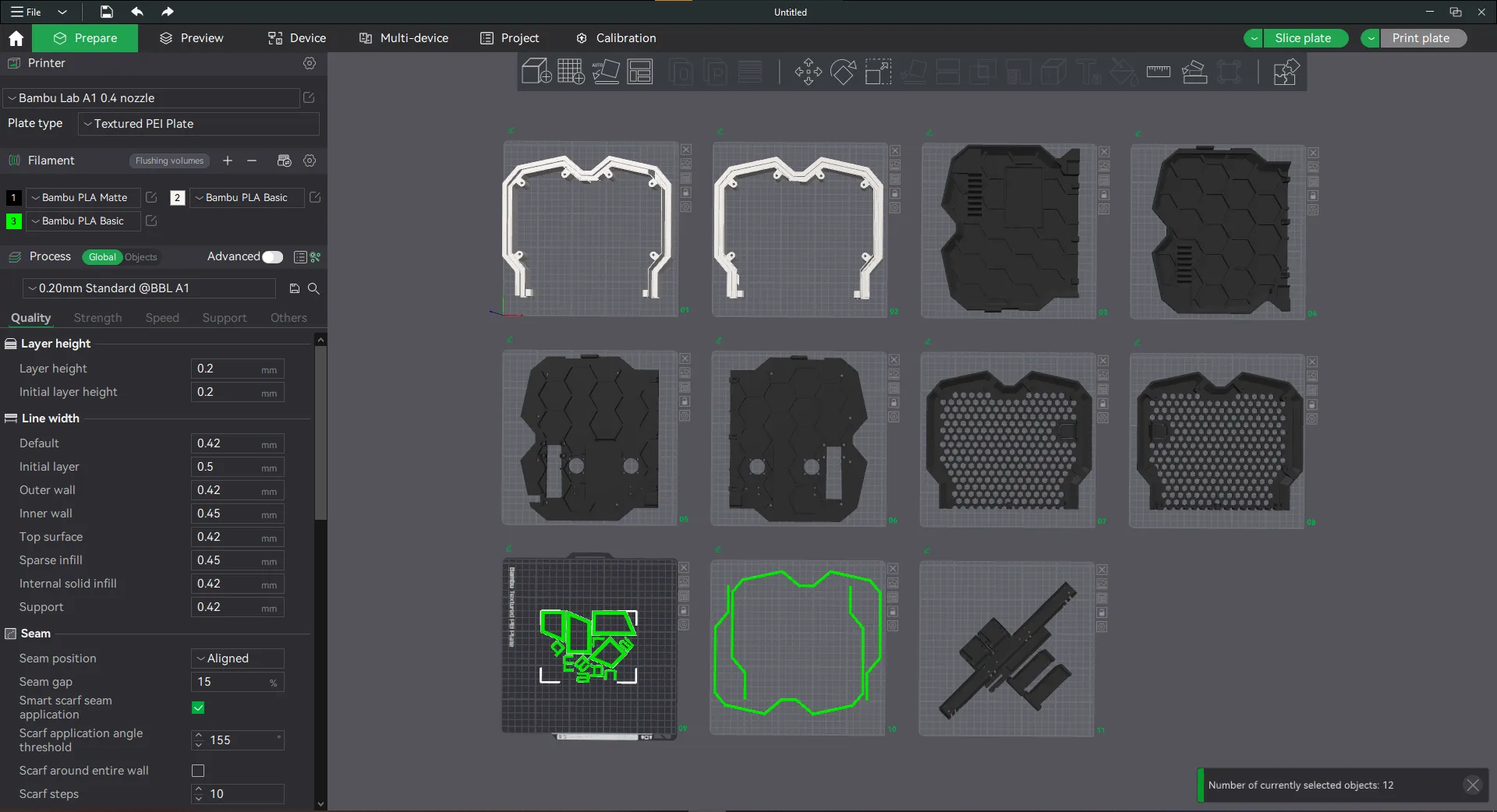

12 plates

Open in Bambu Studio
Boost
19
19
0
1
7
2
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
S-shape LED Strip Light (1pcs) - KA002 / RGB (400122)
M3x20 BHCS Machine Screw (10PCS) - AA061
M3 Carbon Steel Hex Nut (20PCS) - AB005
2510 5V DC Fan with SH1.0 Connector (1PCS) - JA001
USB Speed Controller-Compatible with TT motor (1PCS) - IA002

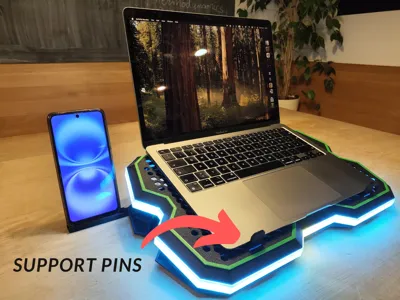

2x50 mm Stainless Steel Dowel Pins (5PCS) - DA015
M2x18 BHCS Machine Screw (10PCS) - AA166
Power Distribution Board (PDB) - 4 Channels (1PCS) - IA005
M2 Carbon Steel Hex Nut (20PCS) - AB003
Bambu Filaments
Select all
Bambu Green (10501) / Refill / 1kg
Jade White (10100) / Refill / 1kg
Matte Charcoal (11101) / Refill / 1kg
Onyx Black Sparkle (13101) / Filament with spool / 1kg
Red (10200) / Refill / 1kg
Yellow (10400) / Refill / 1kg
List other parts
  • Supportive Footpad - A1 x 2: https://eu.store.bambulab.com/collections/spare-parts-for-a1-series/products/supportive-footpad-a1-1
  • Super Glue x 1:

Description

Boost Me (for free)

BUILD GUIDE (SEE PICTURES BELOW) :

NOTE: of you have 2 usb ports close to each other from one side of the pc (less than 1 cm space) then make a hole from the other side of the big surface with fan holes as well as the white led path creating a second path for the usb cable out of the model from the right) (i will update the model in a Version-2)


1) JOINING PARTS

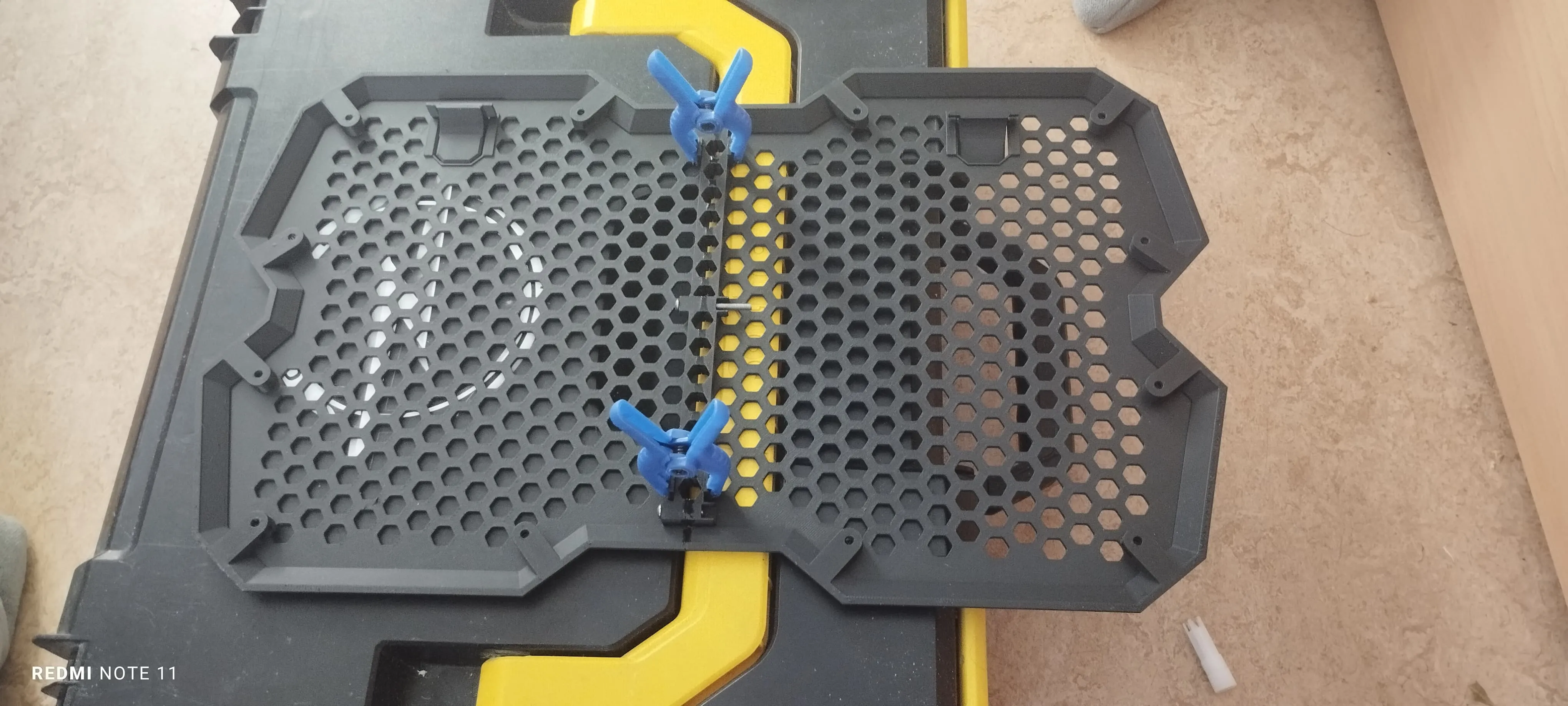

1- glue the HALVES together for a sturdy build and screw the layers together (with no glue for demontability)

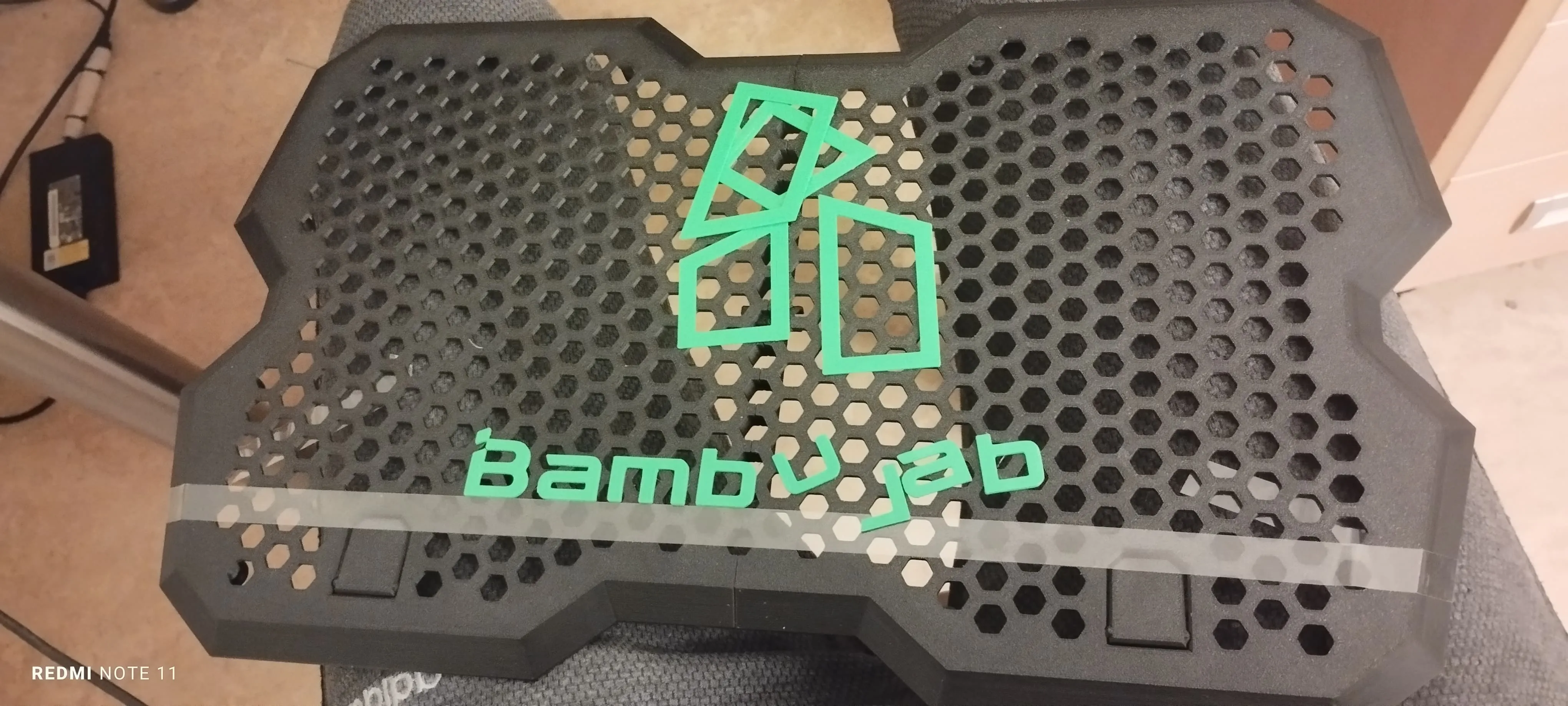

2- the top logo needs careful gluing (using tape for allignment is advised)

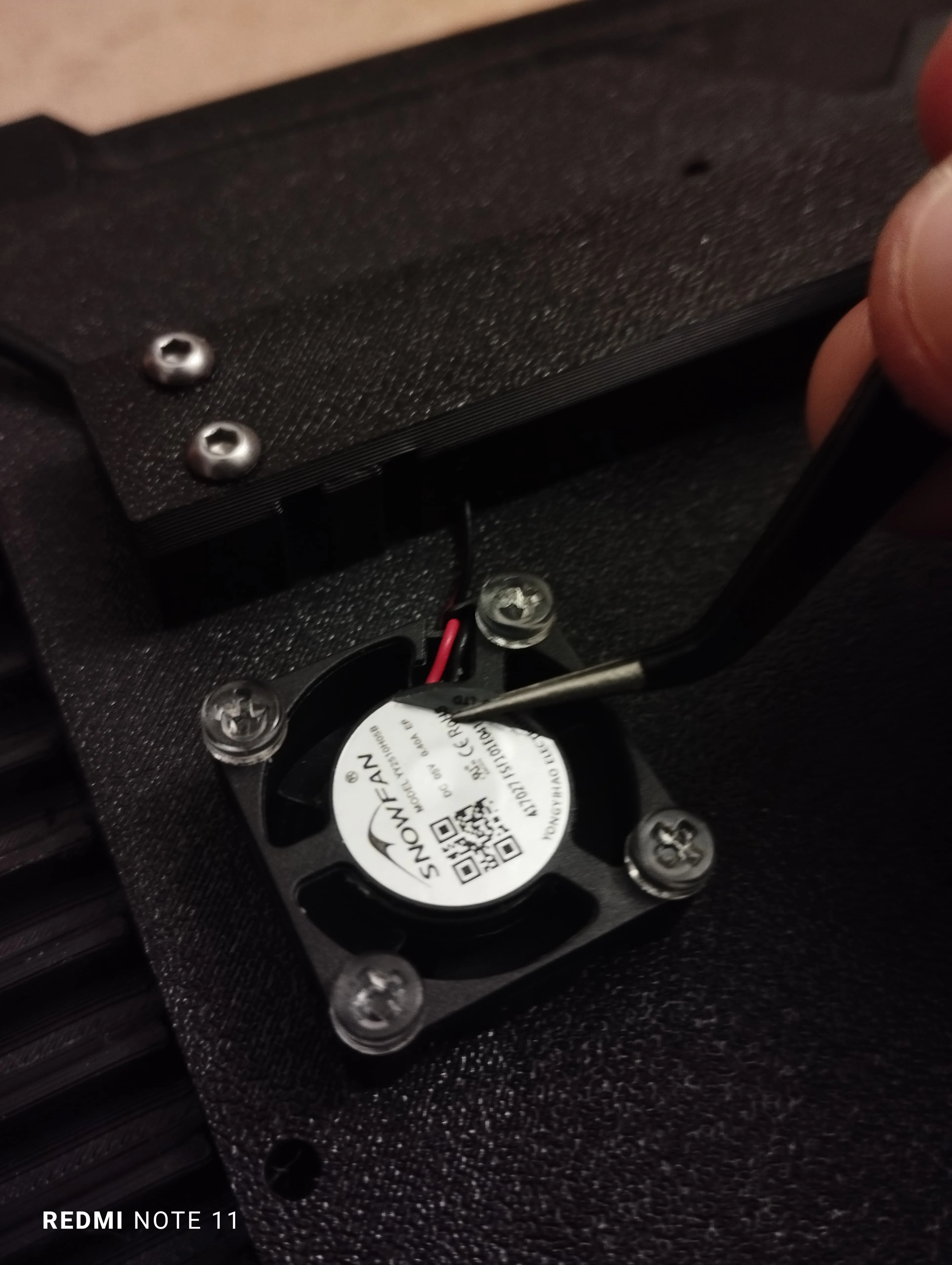

3- screw in the 4 fans with M3 bolts so the fans face downwords (WITH THE SILVER STICKER FACING UPWARDS to the hexagonal mesh) (remove the silver sticker from the back)

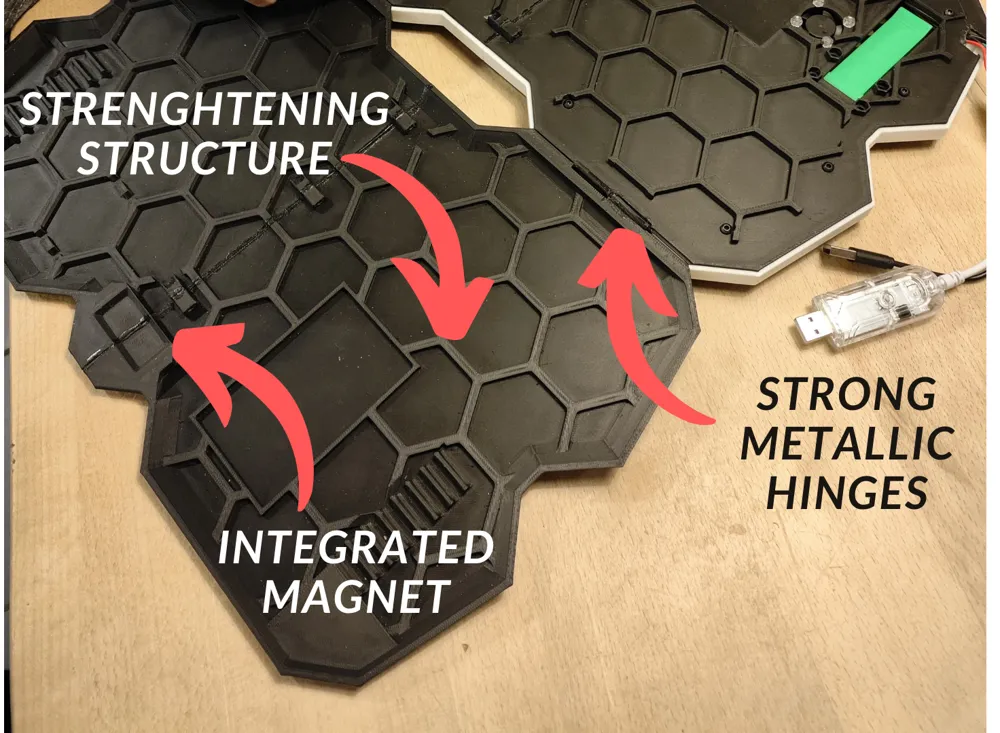

4- insert the metallic hinges and glue one side in place

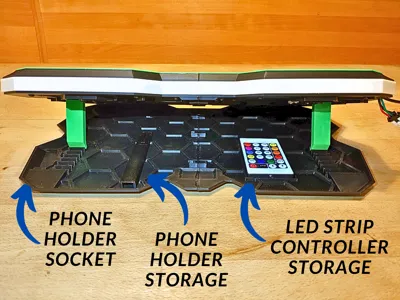

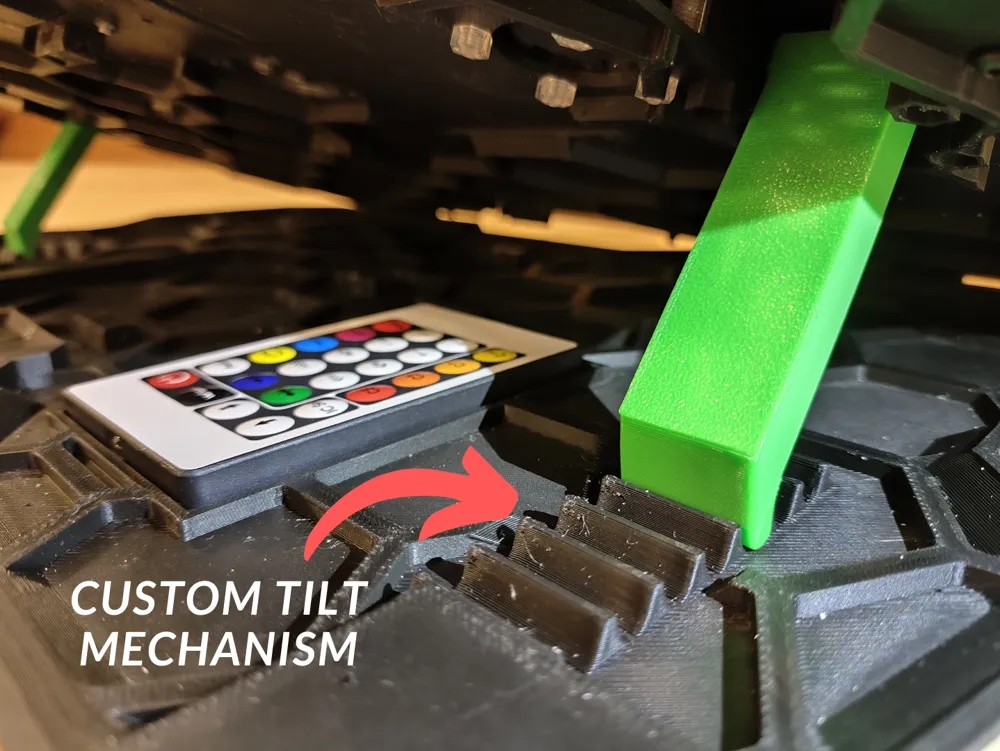

5- screw in the 2 stand rotating legs with M3 screws



2) WIRING

1- the wire management box is the 27cm long box

2- leave 20cm of USB cables out of the Stand (13cm for the led usb cable) then pass the wires and LEDs in the cable management box over the second layer
3- all the wiring will be made before screwing the frame

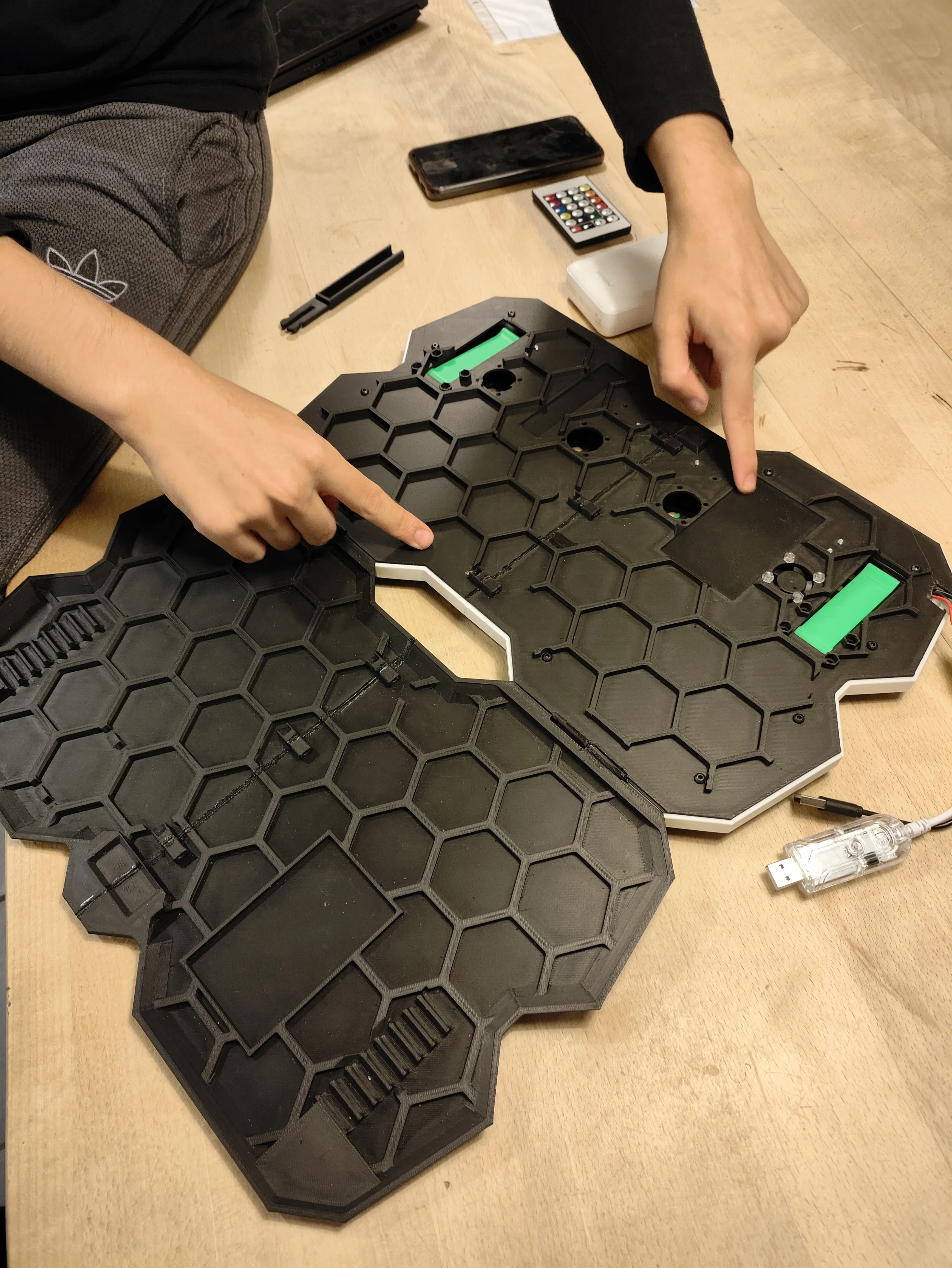

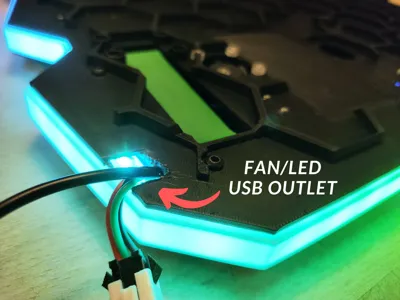

4- the usb cables enter the body of the stand from its left and right side ( and will be later fixed in place with the LED path over it kind of squishing the cables )

5- the cables then enter the cable management box
6- the led lights go straight to the back side and to the LED white path
and the fans cables get connected into the 4 pin connector
7- the OUT pin of the first 4 pin connector gets connected to the IN pin of the second 4 pin connector (for extra length)

8- 2 fans will be connected in every connection hub and then the cables exit the cable management box to the fans (2 fans per 4 pin connector)

9- screw the wire management box with M2 screws
10- insert the LED in the white path in the small 2mm channel (super glue application is optional) (be careful when removing the LED path's supports)



3) ASSEMBLY

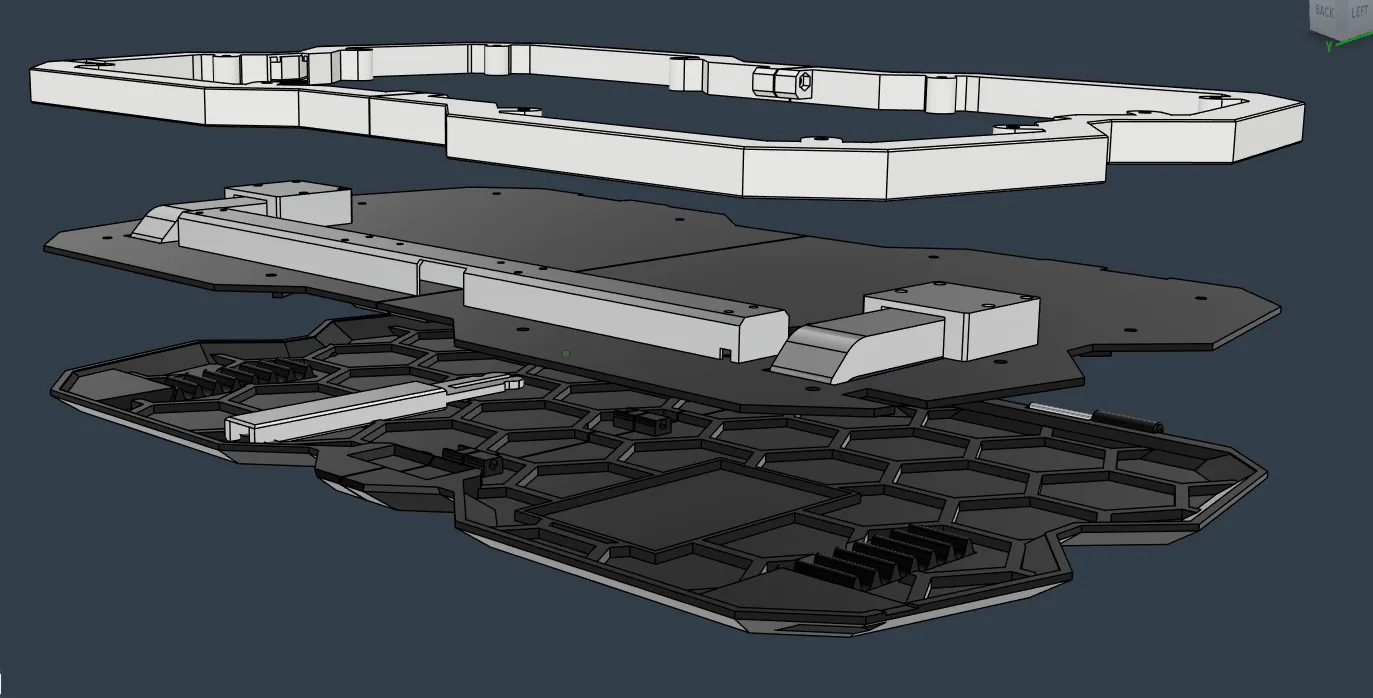

all the frame layers are screwed together with M3 screws
