LED&KEY Case

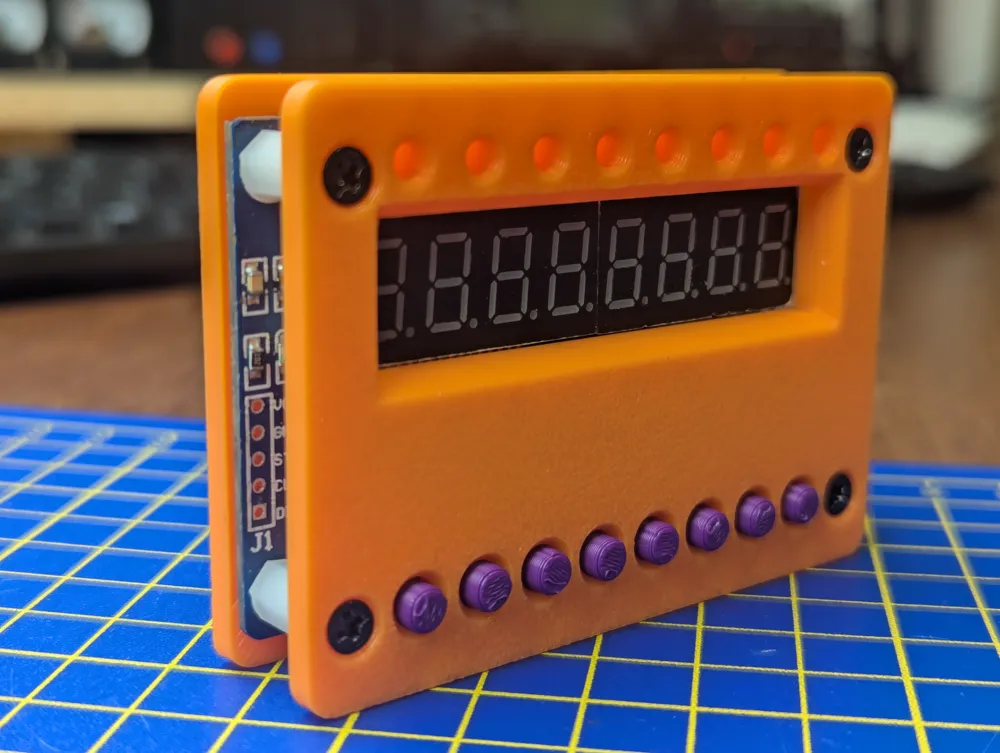

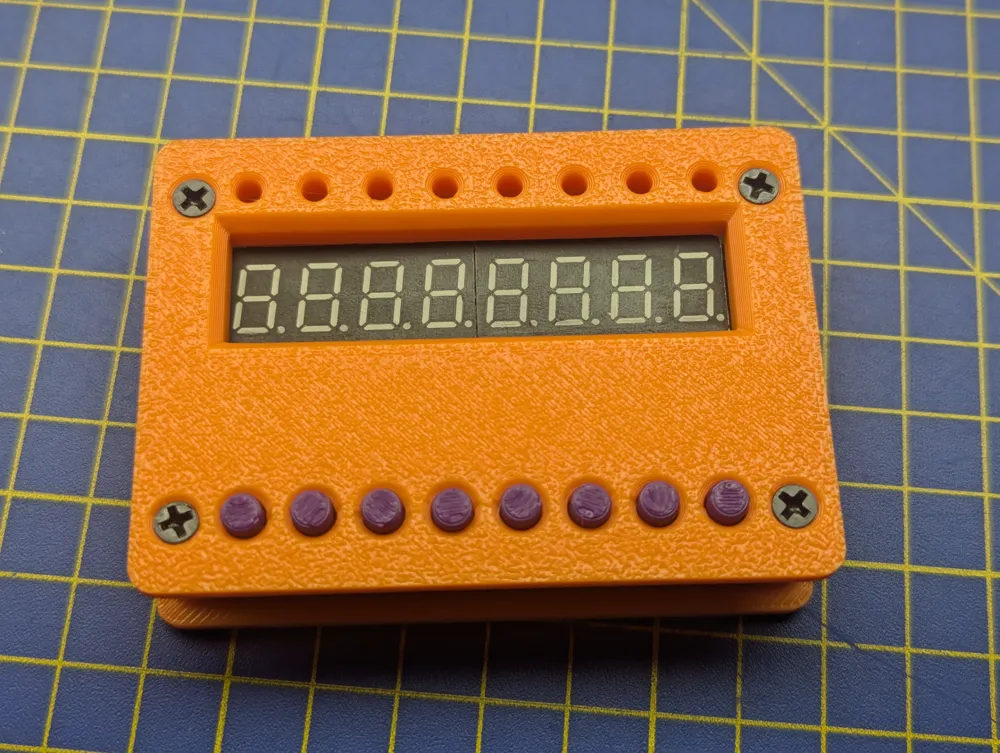

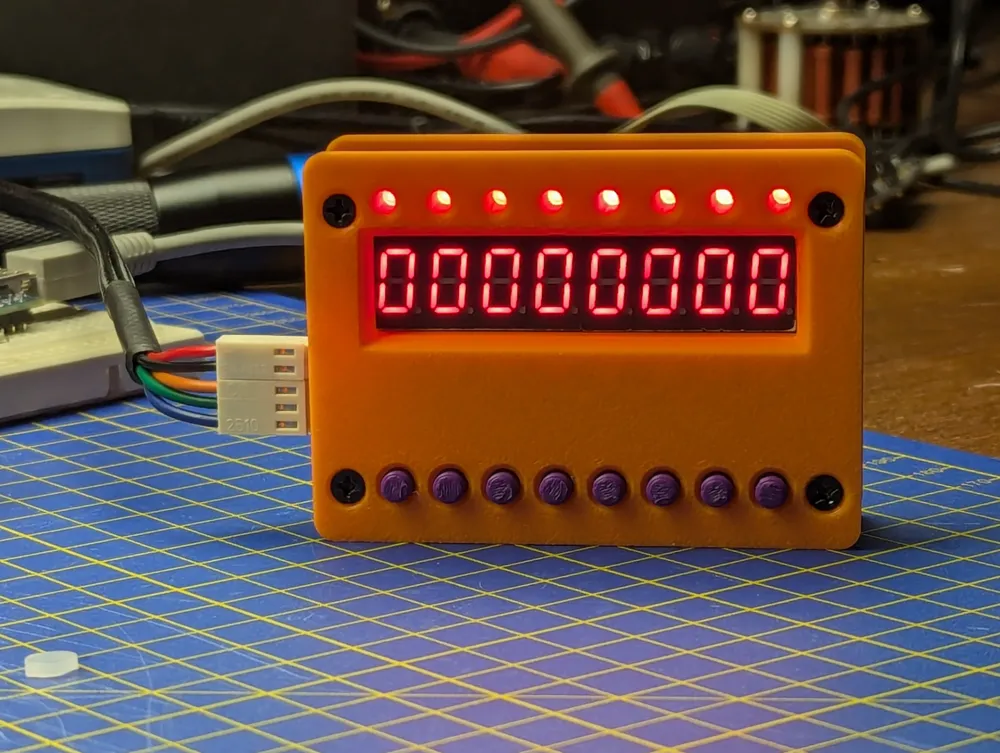

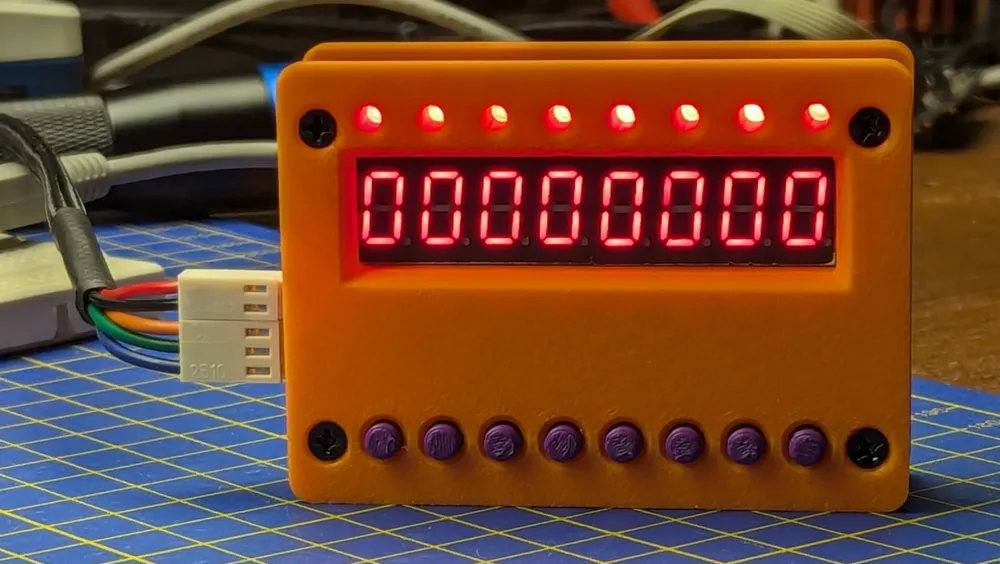

Hi there, this is a simple but useful case for the LED&KEY board you used to see around the place.

You can print in any colours you like, and the tolerances are pretty forgiving, but worst case you may need to heat up the LEDs solder joints to better align them, or potentially position the seven segment displays a little. Mine were crooked from the factory and it was an easy enough task. I printed mine in Draft mode, but either or it looks pretty good. You will have to replace the pin header with a 90 degree version, but again not that difficult.

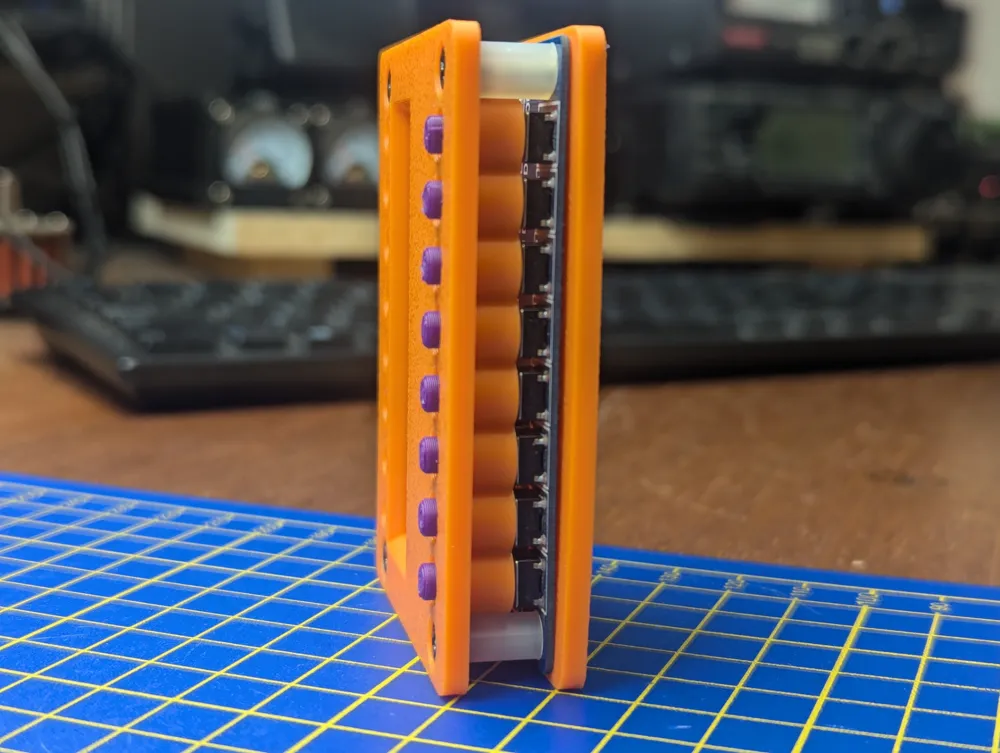

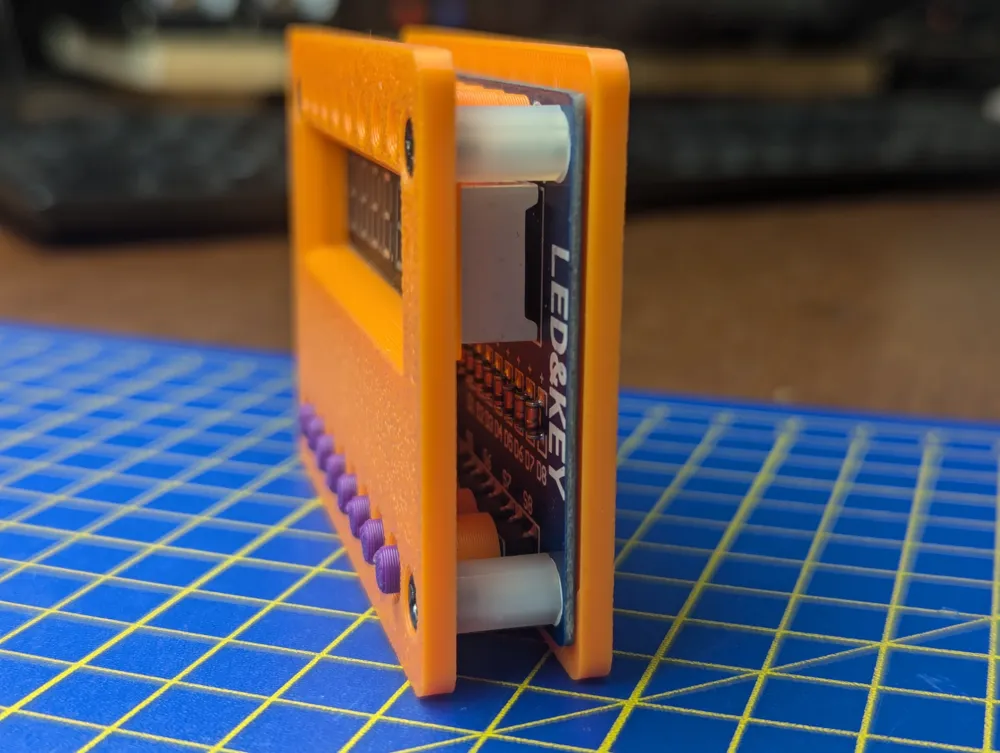

Use 4 x 3x9mm threaded spacer for the front panel to capture the buttons and 4 x 3x3mm or larger for the rear panel.

8 x 3x9mm countersunk screws to put it all together.

1 x 5pin 90 degree pin header to replace the existing one.

Enjoy!
