Wyze Cam OG Ball Joint
IP Report
Print Profile(1)
0.16mm layer, 4 walls, 25% Gyroid infill
Designer
25 min
1 plate
Open in Bambu Studio
Boost
14
42
6
0
64
26
Released
Description

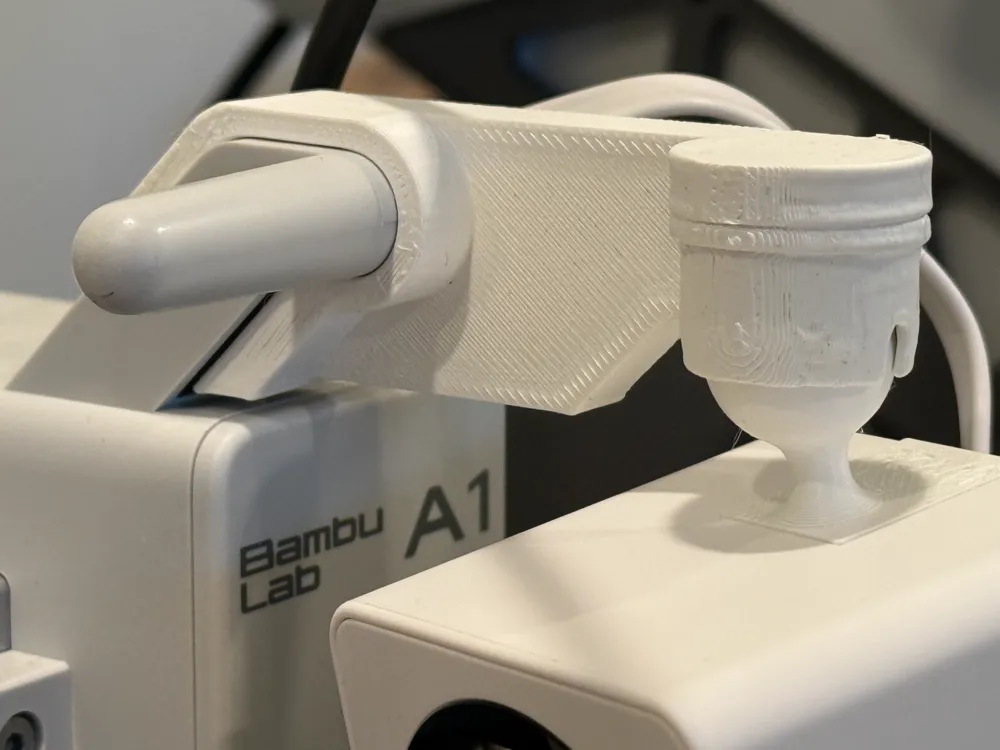

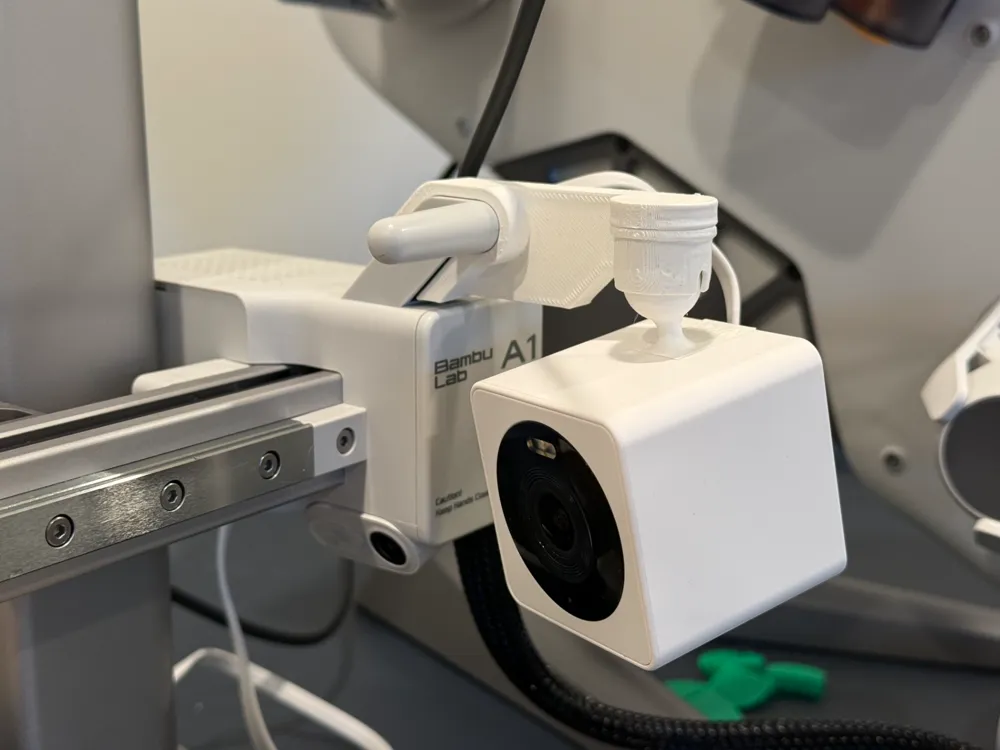

The ball joint for the Wyze Cam OG is designed to fit the slot on the top of the camera. It was created with this model in mind: https://makerworld.com/en/models/471370#profileId-380985
Note that an A1 Mini variant is also available.
The Fusion 360 file includes an alternate model designed for use with an M4 threaded insert. To assemble, cut an M4 bolt and attach the ball joint to the bottom of the model. For those mounting the camera upside down, you can easily flip the image in the camera's settings.
Additionally, the ball diameter can be adjusted via a configuration parameter. Experiment with this setting if the ball joint feels too loose or tight within the arm.
