Hygrometer Case

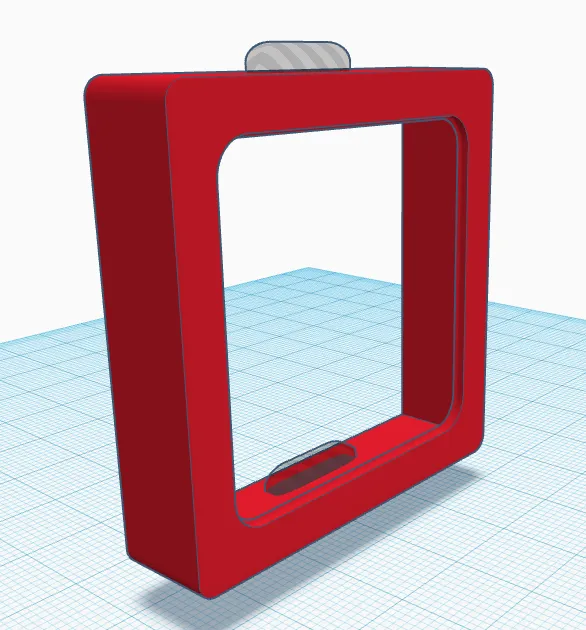

My first time using Tinkercad!

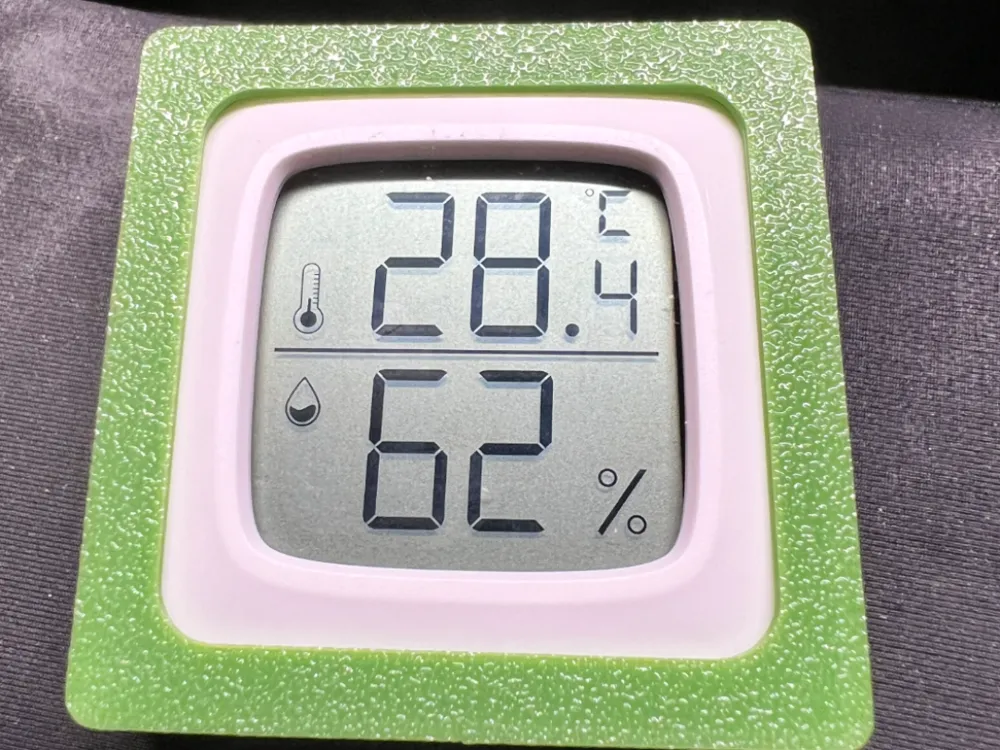

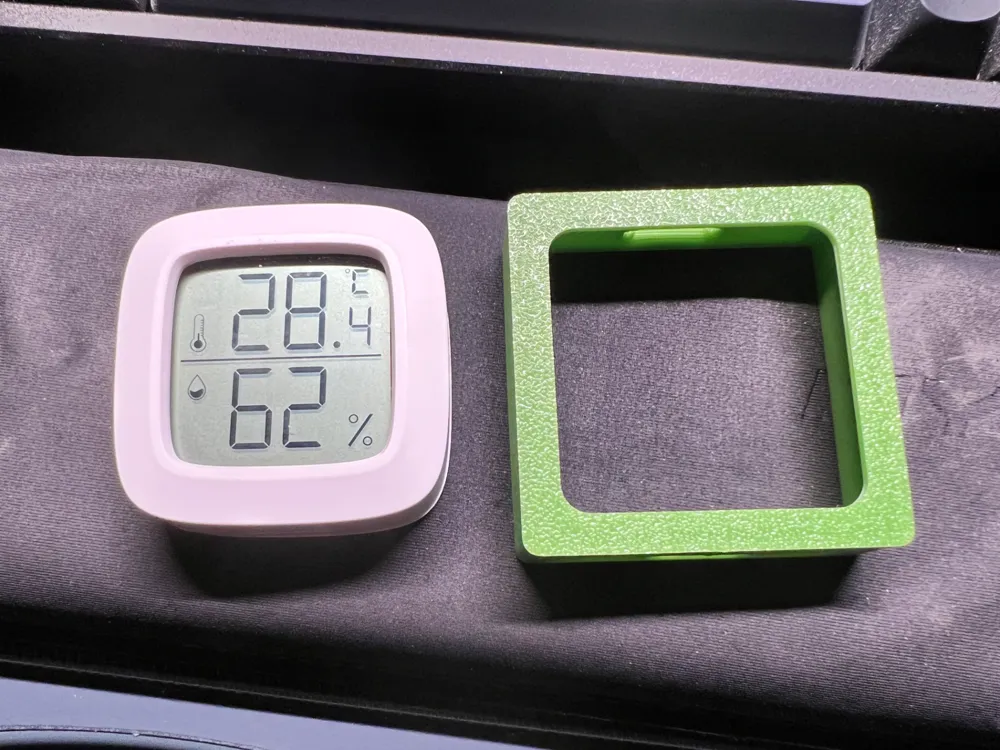

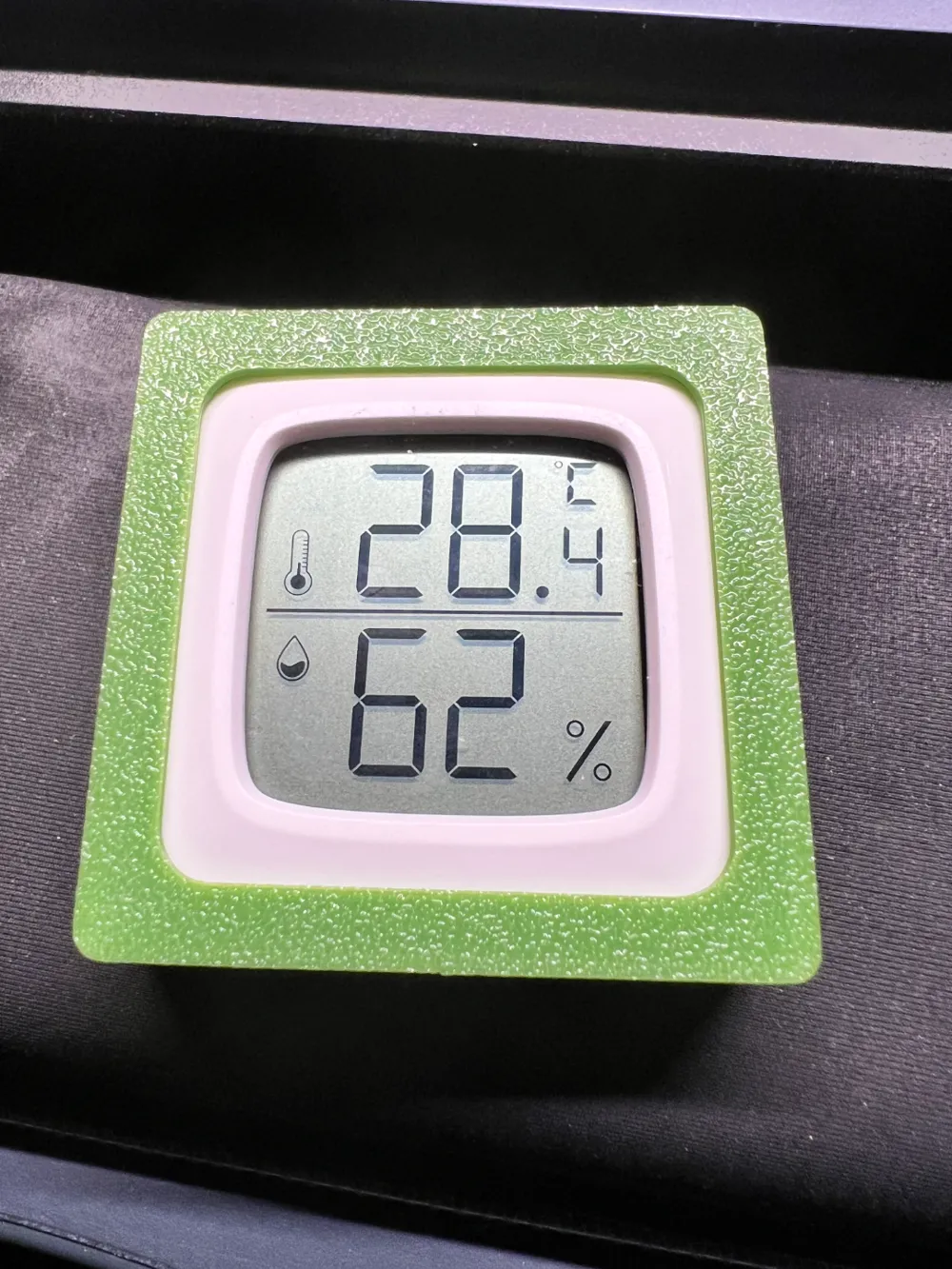

I made this casing for the hygrometer that was available to me locally (shopee) because it has a tapered front that I couldn't put tape to stick to the Ikea 365 container.

The hygrometer is 14.2mm x 44.95mm x 44.95mm with the back cover.
Back cover is 2.10mm and left out of the printed case because its 0.2mm larger than the meter.

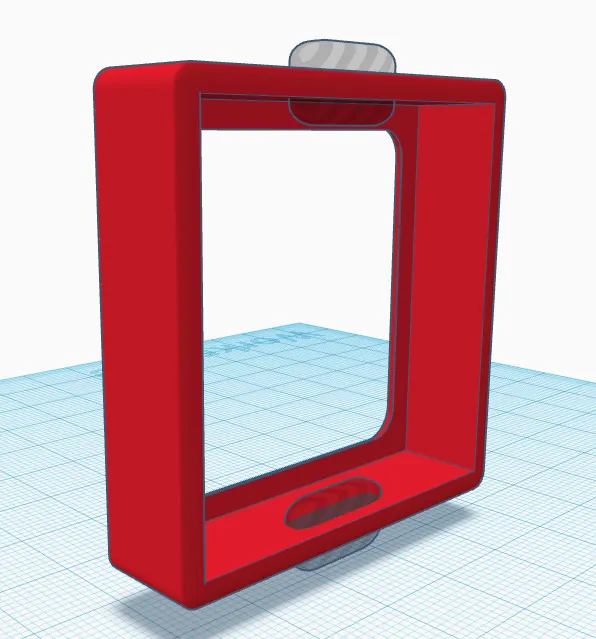

This is actually v2 since v1 had too many squared/sharp edges and was just a tad loose.

Be gentle, I'm new to this.

Will be integrating this shape to a spool feeder + desiccant holder for the box in future… when I learn how to do it in Tinkercad.

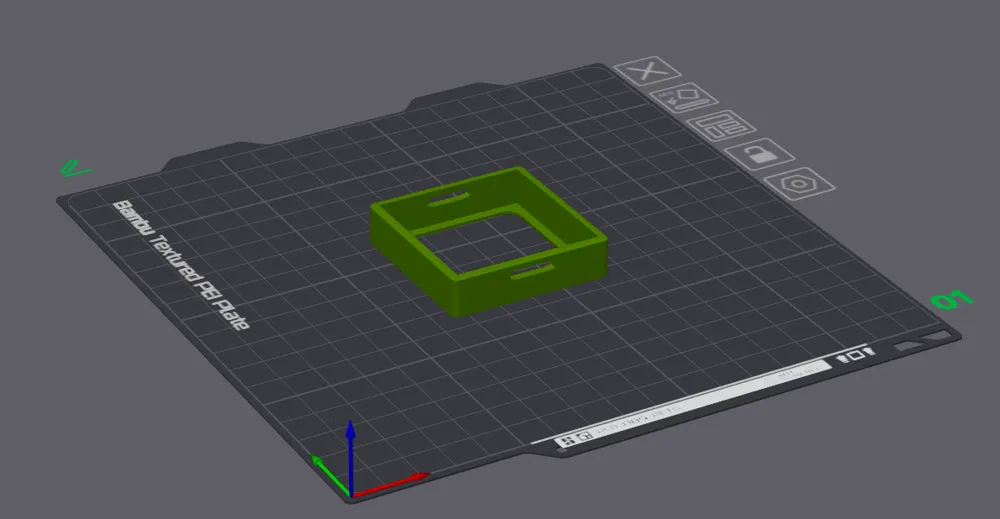

Printed on my A1 Mini using:-
0.4 mm nozzle

Generic PLA
0.24mm draft settings
5% grid infill

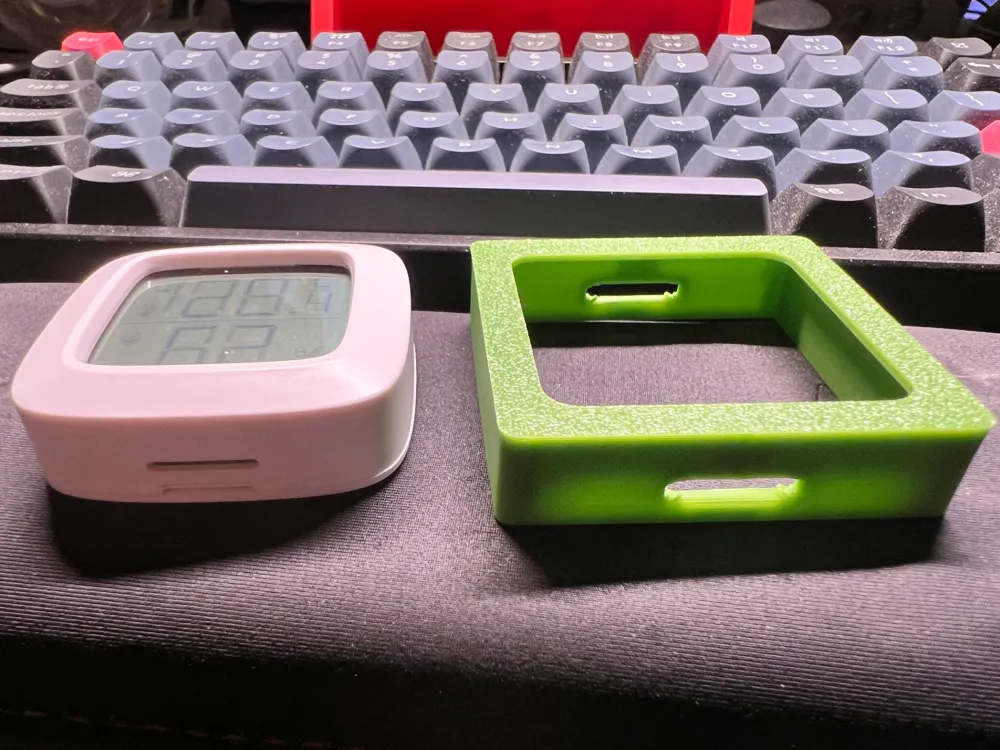

No supports needed for the tiny bridge.
