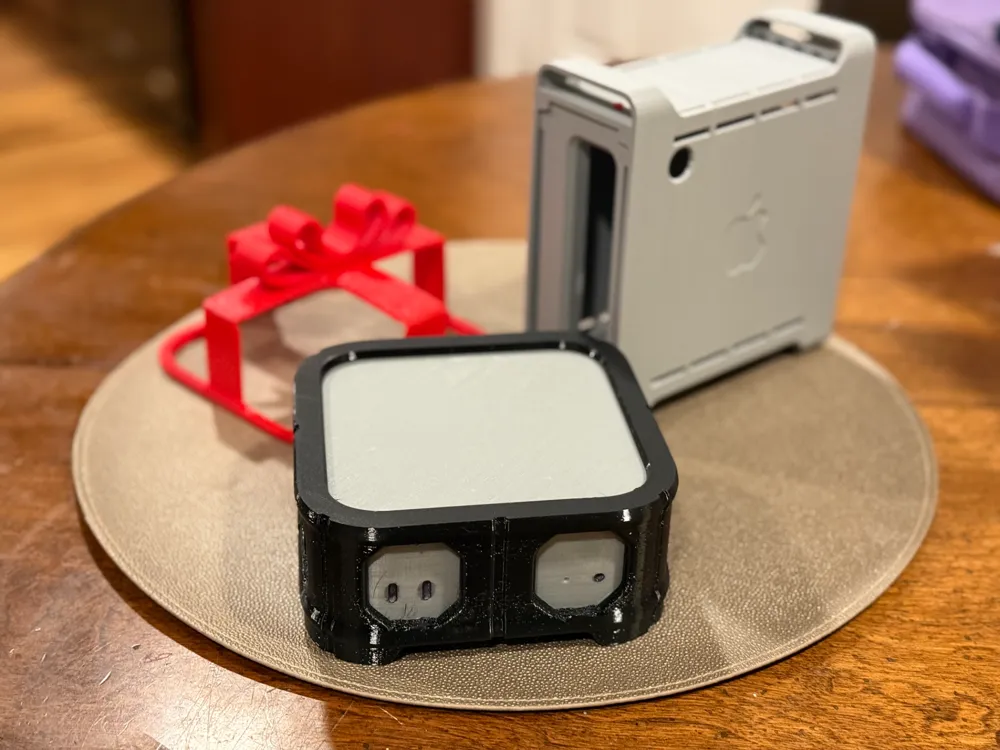

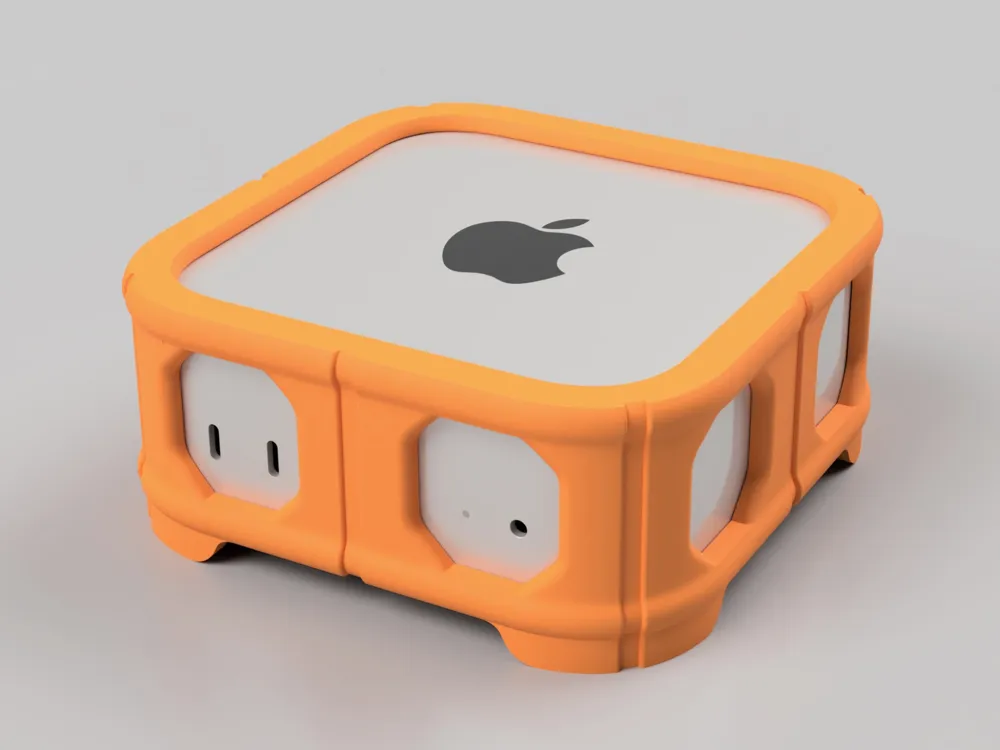

Protective Bumper Case for M4 Mac mini

The tiny size of the M4 Mac mini makes it a great portable desktop – certainly small enough to quickly unplug, toss into a bag, and carry home from the studio or take on travel, etc.

This “bumper case” is a quick one-piece design meant to protect the corners and edges of the mini from dings and dents while being used in this scenario. Molded-in feet also raise the min slightly off the desk for additional airflow and dust tolerance.

Print recommendations:

This model prints in one piece, oriented with the top of the case on the print bed. The provided print profile specifies reasonable wall, infill, and tree support settings to achieve a successful print.

Recommended filament is a 95 or 95A TPU. I do not recommend “TPU for AMS” or PETG as these are likely not compliant enough to either allow insertion of the Mac mini or to adequately absorb any impact to protect it. Within reason, less infill and walls may actually be better at absorbing energy than a more-solid slice. I will update the profile after some additional testing.

Boost Me (for free)

Please consider boosting my projects -- it really supports my ongoing design efforts on these and other works, like my work on the Modular Wind Tunnel for STEM Education (available at Printables).

Related models for M4 Mac Mini:

"Mac mini Pro" enclosure, (à la 2019+ Mac Pro)
“Mac mini Trash Can” enclosure, (à la 2013-2019 Mac Pro)
“Mac mini G5” enclosure, (à la 2003-2006 PowerMac G5 or 2006-2013 Mac Pro)
"M4 Cube" enclosure, (à la PowerMac G4 Cube, modernized)
Nintendo NES enclosure
Protective bumper case in TPU
Mac App Icon and Logo “Hats”
"Gridfinity Hats”
Santa Hat
Gift Wrap: Ribbon and Bow

Related models for Mac Studio and M1-M2 Mac mini:

“Mac Studio Pro” enclosure, (à la 2019+ Mac Pro)
Gridfinity Hats"

Related models, other:

“iPhone XDR” - for MagSafe and StandBy mode
Mac Pro Desk Model - standalone 3D printable display model
