Keychain cards

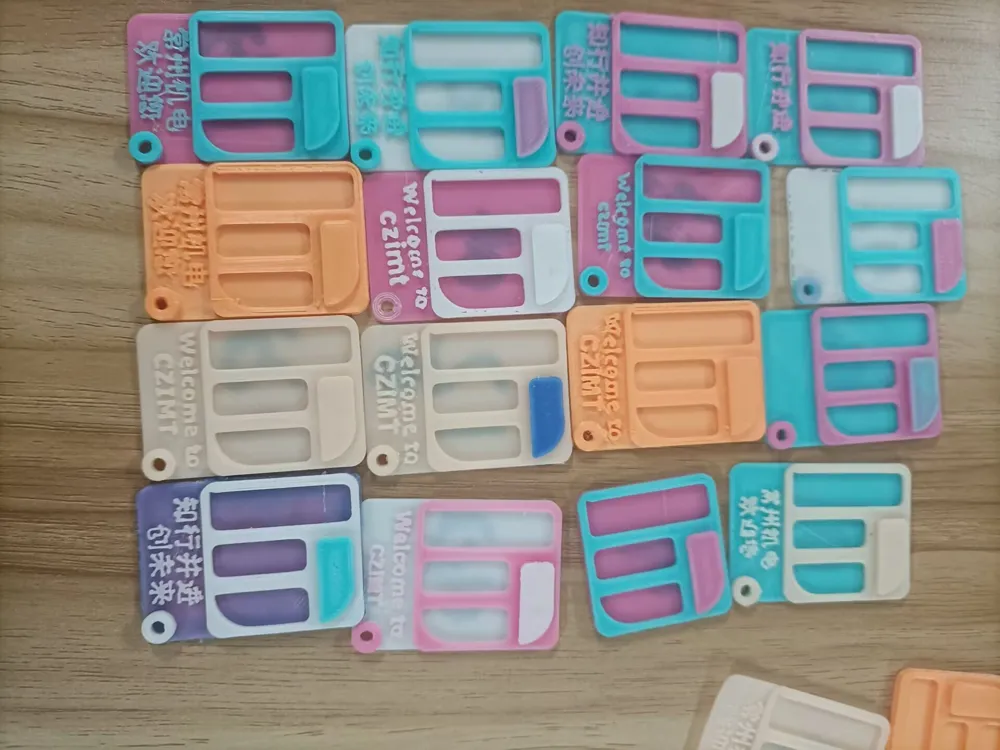

As you can see, this is a keychain designed based on the logo of Changzhou Electromechanical Vocational and Technical College. Some models are specifically designed based on the existing printing equipment of some clubs and studios of the school. When using the default parameters in the Bambu Slicing software, some font features of the model cannot be displayed. Therefore, please adjust the printing parameters according to the specific situation or use the "Basic Card 01.stl" model for secondary creation. Further model configuration information suitable for Bambu Slicing software will be supplemented for this issue.

The following content is a note for printing this model on printers without automatic filament changing system.

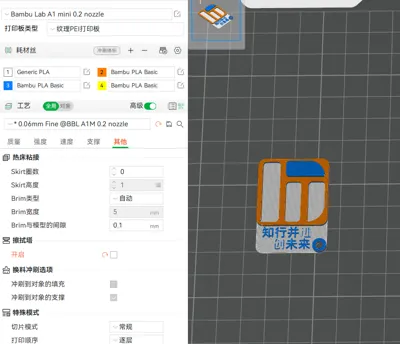

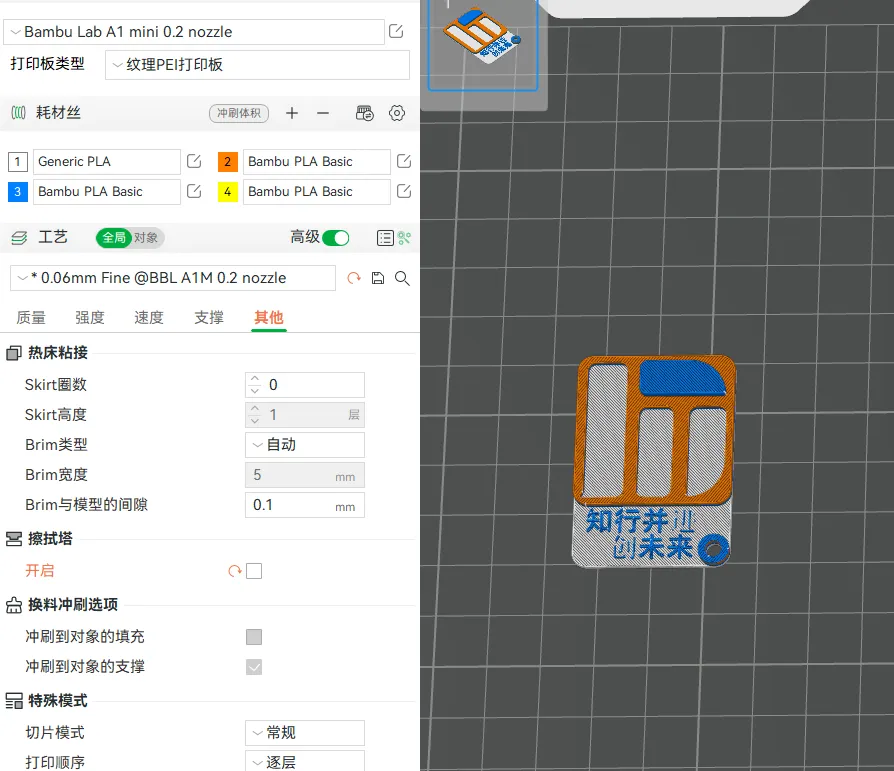

1. In the first attached image, the layer intervals of the model from bottom to top are 1mm, 1.5mm, 0.5mm, and 1mm respectively. The font is recommended to be attached at a height of 0.7mm (the font of the existing font model is attached at a height of 0.7mm). Theoretically, five colors can be achieved. In actual tests, frequent color changes when printing Chinese characters or letters will seriously affect the printing quality. Three-color printing is recommended, and you can choose the appropriate filament changing operation as needed.

2. For the text "进", some features may not be able to be printed when using Bambu Slicing software or third-party software, and manual point marking can be used to supplement. If you have a better solution, please feel free to leave a message.

3. In actual tests, due to differences in printing equipment or printing consumables, if "您" or other texts and letters appear blurred, please choose the model containing "你" or create other text models.

The model contains the identifier, please use it or create it reasonably.
