Voice Assistant Case
Print Profile(1)
Bill of Materials
- SpeakerFabric x 1: https://amzn.eu/d/gVIzHro
Description

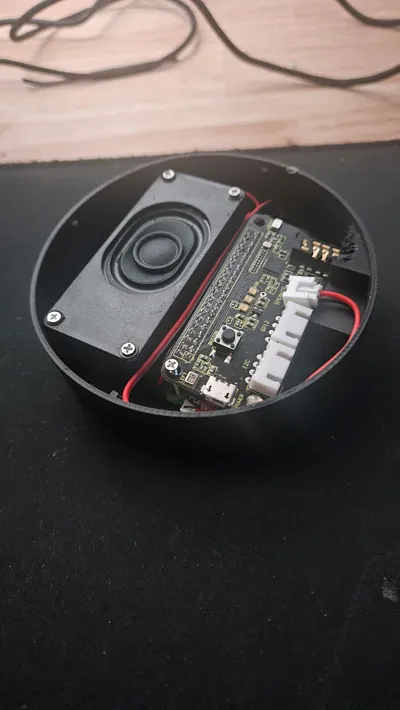

This is a case for a Raspberry Zero which is equipped with a ReSpeaker2 Hat and a loudspeaker.
This device functions as a Home Assistant Voice satellite / Rhasspy satellite.

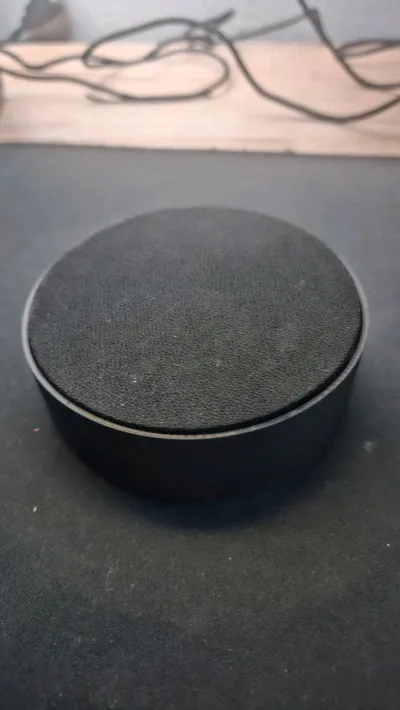

The lid is covered with speaker fabric and has a button that presses the button on the ReSpeaker2.
Due to the recesses on the back, it is possible to connect a USB dongle and an external loudspeaker in addition to the power cable.
Simply apply a small amount of glue to the lid and stick the fabric on. Then place the lid on the housing and, if necessary, use a thin screwdriver to push the excess fabric into the gap.
The following speakers are provided:
Large Hole spacing 63x24mm - Case_L
Small Hole spacing 36mm - Case_S
German Version:
This is a housing for a Raspberry Zero that is equipped with a ReSpeaker2 Hat and a loudspeaker.
This device serves as a Home Assistant Voice Satellite / Rhasspy satellite.
The lid is covered with speaker fabric and has a button that presses the button on the ReSpeaker2.
Due to the recesses on the back, it is possible to connect a USB dongle and an external loudspeaker in addition to the power cable.
The lid is simply moistened with a little glue and the fabric is glued on. Then place the lid on the housing and, if necessary, use a thin screwdriver to push the protruding fabric into the gap.
The following speakers are provided:
Large Hole spacing 63x24mm - Case_L
Small Hole spacing 26mm - Case_S
