Color Christmas Panels for Ring Lamp

Overview

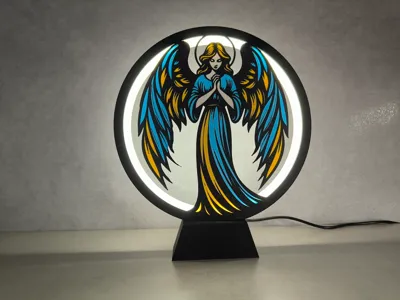

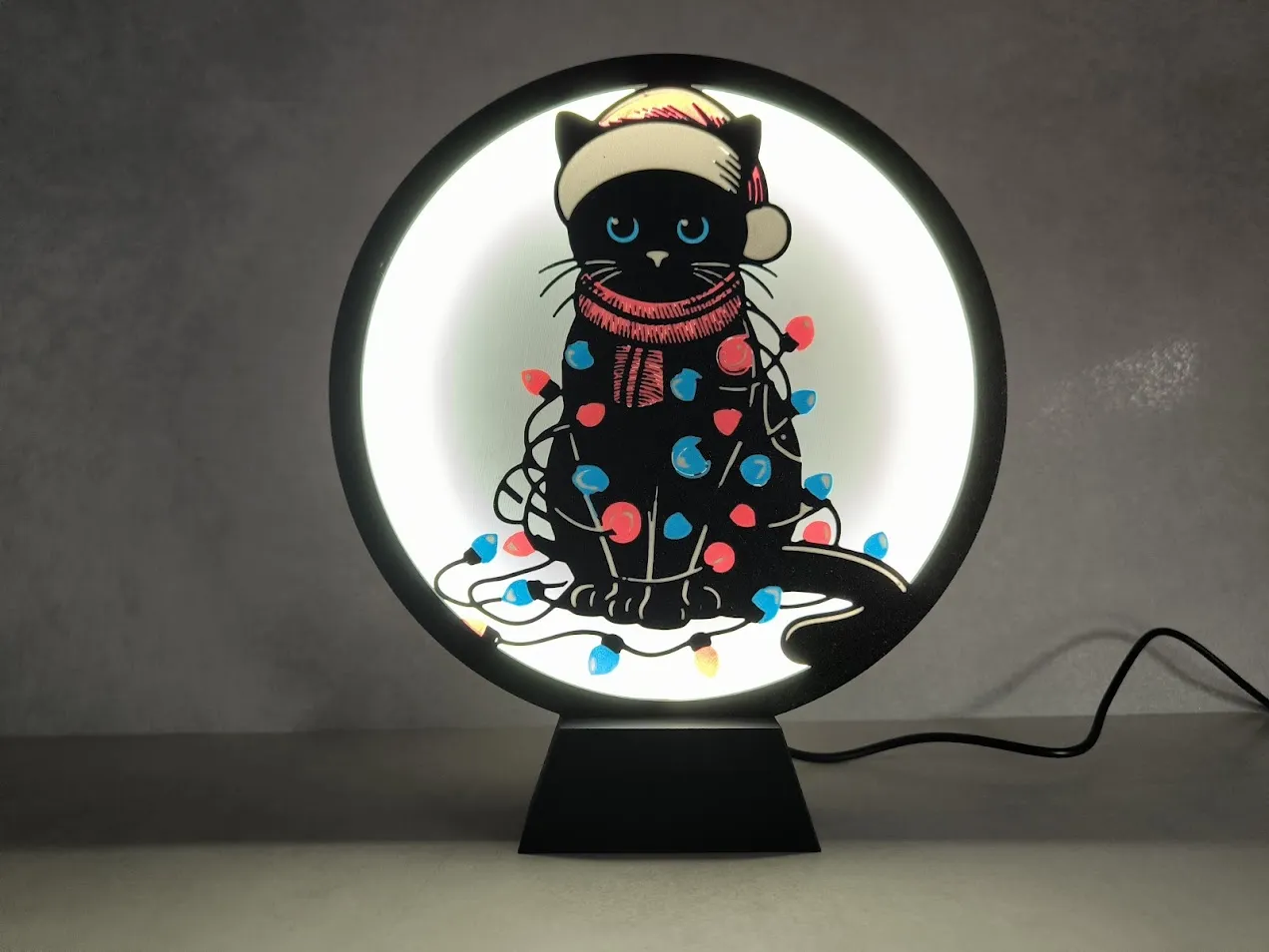

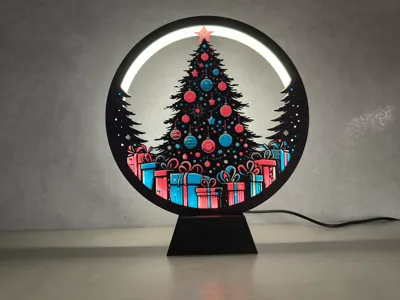

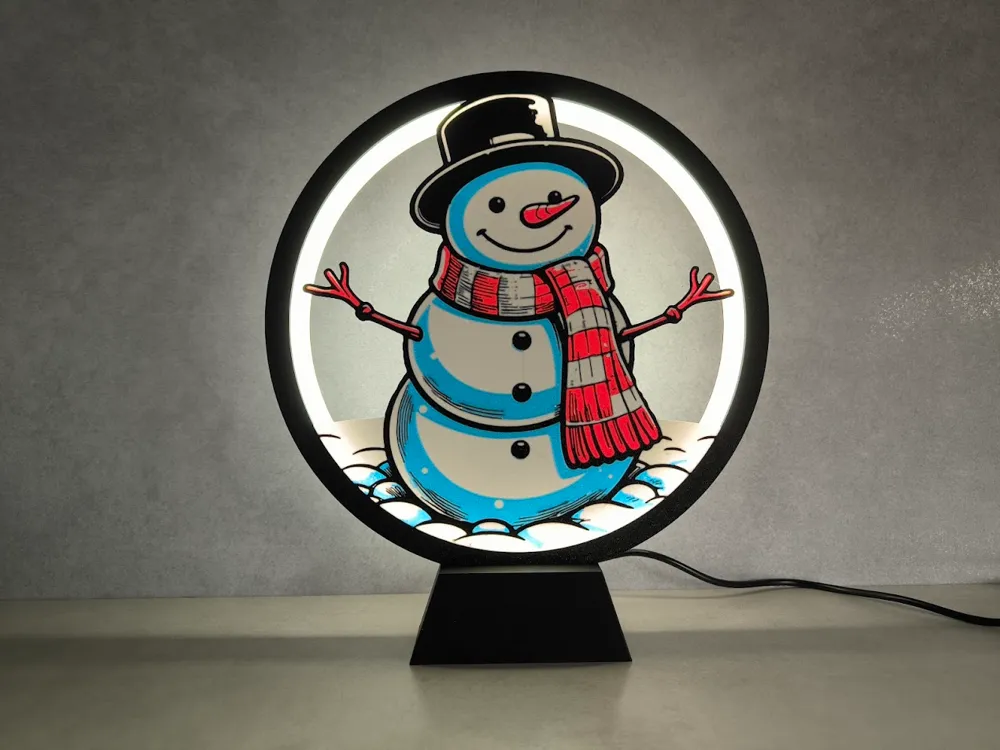

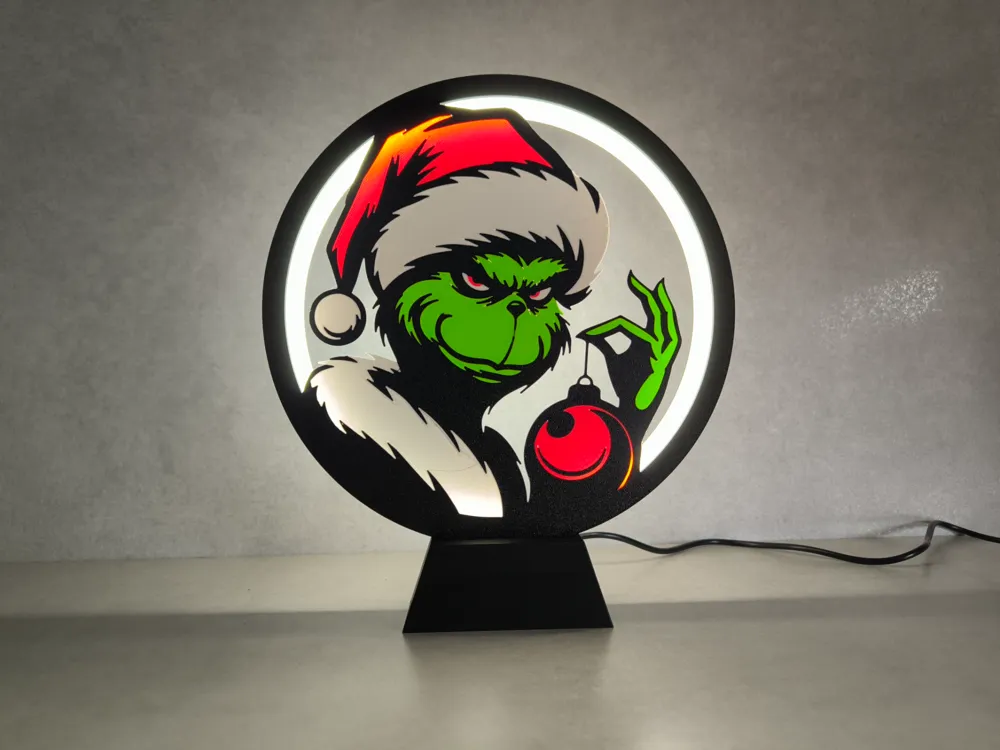

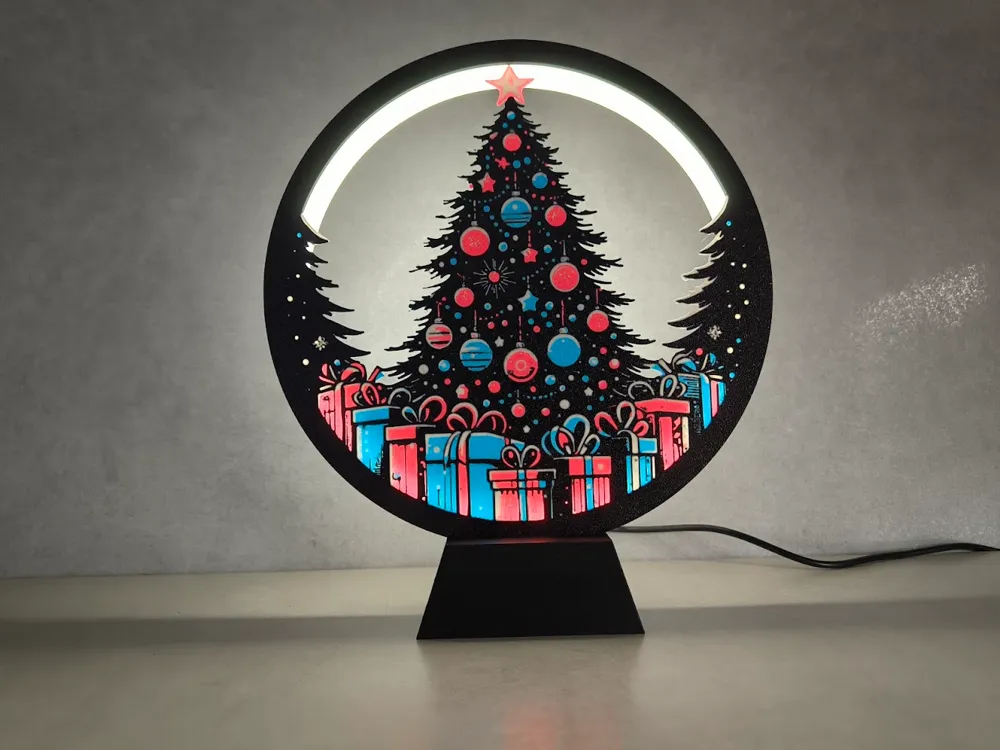

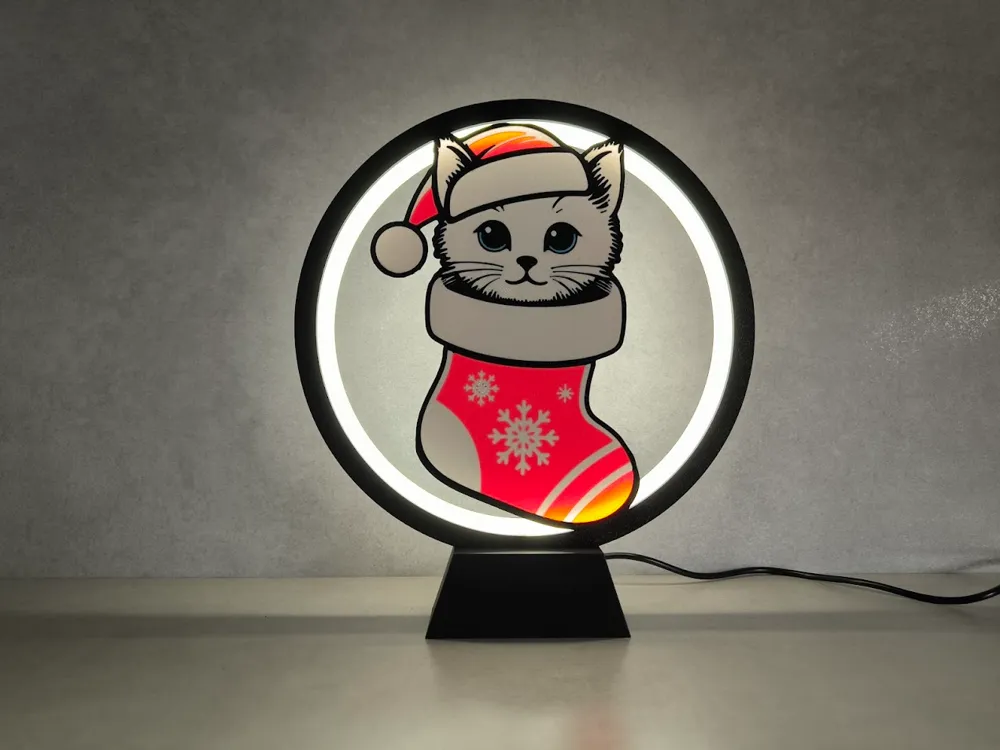

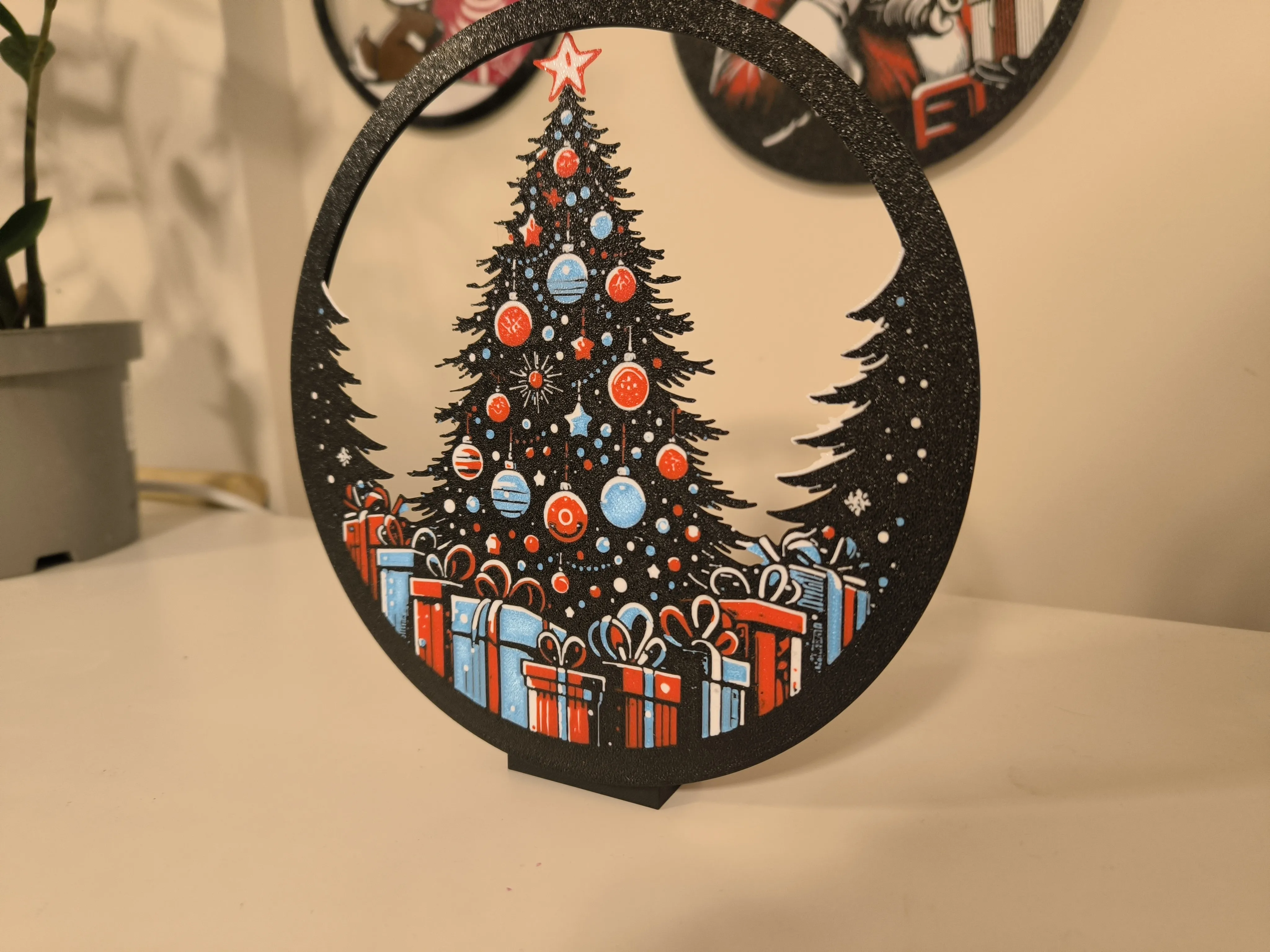

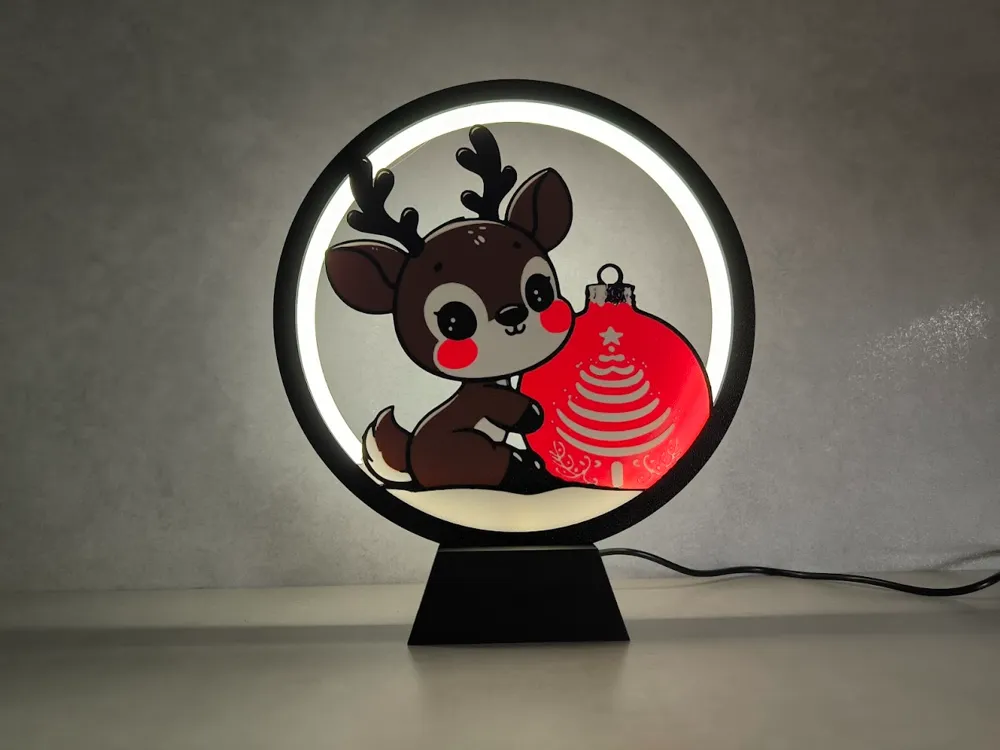

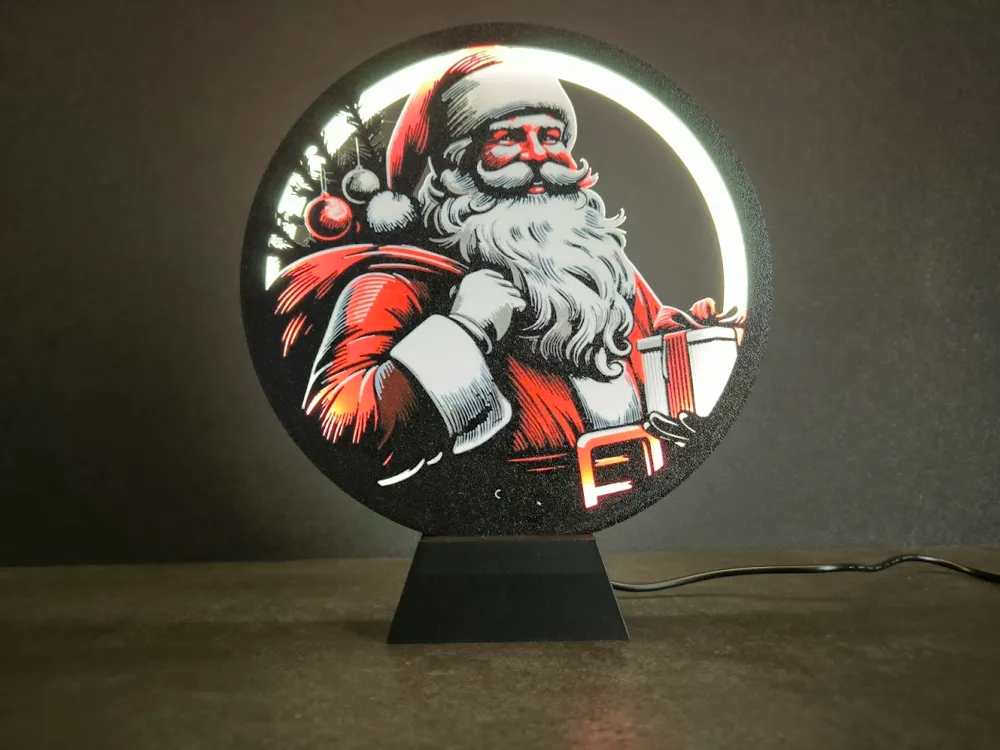

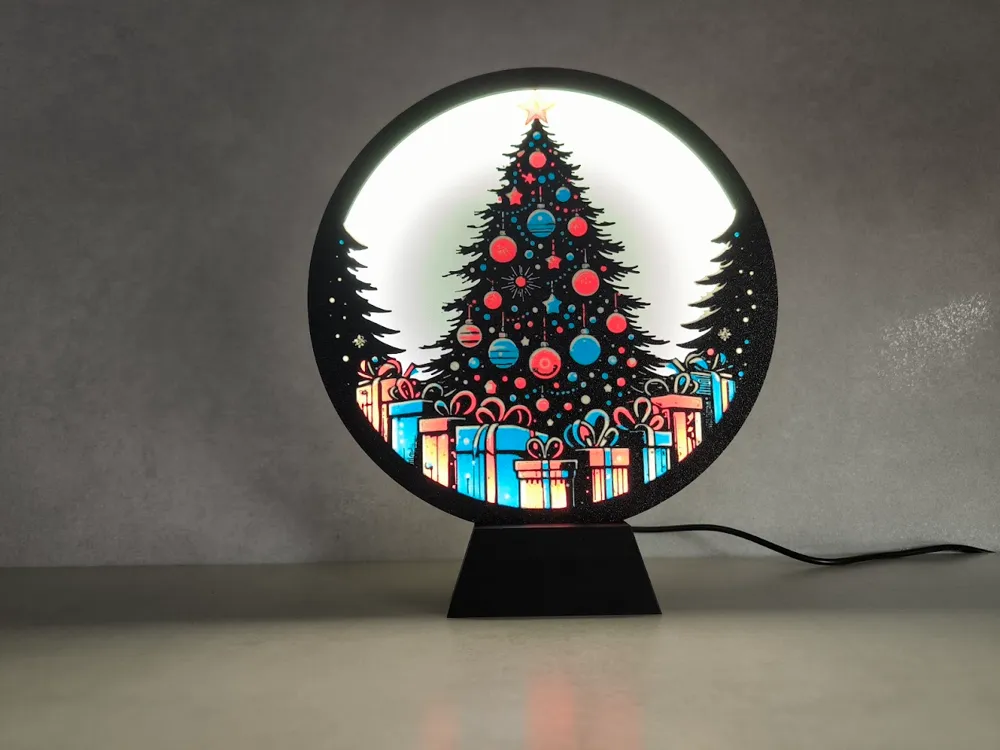

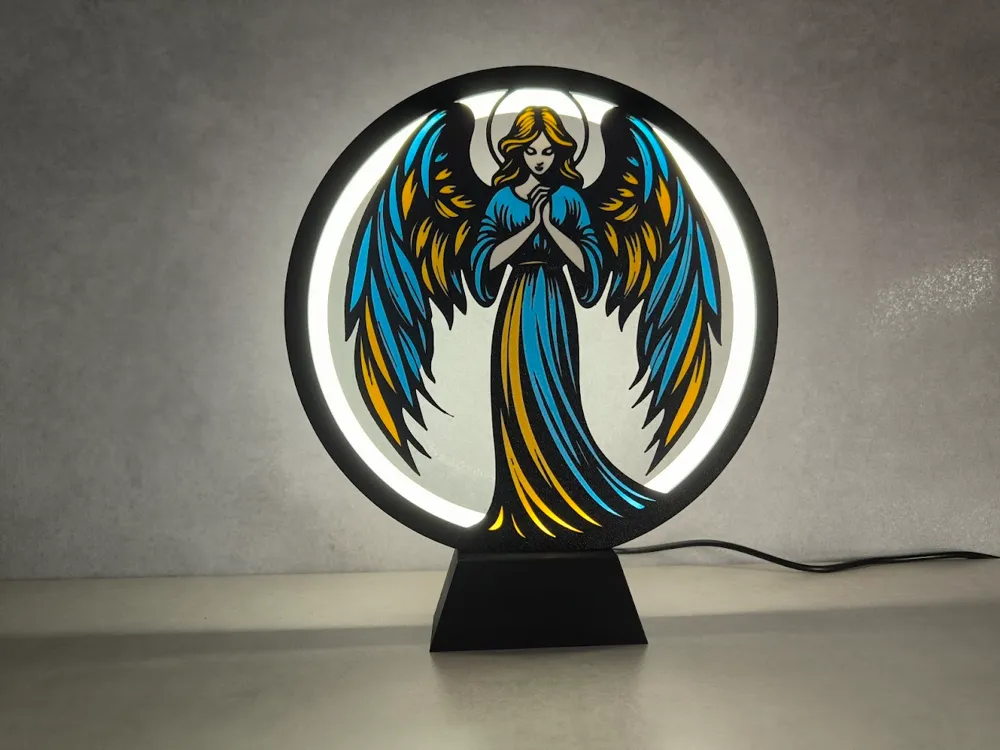

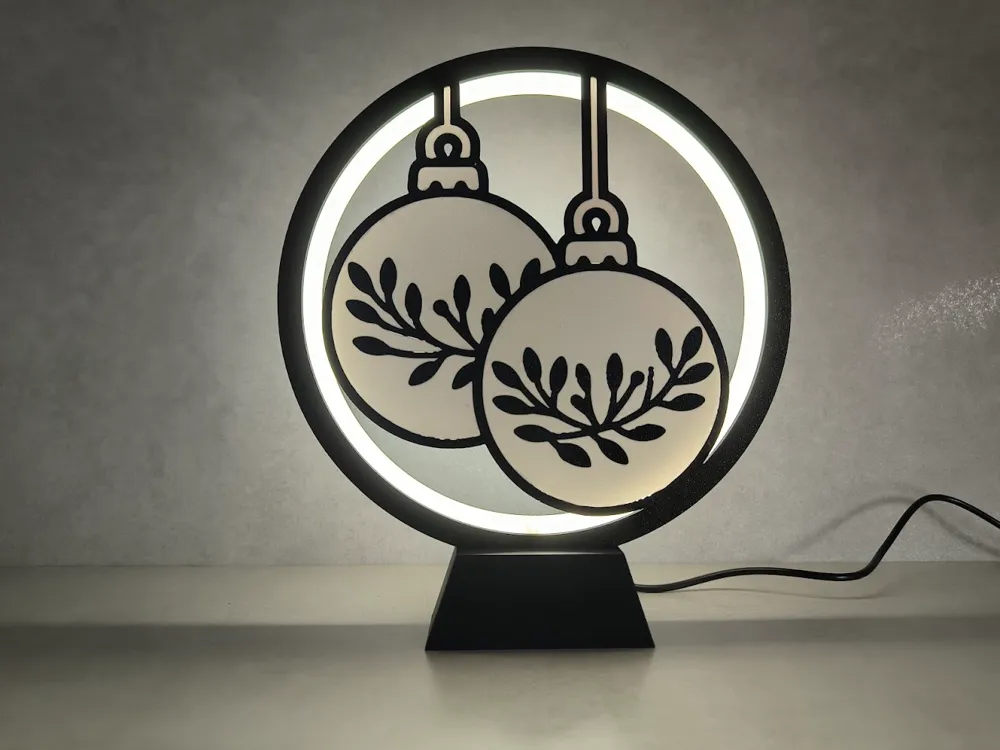

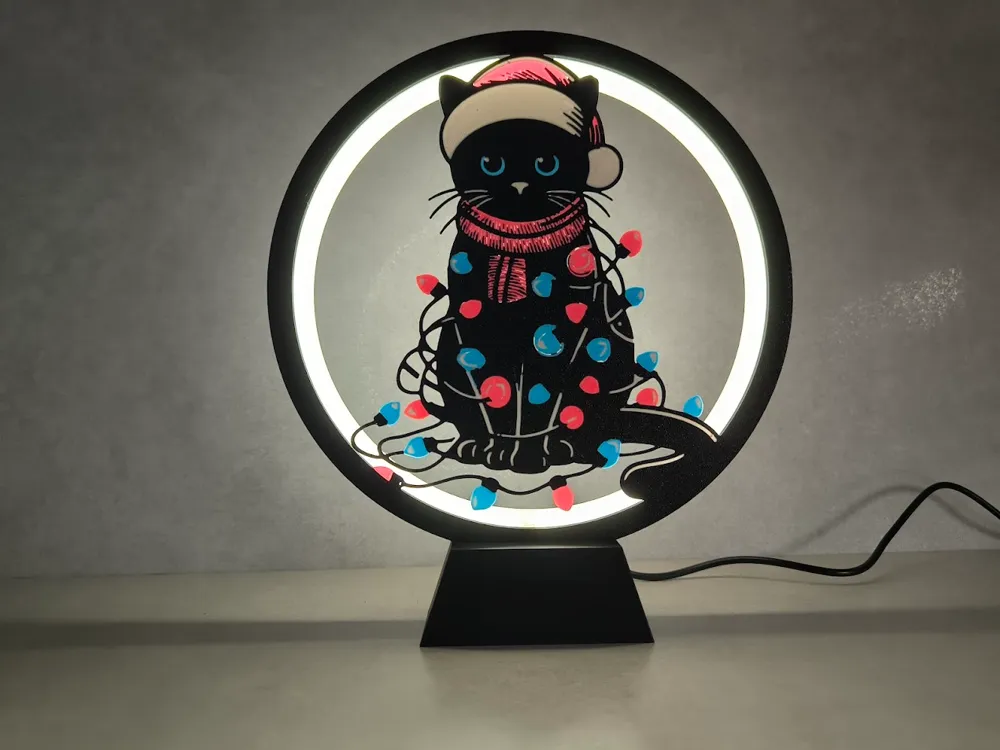

Christmas set of panels for my Ring Lamps - color version

There is also version mono color. It is available here: https://makerworld.com/en/models/799520#profileId-739290

It works with Ring Lamp II

https://makerworld.com/en/models/633120#profileId-558184

For convienience I also uploaded print profile with only clean Ring Lamp so you can download it from here.

I made this panels using great tool of MakerWorld  “Image to Keychain” :)

Check out my other Christmas Designs in my collection

https://makerworld.com/en/collections/2834983

Instruction

To print this panels you need one AMS with 4 colors.

Colors are different in each panel so it was impossible to make one print profile.

I had to upload each panel in separate print profile

Rest of instructions are the same like in previous Halloween project.

I copied it below:

Electric parts you need.

The easiest way is to use electrical parts designed specific for this kind of lamp. The kit provides easy installation without the need for soldering.

It is available on Amazon

(Dimmer version) https://amzn.to/4iJ3zHt

(On-Off switch version) https://amzn.to/3ZNb0q4

You can also search for each part separately. You will need

• led stripe - best are LED COB 8 mm, 12V
• charger for LED strip
• dc connector - I used 2.1/5,5 mm , the diameter of the mounting hole is 12 mm
• On-Off switch
• alternatively you can use dimmer instead of typical on-off switch

WARNINGS

Led strips can emits some heat depends on what type of LED and voltage you use.

If you use LED strip from the kit you you can print everything in PLA as it achieve only about 40 °C.

If you will use your own LED strip with more power it may achieve more temperatures (in my case 58 °C and Main Frame can a little bend overtime. If you have such strong LED strip I recommend use ASA instead of PLA. Specifically you have to print out with ASA the Main Frame and Panels. Everything else can be printed with PLA.

Printing

Printed with PLA or ASA, nozzle 0,4 mm, layer 0,2 mm height

IMPORTANT

Part: Shade55 - use 0,16 mm layer height as it has quite steep (55 degree) and thin( 0,6mm) walls

If you have problem with that part then print “Shade45”

Instruction

(some photos from Crystal Lamp)

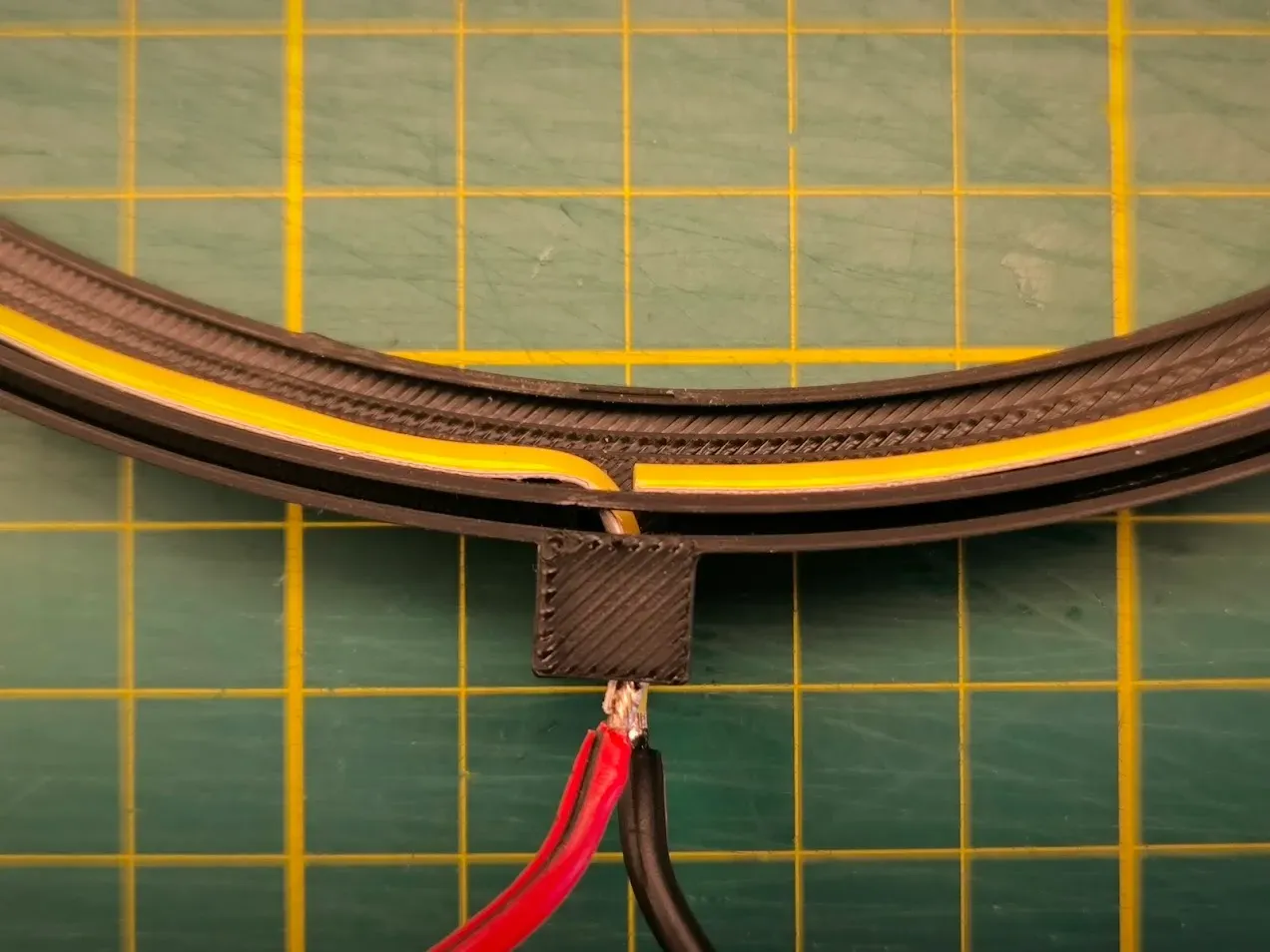

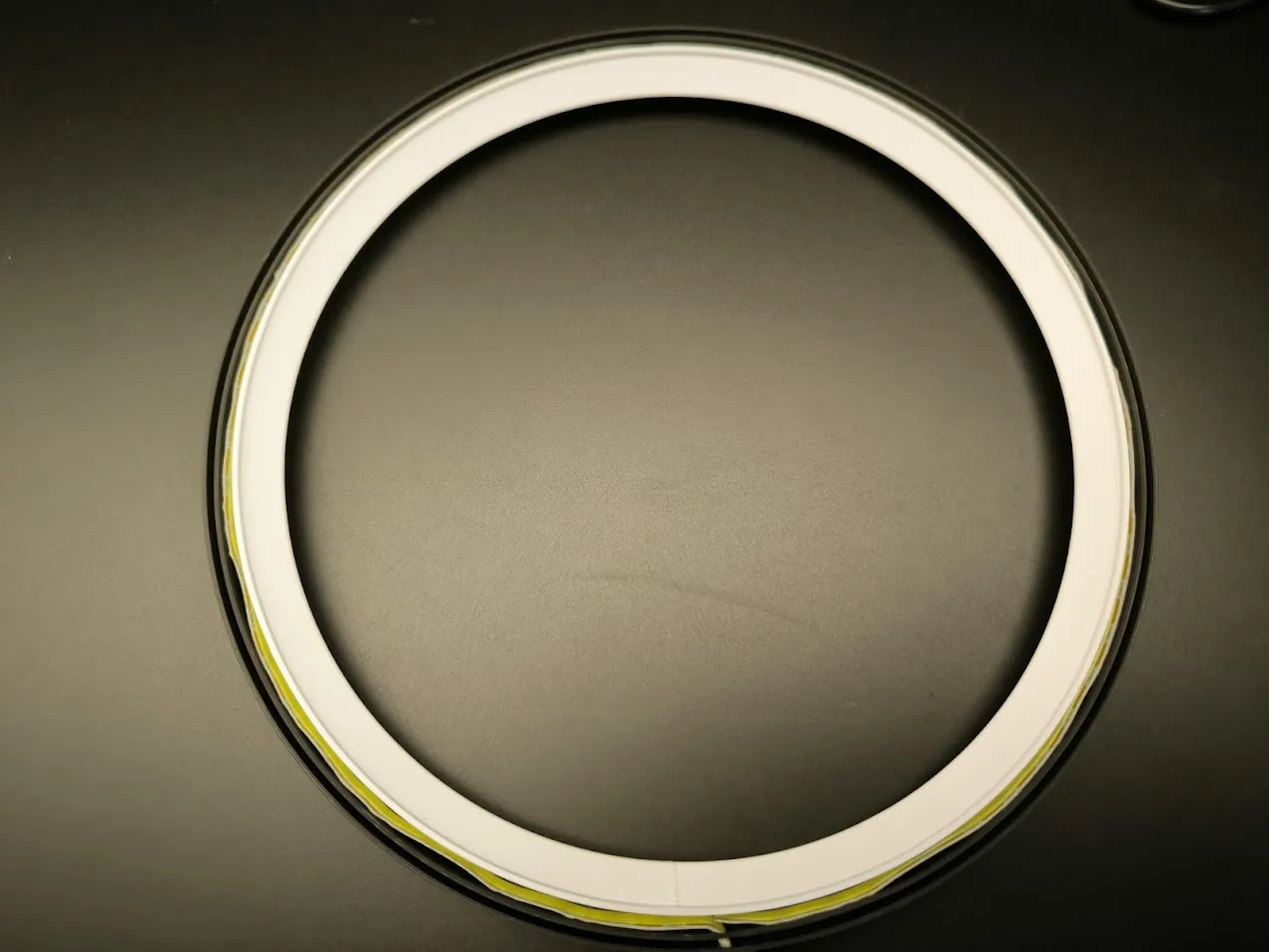

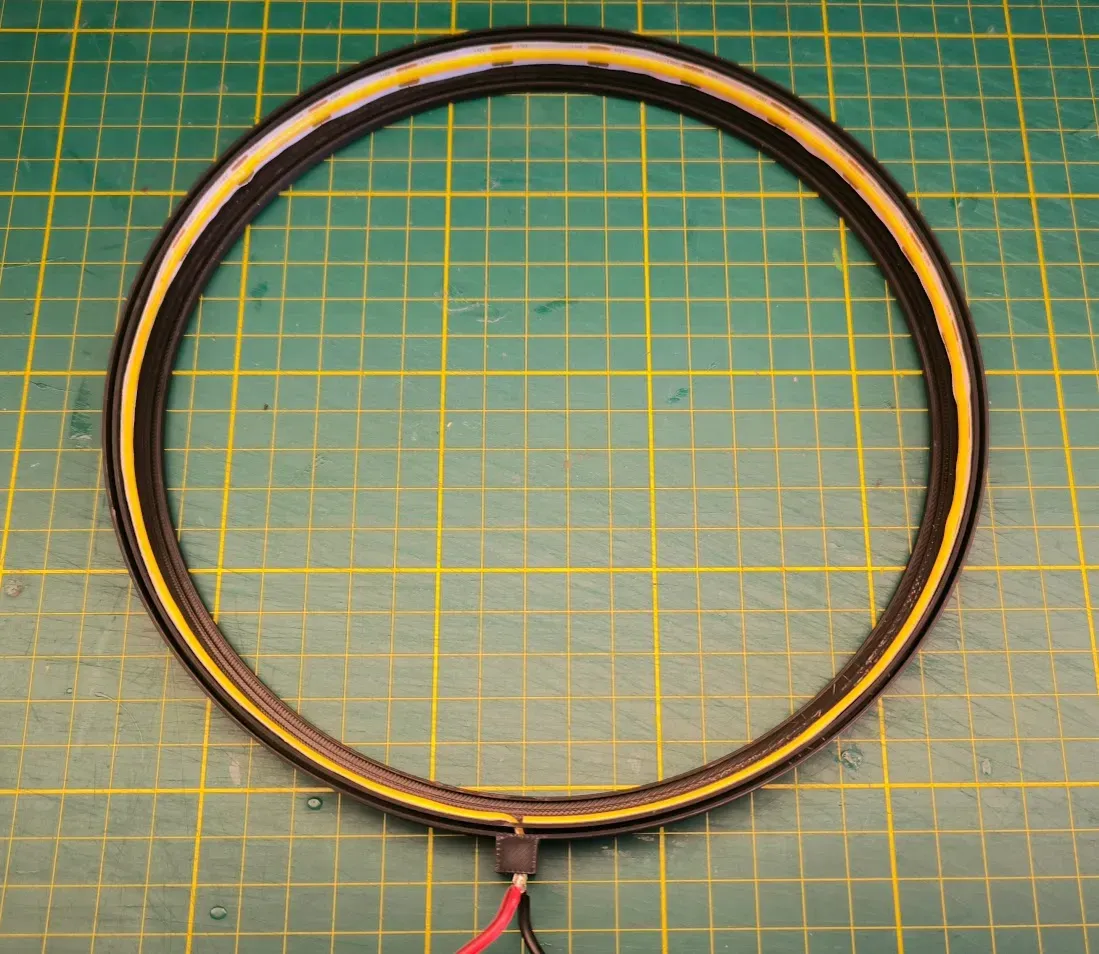

Glue led strip to inner side of Main Frame

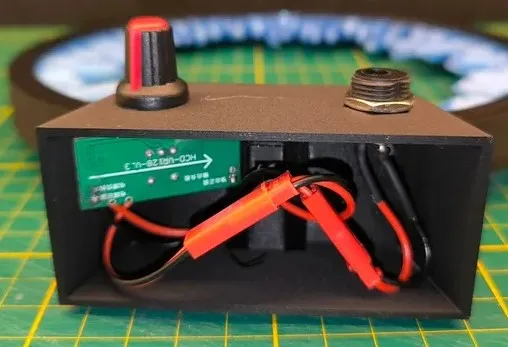

Insert the electric part into the base and connect them.

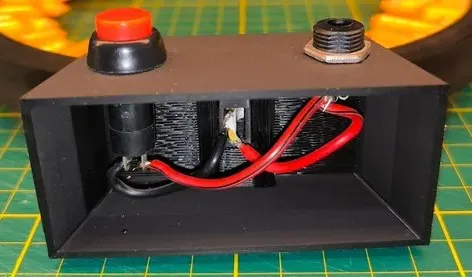

There is two type of base. One is holes place for dimmer and AC/DC connector. Second is with holes for on-off switch and AC/DC connector. I also add base in step format so you can cutout holes like you want for electric parts you have.

Put Shade Panel into Main Frame.

Connect Frame with Base

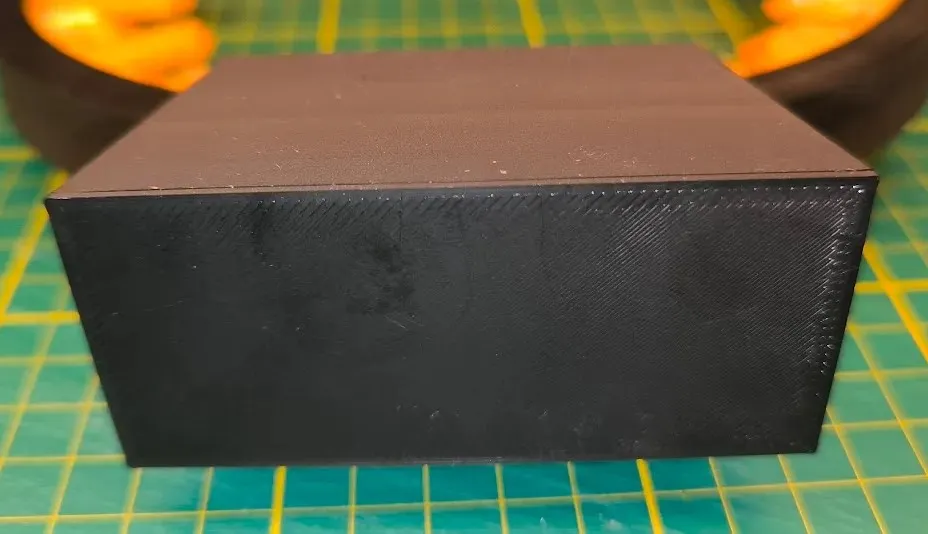

You can also close base with cover. It fit tightly

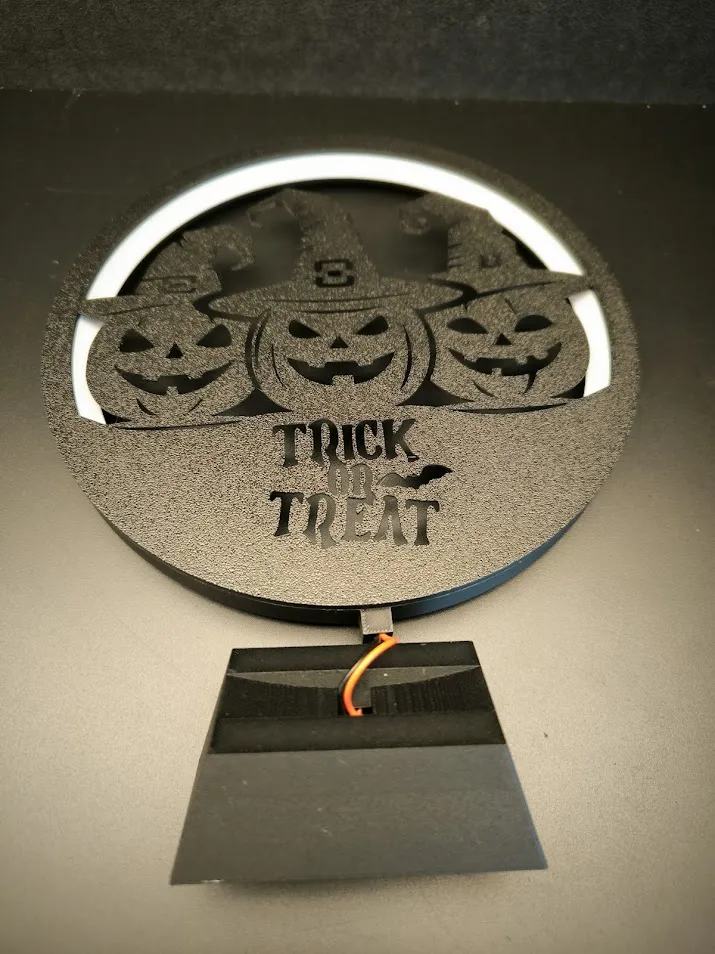

I created also stand for panels and hanger on the wall. So if you want utilize panels as Halloween decoration you have option for this.

If you have dark background you can use Back Panel for Lamp. It provides better visibility for black panels.

Have Fun :)
