Description

Hi everyone, as you may have noticed, LOL, when we print, with our X1 Carbon, ABS, or other materials that need high temperatures, the filter fan makes an unmanageable noise.
Therefore, I thought of designing and printing something that could reduce this noise without restricting the airflow.
This is the result I got.

I printed everything in PLA using media using Support W from Bambulab.
I used 2 walls, top/bottom 4 layers, infill 5% and in 2 colors.

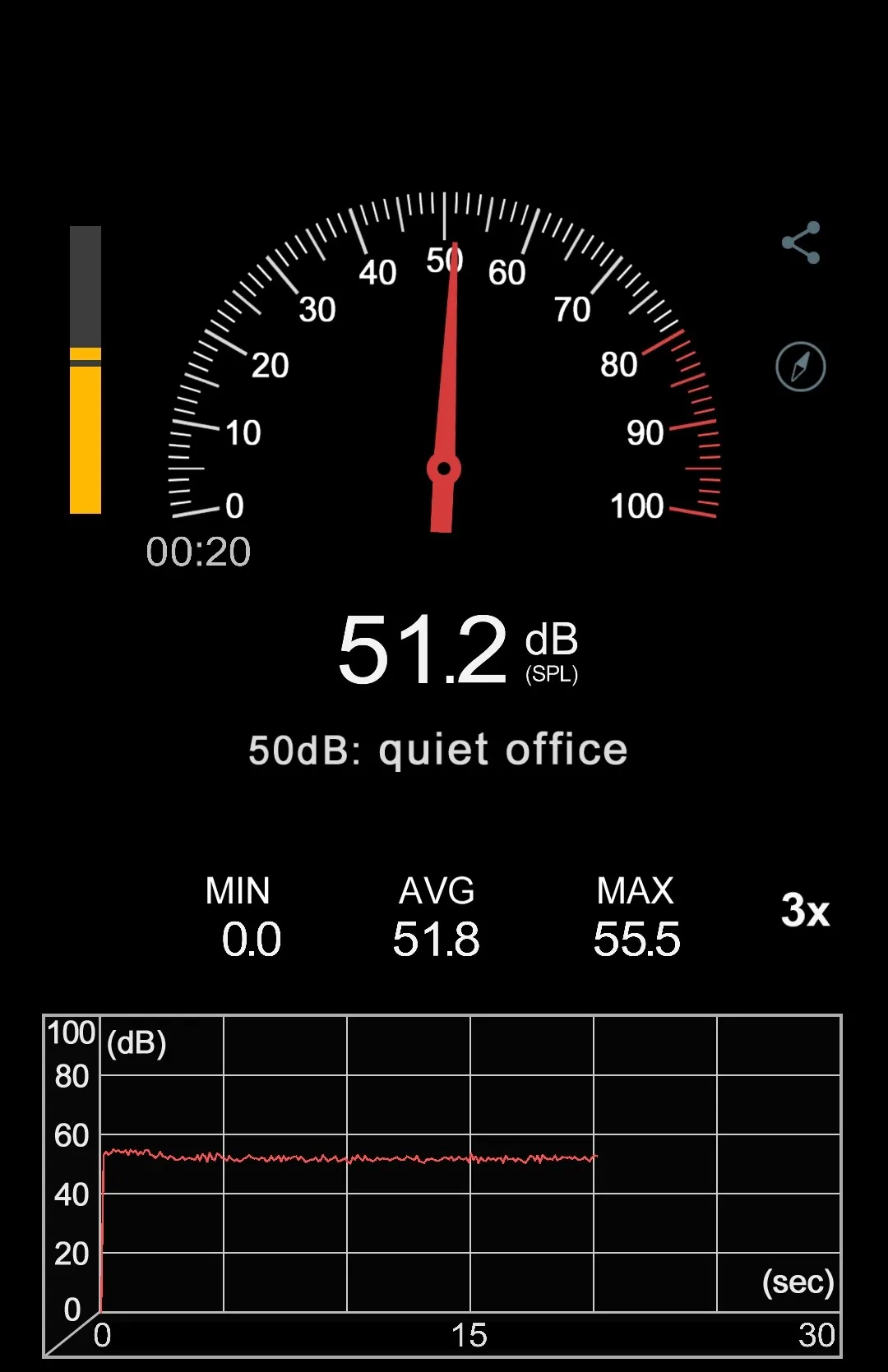

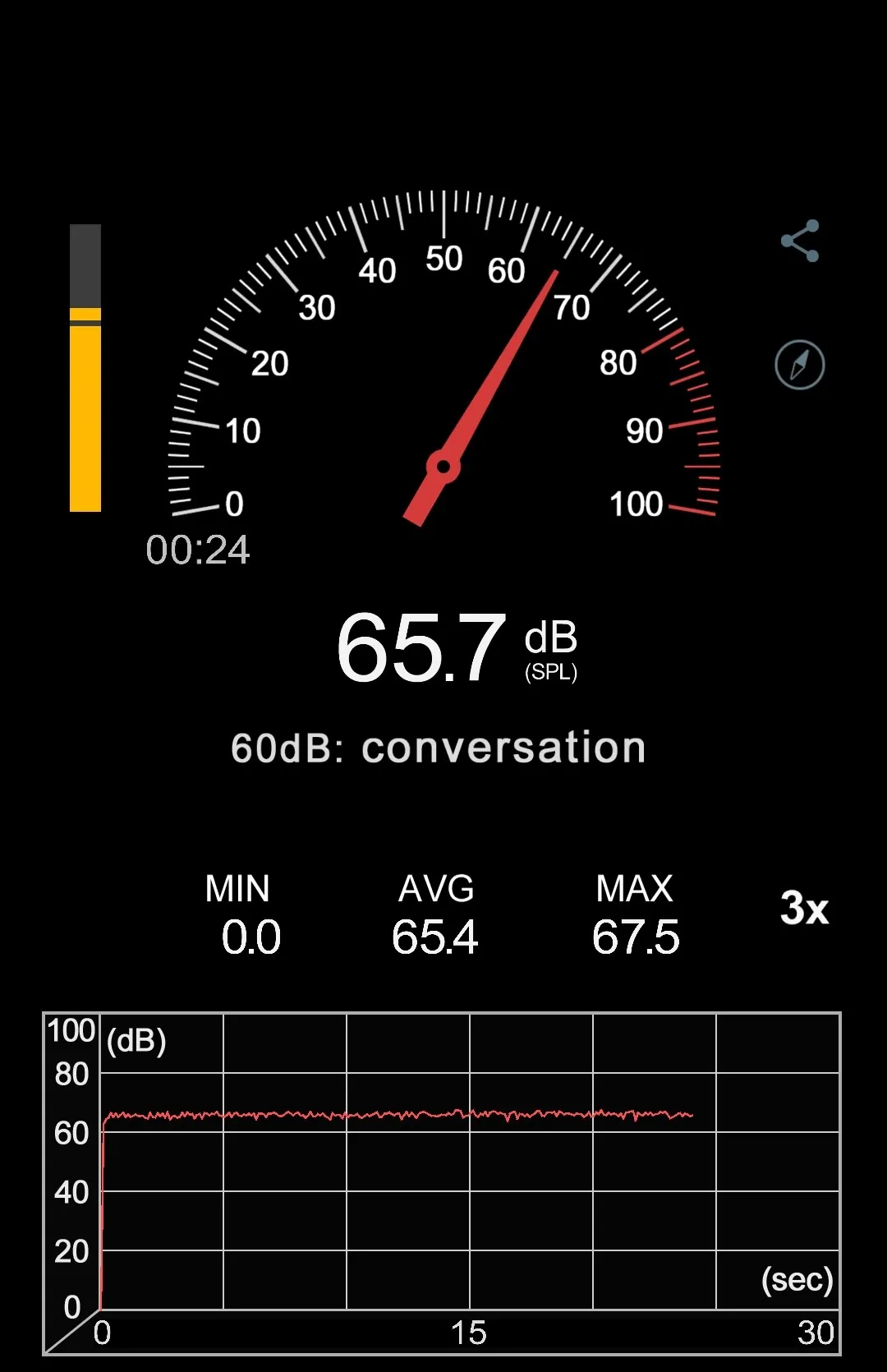

Here are the results in terms of noise:

BEFORE

AFTER

Comment & Rating (14)

Please fill in your opinion
(0/5000)

what size magnets did you use?
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
This came out looking great. has made a noticeable difference in reducing fan noise.
0
Reply
Will this work if you have AMS units installed? Went through the process of printing another muffler and found out it doesn't fit right when using an AMS so wasted my filament.
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
Prints really fast and does what is says:)
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
works good for any appliances, especially those loud air fryers!
(Edited)
0
Reply
Print Profile
0.2mm layer, 3 walls, 15% infill
used it. printed well. didn't notice a difference in sound so removed from printer.
