Modular Panel Gate

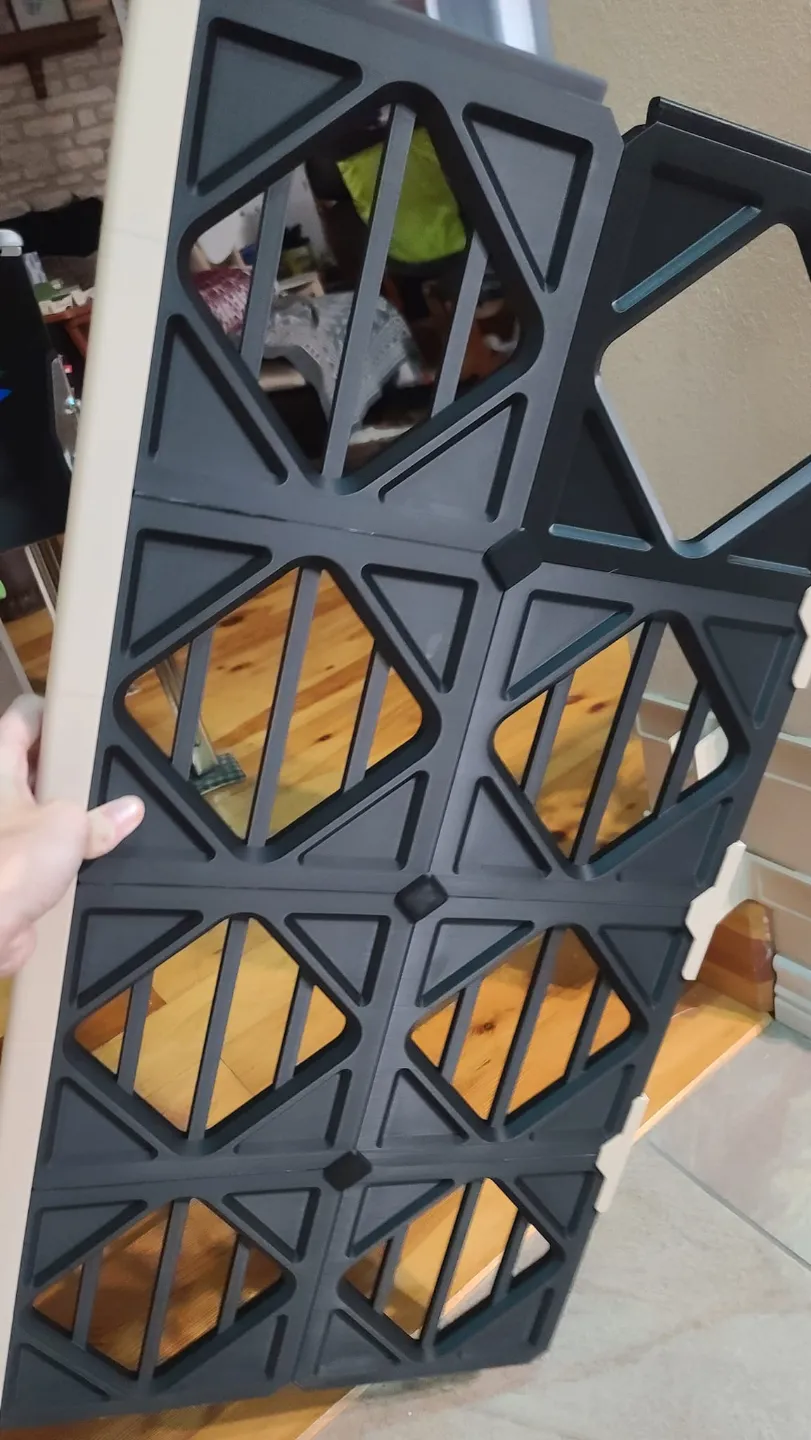

I made this to serve as a room partitioning gate. Each panel is a 200x200mmx20mm tile that slots together with dovetails.

The tolerances on the tiles themselves are a little looser for easier assembly. The trim pieces have much tighter tolerances and are meant to overlap the seams to make the final assembly more of a ridged object.

There's a nut & bolt square piece to place in the corner voids to further keep them in place.

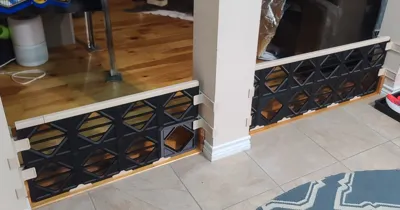

The column mounting brackets in the picture are were very specific to my application so not included here and left as an exercise to the maker.
