X1/X1C/P1S Exhaust - No Support Needed (Facing Up)
IP Report
GIF
Print Profile(1)
PETG, 0.2mm layer, 3 walls, 12% infill
Designer
4.4 h
2 plates
Open in Bambu Studio
Boost
128
438
25
33
320
130
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- 50mm ventilation/exhaust hose x 1:
Description
Features

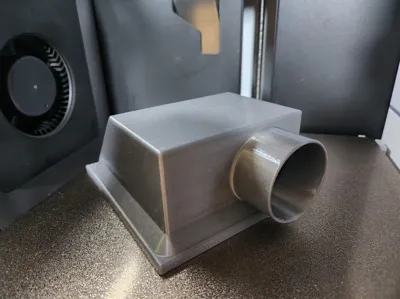

- No printing support is needed for the 90° angle exhaust (vent direction: Up)
- Refer to X1/X1C/P1S 90° Exhaust - No Support Needed - MakerWorld for venting to the side of the printer
- Snap in and snap out easily with the help of magnets and alignment bracket
- Ease of aligning the exhaust adapter to the optimal sweet spot for maximum air flow with the help of alignment bracket
Installation Guides
- Refer to https://wiki.bambulab.com/en/knowledge-sharing/exhaust-pipe-connector-installation-tutorial for instruction on how to thread the screws on X1/P1 (no extra hardware needed)

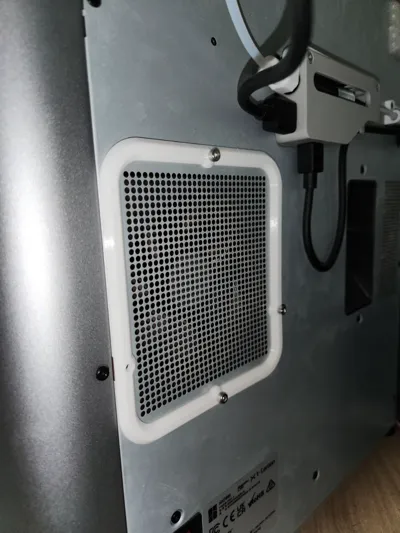

- Only need to thread the empty/unused holes. The one with an existing screw is left untouched
- Use M3x8 screws to secure the Aligning Bracket to the threaded holes

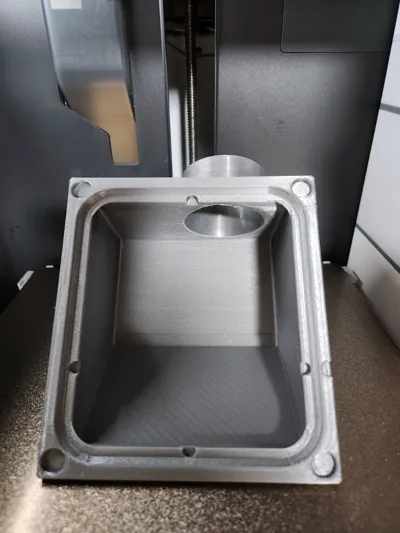

- Press fit 10x3 magnets to the Exhaust Adapter
- Install hose with diameter of 50mm to the Exhaust Adapter

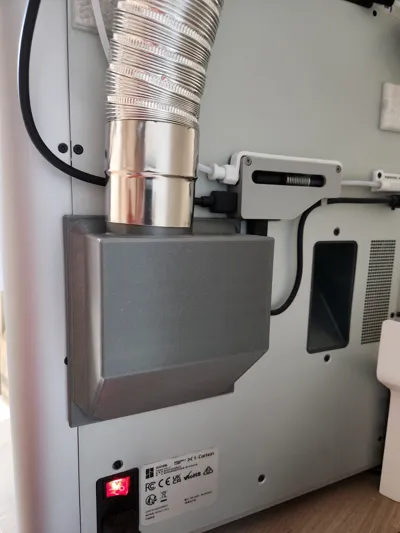

- Snap the Exhaust Adapter to the 3D printer with the help of Alignment Bracket!
BOM
- 4 pieces of 10x3 magnets
- 3 or 4 pieces of M3x8 screws
- 50mm hose or adapter
