50mm ventilation/exhaust hose

cover










AlignmentBracket


ExhaustAdapter



<ul><li>PETG</li><li>0.2mm layer height</li><li>print without support</li><li>3 walls</li></ul>

PETG, 0.2mm layer, 3 walls, 12% infill

codine






An external wall mount with a exit hole of 80mm and an adapter so I could attach a 1 ½ inch hose that comes off my resin printer. &nbsp;This allows me to swap from resin printer and the bambu using the same exhaust hole in the wall. &nbsp;&nbsp;Uses the same 10x3 magnets to attach it to the adapter. &nbsp;Just make sure you face them the right direction so they stick to the exhaust box.&nbsp;To Install print up a a complete 2nd exhaust box and gasket that attaches to the back of the bambu from the original print profile. &nbsp;Take that gasket and attach it to the new wall gasket the holes line up so you know where to screw it in. &nbsp;Glue in a new set of magnets to the wall gasket and screw the gasket to the wall over your existing hole. &nbsp;Then take the 2nd exhaust box, glue in some more magnets, and you now have a easy swap exhaust wall mount.&nbsp;Now you can print up another exhaust box add some magnets and your second printer so they can swap back and forth from the same exhaust hole. &nbsp;If you other printer has a 1 ½ inch hose you can use the included reducer. &nbsp;The reducer fits really snug on purpose it will require you to hammer it in. &nbsp;Just use a rubber mallet or something, I think I used the handle on a screw driver.&nbsp;&nbsp;Enjoy not having to drill another hole into the wall.

External wall gasket for using more than 1 printer

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

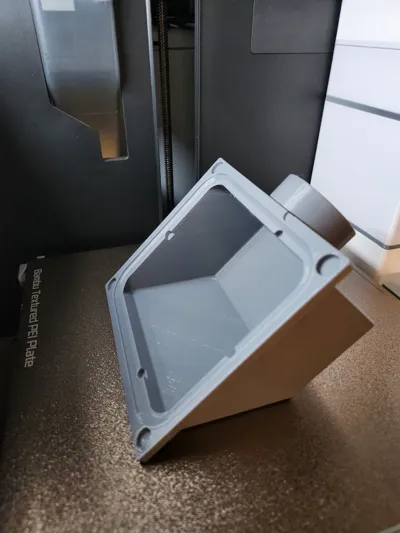

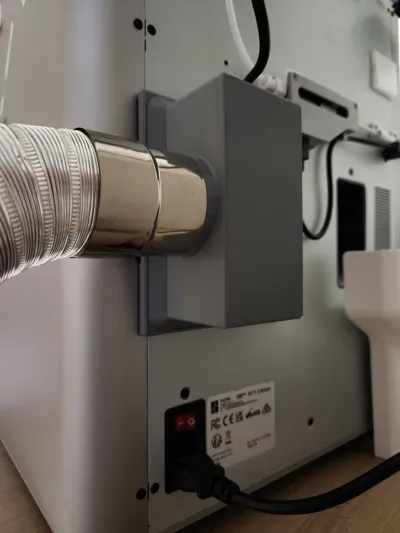

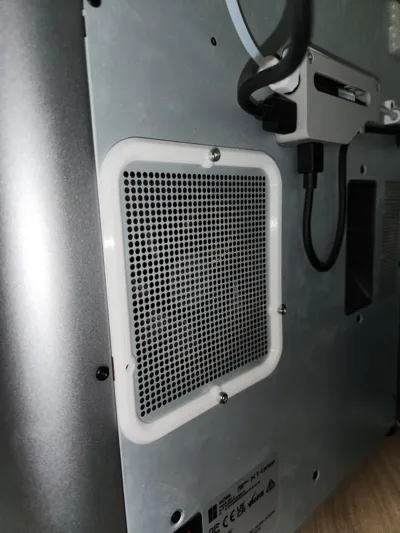

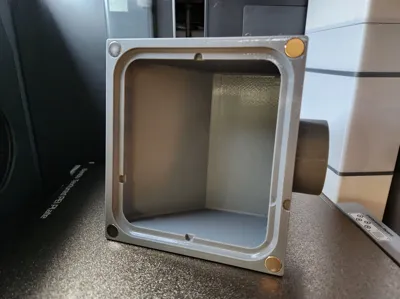

Features<ul><li>No printing support is needed for the 90° angle exhaust (vent direction: Side)<ul><li>Refer to <a target="_blank" href="https://makerworld.com/en/models/753498#profileId-687472" rel="nofollow noopener">https://makerworld.com/en/models/753498#profileId-687472</a> for upward facing vent</li></ul></li><li>Snap in and snap out easily with the help of magnets and alignment bracket</li><li>Ease of aligning the exhaust adapter to the optimal sweet spot for maximum air flow with the help of alignment bracket</li></ul>Installation Guides<ul><li>Refer to <a target="_blank" href="https://wiki.bambulab.com/en/knowledge-sharing/exhaust-pipe-connector-installation-tutorial" rel="nofollow noopener">https://wiki.bambulab.com/en/knowledge-sharing/exhaust-pipe-connector-installation-tutorial</a> for instruction on how to thread the screws on X1/P1 (no extra hardware needed)<ul><li>Only need to thread the empty/unused holes. The one with an existing screw is left untouched</li></ul></li><li>Use M3x8 screws to secure the Aligning Bracket to the threaded holes</li><li>Press fit 10x3 magnets to the Exhaust Adapter</li><li>Install hose with diameter of 50mm to the Exhaust Adapter</li><li>Snap the Exhaust Adapter to the 3D printer with the help of Alignment Bracket!</li></ul>BOM<ul><li>4 pieces of 10x3 magnets</li><li>3 or 4 pieces of M3x8 screws</li><li>50mm hose or adapter</li></ul>

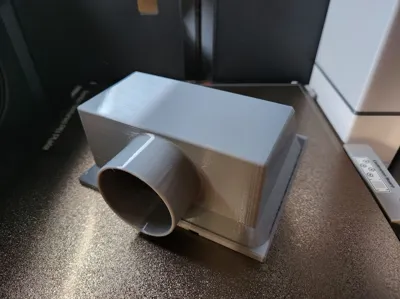

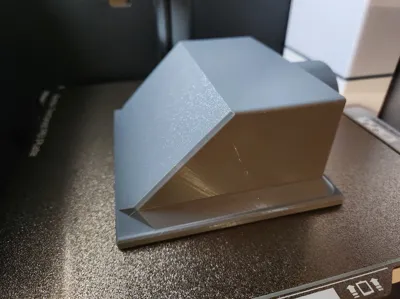

X1/X1C/P1S 90° Exhaust - No Support Needed
