Any Size Hanging Trays for Modular Drawer Dividers

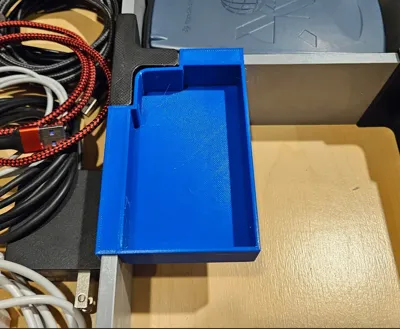

This is a simple side and corner hanging tray for the “Modular Drawer Dividers Remixed for 3D Printed Dividers”.

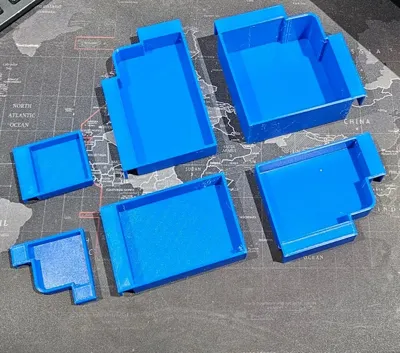

These trays can be printed in any size using the OpenSCAD files or I have pre-generated a set of STLs in the sizes I though would be most useful.  The pre-generated STLs come are in select combinations of the following styles/sizes;

• Style: Corner or Side mount
• Length: 40, 60, 80 ,100, and 120mm
• Width: 40, 60, 80 ,100, and 120mm
• Tray Height: 12, 20, 30, and 40mm

Printing

Printing the trays is pretty straight forward with one exception…

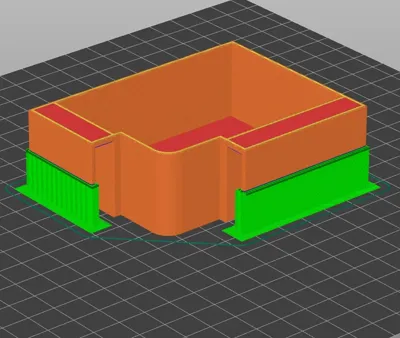

• You MUST use supports for the hanger.  I recommend just painting on supports for the bottom edge of each support.  Please see the images for an example.

Other than that, the rest is up to you.

Thanks!
