Description

It is important to insulate dryboxes or other objects with installed PC4 fittings from air to keep a dry environment inside.

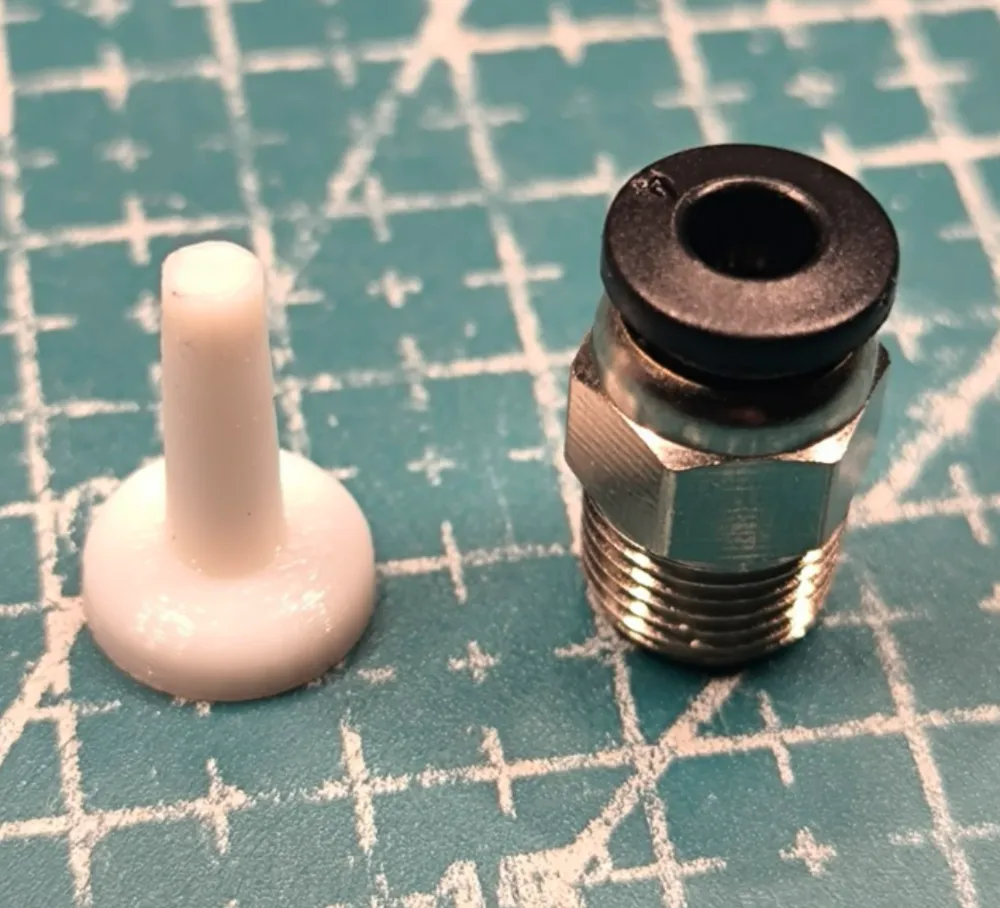

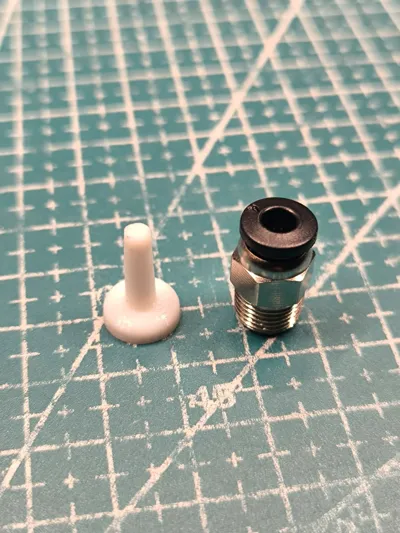

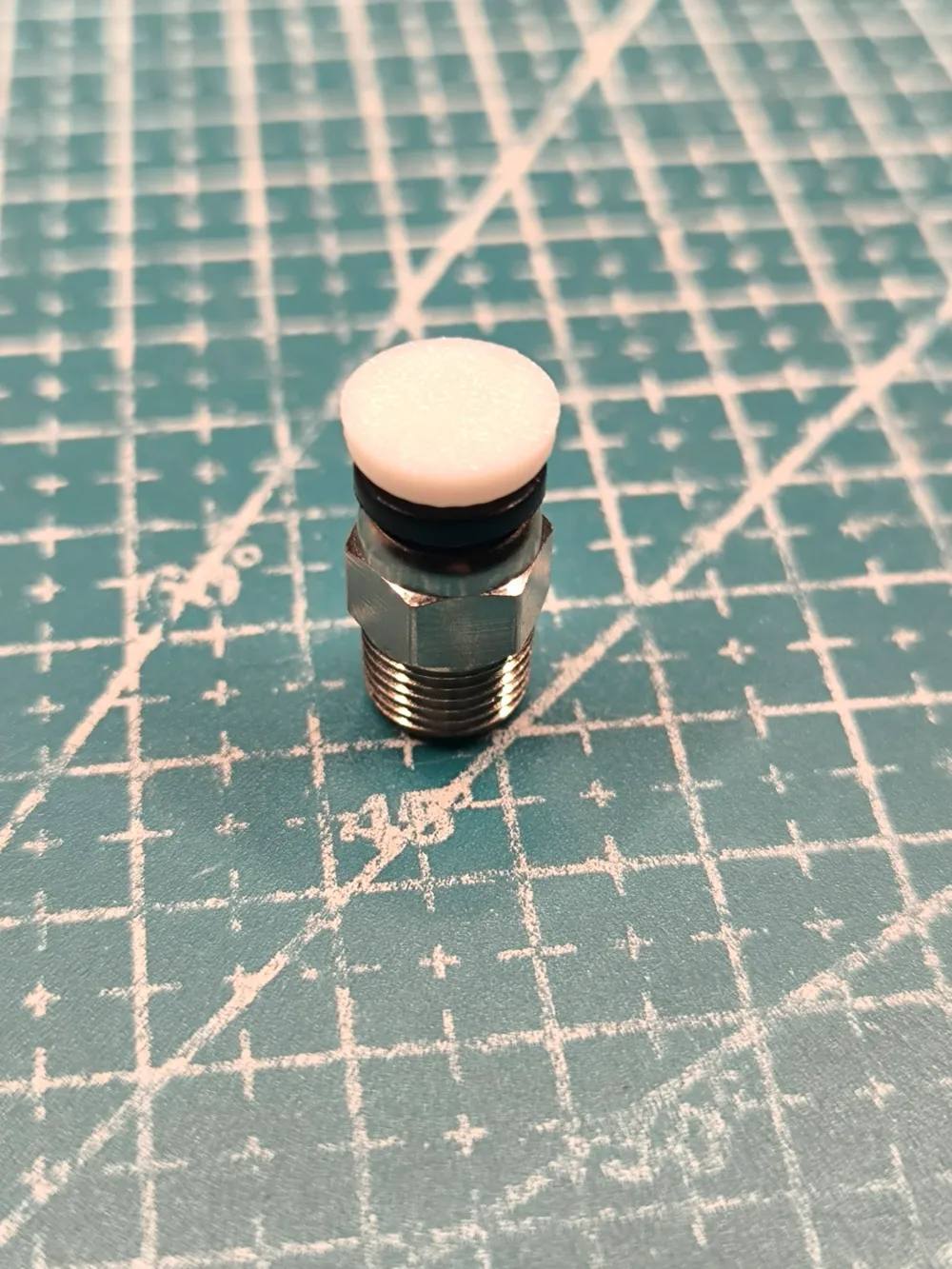

This plug (spigot) can help you.

It seems better to print the plug using TPU (solid without infill), but I used PETG because it is a bit more elastic than PLA.

I printed 0.12mm layer height in order to keep the diameter gradient steadier.

Happy printing!
