Bill of Materials

List other parts

Hillman Round Combo with Nuts, #4-40 x 1” PN:491277 x 1: Nut/Bolt combo for axle, standard model, available at Lowes (https://www.lowes.com/pd/Hillman-4-40-x-1-in-Phillips-Slotted-Combination-Drive-Machine-Screws-10-Count/3036647?idProductFound=false&idExtracted=true)
Hillman Round Combo with Nuts, #6-32 x 2” PN: 491285 x 1: Nut/Bolt combo for axle, large model, available at Lowes (https://www.lowes.com/pd/Hillman-6-32-x-2-in-Phillips-Slotted-Combination-Drive-Machine-Screws-8-Count/3035867?idProductFound=false&idExtracted=true)
Cilky 20 pcs Small Compressed Spring x 1: 0.4mm X 5mm X 15mm for standard model, 0.4mm X 5mm X 25mm for large model, available on Amazon

Description

Mechanical Chomping Sharpedo

Sharpedo #319: “Its fangs rip through sheet iron. It swims at 75 mph and is known as the Bully of the Sea.” ~Pokemon Diamond Pokedex entry

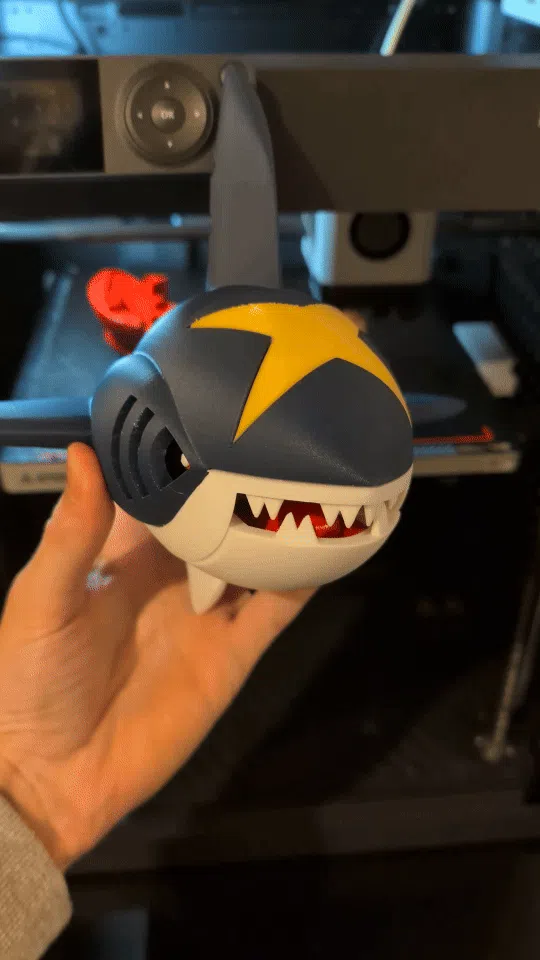

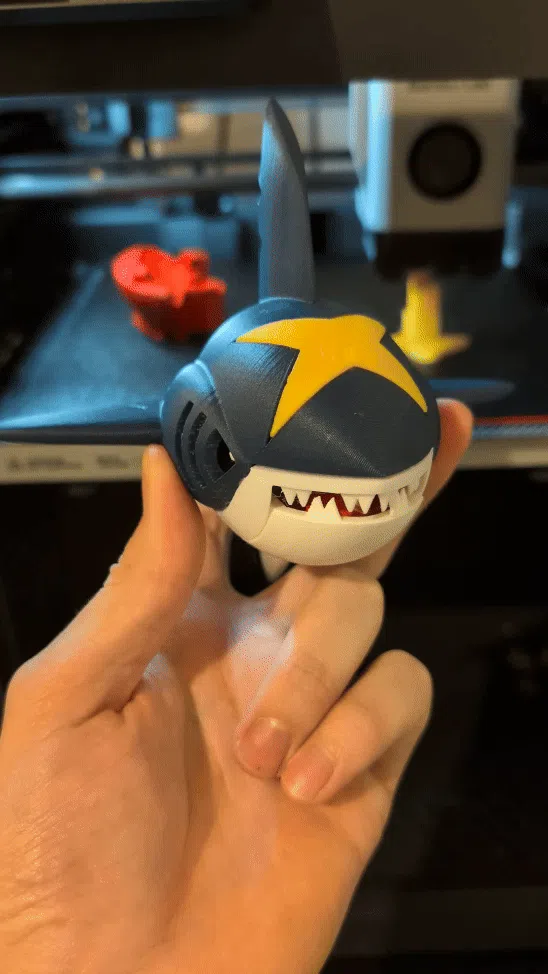

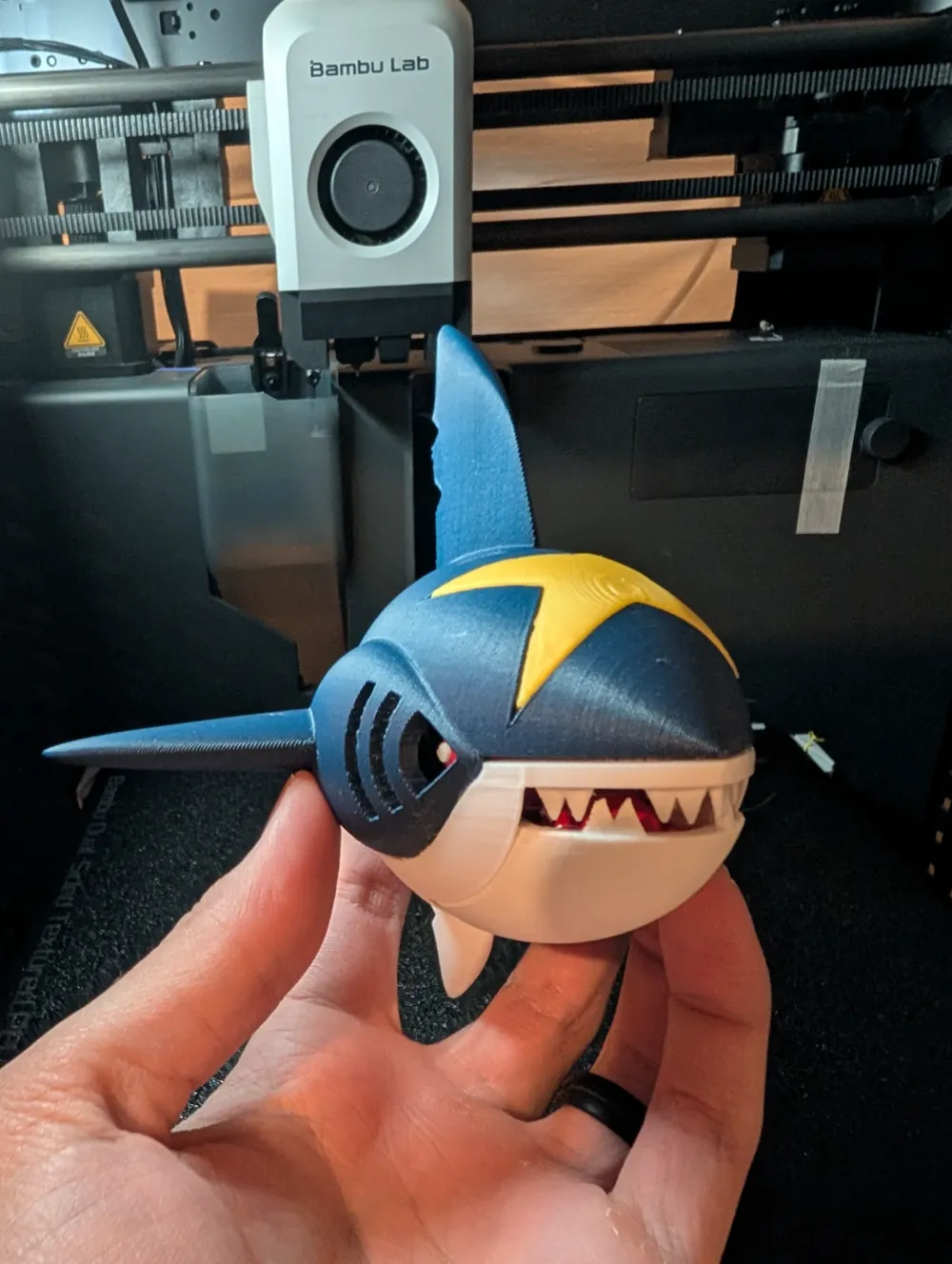

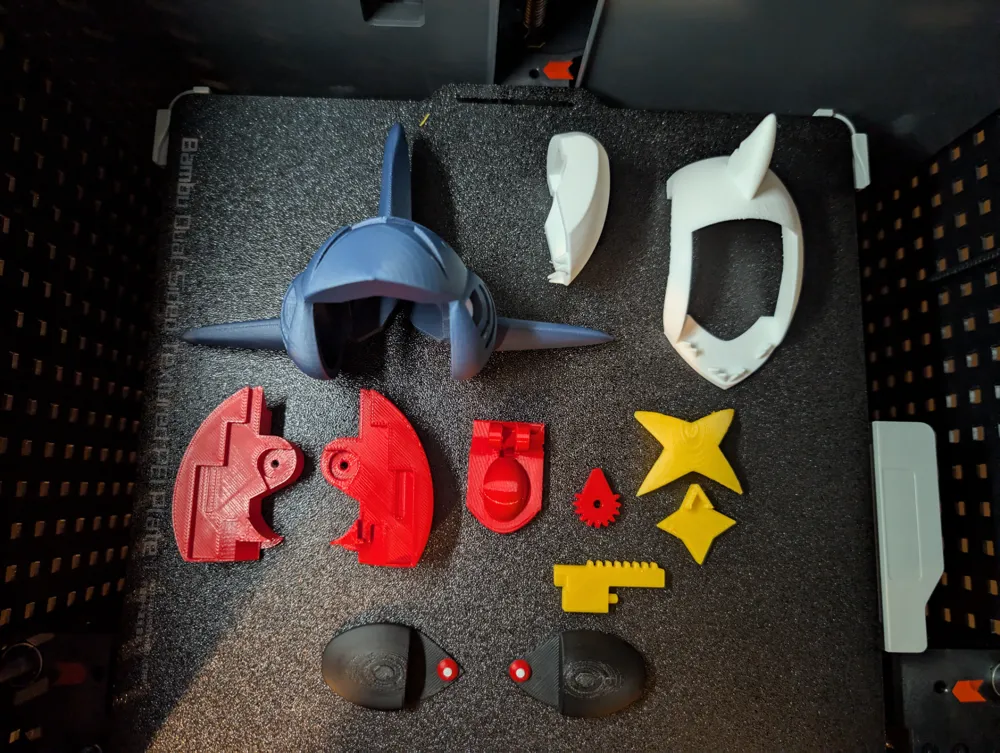

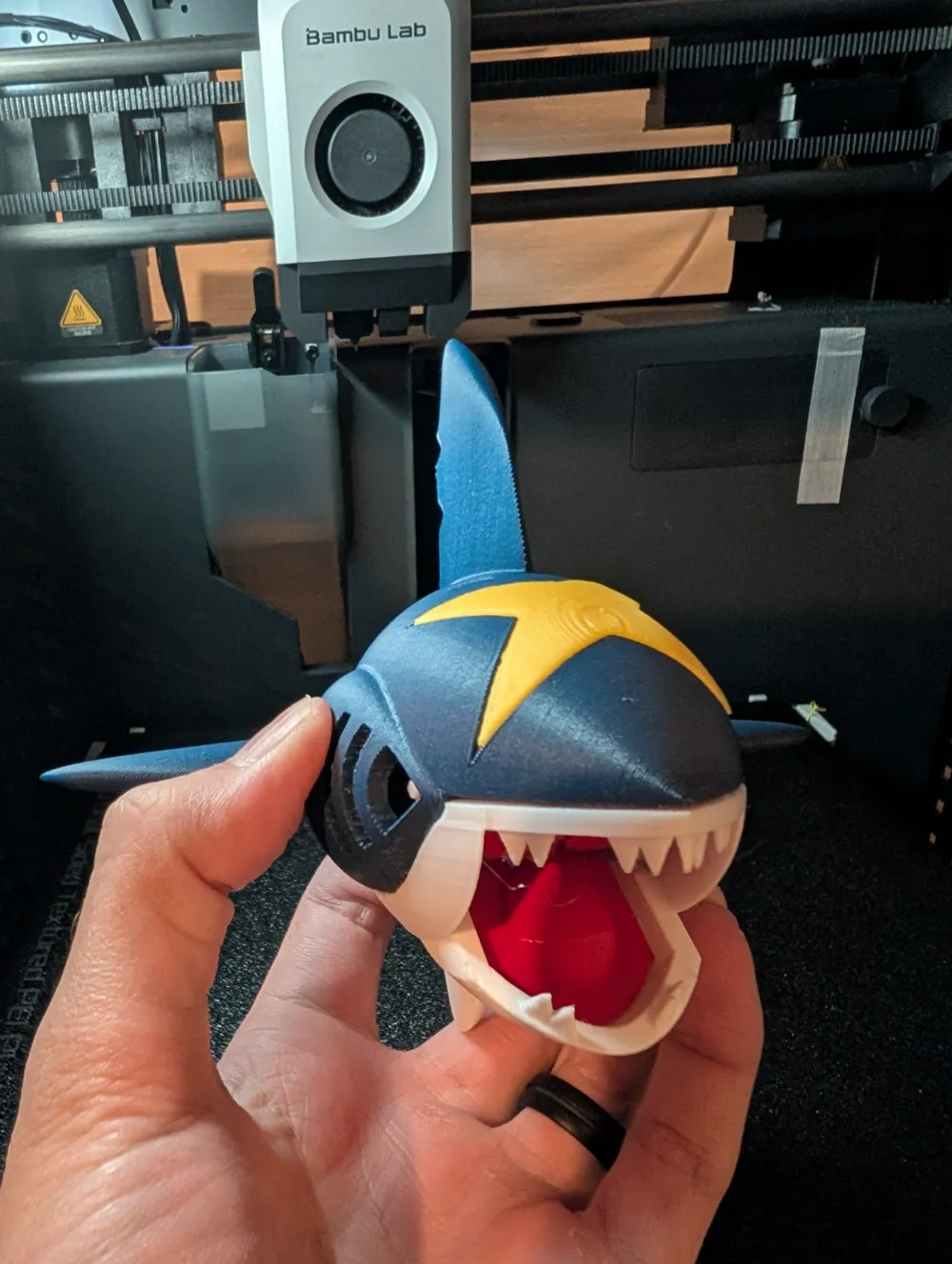

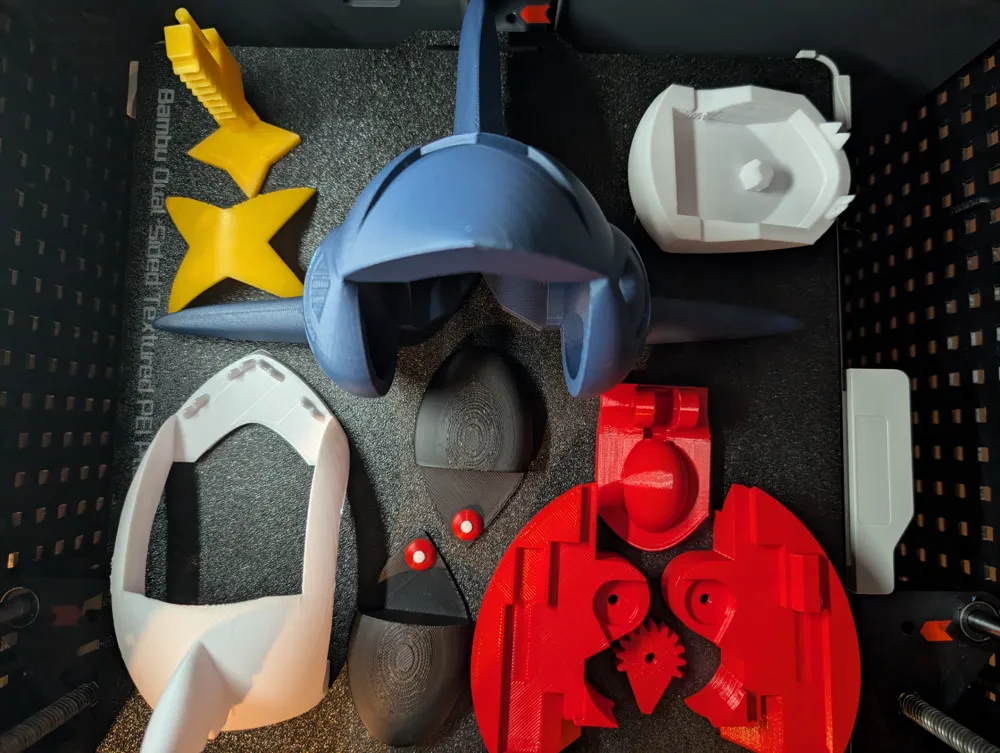

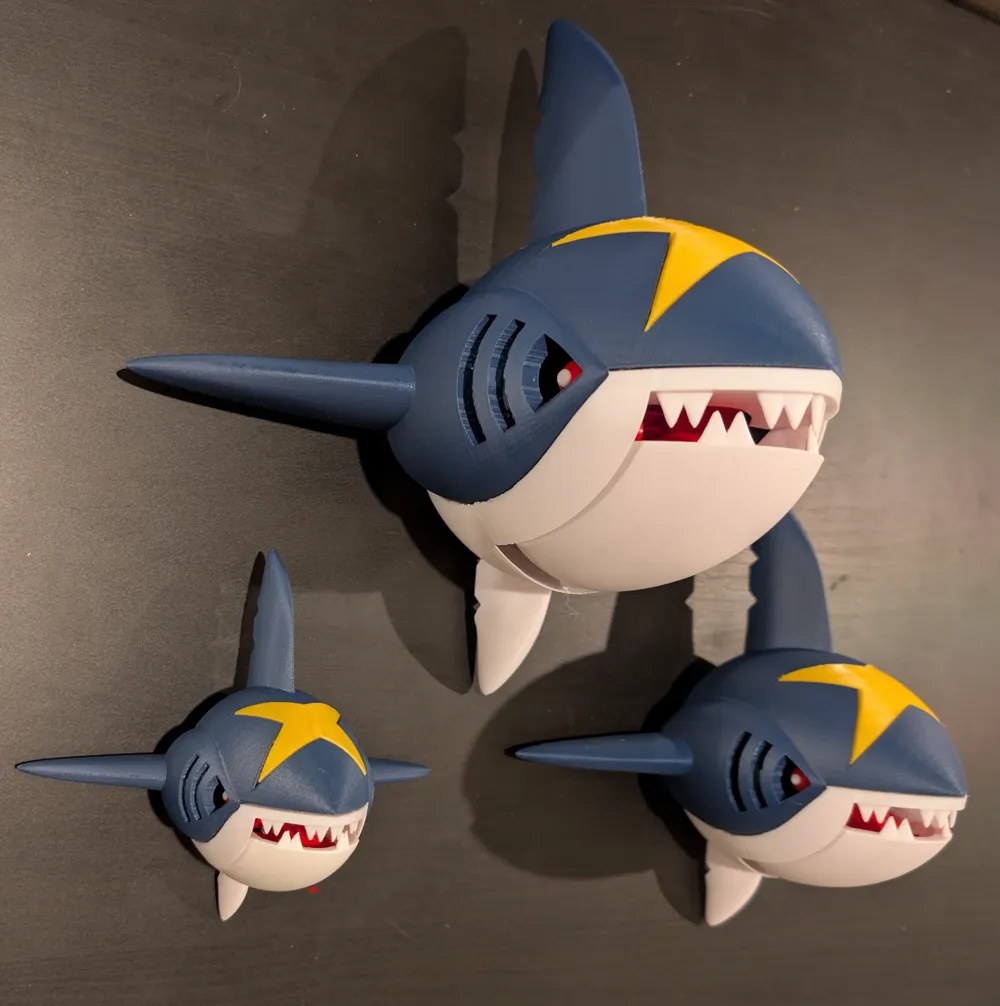

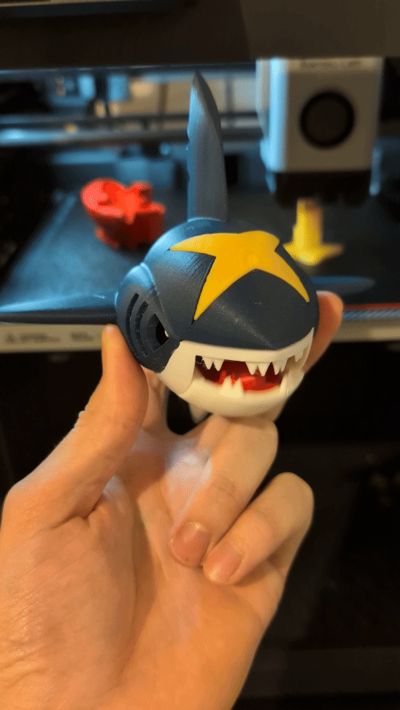

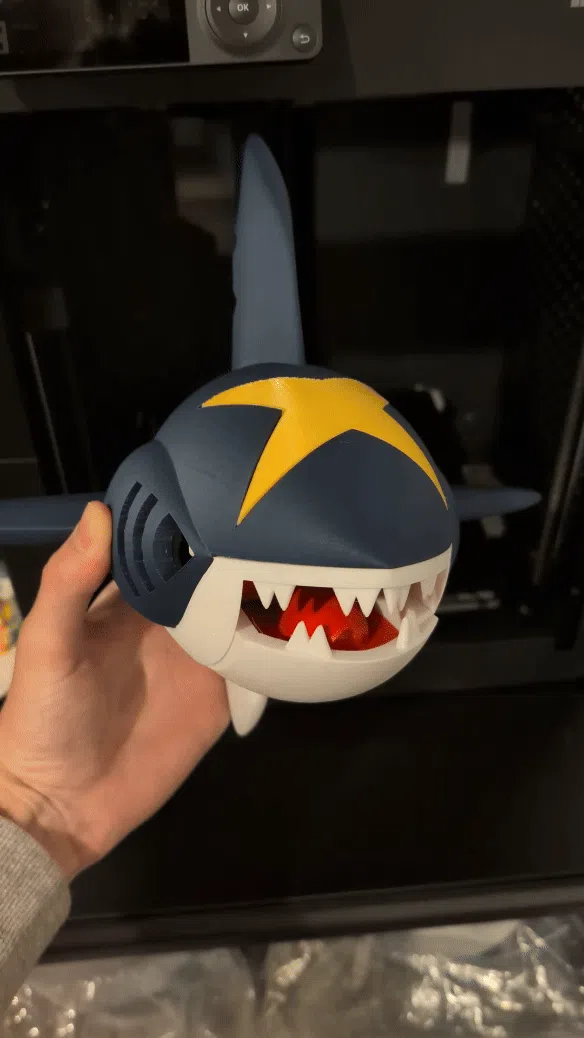

Mechanical Sharpedo that bites when the yellow star on the back is pushed. The bottom jaw is opened using a gear system and closed by an internal spring. Spring and axle (nut/bolt) are external parts from Lowes/Amazon. Full parts list and assembly instructions attached. Choose between Standard, Large, or Extra Large!

Note: MakerWorld would not allow me to post the bill of materials in the Model info without including parts from MakerSupply so I put the info for the spring and nut/bolt combo in the Assembly Guides.

Documentation (3)

Assembly Guide (3)

Assembly Instructions- Large.pdf

Assembly Instructions- Standard.pdf

Assembly Instructions- Extra Large.pdf

Comment & Rating (138)

@DiablosSpawn

Print Profile

Multicolor Plates- Extra Large

Made for the kid next door and now I have to make one for his sister

The profile uploader has replied

@Bruddzz

So glad to hear it was a huge hit! 😁

@tal355

Boosted

Print Profile

Multicolor Plates-Large

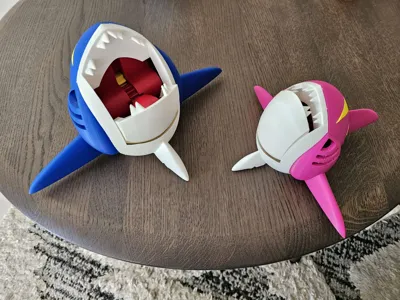

and...a shiney one! better spring then the one i used for the giant one, so it works wayyyyy better
