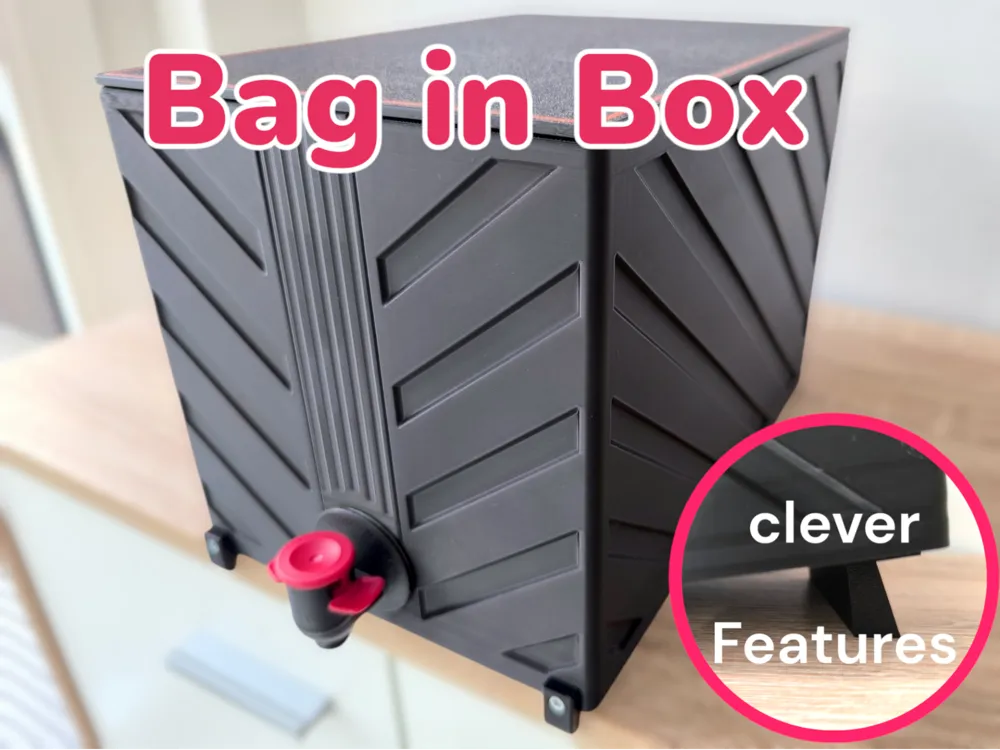

Bag in Box - Container with features

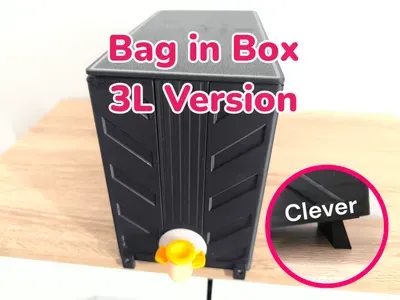

This is a Big Box for juice or wine bags. It's optimized for 5l bags with tap but 3l or anything else are good, too.
No need for the ugly cardboard anymore! Put your bags directly in this printable Box.
Features:

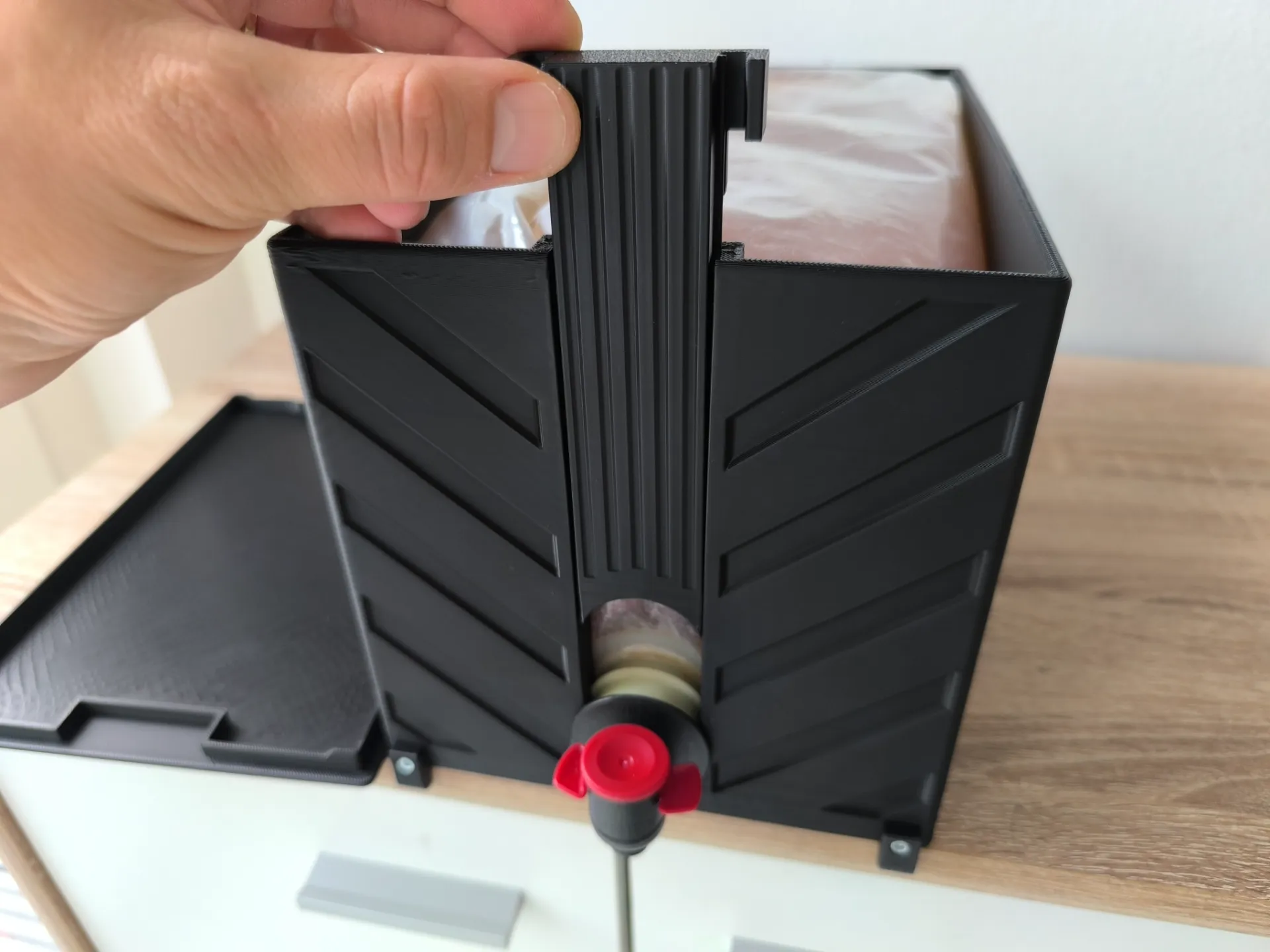

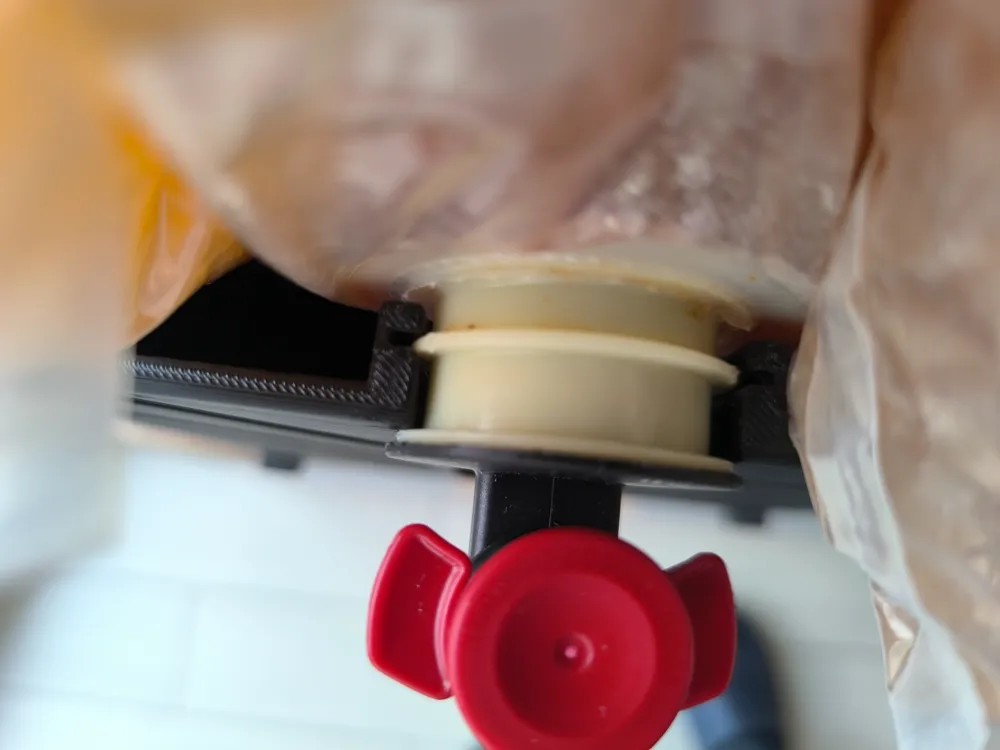

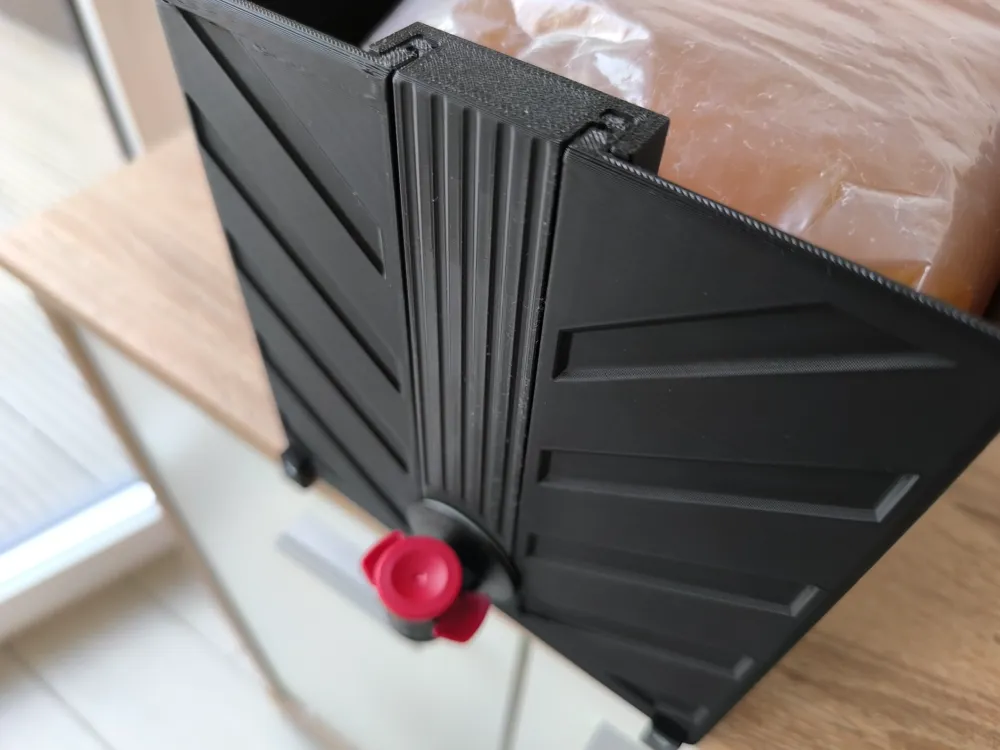

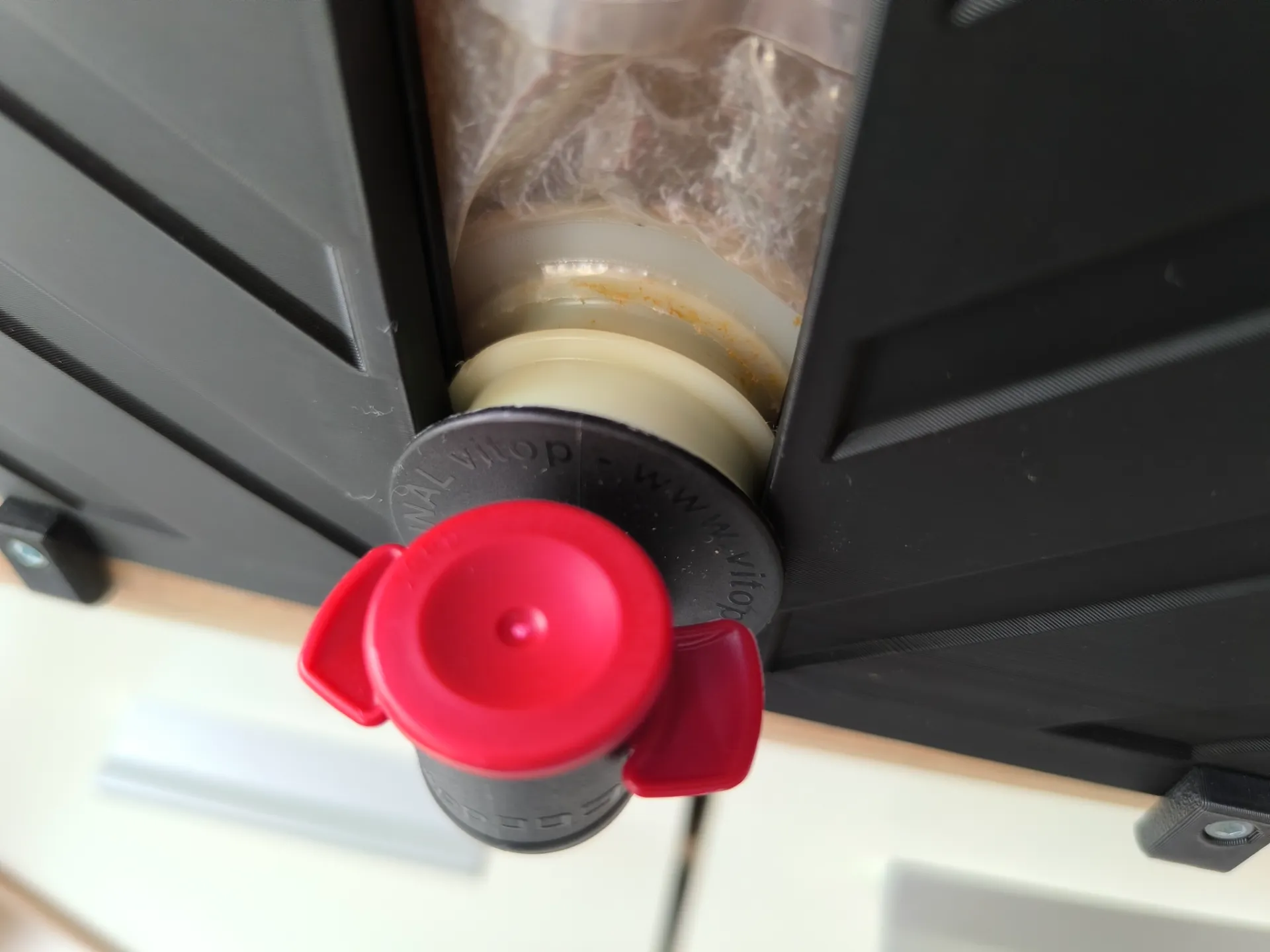

- The tap sits securely! Slide it all the way down the appropriate groove.

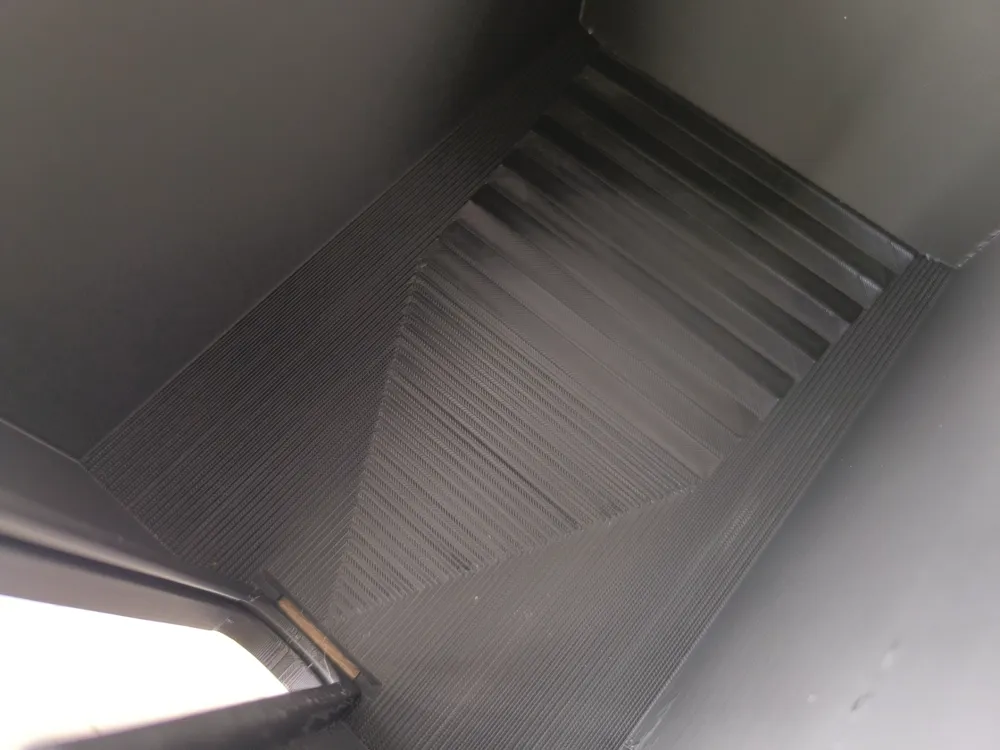

- Integrated slant inside so that fluid flows well

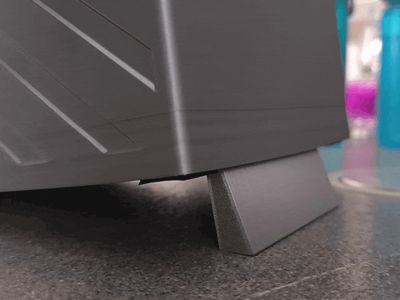

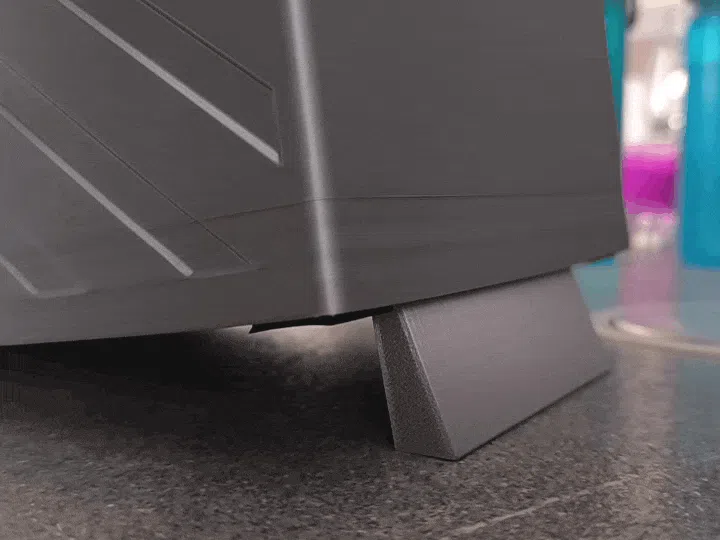

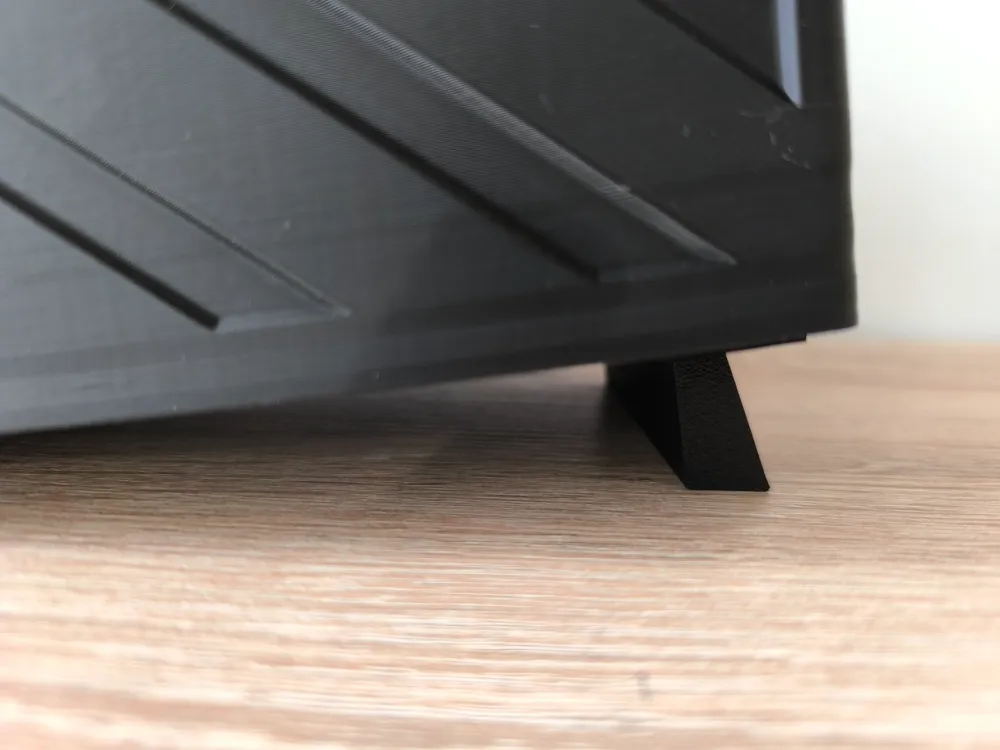

- Additional folding foot for a further 8° inclination

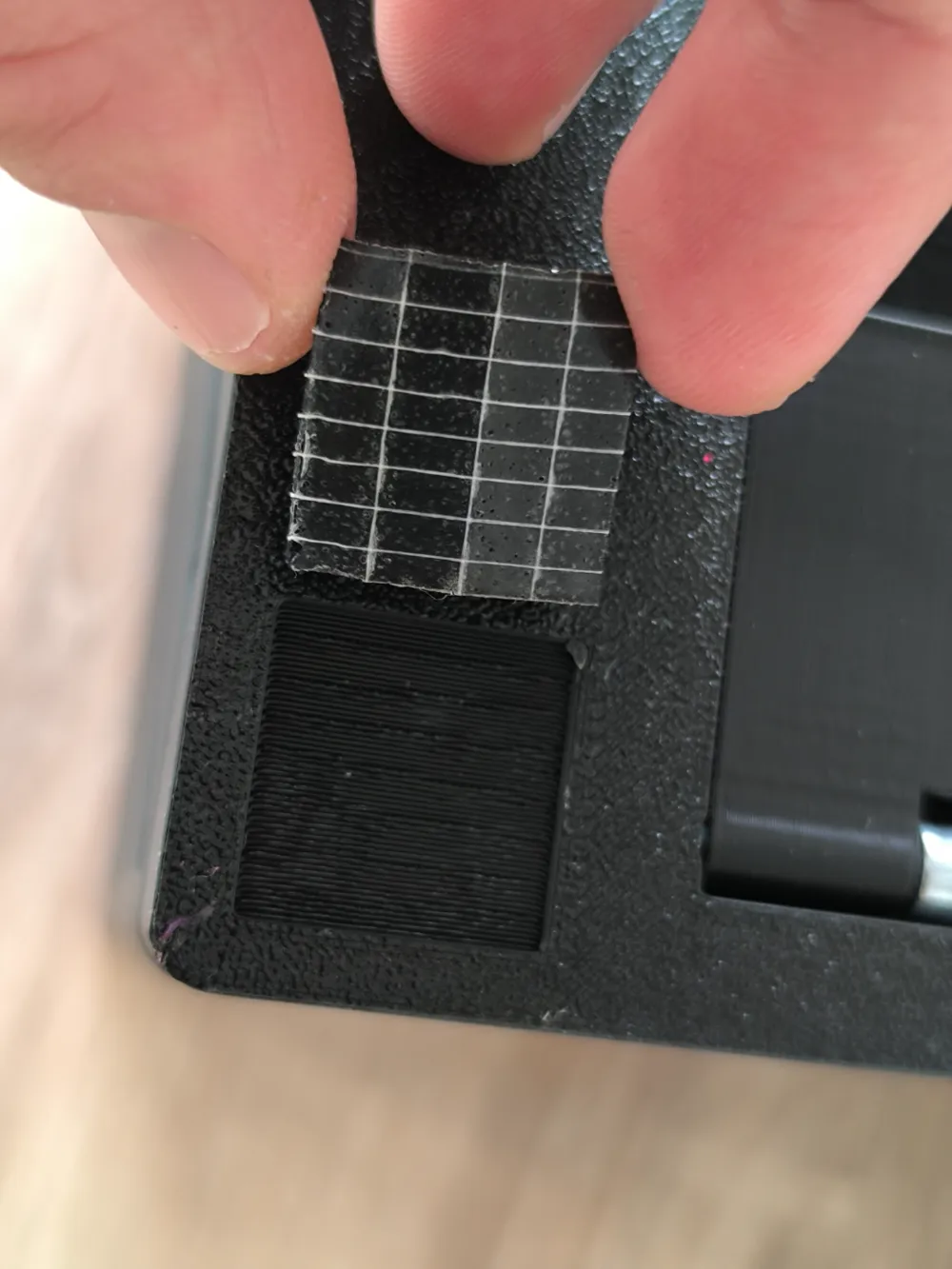

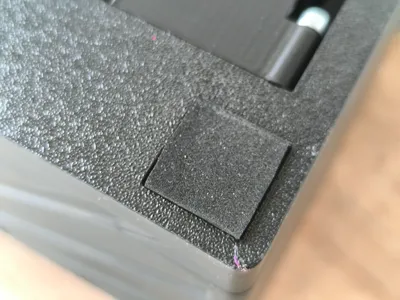

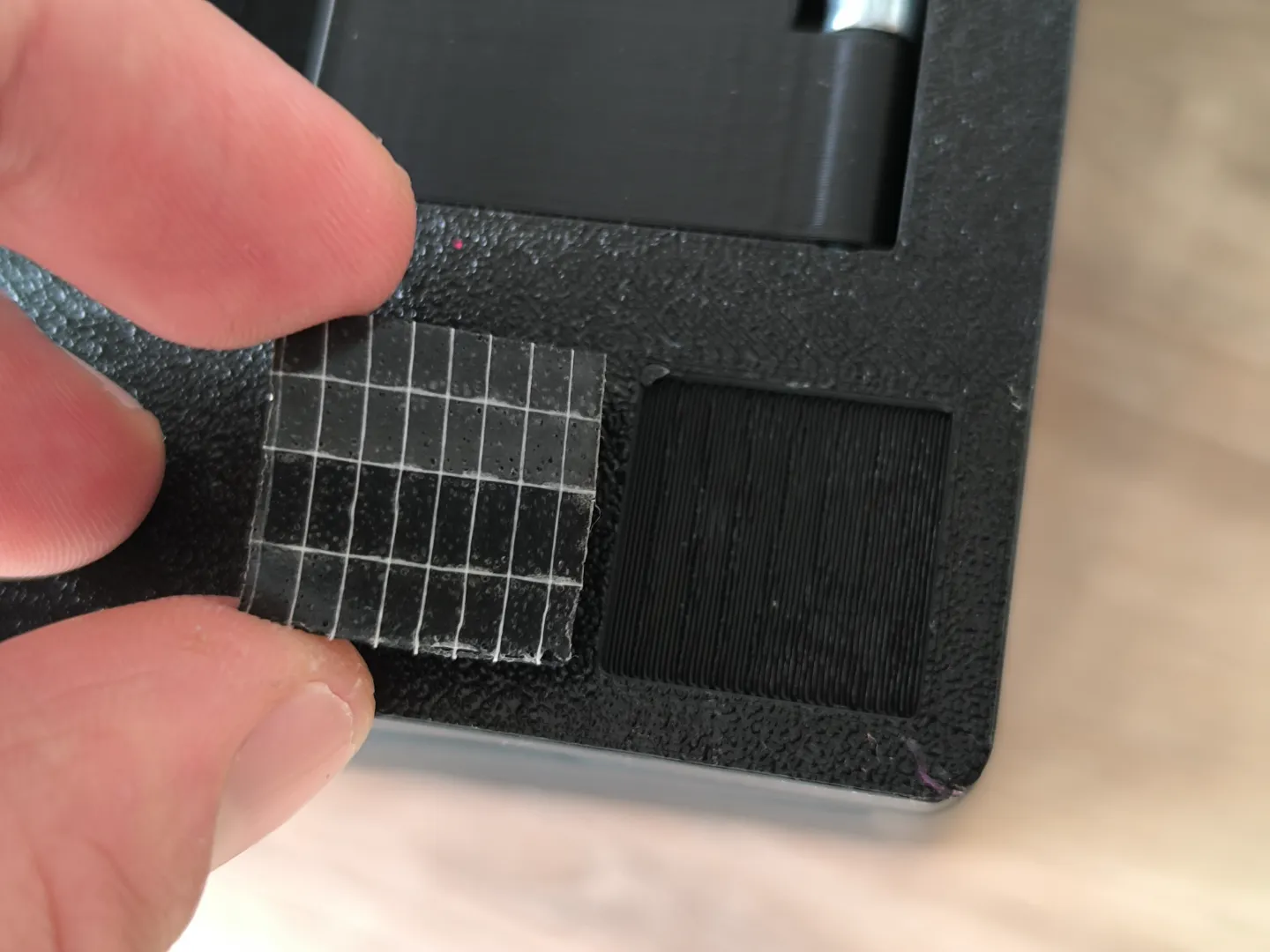

- 4 Cutouts on the edge for 20x20 Foam for stable, secure hold without slipping

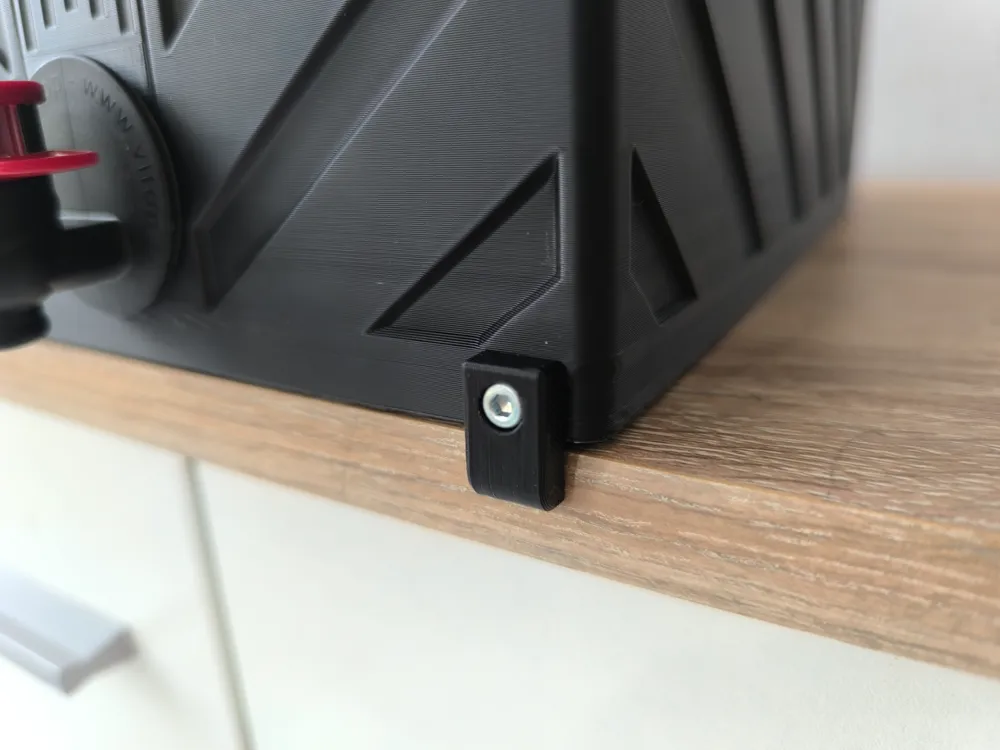

- 2 optional stops for a place at the edge of the table

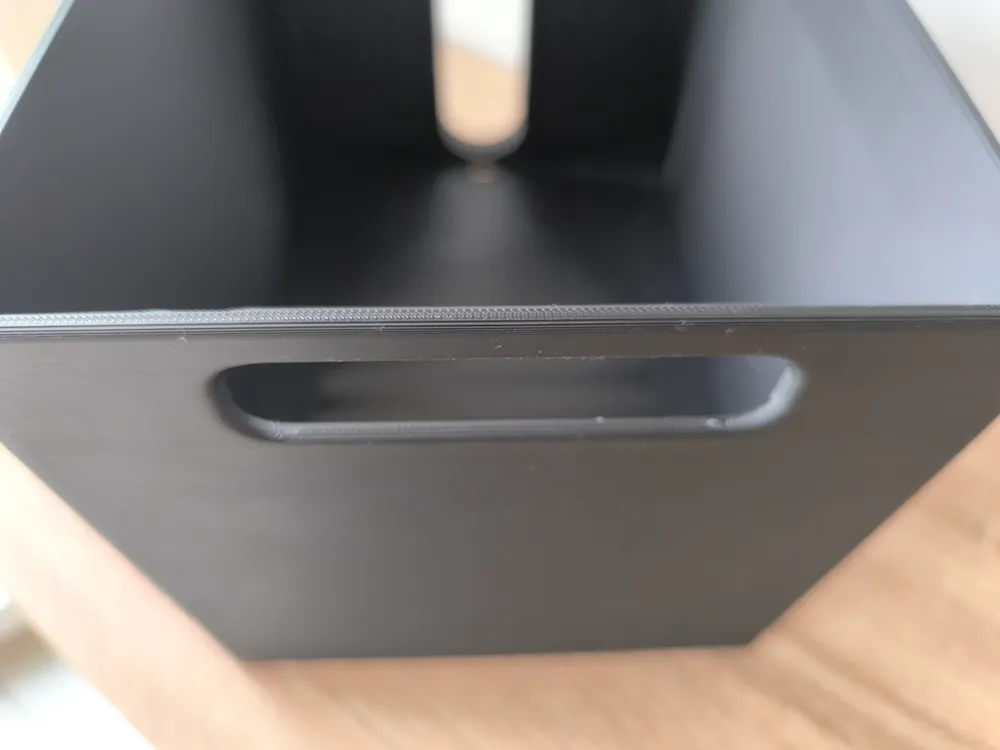

- Handle on the back

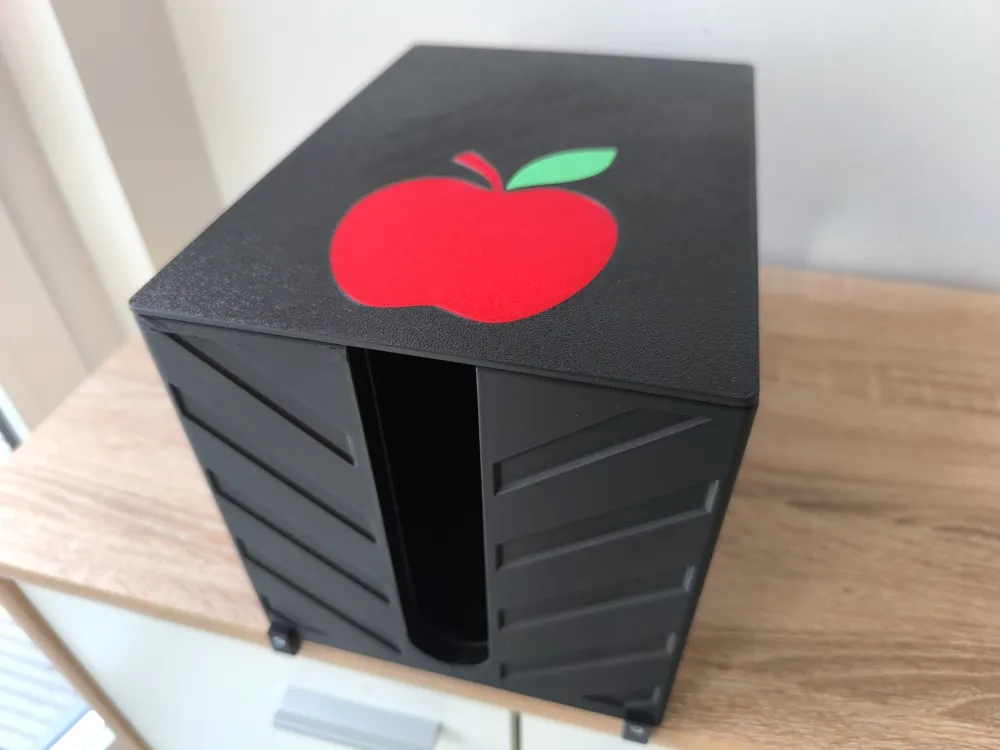

- Different Lids
- Clean Design

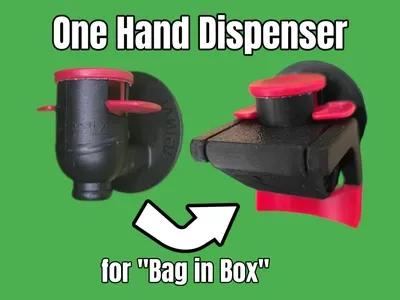

- Perfect addition to Single Hand Dispenser
Printing:
It is a big print! Keep in mind you will need ~750g Filament for a complete Box.
Check your build plate for a good adhesion before start!
Assembly:
You need for the optional/additional features:

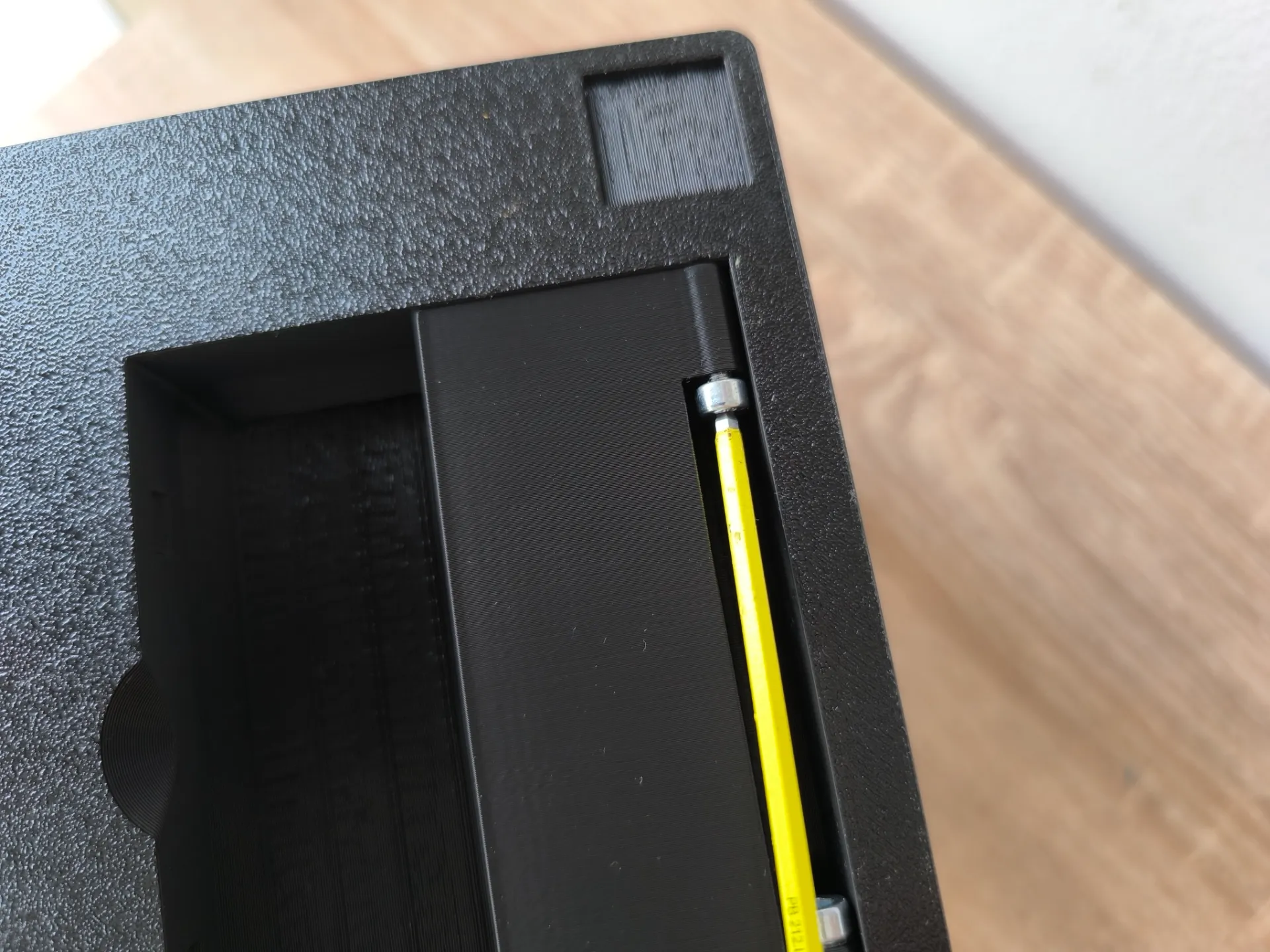

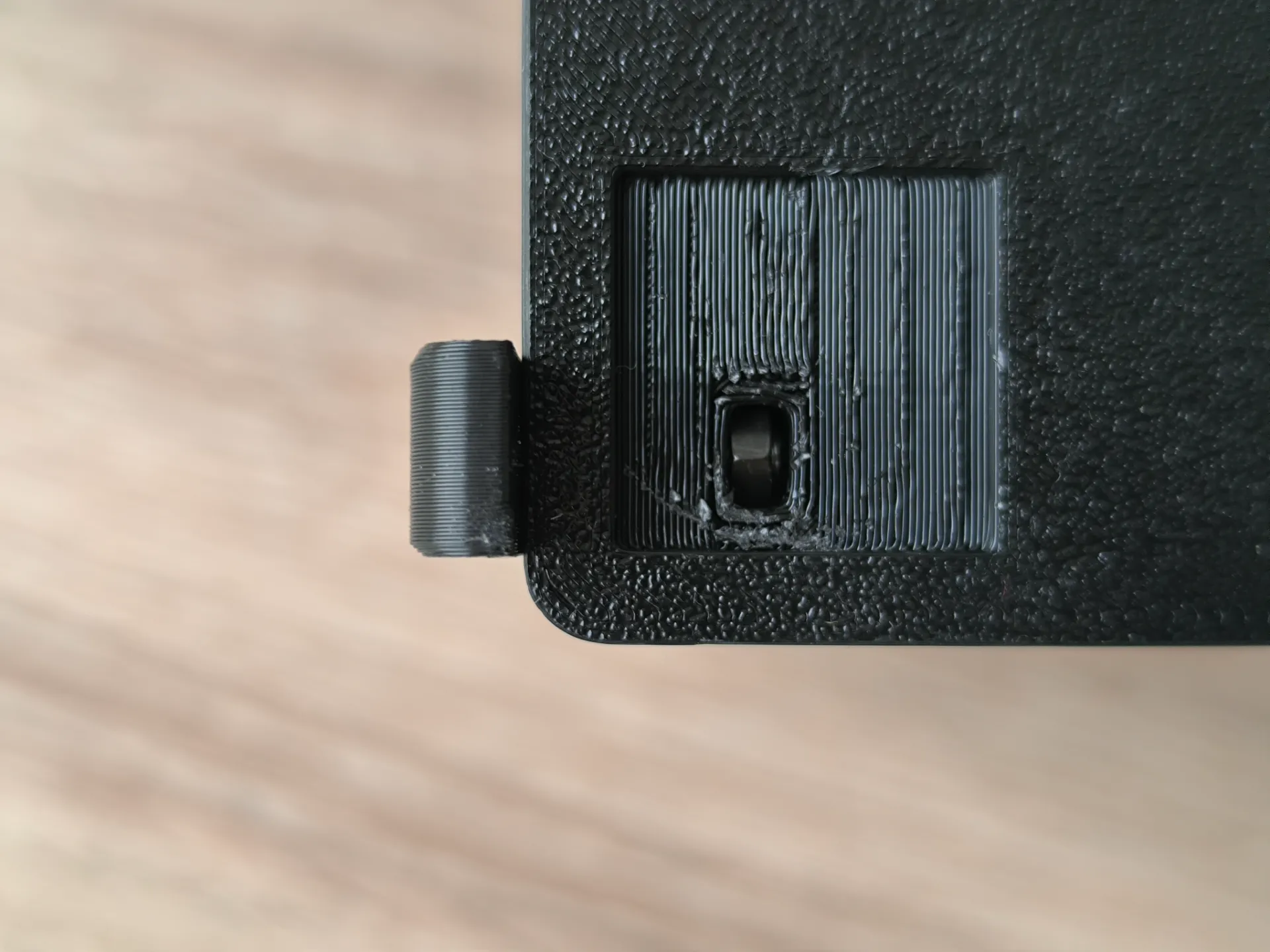

2pcs M4x30 for mounting the folding foot
2pcs M3x20 for the stops
4pcs Foam Pads 20x20 for a good stand ( Didn't find a good fit in maker supply, i used something like this: sealing Foam Band (Amazon ref link)
Happy Printing! 😉👍
