(3/4") MFT Bench Hole Reamer & Chamfer Tool
Print Profile(1)
Description
Boost Me (for free)
Do you like my work ? Give me a boost, it's free for you and it helps me a lot!
➡️ ⚙️ ⚒️ 📏 Checkout the entire ¾ Inch Ultimate MFT Bench Dogs collection

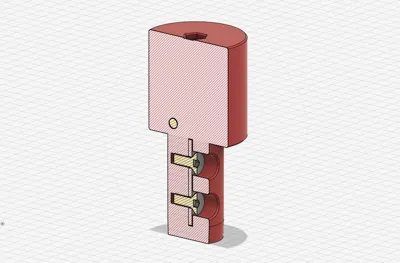

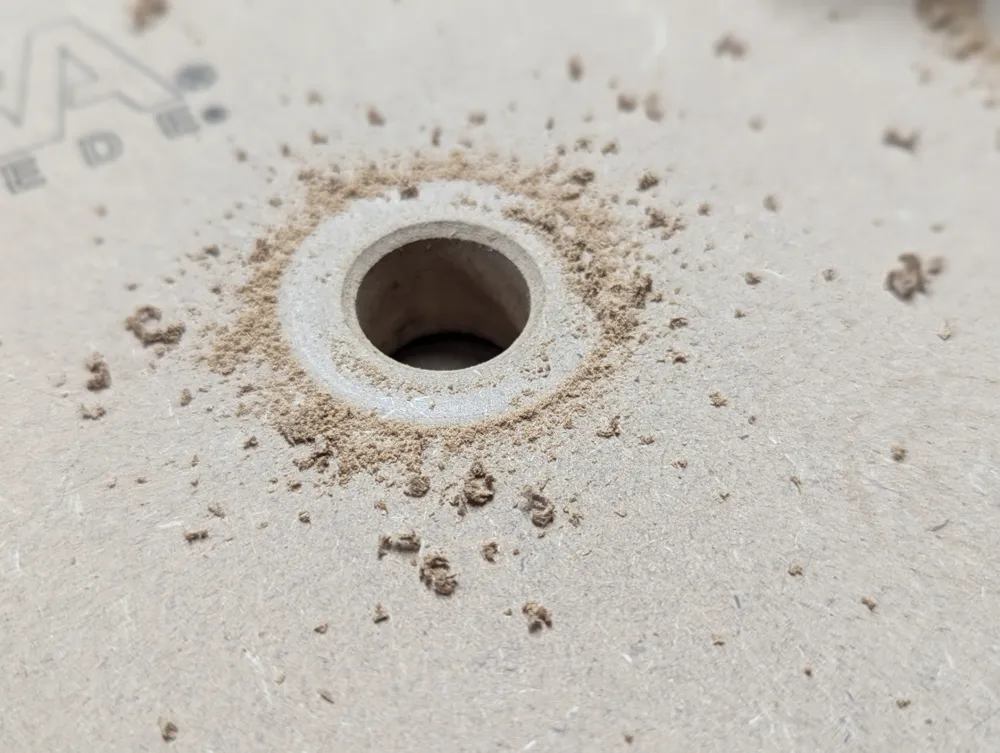

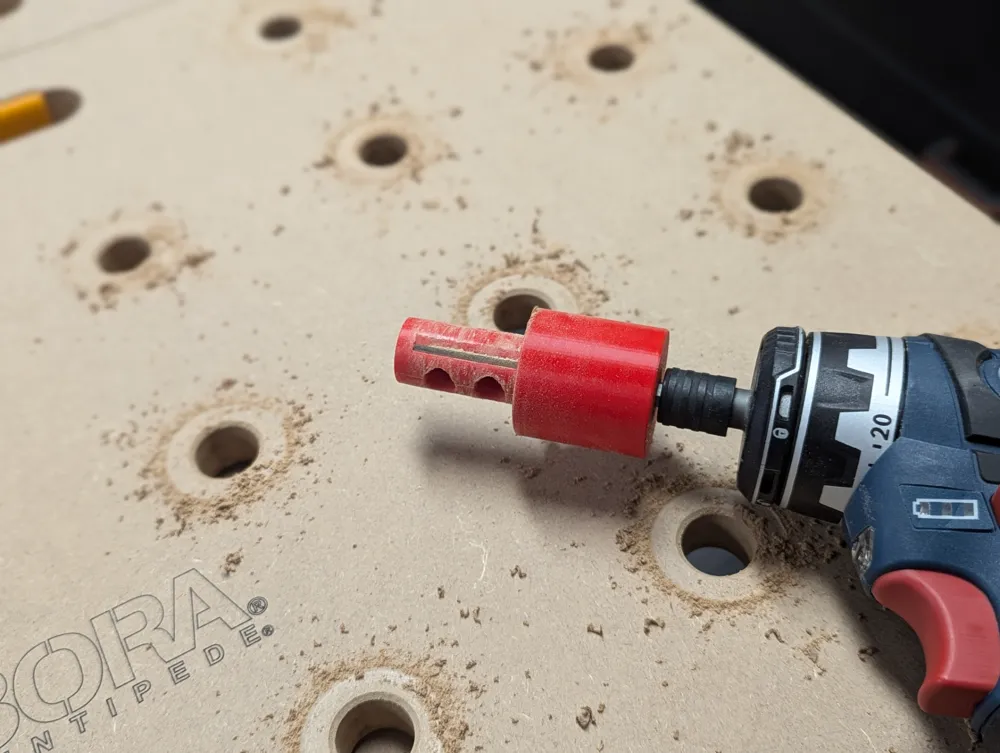

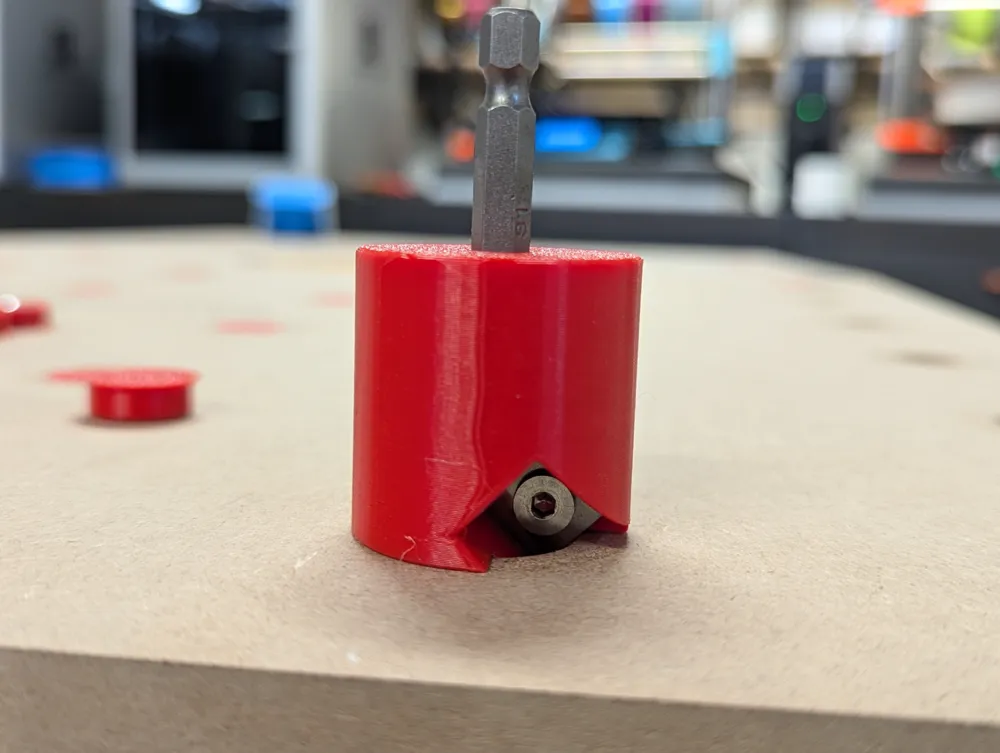

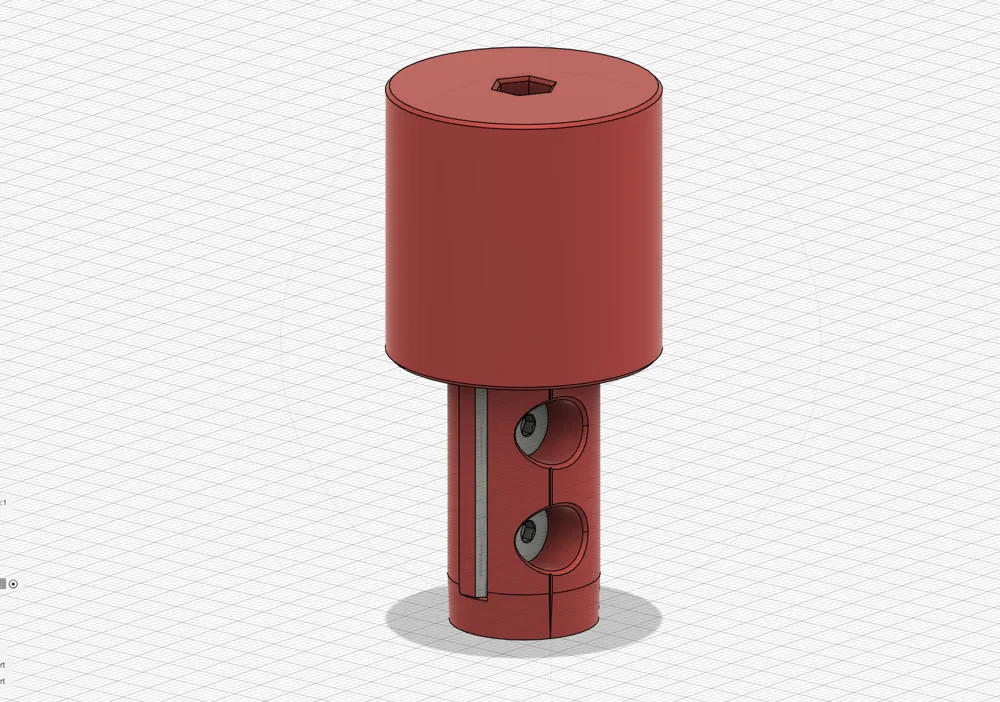

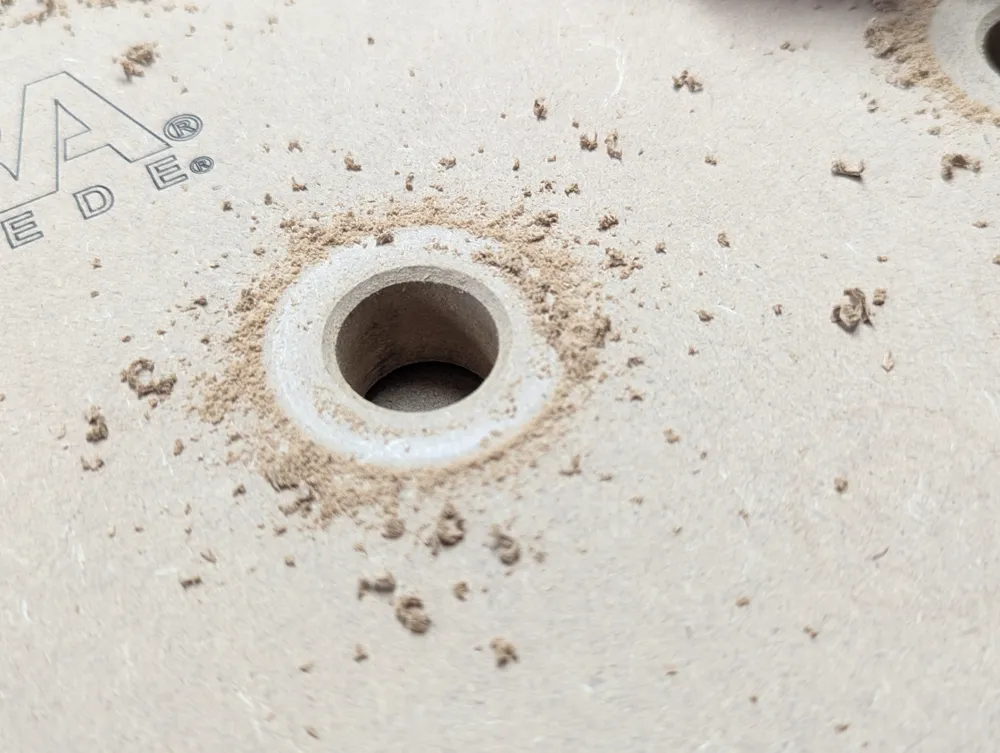

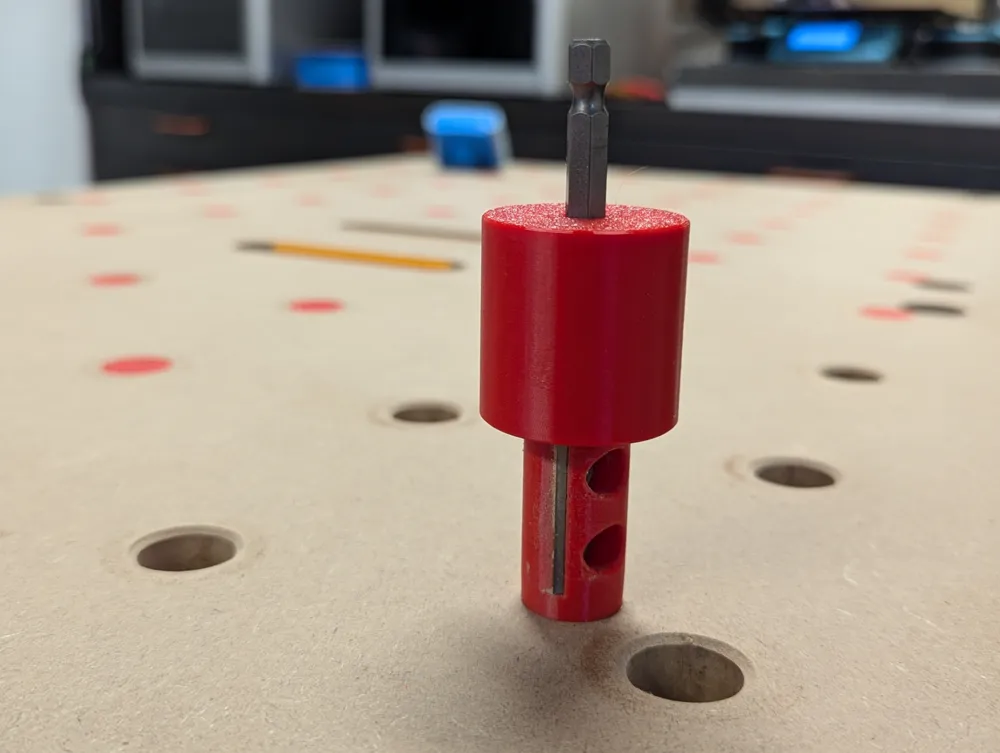

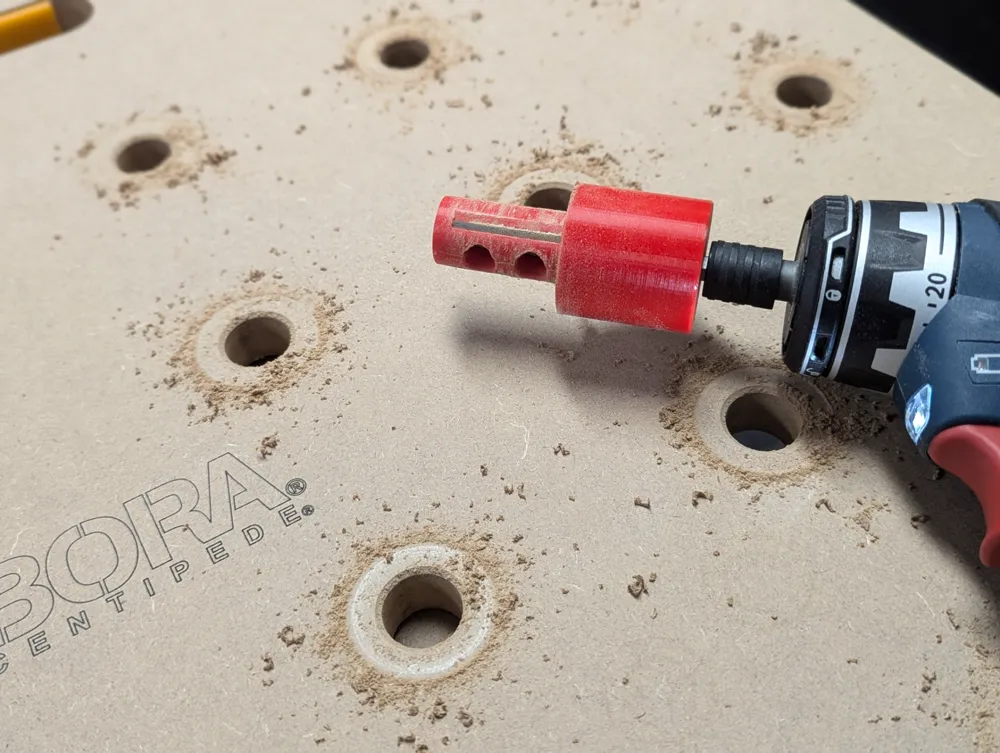

¾" MFT Reamer & Chamfering tool, it let you produce a clean accurate ¾" hole with chamfer on your MFT table holes.
The chamfer (only) tool is available here : https://makerworld.com/en/models/690910#profileId-619624
Note: This is a REAMER, not a drill bit, the hole must be less than 3% smaller to work properly.
It will help you to make accurate hole (very close to ¾"), or restore holes messed up by the time (glue, finishing products, etc…), and having consistent diameter.
There is 9 versions, exact ¾" diameter, and from -0.20mm to +0.20mm, by 0.05mm increment. Make some tries to find the best fit, there is too many parameters to offer an only one model that works for everyone.
You will need :
- (3x) M4x10mm Countersunk screw
- (1x) 12x12x1.5 Carbide Insert
- (1x) 30x12x1.5 Carbide Insert
- An old drill bit
Enjoy!
