(3/4") MFT Bench Hole Chamfer Tool
Print Profile(1)
Description
Boost Me (for free)
Do you like my work ? Give me a boost, it's free for you and it helps me a lot!
➡️ ⚙️ ⚒️ 📏 Checkout the entire ¾ Inch Ultimate MFT Bench Dogs collection

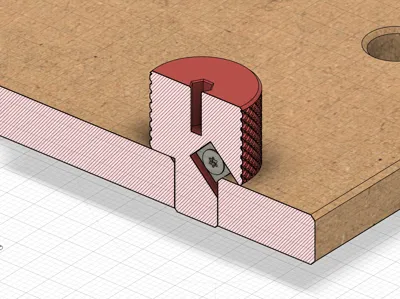

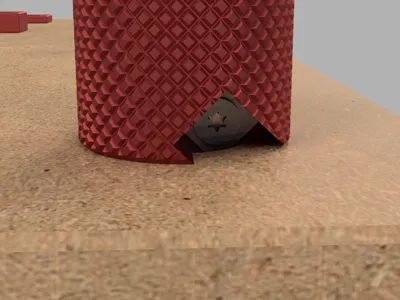

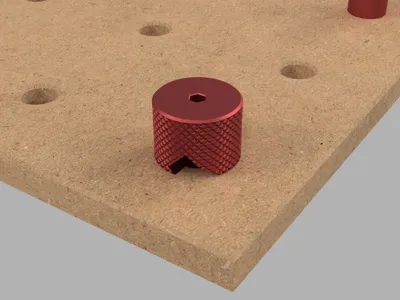

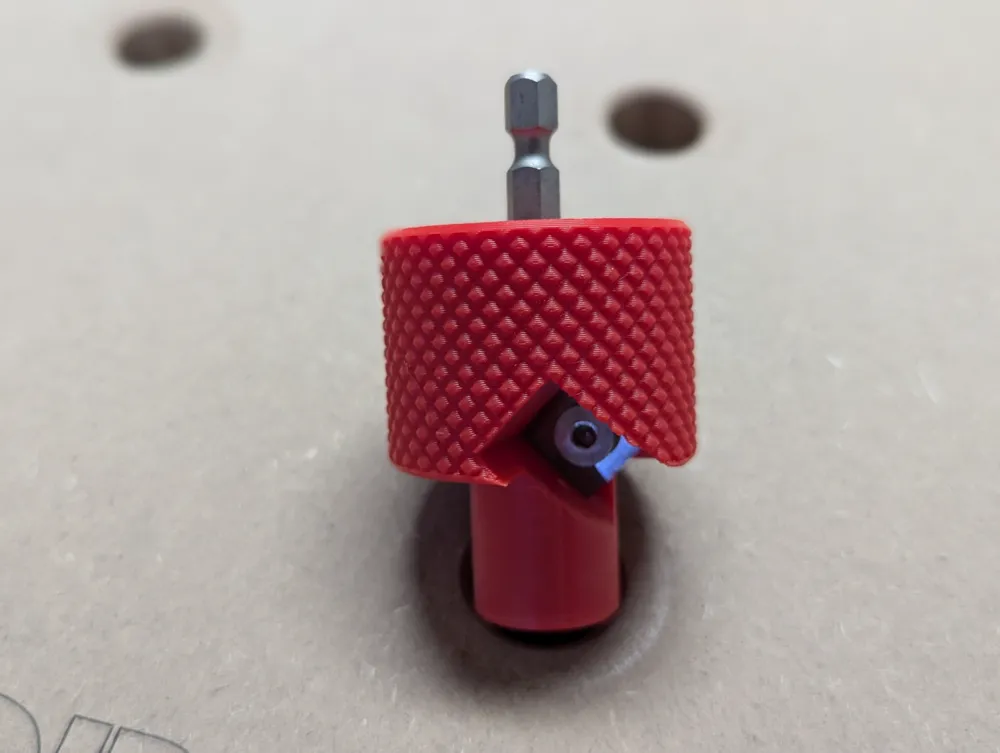

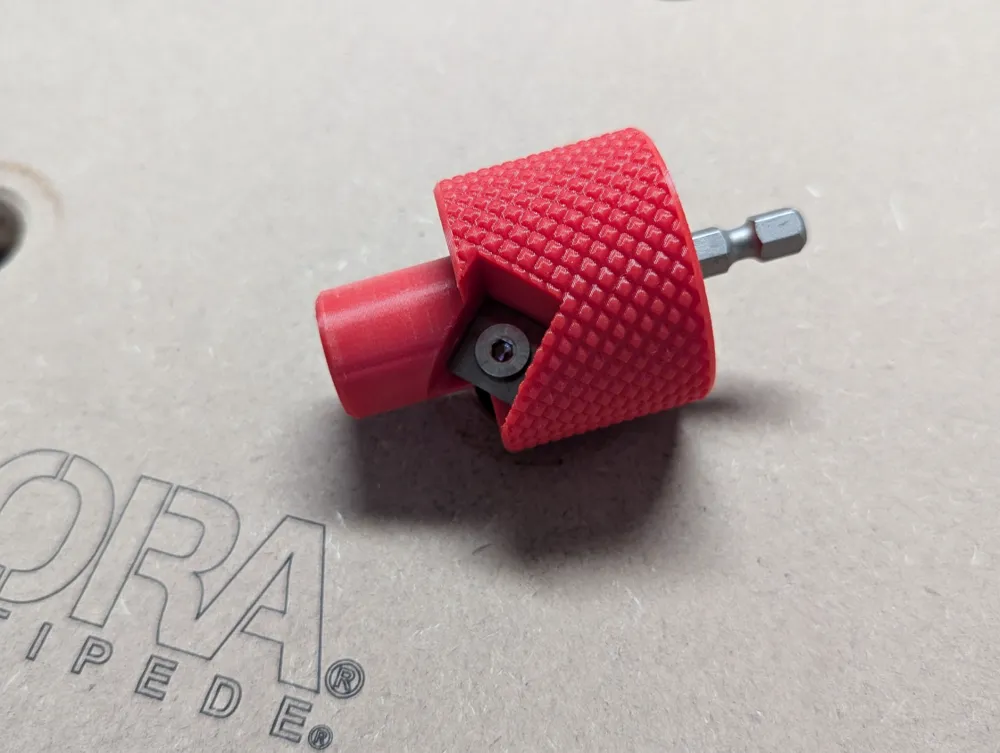

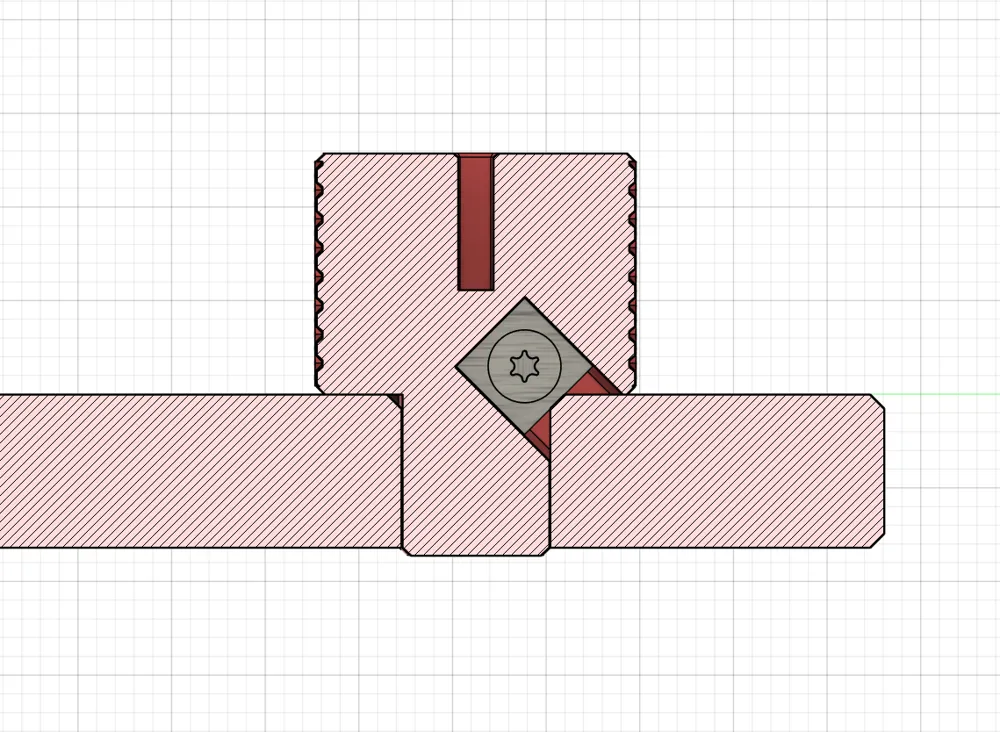

3/4 Inch MFT chamfering tool, it let you produce a clean accurate chamfer on your MFT table holes.

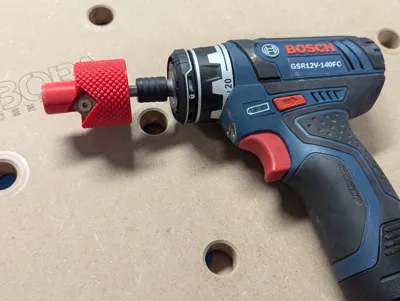

It can be used by hand, or on a drill (slow speed), just insert a drill bit in the hexagon hole.
There is multiple versions, the only change is the tool bushing diameter :
- Perfect Fit is about 19.02mm for very precise ¾ Inch holes (19.05mm)
- 8 other sizes from -0.20mm to +0.20mm, by 0.05mm increment
You also will need :
- (1x) M4x10mm Countersunk screw

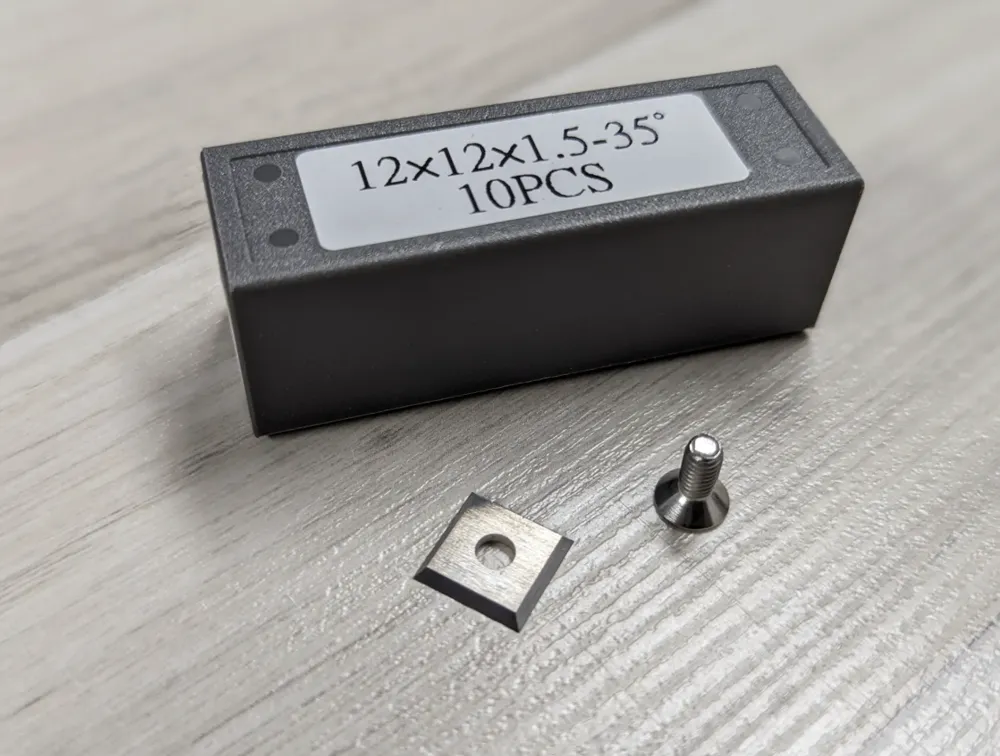

- (1x) 12x12x1.5 Carbide Insert
Enjoy!
