BUILD THE SOLAR SYSTEM TO SCALE IN MODELLING CLAY WITH YOUR OWN HANDS WITH THE HELP OF THIS TOOL!

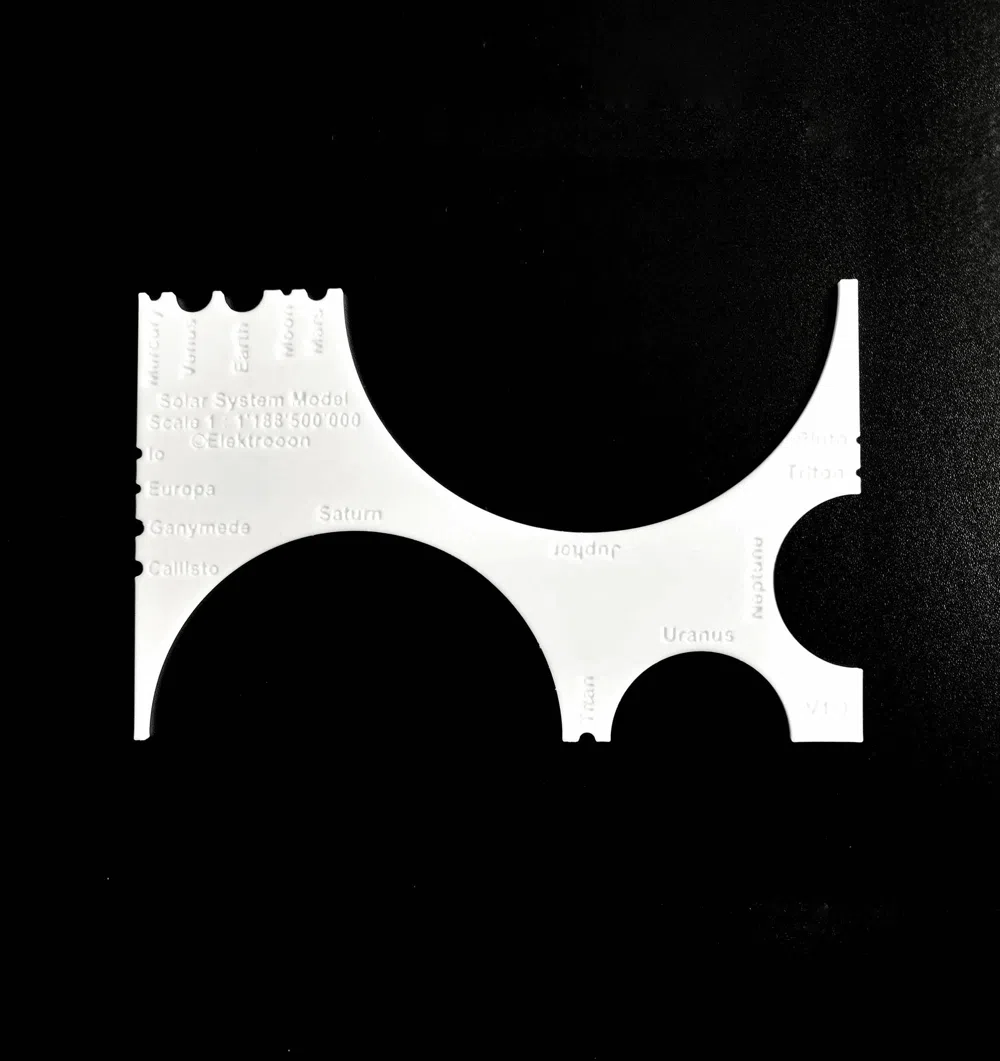

Use this template-gauge-caliper to make the planets of the solar system and some moons to scale 1:1'188'500'000 with modelling clay, air-drying clay, Play Doh, Pongo, Fimo, DAS and other modelling pastes clay.



Play with different colours, mix them and create effects on surfaces. Make sure you achieve the correct diameter and you're done!

In one piece you have the entire solar system to scale!



Model details:

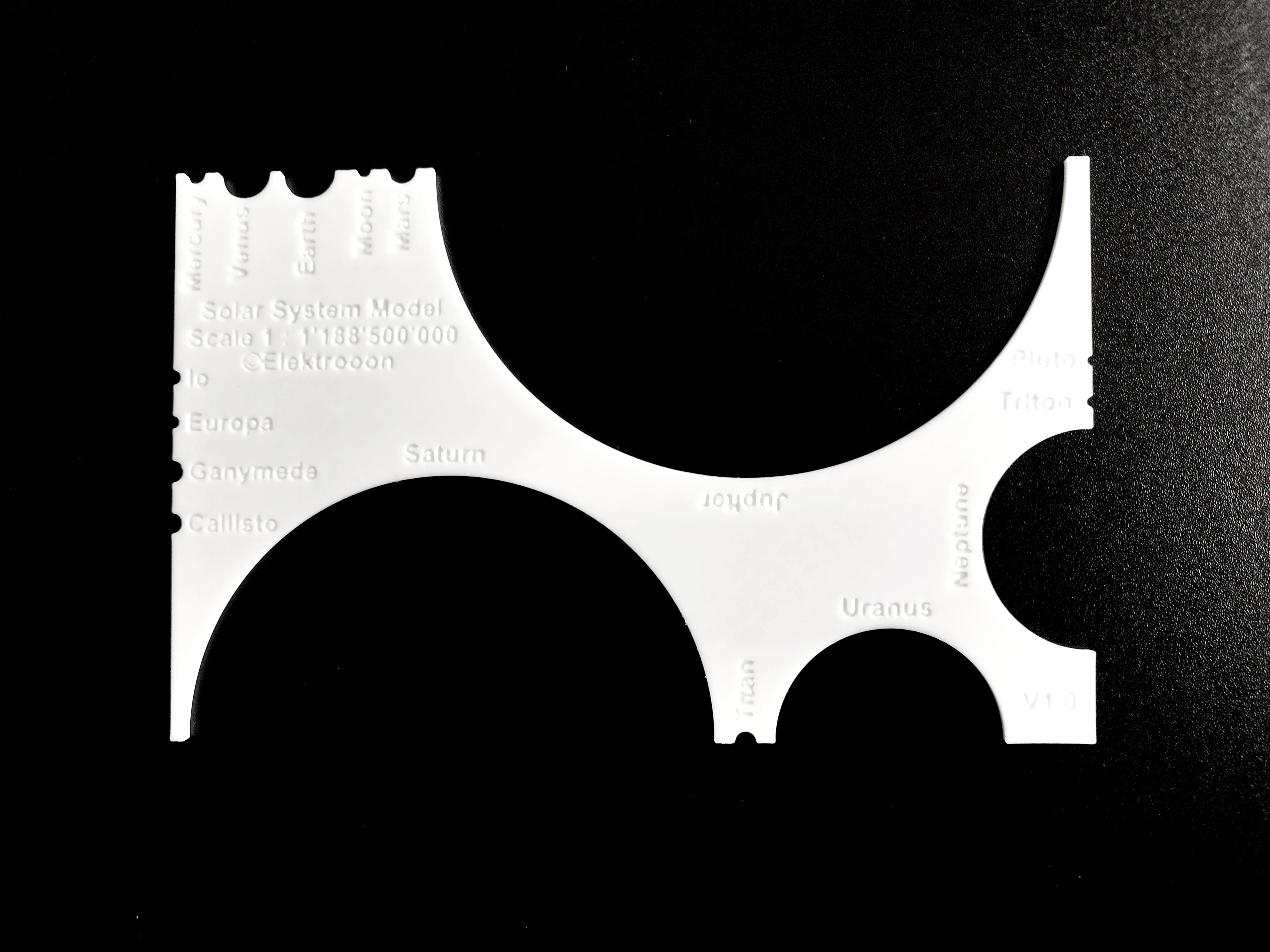

Contents: caliper for all planets of the Solar System + Pluto + 7 major moons (Moon included)



Model scale: 1 : 1'188'500'000 ensuring accurate representation without excessive material usage.



Data source for the model: NASA's Planetary Fact Sheet

Other features: low relief lettering



Caliper size: 110 x 175 x 2 mm (4,330 x 6,889 x 0.0787 inches)



Ideal for: creating your own solar system to scale, educational purposes or DIY activities





Details

Containing a caliper-guage tool to create and measure the dimensions of the main celestial bodies and some major moons in scale as STL file this model makes it possible to realise to scale:

  • Mercury
  • Venus
  • Earth (1.07 cm, 0.42 inch ∅ diameter)
    • Moon
  • Mars
  • Jupiter (largest object, 12.03 cm, 4.73 inch ∅ diameter)
    • Ganymede
    • Callisto
    • Europa
    • Io
  • Saturn
    • Titan
  • Uranus
  • Neptune
    • Triton
  • Pluto (smallest object, 0.2 cm, 0.078 inch ∅ diameter)



How to use it

Is it difficult to obtain precise spheres with the correct dimensions and make the planets and moons of the solar system to scale with modelling clay? With this measuring gauge tool you have a reference for creating spheres with the right diameter using the material of your choice.



With this "Swiss cheese slice" gauge you can make your own solar system with the material of your choice and check whether the dimensions are correct in order to make it to scale.



Add material and make the piece spherical until the dimensions match those indicated for the planet or moon you are creating. If the sphere you have obtained does not match, add or remove material in order to obtain the right size.

You can use your favourite modelling clay (PONGO, Play Doh, DAS, FIMO etc) and indulge in colours to create marbled effects that reflect the surface or atmosphere of the planet.



The structure and dimensions of the gauge make it durable, easy to hold and use. On the gauge there are inscriptions in bas-relief indicating for each shape the matching planet or moon.



You can also use the gauge as a reference to find objects of the right size to create the various planets and moons such as plastic balls, polystyrene etc.







Making planet Earth to scale with the template
In the picture above: Realisation of the planet Earth to scale with the template. The realised sphere matches the gauges perfectly, a perfect scale planet Earth has been realised!




Realisation of the planet Neptune to scale with the template
In the image above: Realisation of the planet Neptune to scale with the template.






⚠️Important notes

  • Some modelling pastes may shrink and lose volume with time or baking (e.g. FIMO); this may slightly affect the scale of the objects, but only minimally. Prefer the use of modelling pastes that do not shrink or deform with drying.



  • If the model has to be washed after use, preferably dry clean or with a slightly damp cloth.



  • Please read the entire description here carefully and read the READ ME FILE enclosed with the downloadable material for details on use and contact details.



If you prefer to directly 3D print all the planets and moons…

I recommend you take a look at this model on Makerworld https://makerworld.com/en/models/446109#profileId-356046


The full version of the solar system model with additional parts and data sheet can be found here instead: https://cults3d.com/en/3d-model/various/model-in-scale-of-the-solar-system-on-a-skewer

The version of the gauge, gauge template with data sheet can be found here: https://cults3d.com/en/3d-model/various/solar-system-modelling-clay-template-gauge-caliper

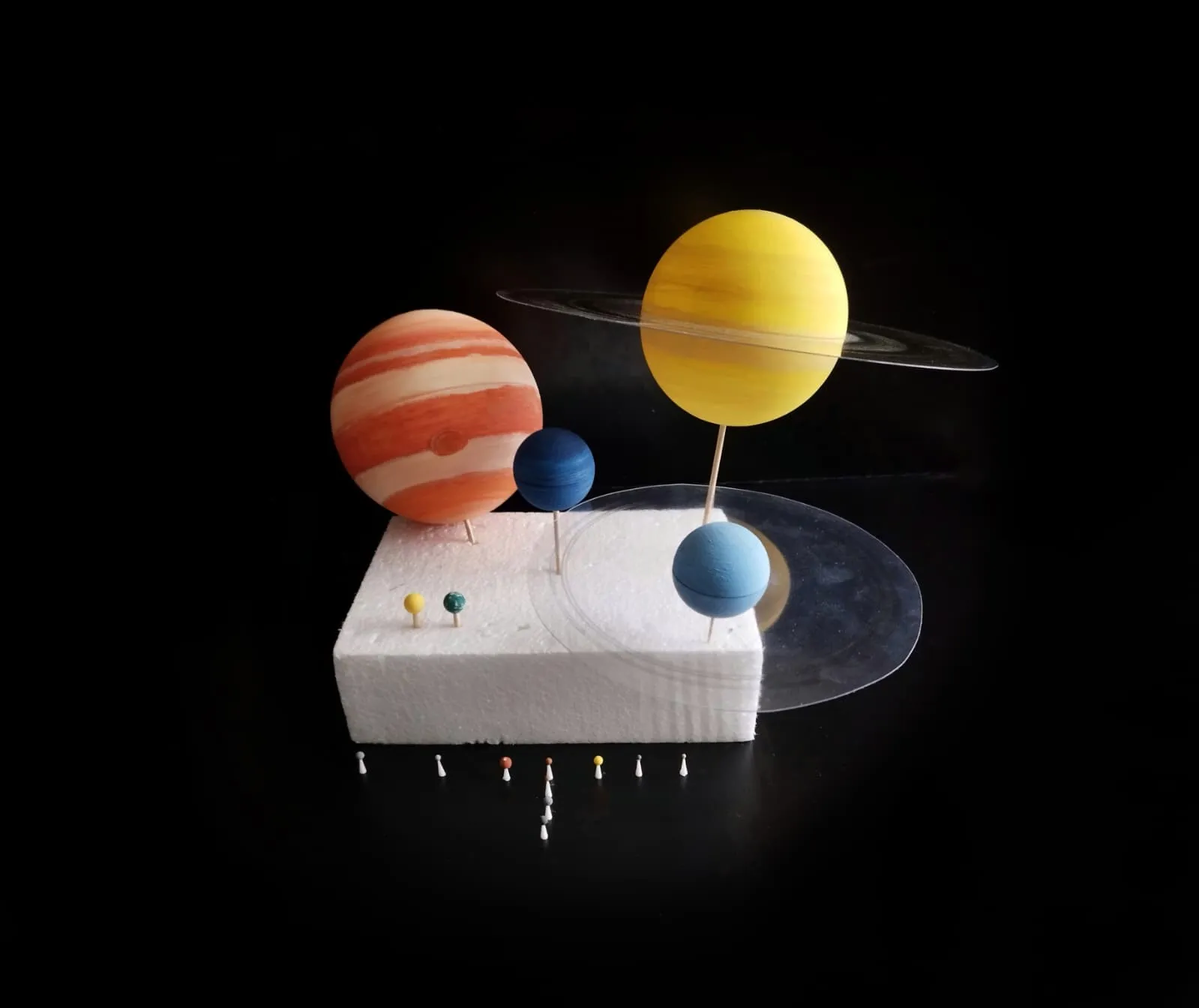

Image of the "Solar system in skewer version" made entirely by 3D printing with the same dimensions obtainable from the gauge proposed


More information, tips and tricks for making the model

For more information, details and tips on colouring the pieces, how to use or arrange them, visit my website page:
https://elektrooon.wordpress.com/solar-system/



3D printing settings

  • Layers: 0,15 mm (min 4 layer for top and bottom)
  • Infill: 15 %
  • Infill pattern: grid (strengthens the structure and makes it resistant to bending)
  • Plate: smooth
  • Material: PLA, ABS, etc
  • Supports and brims: No supports and no brims
  • Ironing: yes, all top surfaces (gives a smooth effect and hides print lines)



    I suggest using the settings included in the included print profile created by me.



⚠️NOTE: Print at reduced speed to achieve a better result. Depending on the print settings, lettering may be less well executed.


Estimated PLA material to be used: 17 grams
Estimated print time: 1 hr 30 min


The model shown in the pictures was printed with white PLA, Bambulab P1S printer, smooth plate - PLA plate

REMEMBER THAT BY DOWNLOADING THE MODEL YOU WILL STAY UP-TO-DATE ON ANY UPDATES OR ADDITIONS TO THE MODEL THAT YOU CAN RE-DOWNLOAD FOR FREE!
