Levelshifter housing
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 25% - 40% infill, no support, no brim
Designer
4 h
1 plate
Open in Bambu Studio
Boost
4
7
0
0
25
5
Released
Description

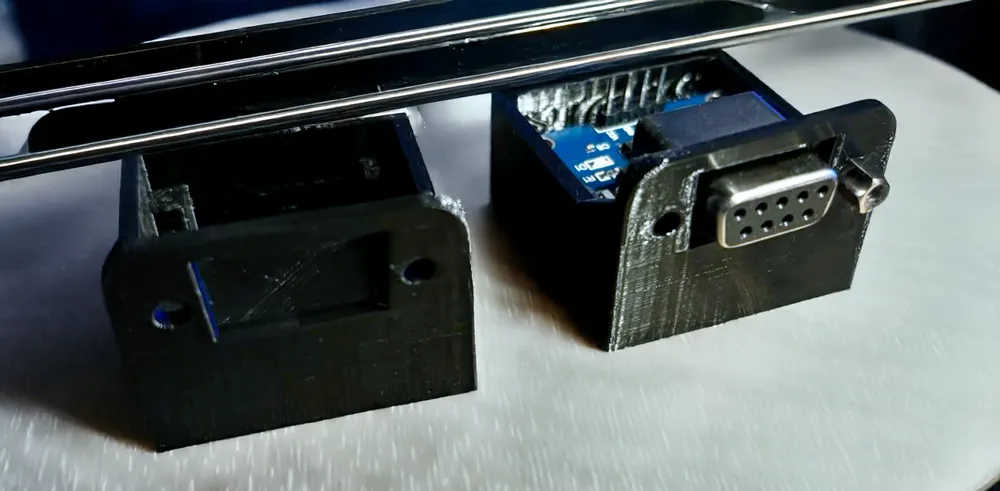

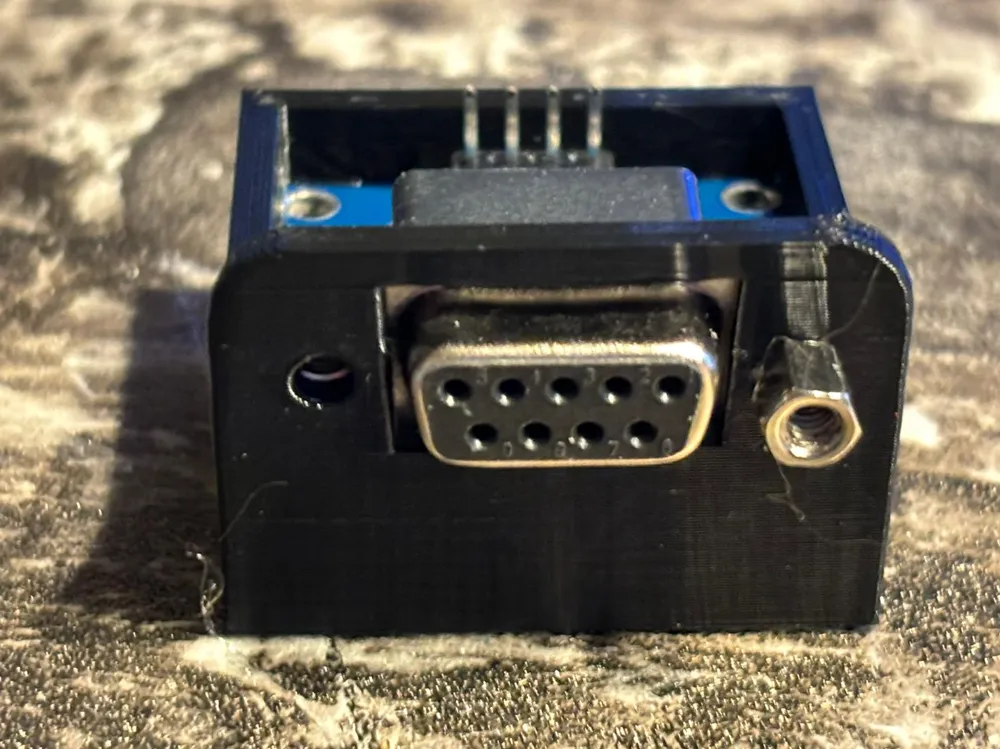

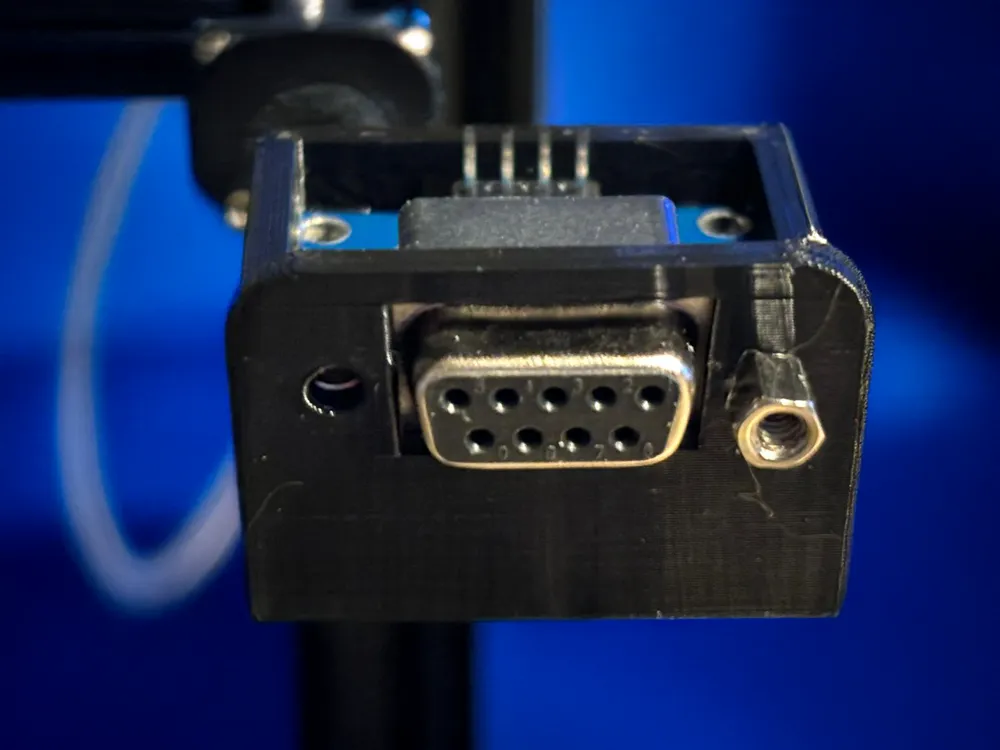

Levelshifter housing for 32x28.5mm boards with RS232
The existing levelshifter housing was weak at the hight of the screw holes so the plug made it break there.

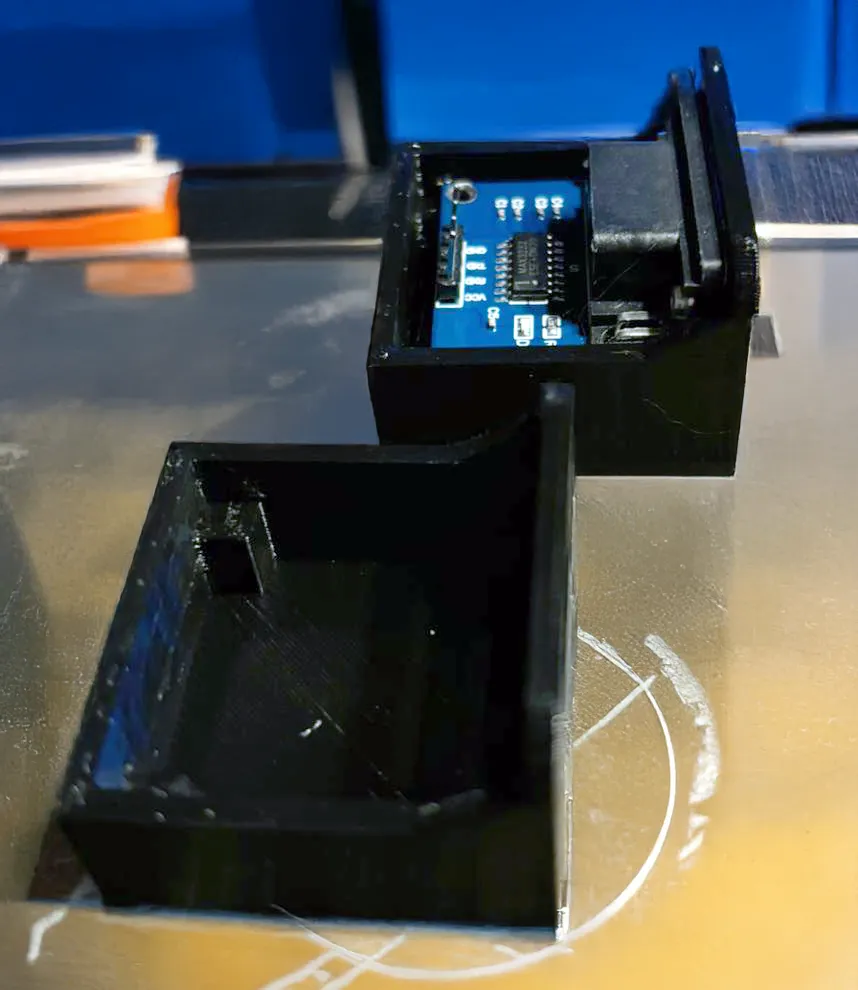

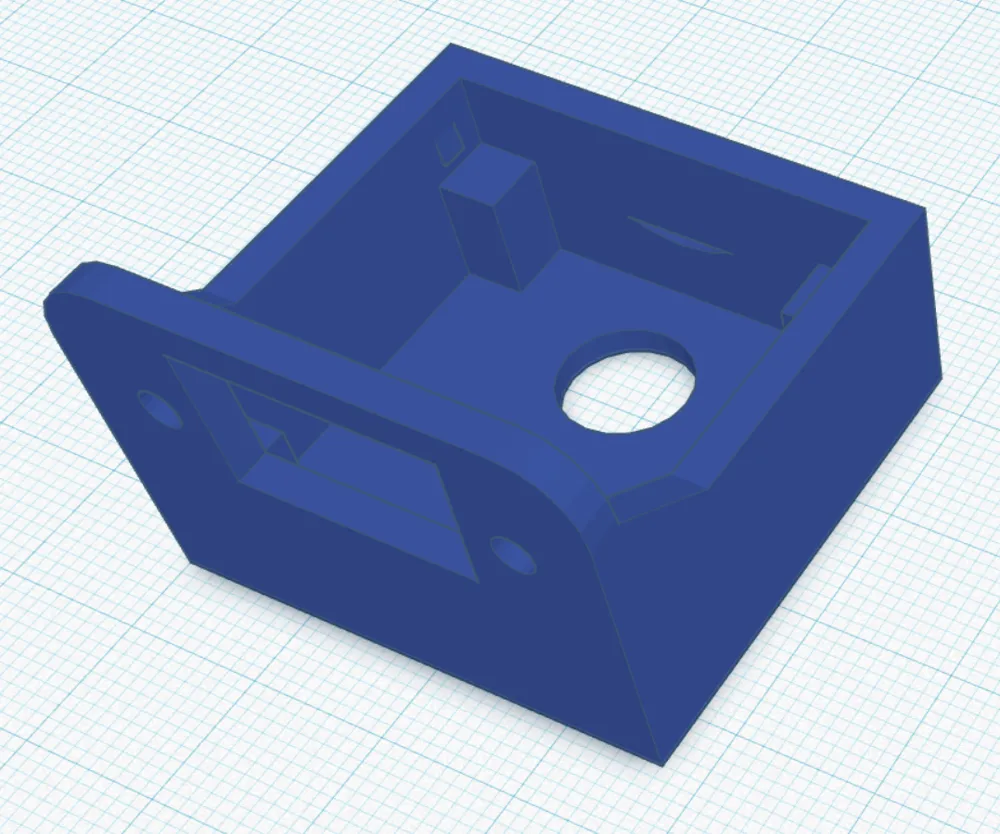

I made a new one with some reenforcements at that point and microclips in the rear to keep the board down and reduce the bending forces to the front.
License
This user content is licensed under a
Creative Commons Public Domain
