Housing for the Shelly Plus Series

Housing for the Shelly Plus Series

Boost
52
178
3

Print Profile(1)

All
X1 Carbon
P1S
P1P
X1
X1E
A1
A1 mini
H2D

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
53 min
1 plate
5.0(3)

Open in Bambu Studio
Boost
52
178
3
1
66
37
Released

Description

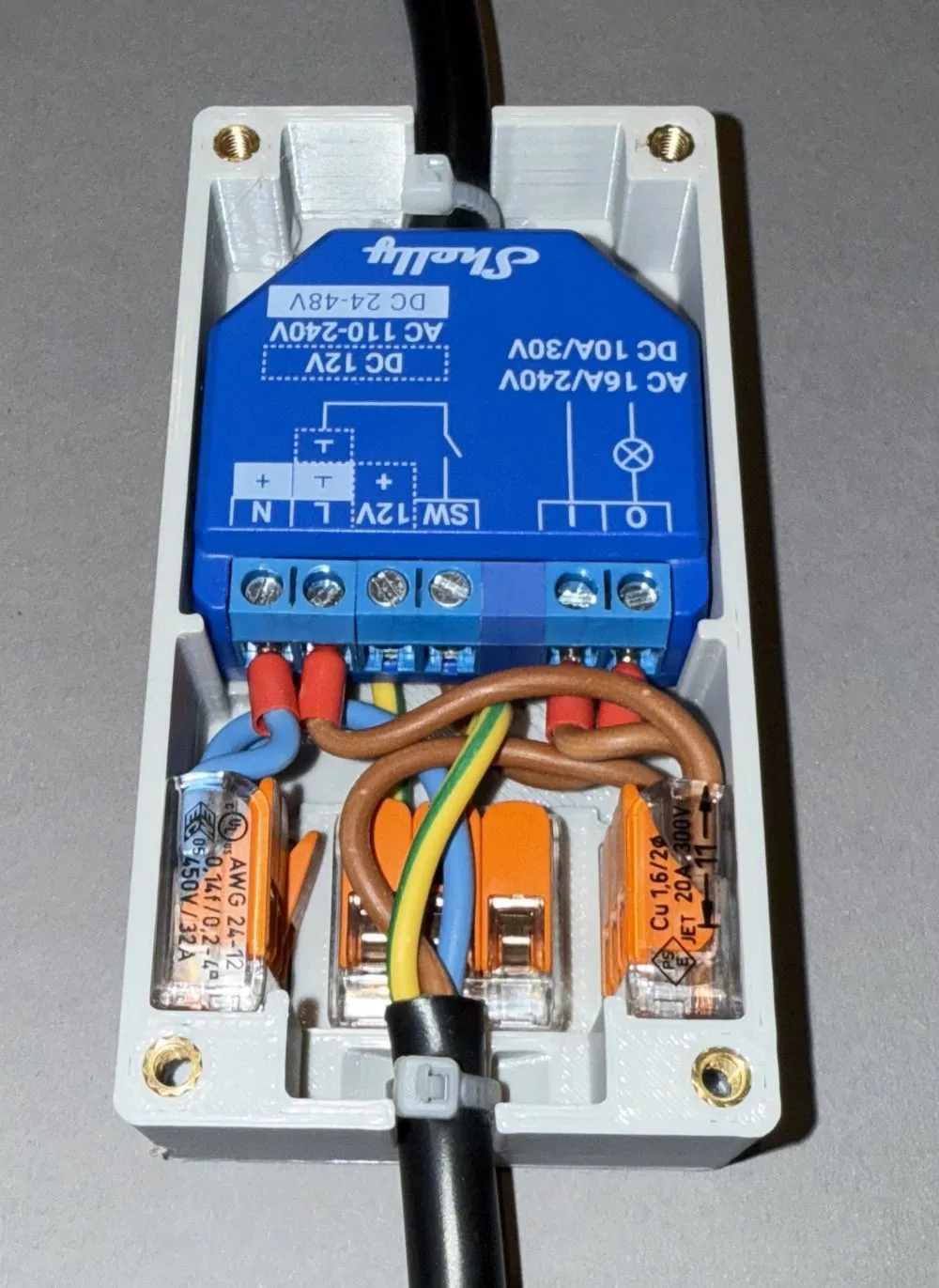

An easy-to-print housing for the Shelly plus 1, Shelly plus 1PM, Shelly 1 Gen 2 and Gen 3


The housing has space for up to 3 WAGO 221 clamps.
The cables are neatly and securely fixed with cable ties.
The reset button and the LED are accessible and visible.


Size: 89x46.5x20.5mm



For assembly, you will need:

4 pcs M3 brass inserts
4 pcs M3x6mm countersunk screws
2 pcs 2.5mm cable ties
2 or 3 WAGO 221 clamps

have fun!
