Analog Learning Clock
Print Profile(2)
Description
General
To help children learn analog time display.

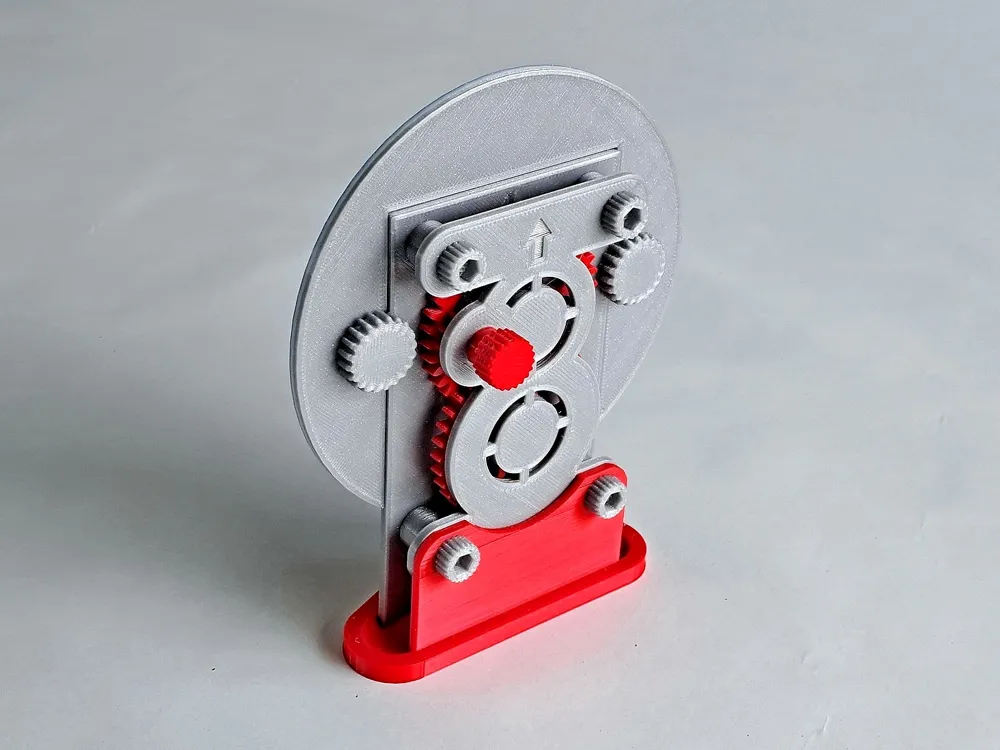

By turning the knob on the back of the clock the hands will move.

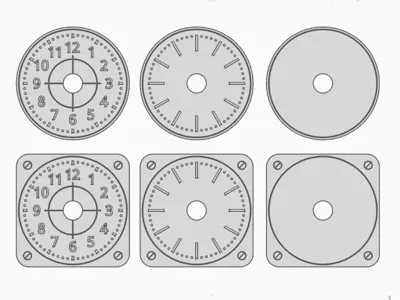

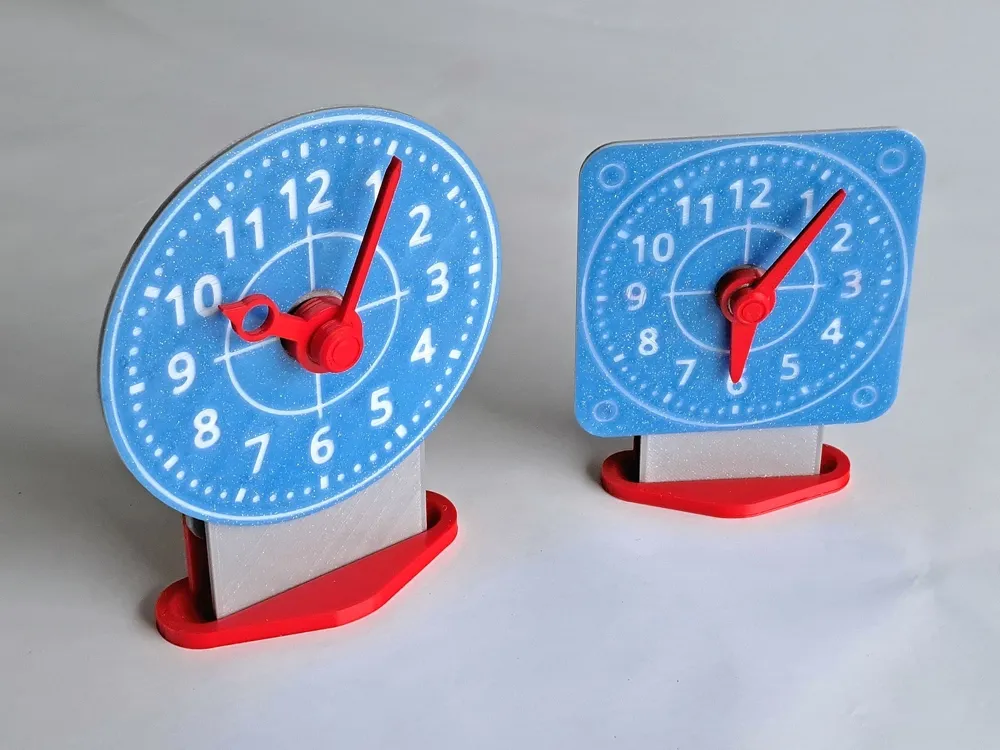

Alternative dials and hands are added for a personal touch.
Using the blank dials you could even make your own dial designs.
Dimensions 113 x 41 x 138 mm.
Weight 0.08 kg.
Printing
The parts should be printed on a smooth build plate.
Try to avoid elephant foot.
I printed the model with PLA+ filament on a Prusa Mini.
Sliced with PrusaSlicer, 0.2 mm layer height, no supports, no glue.
Downscaling to 80% is tested with success.
Assembly

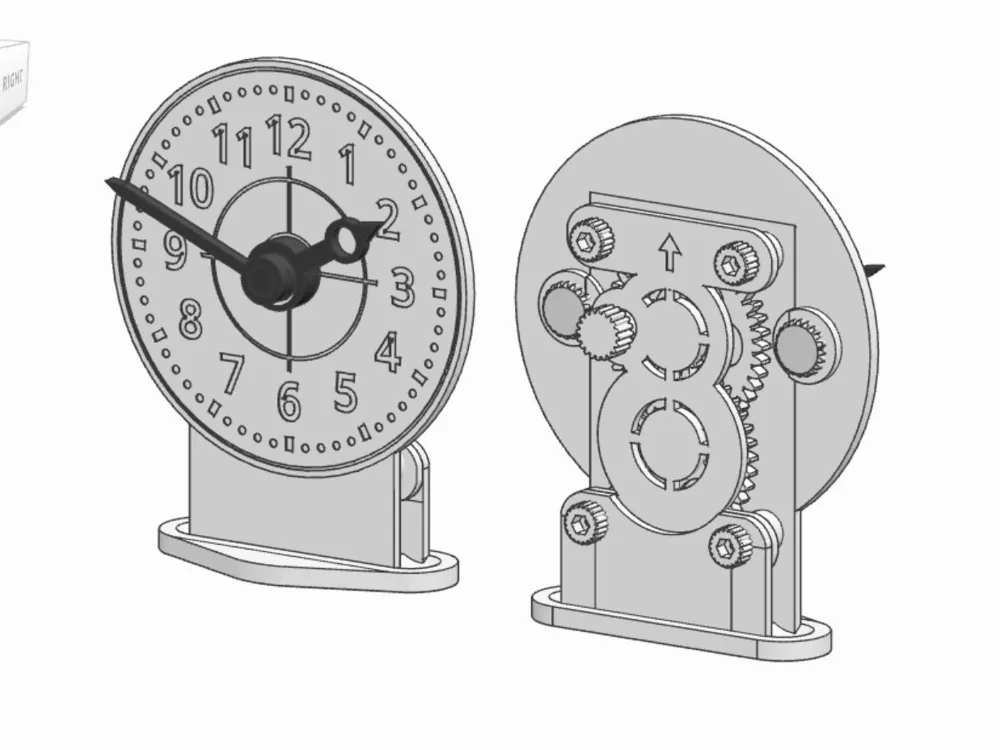

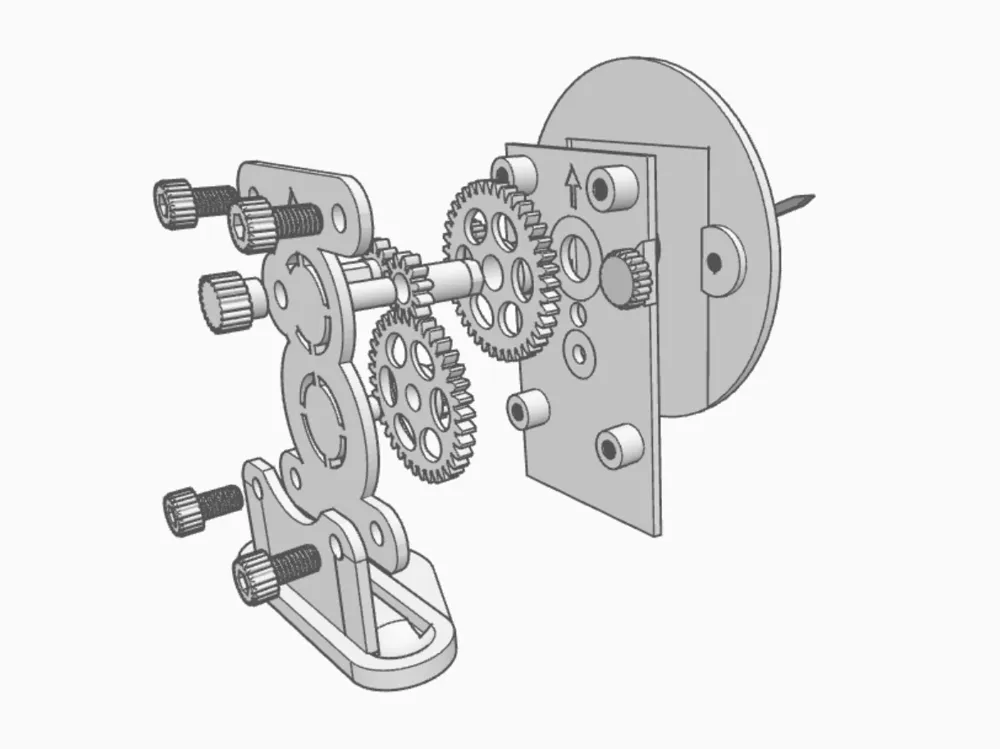

For assembled and exploded views, see the “3D VIEWS" folder.
Assembly is in alphabetical order (A → H).
A small amount of machine oil may help for a smooth running clock.
