Workmate Dog
IP Report
Print Profile(2)
0.2mm layer, 6 walls, 25% infill
Designer
45 min
1 plate
PETG, 0.2mm layer, 5 walls, 25% infill
Designer
1 h
1 plate
Open in Bambu Studio
Boost
20
57
21
3
80
66
Released
Description

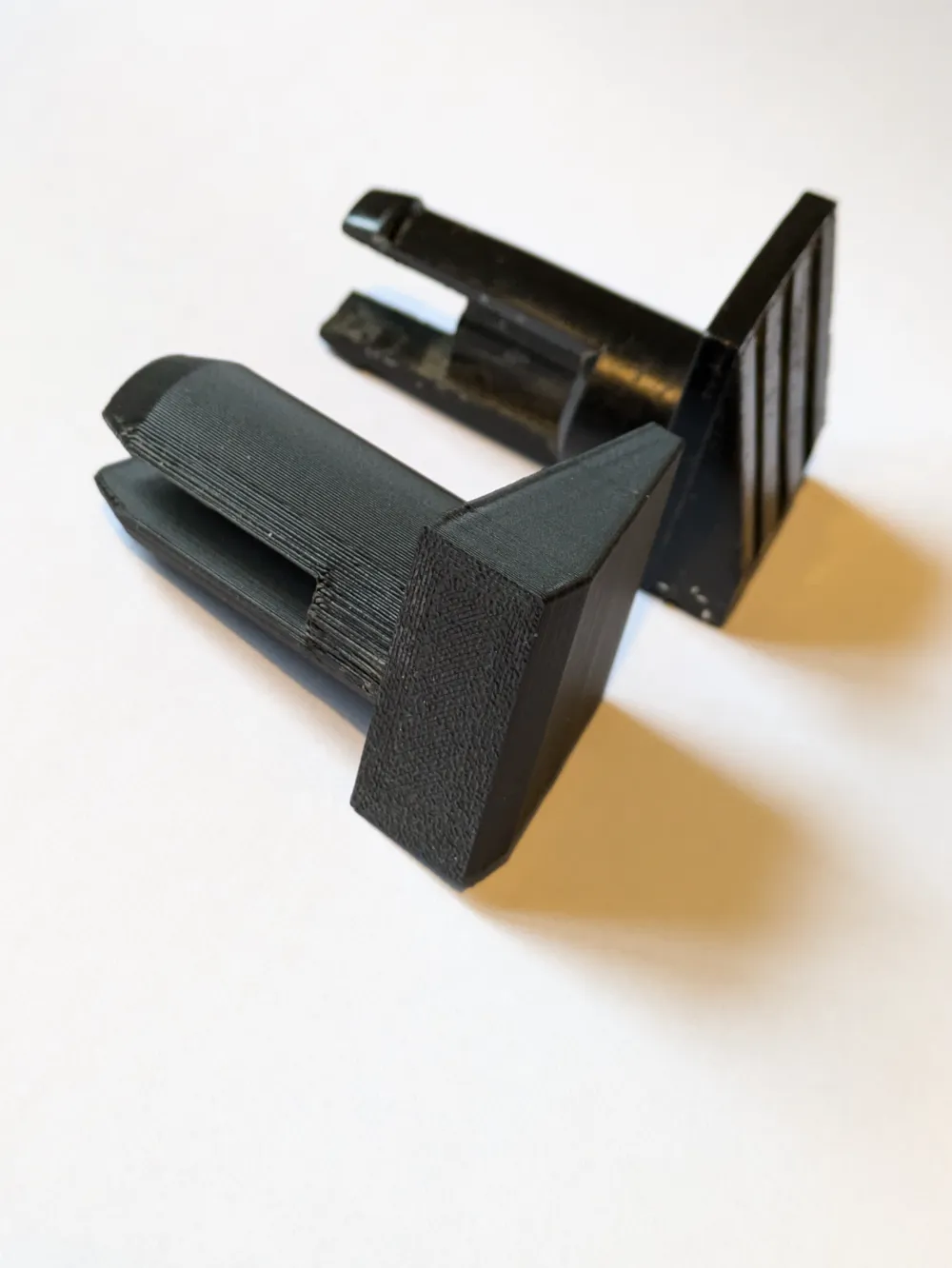

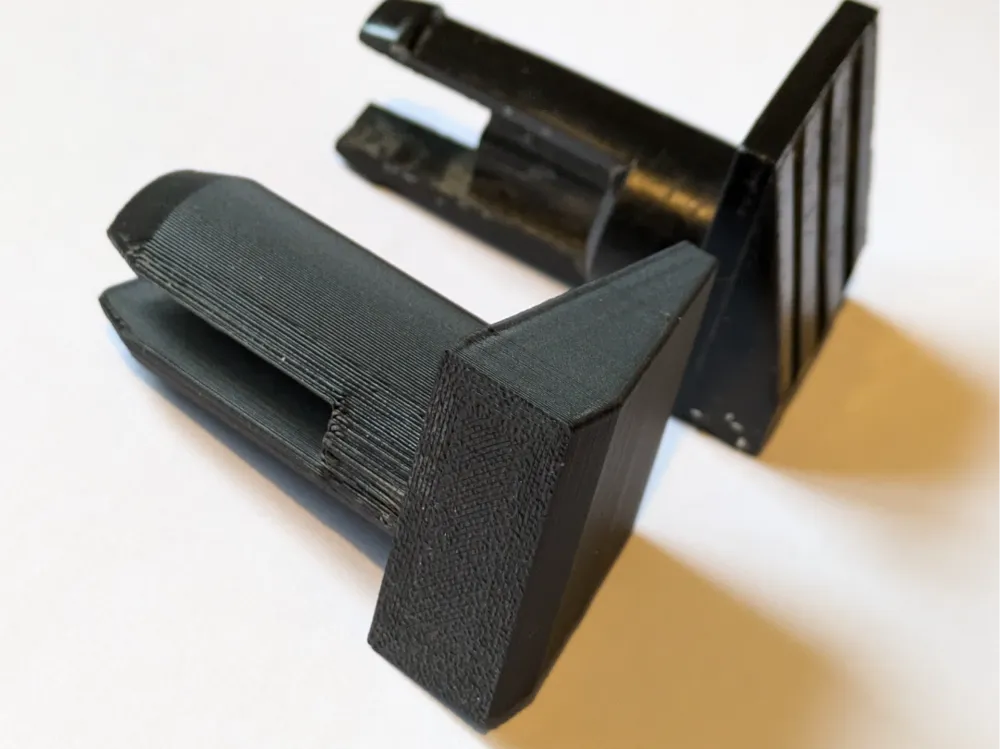

This should print out the same size as the original Black and Decker Workmate dogs. As it is the same dimensions you should be able to mix these in with the originals if you don't need to replace them all.
The print settings are configured for strength so it is not a fast print, but should be reasonably durable.
Based upon the ‘0.20mm Strength @BBL A1 profile’ which has 6 wall thickness.
- support is enabled as the dog is oriented jaw face down to build plate to make best advantage of the layer orientation
- bottom layers are set to ‘8’ to ensure that there is strength in the jaw face.
- infill is 3D honeycomb for strength and sheer resistance for the peg.
