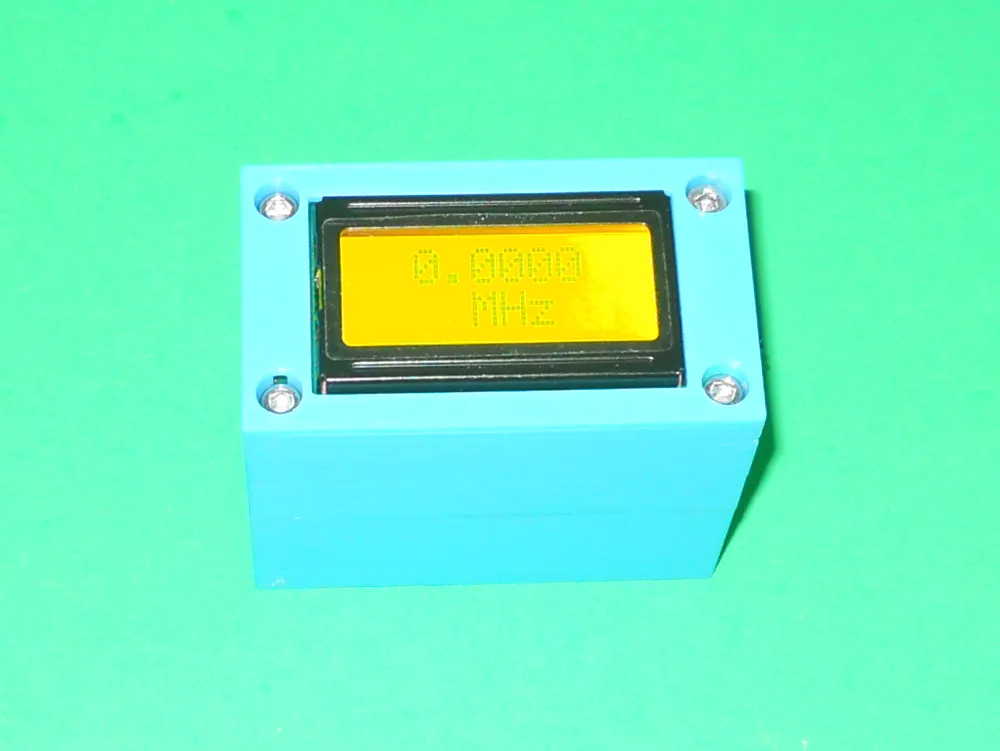

Frequency Counter Case

This is a case for a frequency counter widely available on discount Chinese
sites such as
https://www.aliexpress.com/item/1005006203286595.html?spm=a2g0o.order_list.order_list_main.66.61291802TVURcl

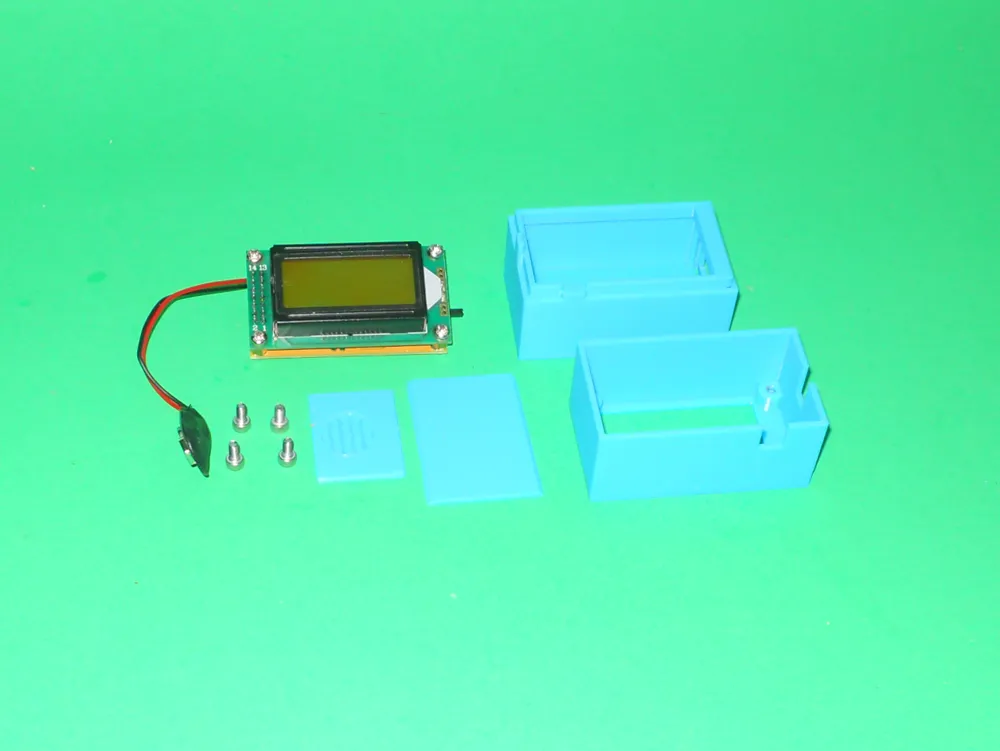

. Some assembly is required. 4 M3 x 8 mm hex cap screws are required along
with some glue.

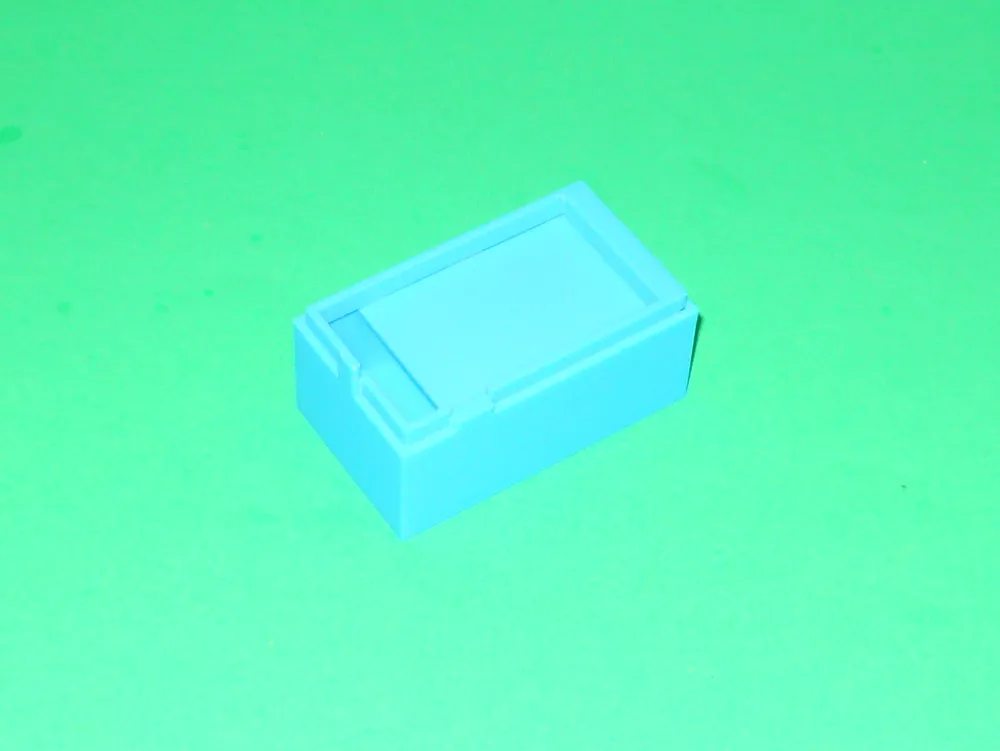

Glue the separator inside the base, just below the top hole, with the chamfer
toward the top. The separator is shorter than the top hole. Make sure that the
separator is glued with the resulting hole away from the battery hole. Run the
battery wire in the resulting hole, which is away from the battery hole. The
separator divides the frequency counter from the battery.

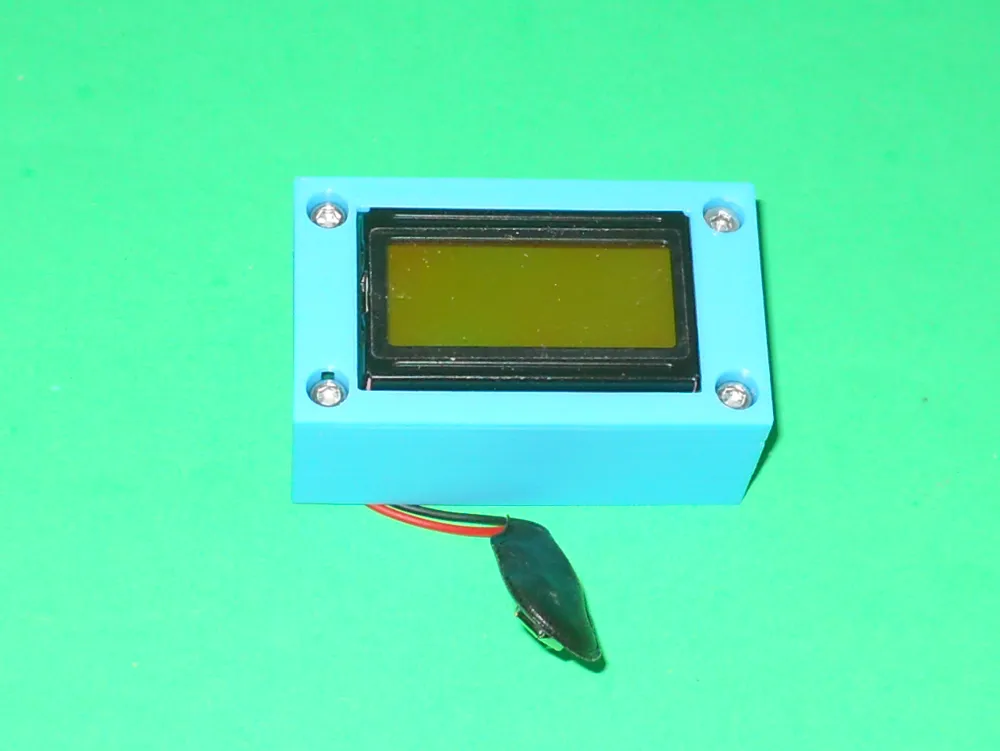

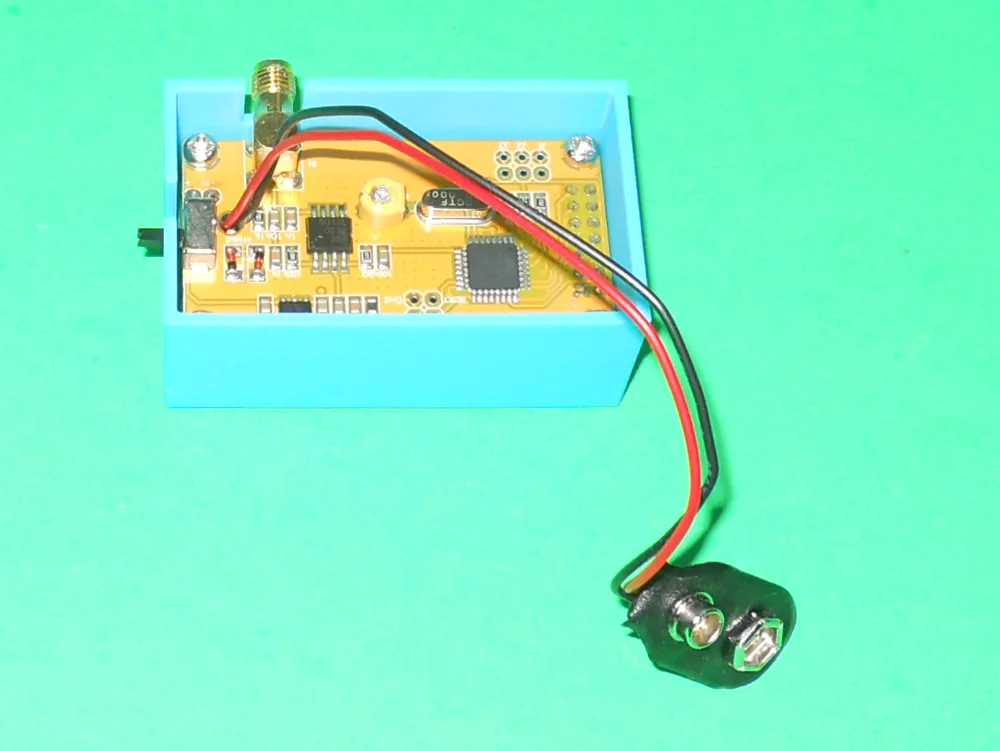

Use the 4 screws to mount the meter to the bezel, replacing the 4 screws that
comes with the meter. Glue the assembled base to the assembled bezel with just
enough glue.

Support material is required. Be gentle when removing it. An infill of 20% is
recommended.

This object main web page is:
http://www.ctheroux.com/frequency-counter-case/.

This object was designed using Solid Edge Community Edition.

You can request the source files on the page listed above.
