Vuldriel Zastek

cover










Manual supports for the underside recommended. Disable retraction for string test.

0.14mm layer, 2 walls, 15% infill

NitrousWolf



Too many changes to list. I made a successful print on the 3 attempt after making significant changes.The main problems I solved:the bridge deck cooling unevenly and lifting on the tip breaking away from supports so added a sacrificial tower nearby to keep the ends warm/sheltered from overcoolingThe cables were not bridging correctly so I changed many settings in an attempt to get it to make coherent bridges. I mainly played with scarf settings, smaller resolution, slower speed and lower temperature. The model had slender triangular geometry on the sides towards the feet. This was not getting sliced correctly and just led to a mess of filament on the side. Also the crossbeams failed due to high stress angles used and the fact they were not incorporated with the walls. I reprofiled all the square beams with into easier to print shapes that merged better with the surroundings.I printed in Bambu Silk PLA so the best temperature is way down at 210 degrees and the speeds were all 1/3rd&nbsp;

0.14mm layer, 3 walls - w/ tweaks to model for easy printing

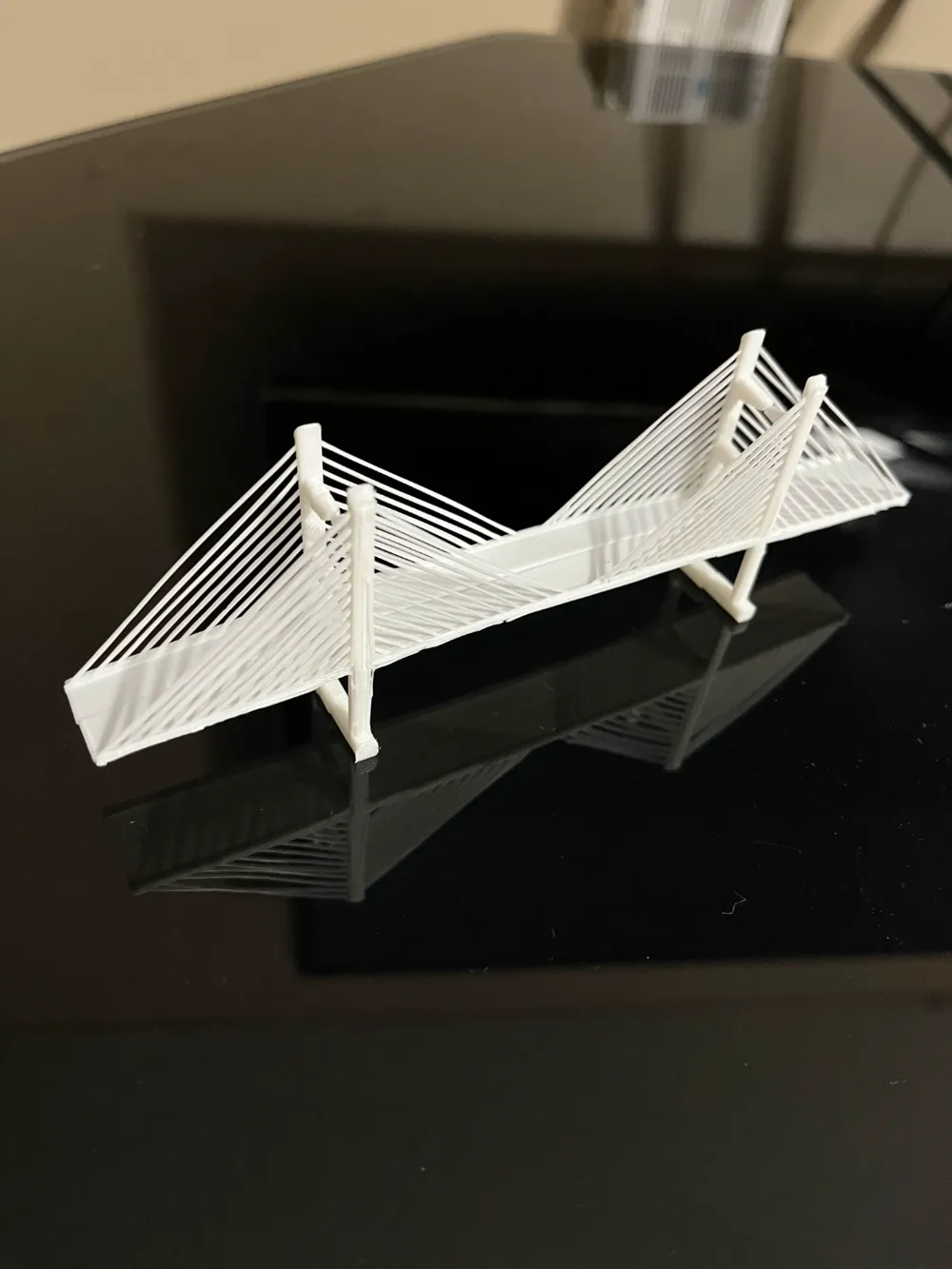

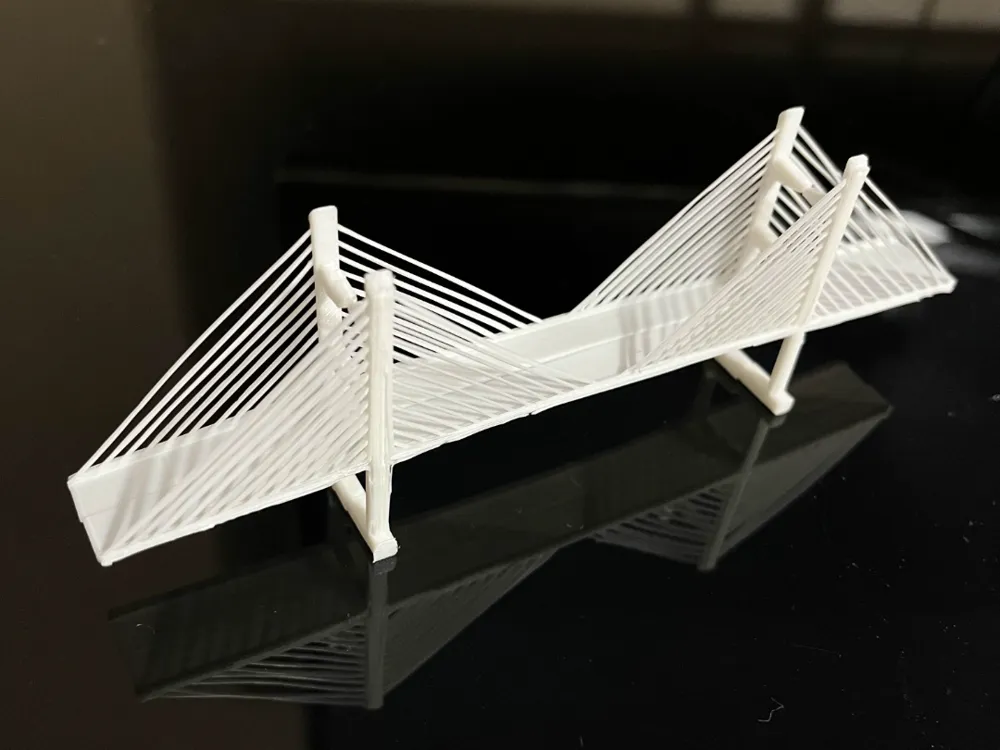

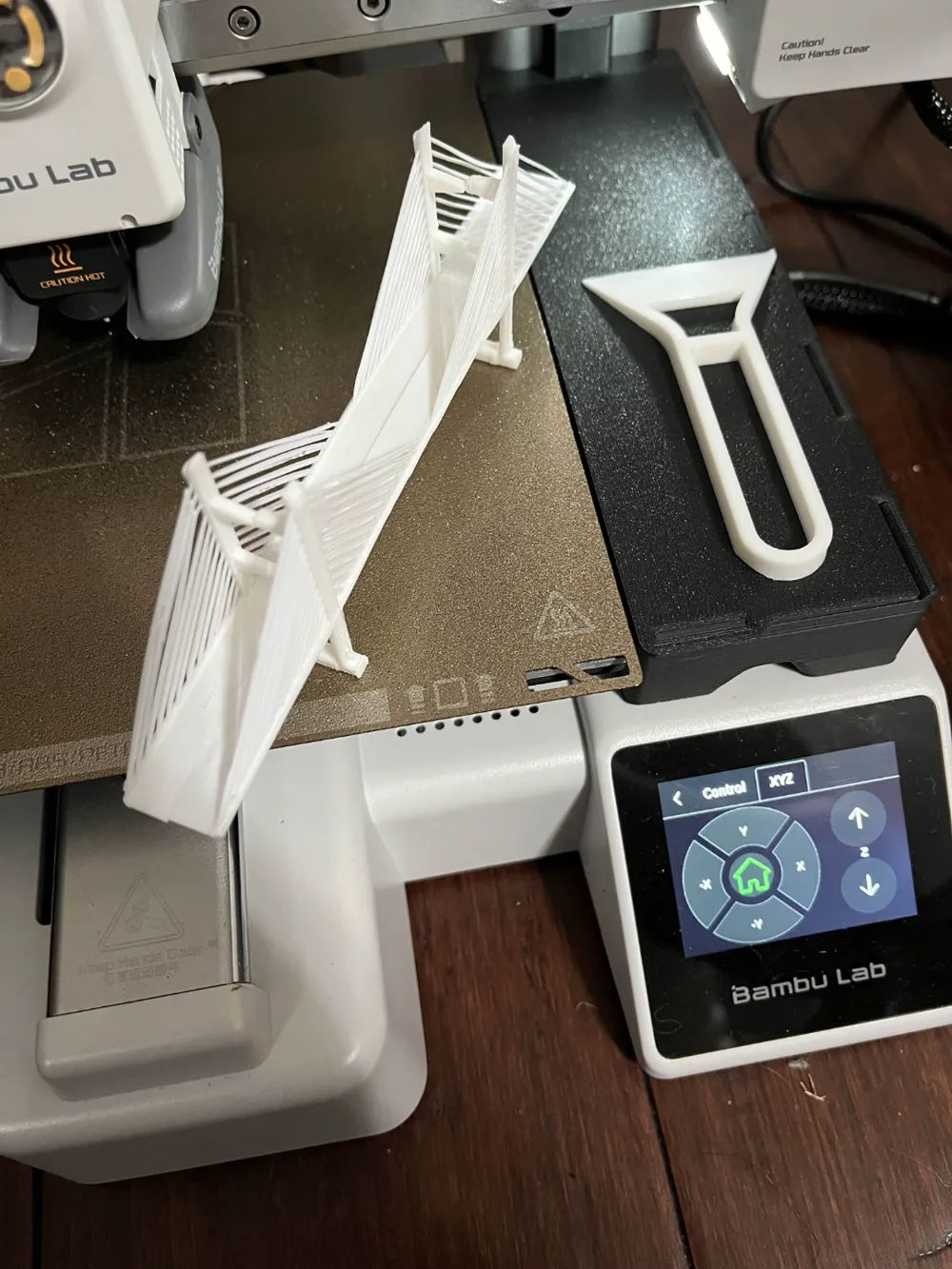

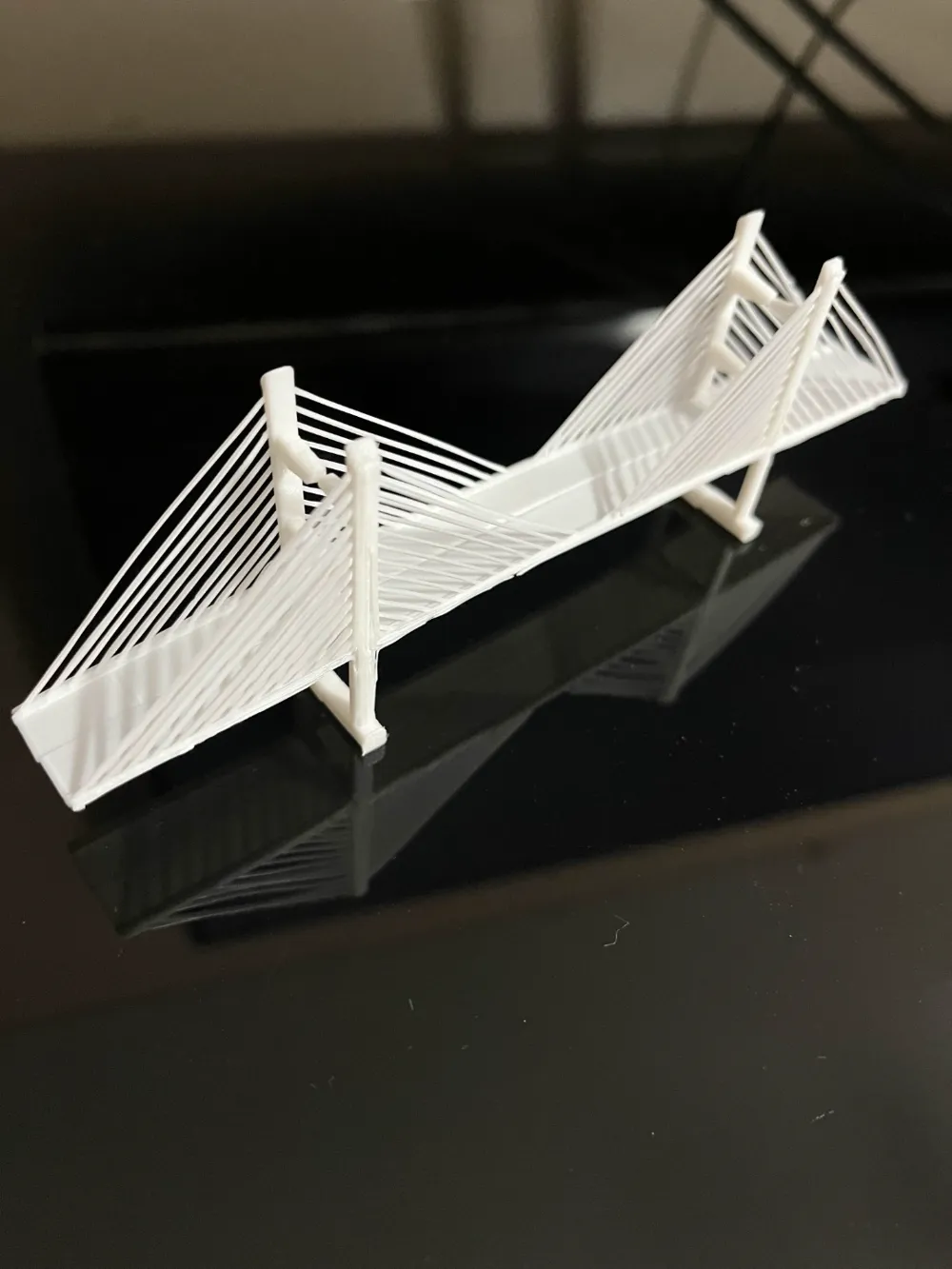

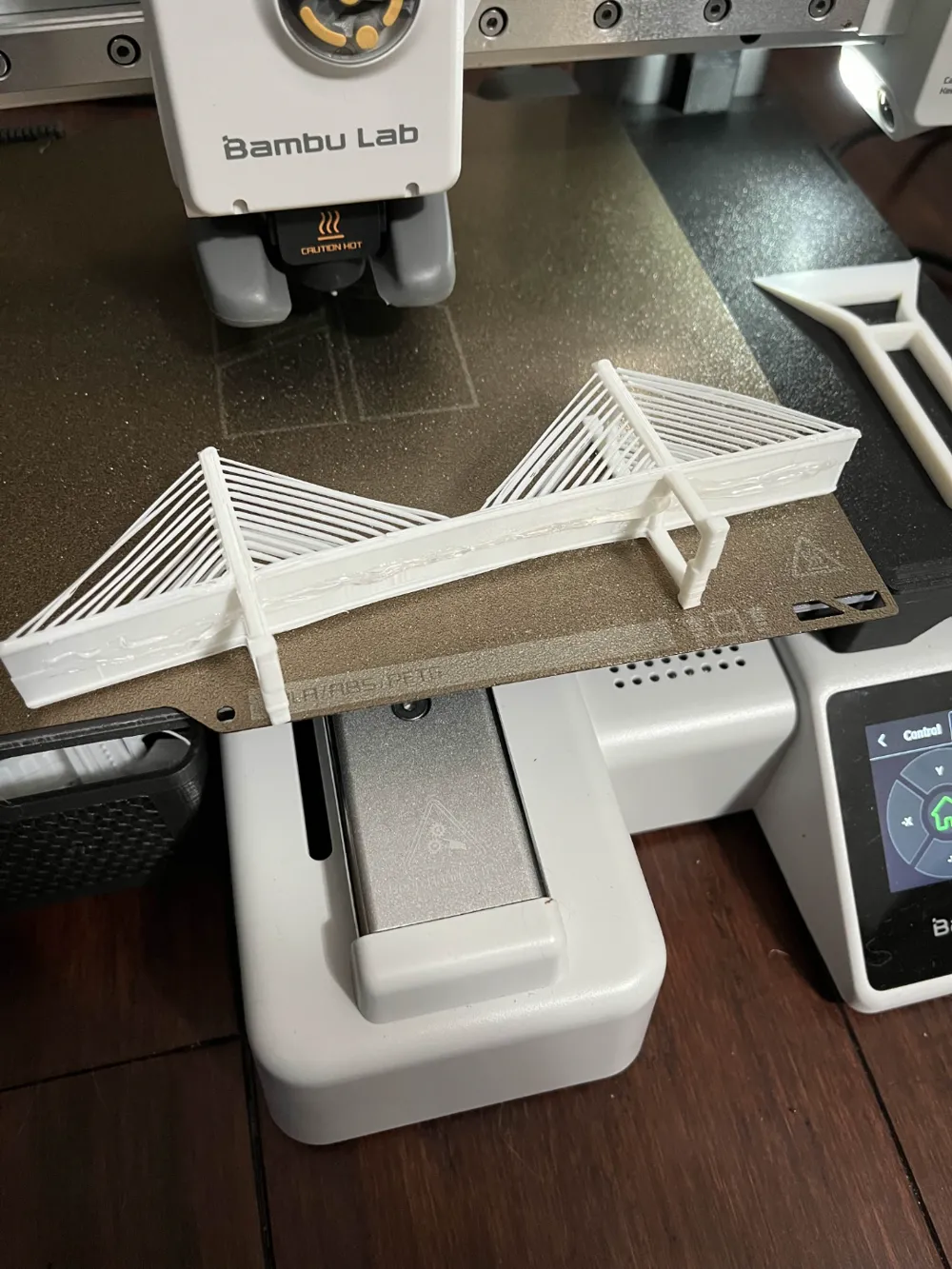

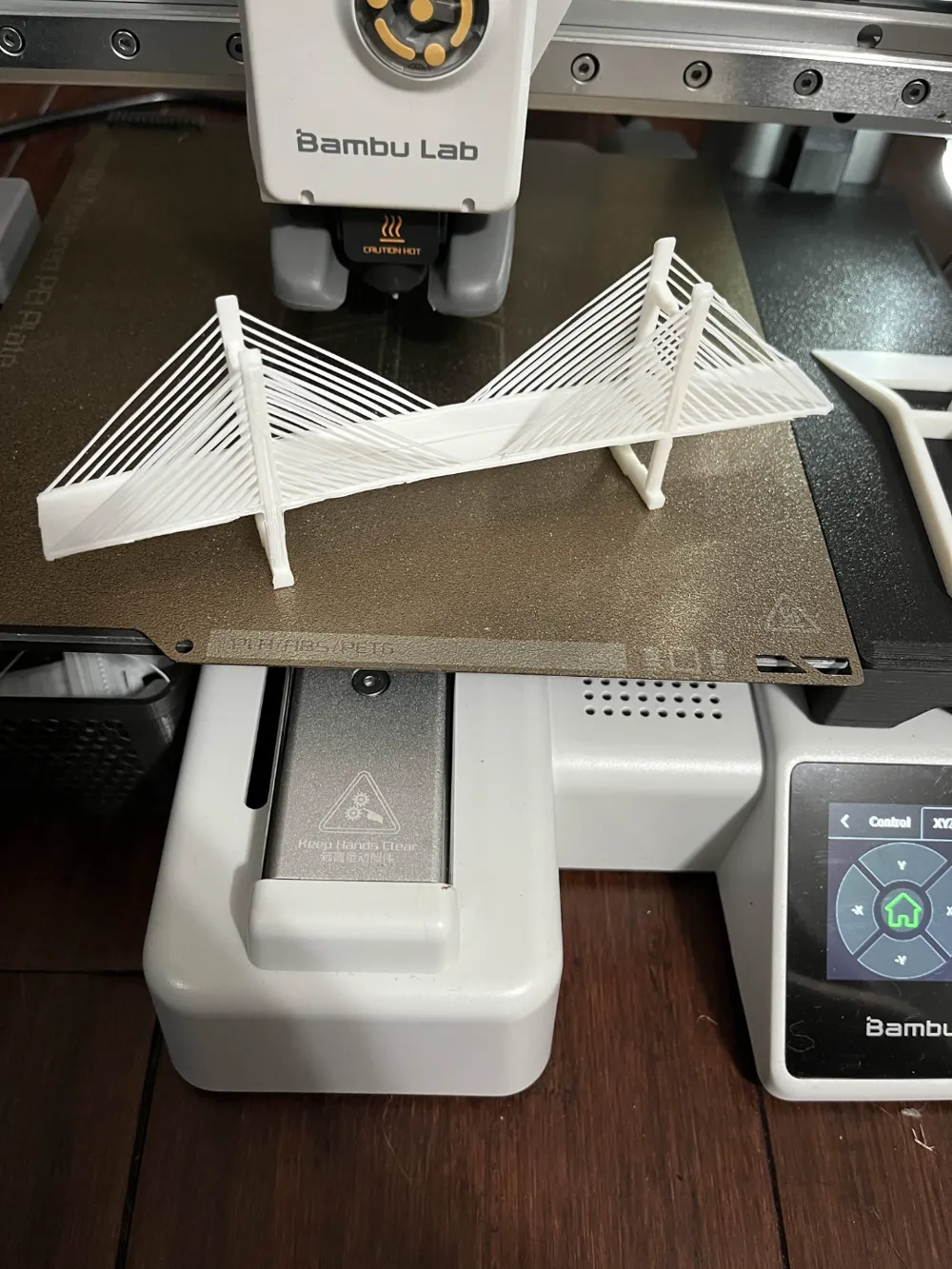

A model cable-stayed bridge that doubles as a nice stringing test for your printer. Once printed, glue the two halves together from the bottom.

Cable-stayed Bridge
