Description

Hello guys, here's my new spool dryer to attach to my previously created bamboo dresser. This new add-on will allow us to store the external filament spool in a watertight container that has its filter with drying beads.

I printed everything in PETG and used the following specifications:

  • Walls: 3 perimeters
  • Bottom and Top: 3 perimeters
  • Infill: 15%
  • Layer Height: 0.24 mm
  • Nozzle: 0.4 mm

However, I recommend printing everything with a 0.6 mm nozzle and a layer height of 0.3 mm.

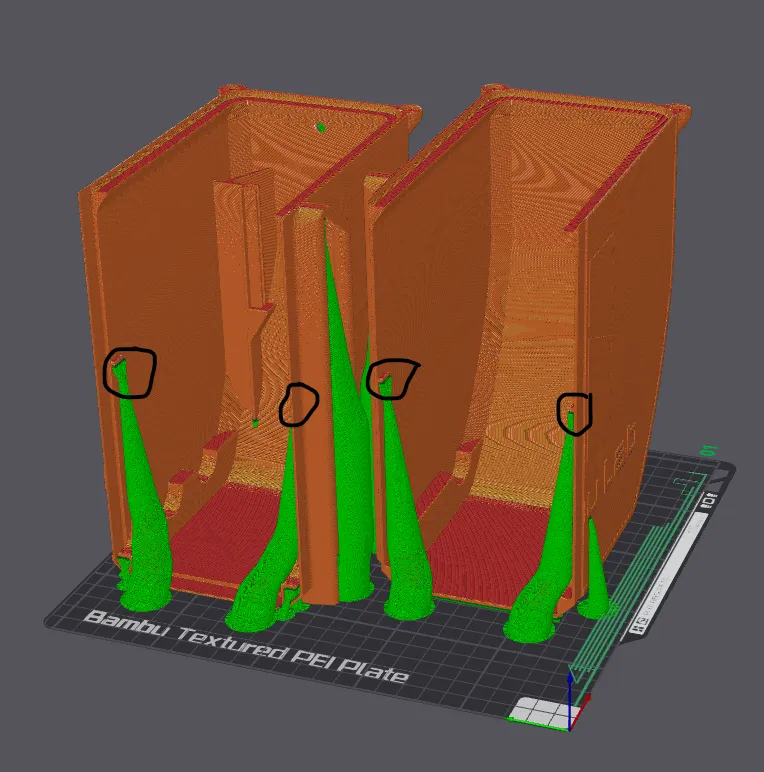

In the specific print of the main body, you'll notice that the pieces have 4 protrusions inside them. Please add supports to them so that there are no vibrations during the printing of the side walls.

I also recommend using a 25% infill for the printing of the rollers

At normal speed, the print should not exceed 24 hours, but you can always increase the speed and you'll use approximately 800 grams of material.

Among the files, there's also a version without attachments to the dresser module. Perhaps you prefer to simply place it near the printer.

I'm also adding the files for the print bed support, both for 3 and 4 beds. This is because we need to move the beds to the right, while now if you've already printed the dresser, they are on the left.

You can find the assembly video for the box here:


Here are the links for the materials used:

Epoxy adhesive and, if desired, silicone sealant to make the box watertight.

Rubber window gasket:
US Link : http://tinyurl.com/mr232v46

EU LInk: https://www.amazon.it/gp/product/B0BKLSW1DG/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

Magnets:

US LInk: http://tinyurl.com/2kze5y5s

EU Link: https://www.amazon.it/gp/product/B07WSBTYV2/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1

Ball bearings: 8 x 22 x 7 mm 608Z

US LInk: http://tinyurl.com/4a2cbxmr

EU Link: https://www.amazon.it/SZMYLED-cuscinetti-cuscinetto-miniatura-guarnizione/dp/B08N12WQ1J/ref=sr_1_14?__mk_it_IT=%C3%85M%C3%85%C5%BD%C3%95%C3%91&keywords=rulli+608+z&qid=1700091539&sr=8-14


I wish you a happy print and look forward to your comments and feedback!

Comment & Rating (14)

Please fill in your opinion
(0/5000)

Great model. It will need an active heating element in order to actually dry the filament. Desicant alone can keep something dry for a while but it will not actively remove moisture. Seems like you are very close however. Just by adding a small and simple reptile warming mat to the unit below the rollers would be enough to actively dry the filament and make the desiccant last longer - and a hole with a plug you can take out at the top in order to release the hot moisture created from drying while active. I love the model, thanks for publishing! Its on my print list :-)
The designer has replied
1
Reply
Thanks a bunch for the compliments! Indeed, this box is like the bodyguard for your spools during printing. But you know, I'm working on a real "wellness lounge" for your spools, a rejuvenation spot where they can unwind in a dry and cozy atmosphere. It'll be big enough to make ten spools feel like Hollywood stars on vacation! The product will have the dimensions of a bambu. Stay tuned for the grand debut!
5
Reply
haha. awesome! keep me posted!
0
Reply
hey man! amazing product same as the drawer system. can you please supply the USA Amazon links for items required for this dry box?
The designer has replied
0
Reply
Thanks for the compliments! Regarding the gaskets, you should buy something similar to 9mm x 6mm: http://tinyurl.com/mr232v46 As for the bearings: http://tinyurl.com/4a2cbxmr
0
Reply
Forgot the magnets: Magnets: US LInk: http://tinyurl.com/2kze5y5s
0
Reply
Hallo da fehlt doch noch das Letze teil von dem Poop Down Pipe unten oder ?
The designer has replied
0
Reply
Nope, you have to check this file name "Poop Duct".
0
Reply
Ciao you have to find out this file" Poop Duct" already in the list.
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
It's a great box, great work and really serves its purpose
