3D Printed A1mini New Version 20L Dehumidifying Dry Box with 4 Spool Holders, Modular Design

A1 mini print version; the base of the support and drying box differs slightly from the A1 version

Note: The files may be optimized and updated; please redownload before printing to ensure you have the latest version!!!

First print a test plate to check tolerances; each filament has different tolerances and not all are compatible; some areas need to be tighter, such as bearings!!!

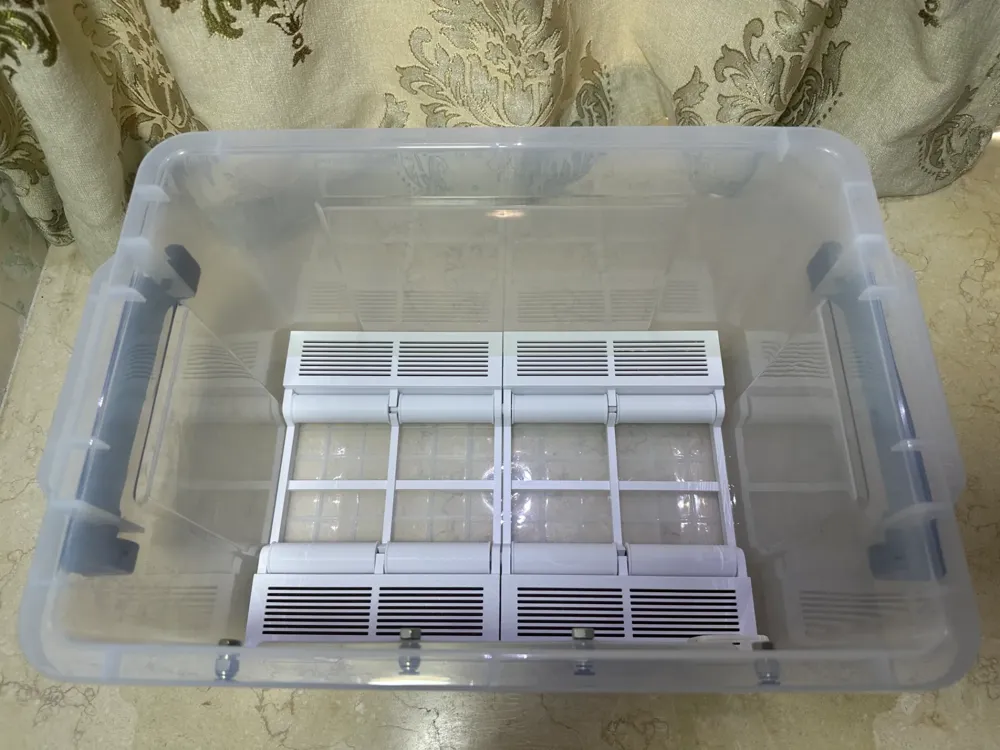

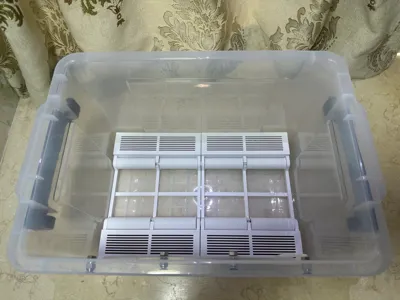

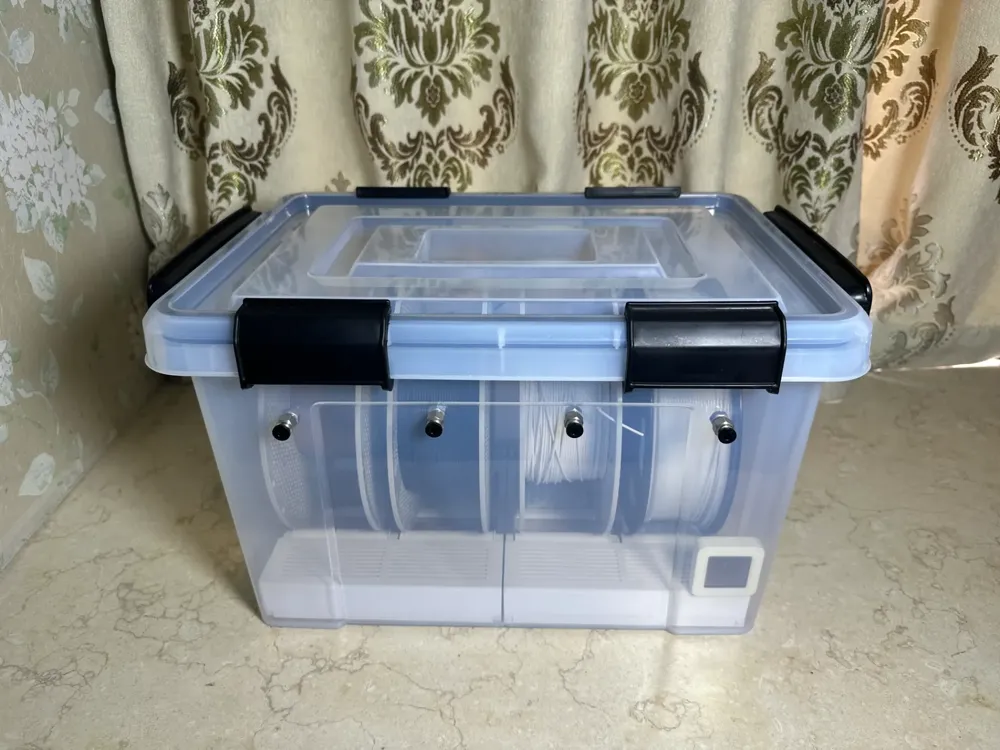

20-liter moisture-proof drying box,

holds four filament spools,

features a modular design,

four desiccant compartments can be independently removed for desiccant replacement

directly connects to AMSlite for filament drying,

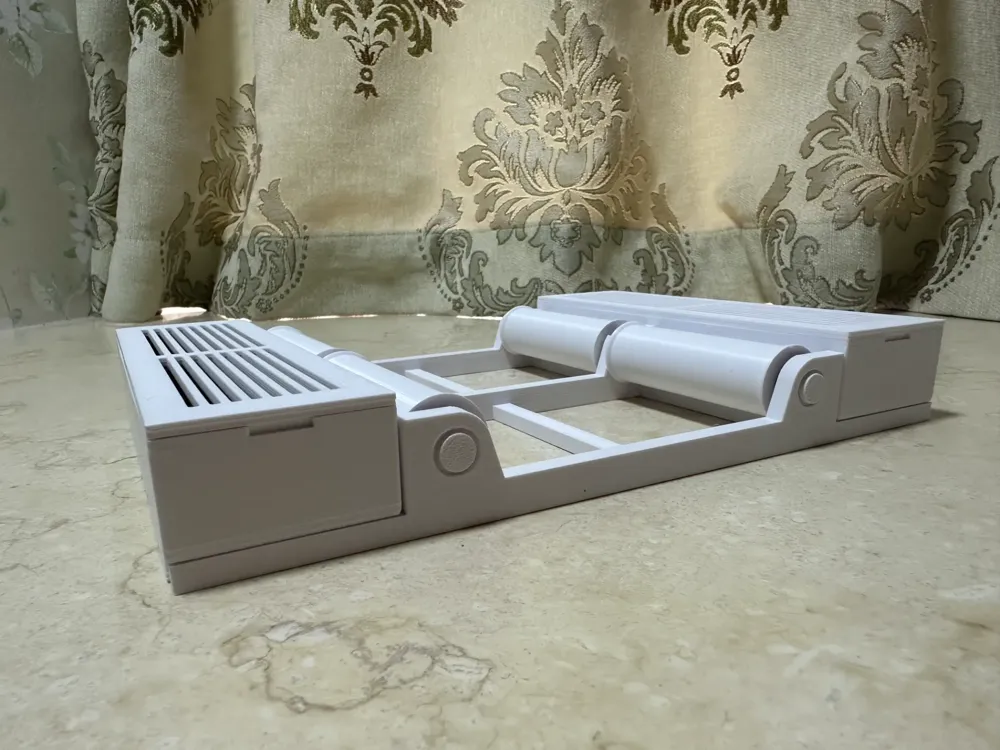

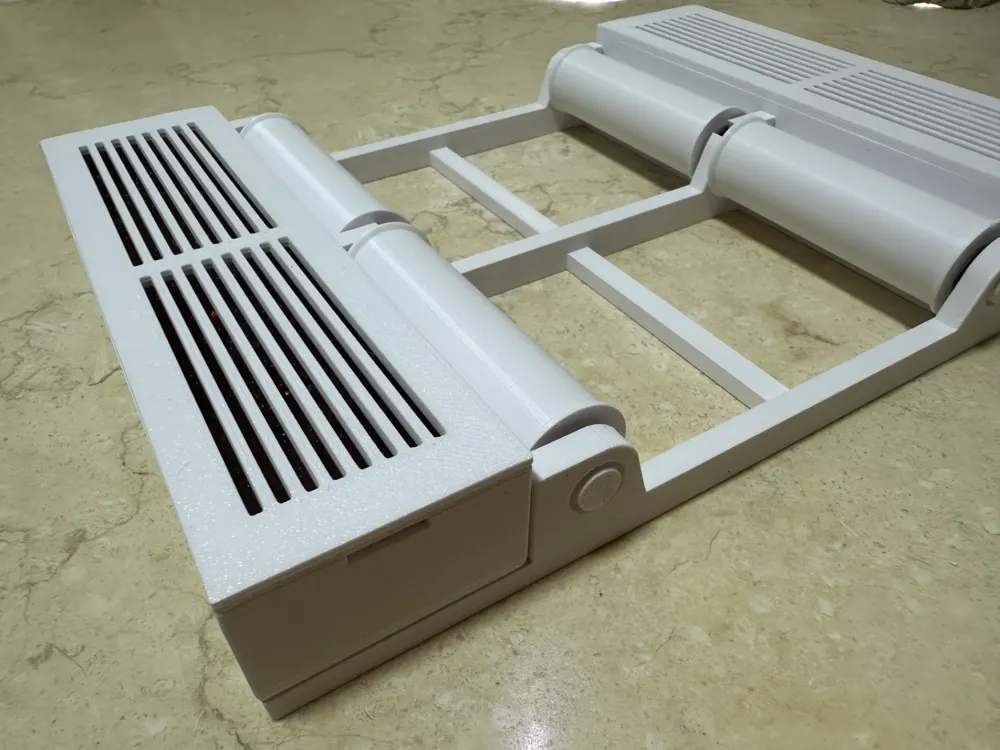

lighter spools prevent misalignment and jamming,

this is my meticulously optimized masterpiece.

Creation is not easy, please click the above boost↑↑↑

Your free attention and likes are my greatest motivation; if you have a precious🚀boost voucher, that would be even better!

Feel free to leave feedback if you have any questions; I will optimize it as soon as possible

Detailed introduction here

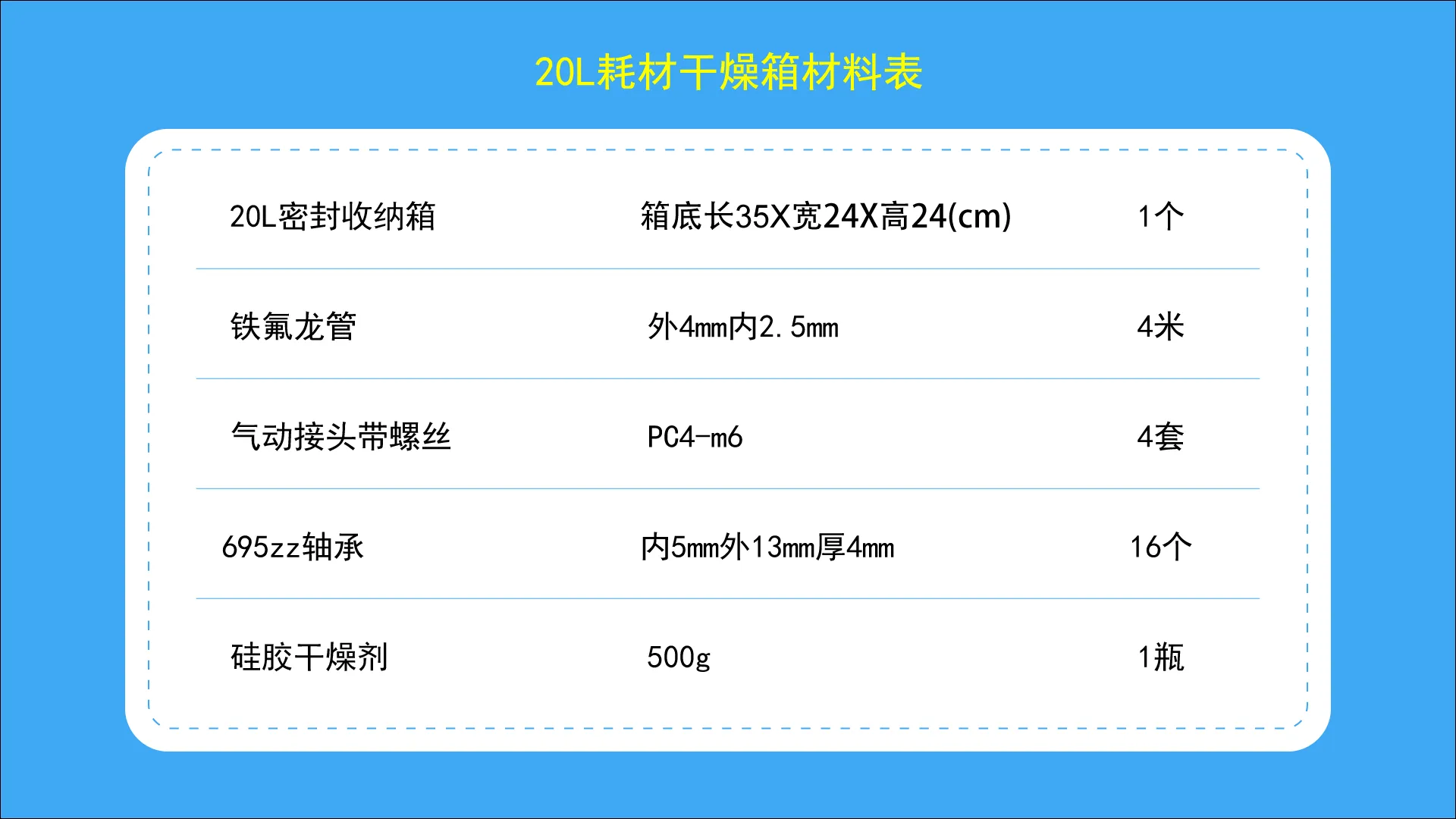

20L Filament Drying Box Bill of Materials

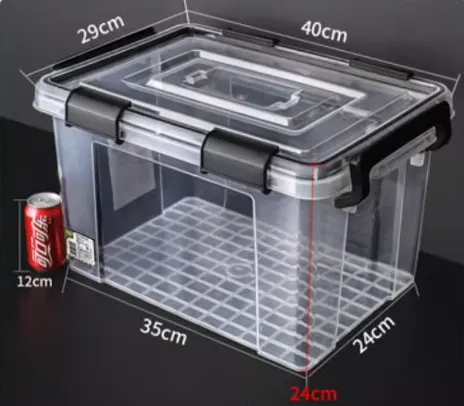

20L airtight storage box        base length 35cm*width 24cm*height 24cm            1

PTFE tubing                outer diameter 4mm, inner diameter 2.5mm                    4 meters

Pneumatic connector with screw      PC4-M6                                    4 sets

695zz bearings              inner diameter 5mm, outer diameter 13mm, thickness 4mm      16

Silica gel desiccant            500g                                          1 bottle
