Case for ratgdo 2.53i

I wanted a case for my ratgdo 2.53i, but I couldn't find what I was looking for already out there.

I wanted something that is:

• Simple, using only 3D-printed parts
• Protects well
• Does not interfere with the WiFi antenna
• Does not block the status light or ports
• Isn't too bulky
• Is easy to attach
• Looks nice

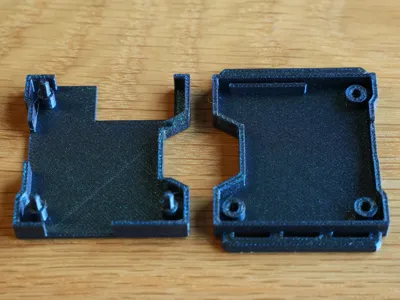

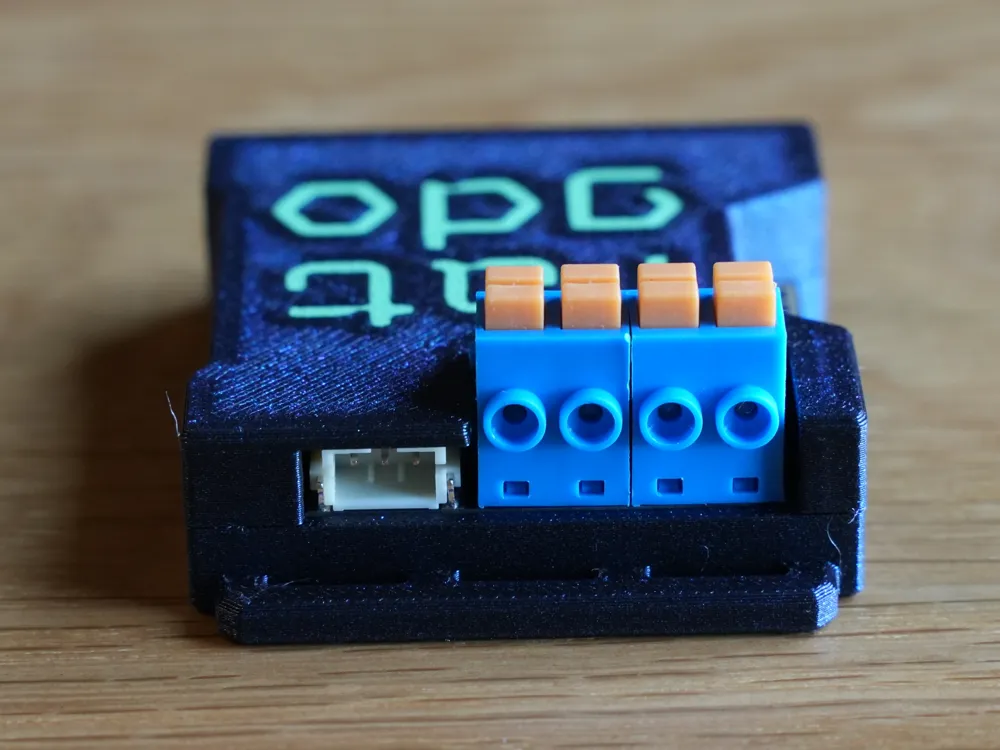

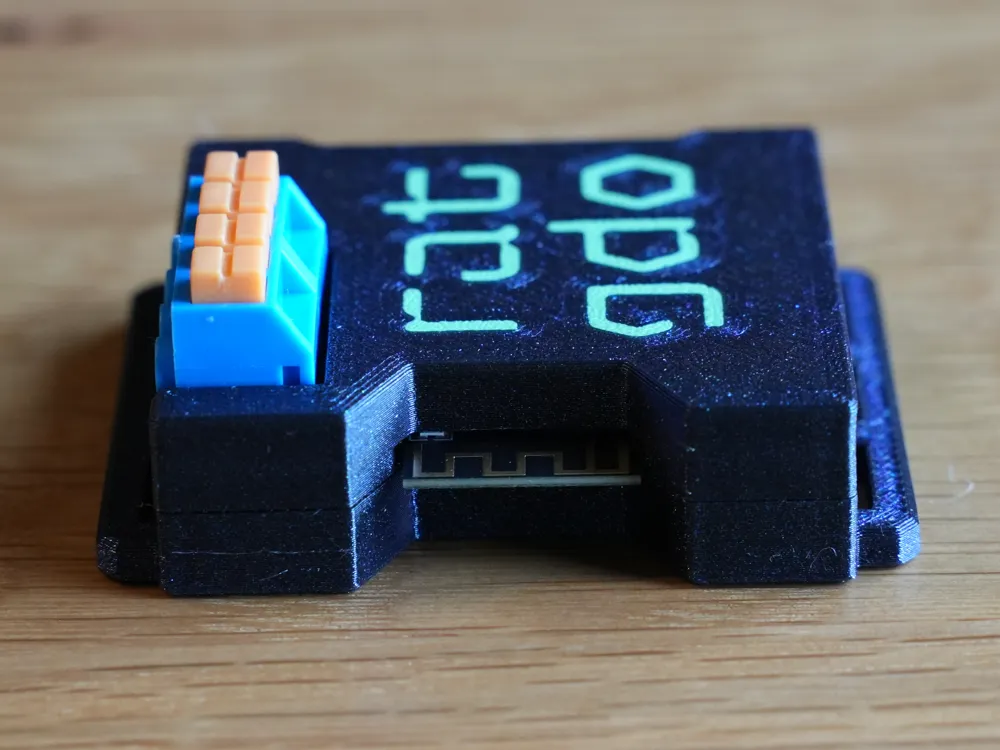

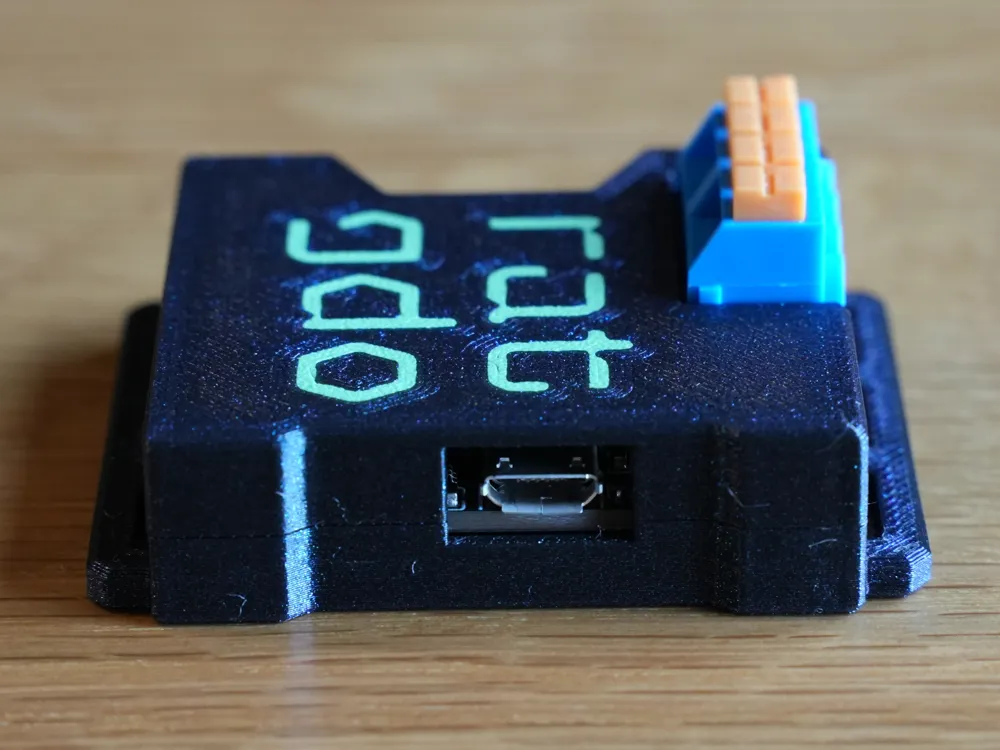

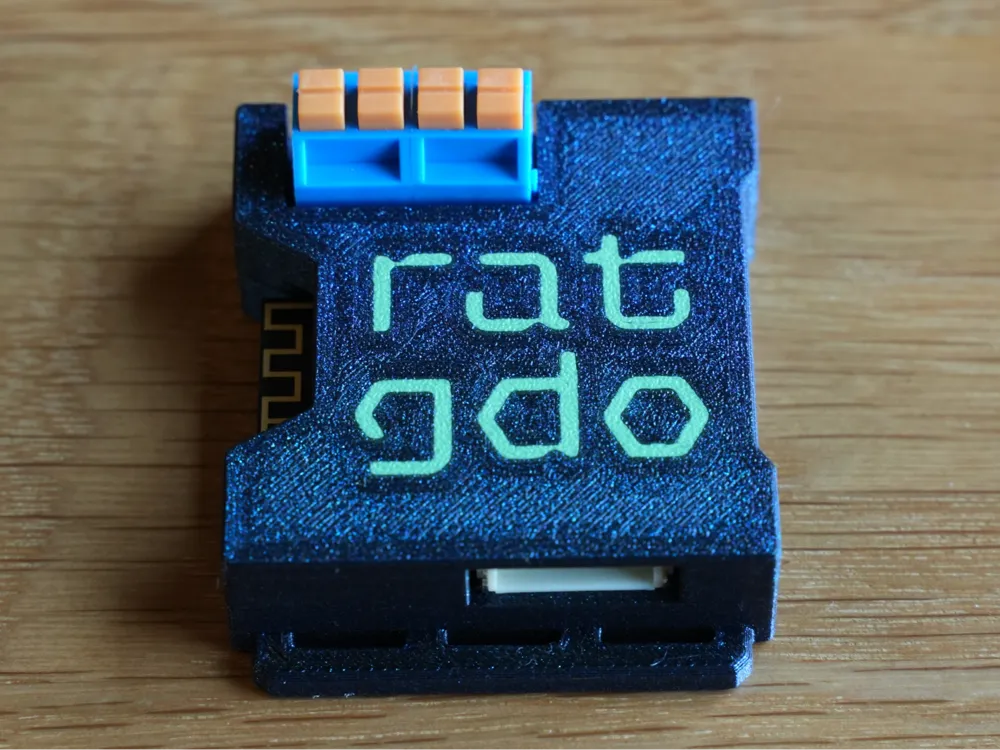

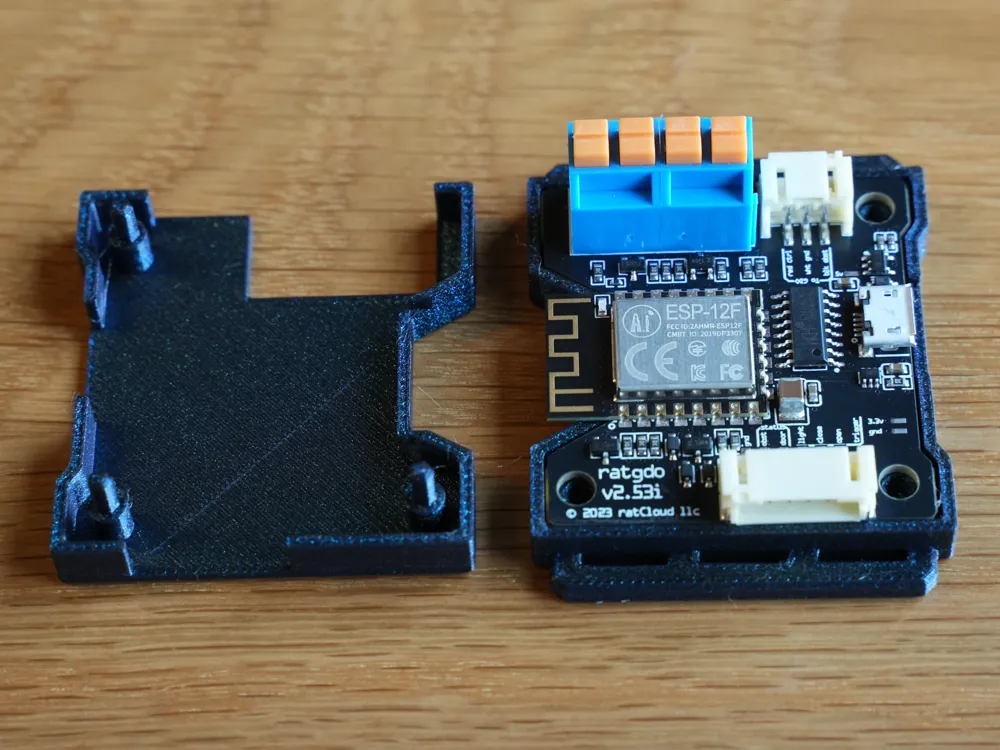

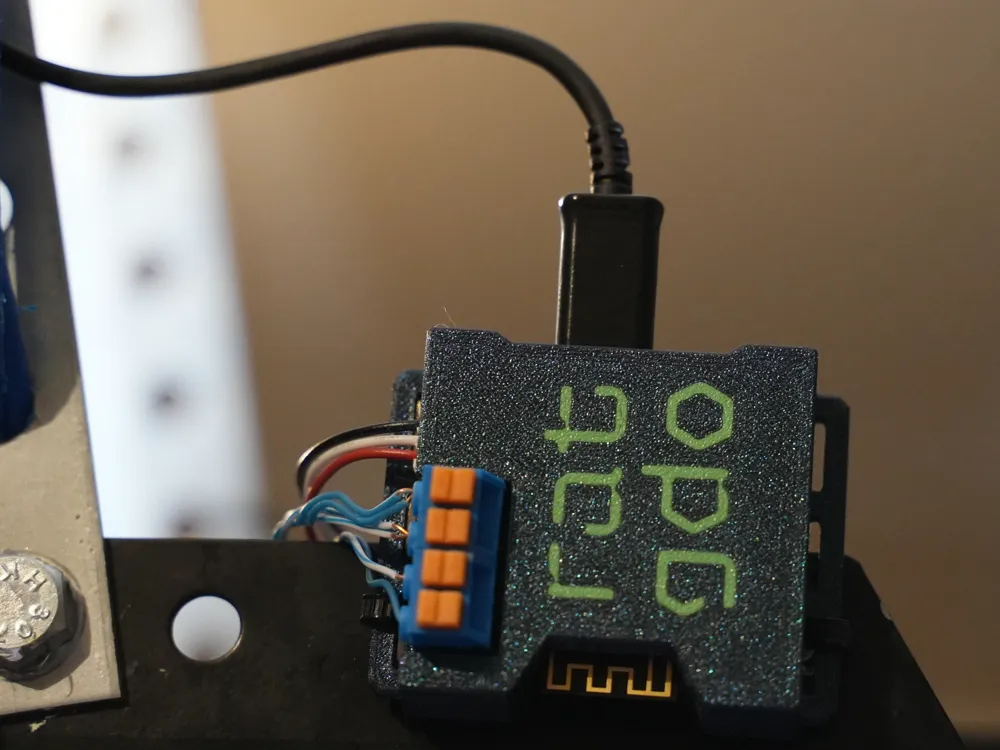

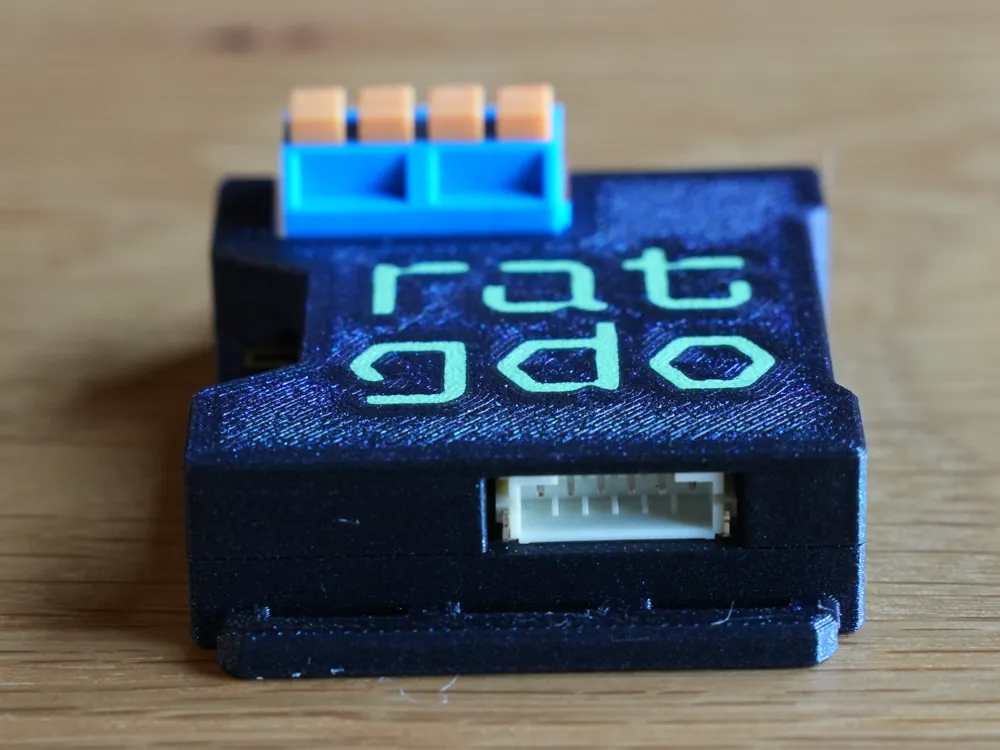

This is my attempt at a case that fits these requirements. The top and bottom parts press-fit together without use of hardware or adhesives. All ports are exposed so that maintenance can be done without disassembly. In fact, the enclosure can be secured while the ratgdo is in use. The status light is visible through the antenna slit and the antenna is exposed for maximum WiFi reception. There are zip-tie connection points along two sides to easily secure the case almost anywhere, if desired.

I hope you find it useful!

Note: the text uses modifier objects, so it is easy to disable, resize or reorient if you prefer.
