AMS Drying Chock Remix w/ PolyDryer Adapter

AMS Drying Chock Remix w/ PolyDryer Adapter – Version 3.0.0

This major update of the AMS Drying Chock Remix with PolyDryer Adapter brings improved stability, better fit, and enhanced airflow based on valuable community feedback. The entire design has been rebuilt from the ground up, ensuring optimal performance, sturdiness, and easier printing.

🔥 What’s New in v3.0.0?

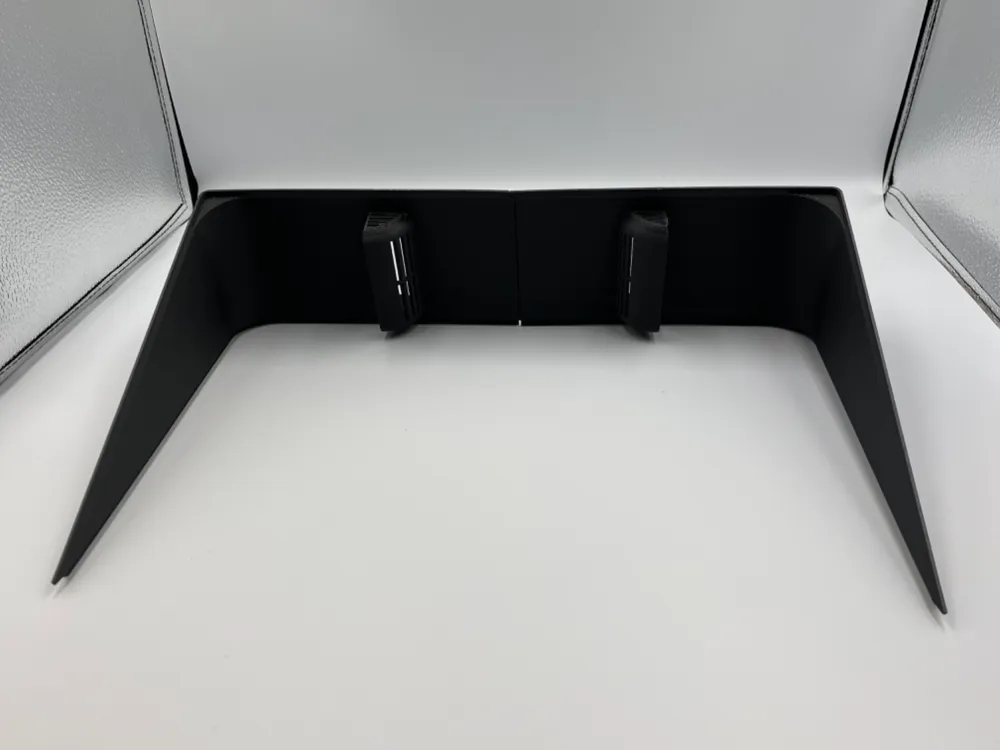

•  Redesigned Wedges: Fully reworked for a sturdier, more stable fit on the AMS lid base.
• Better AMS Lid Fit: Increased curvature and width for improved alignment with the AMS lid.
• Tighter Coupling: Improved connection between the two wedges for a more secure setup.
• Enhanced Structural Strength: Increased lip thickness by 1mm for added durability.
• Optimized Airflow: More deflector fins for better air distribution (downward fins removed).
• Improved Printability: Updated print profile with better wedge orientation to prevent warping and detaching.
• Community-Requested Addition: TPU hole plugs from @user_2566471913—thanks for the great contribution! (🔗 [Check it out here]

🖨️ **Printing Recommendations

• Material: PETG or ABS for heat resistance; TPU for optional hole plugs.
• Layer Height: 0.2mm recommended.
• Infill: 15% for strength.
• Orientation: New profile included to ensure best print results and minimize warping.

🔧 Assembly & Use

This updated chock seamlessly integrates with your AMS + PolyDryer setup, keeping filaments dry and print-ready without any invasive modifications. Simply print, assemble, and enjoy efficient, active drying inside your AMS!

💬 Your Feedback Matters!

This update was driven by community suggestions—so keep them coming! If you have ideas for improvements, let me know in the comments.

👍 If you find this model useful, please rate and boost to help more makers discover it. Thanks for your support, and happy printing! 🚀

v2.0.1: Enhanced Airflow and Clearance Improvements

Version 2.0.1 builds on the groundbreaking direct integration design of v2.0.0 with several airflow and usability enhancements to further optimize performance and efficiency.

What’s New in Version 2.0.1:

• Increased Clearance: More space has been added between the wedges’ intake and the AMS lid to ensure smoother installation and better compatibility with the AMS system.
• Rounded Corners for Improved Circulation: The sharp 90-degree corners at the front and sides of the wedges have been replaced with a 25mm radius curve, allowing air to flow more freely around the enclosure.
• Redesigned Inner Vents: New fin-shaped openings have been added to the inner vents to redirect airflow downwards and toward the middle of the AMS, ensuring even air distribution across all filaments.

With these refinements, v2.0.1 delivers a more efficient drying experience, improved airflow management, and enhanced usability — all while maintaining the simplicity and compact design of the previous version.

Upgrade to the best version yet for optimal filament care!

AMS Drying Chock Remix v2.0.0 – Optimized Design for Direct PolyDryer Integration

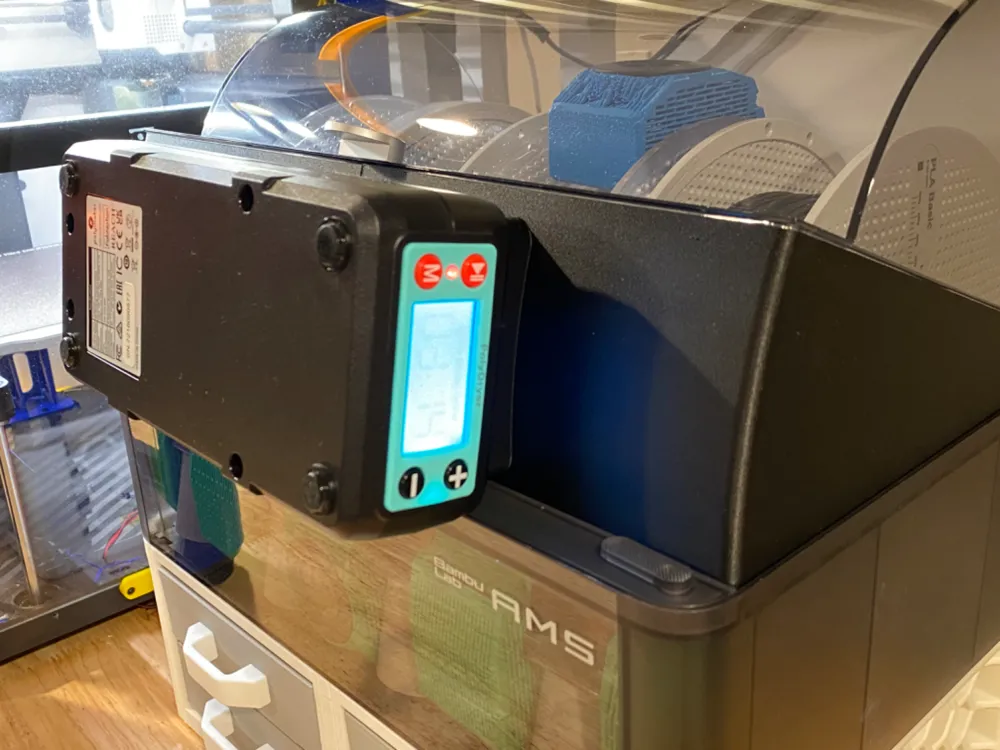

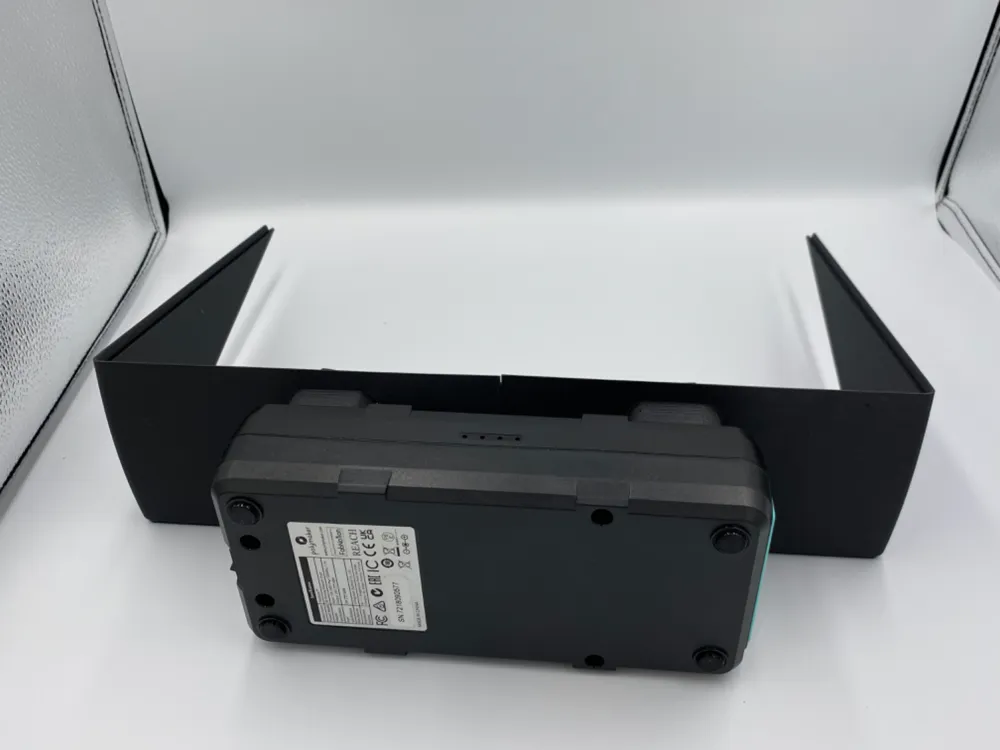

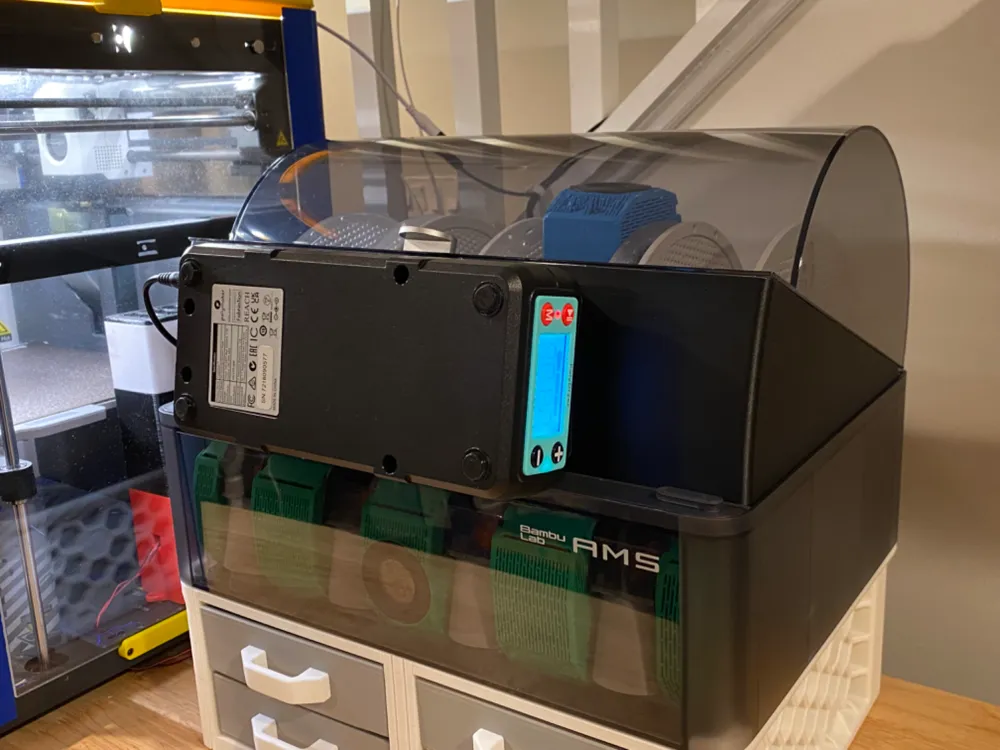

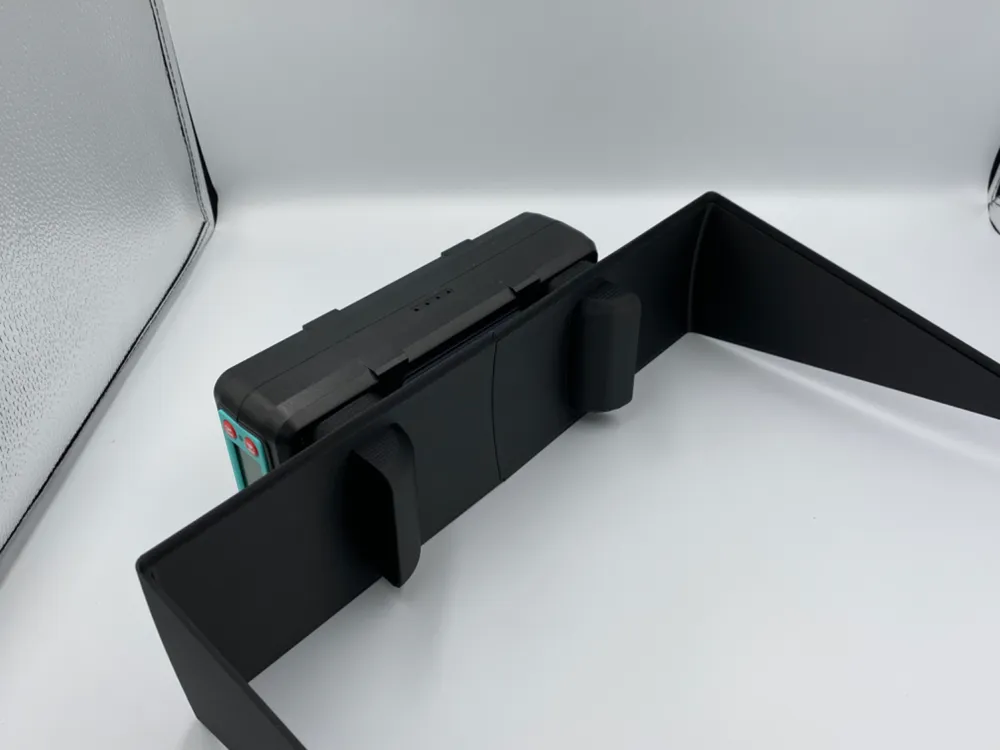

Introducing version 2.0.0 of the AMS Drying Chock Remix, now featuring a complete redesign of the left and right wedges to directly support the PolyDryer — no ducts needed! This streamlined upgrade maximizes airflow efficiency and minimizes energy loss, as the dryer now sits directly on the wedges, delivering heated air seamlessly into your AMS enclosure.

After 8 hours of continuous running, the temperature at the AMS's rooftop reaches 126.6 °F  (52.6 °C), and the humidity level is stable at 10%.


What’s New in Version 2.0.0:

• Direct Dryer Integration: The redesigned wedges are custom-fit to accommodate the entire width of the Polymaker Filament Dryer. This eliminates the need for long ducts, preventing airflow and temperature dispersion.
• Maximized Airflow & Efficiency: With no ducts, airflow is direct and uninterrupted, significantly improving the drying performance and ensuring your filament stays in optimal condition.
• Simplified Setup: The updated design reduces the number of parts to print from four to just two, saving you time and filament. Assembly is faster and easier, getting you back to printing sooner.

Version 2.0.0 of the AMS Drying Chock Remix is the ultimate upgrade for those looking to enhance their filament drying setup with increased efficiency, a cleaner design, and fewer printed parts. Experience the difference in your 3D printing workflow today!

v1.0.2: New 90-Degree Elbow and 75mm Duct Options

This second update introduces a range of new ducting options and adapters, allowing for even more customized configurations for your AMS Drying Chock system.


What’s New in version 1.0.2:

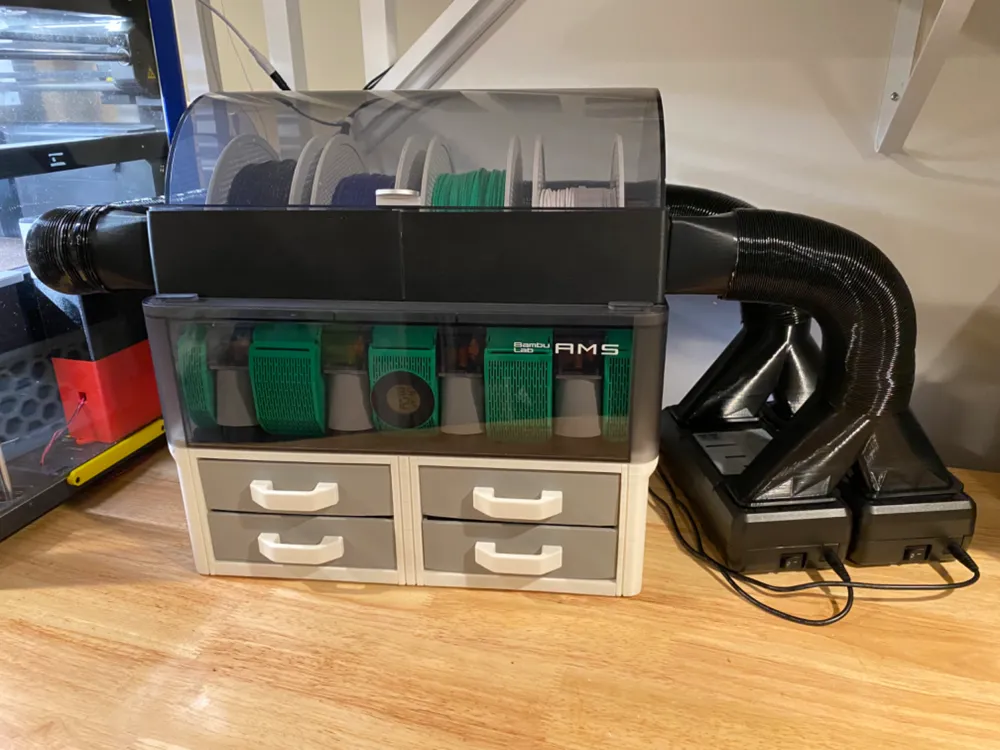

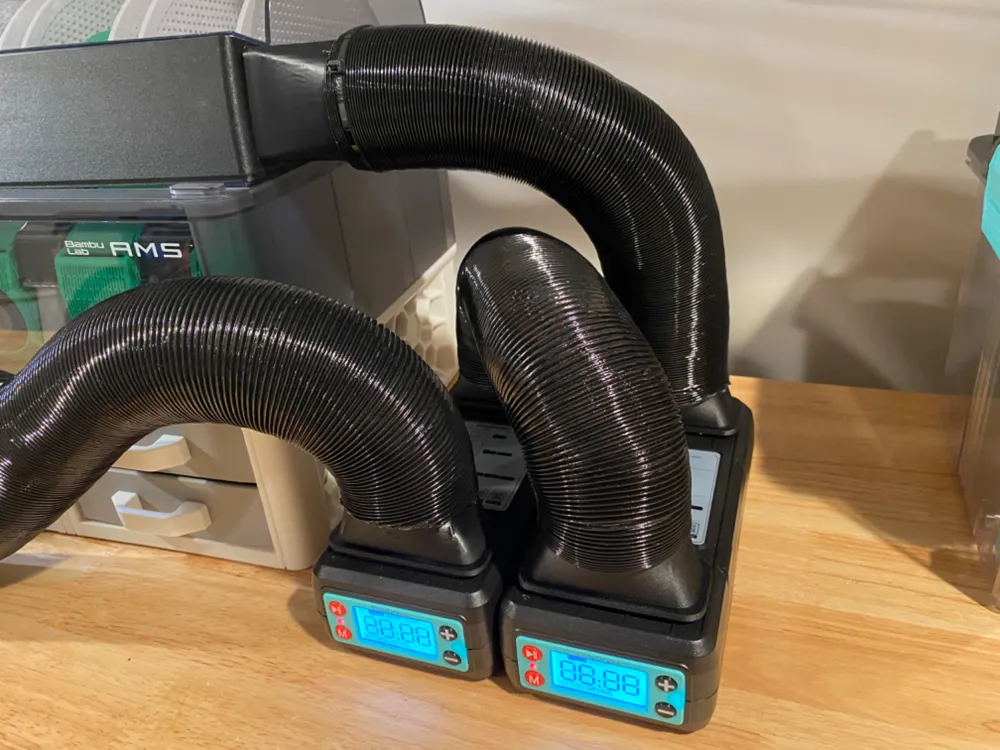

• New 60mm Duct Intake with 90-Degree Elbow: A new 60mm duct intake has been designed with a 90-degree elbow, allowing you to route the ducts neatly toward the back of the AMS system. This helps to tuck the ducts away along the AMS sides, making your setup cleaner and more organized.
• New 75mm Duct Support: This update also introduces support for larger 75mm ducts with the following new components:
  • 60mm to 75mm Adapter: Easily transition from a 60mm to a 75mm duct adapter.
  • 75mm Duct Intake/Outtake: Directly connect a 75mm duct for increased airflow capacity.
  • 75mm Duct Intake with 90-Degree Elbow: This variant includes a 90-degree elbow for clean, space-efficient duct routing.
  • 75mm Polymaker Dryer Splitter: An adapter designed to connect two Polymaker Dryers to a 75mm duct in parallel for higher airflow efficiency.
  • 75mm Polymaker Dryer Adapter: A redesigned adapter tailored for the Polymaker Dryer’s intake to fit the larger 75mm duct, ensuring optimal airflow and a secure fit.

Why This Update Matters:

• Tidy Cable Management: The addition of the 90-degree elbow for both the 60mm and 75mm ducts helps streamline your setup by allowing the ducts to be routed toward the back and along the sides of the AMS, giving a much cleaner appearance.
• Enhanced Airflow with 75mm Ducting: The introduction of 75mm duct options provides greater flexibility and improved airflow management, especially for setups involving multiple dryers or larger drying requirements.
• Modular and Scalable: The new adapters and splitters allow you to build a system that can scale with your needs, whether you’re using one or two Polymaker Dryers or transitioning to larger ducts.

Additional Parts in Version 1.0.2:

• 1 x 60mm Duct Intake with 90-Degree Elbow
• 1 x 60mm to 75mm Adapter
• 1 x 75mm Duct Intake/Outtake
• 1 x 75mm Duct Intake with 90-Degree Elbow
• 1 x 75mm Polymaker Dryer Splitter
• 1 x 75mm Polymaker Dryer Adapter

With these updates, your AMS Drying Chock setup is more versatile than ever, allowing you to manage your filament drying process with a cleaner, more efficient ducting system while increasing airflow and capacity for large-scale or multi-dryer setups.

v1.0.1: Enhanced Design for Dual Polymaker Dryers

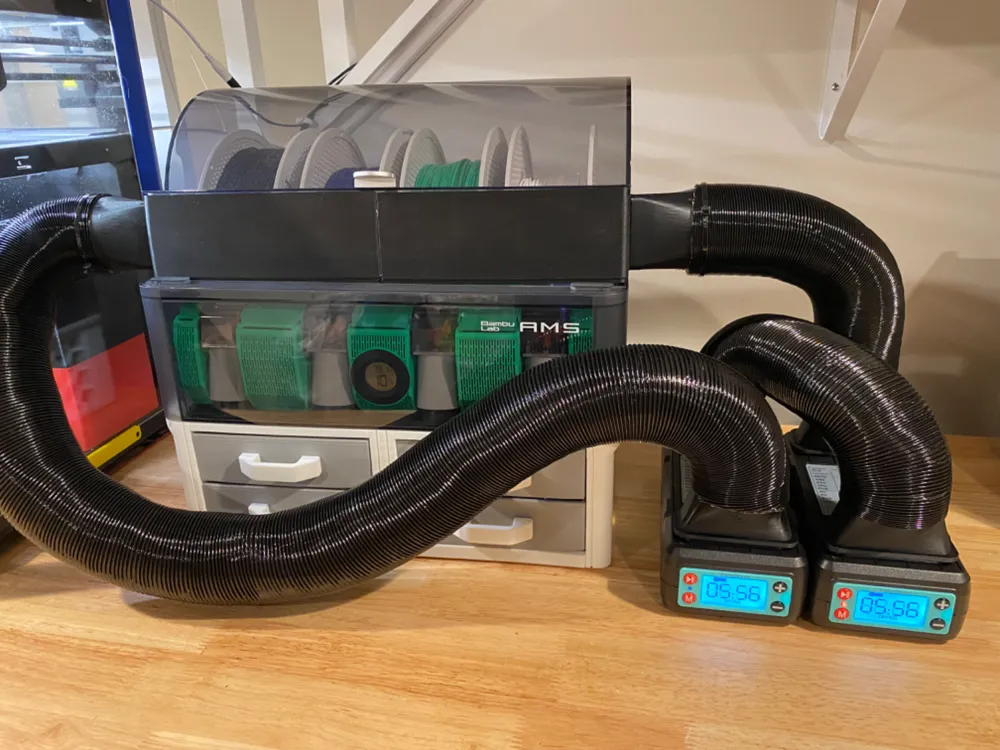

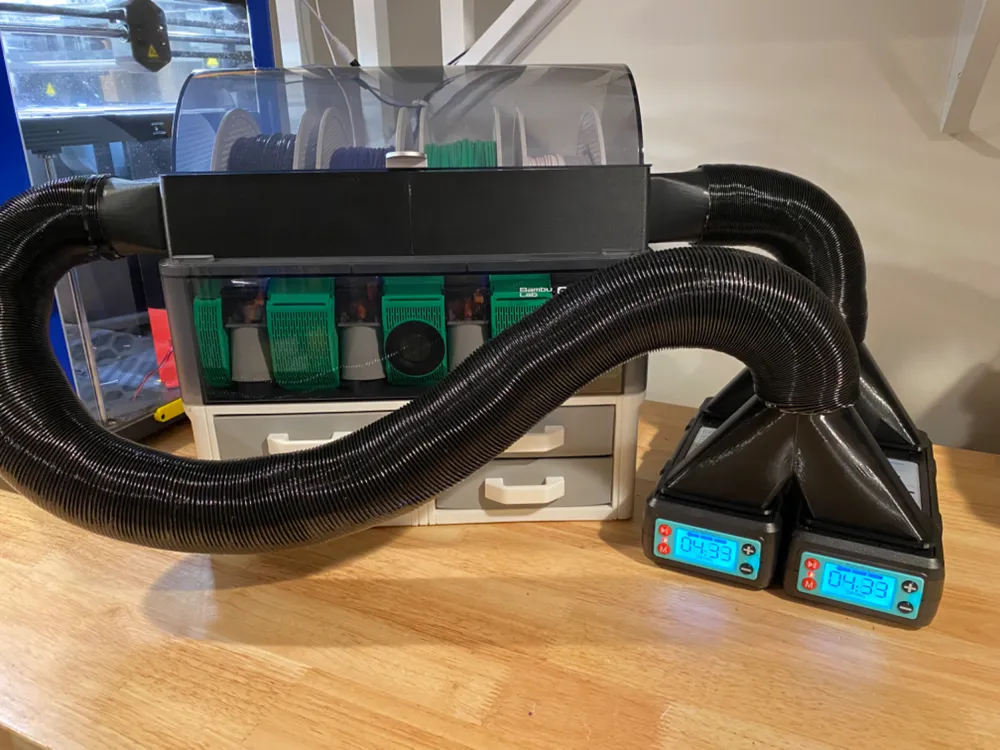

In this latest update, the AMS Drying Chock Remix has been further optimized to accommodate two Polymaker Dryers, either in series or in parallel, providing even more flexibility for your filament drying needs.

What’s New in This Update:

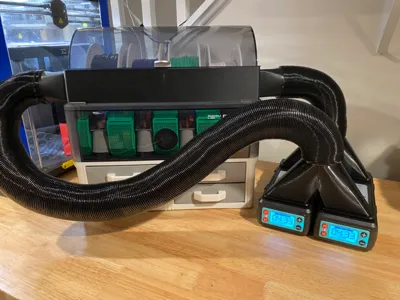

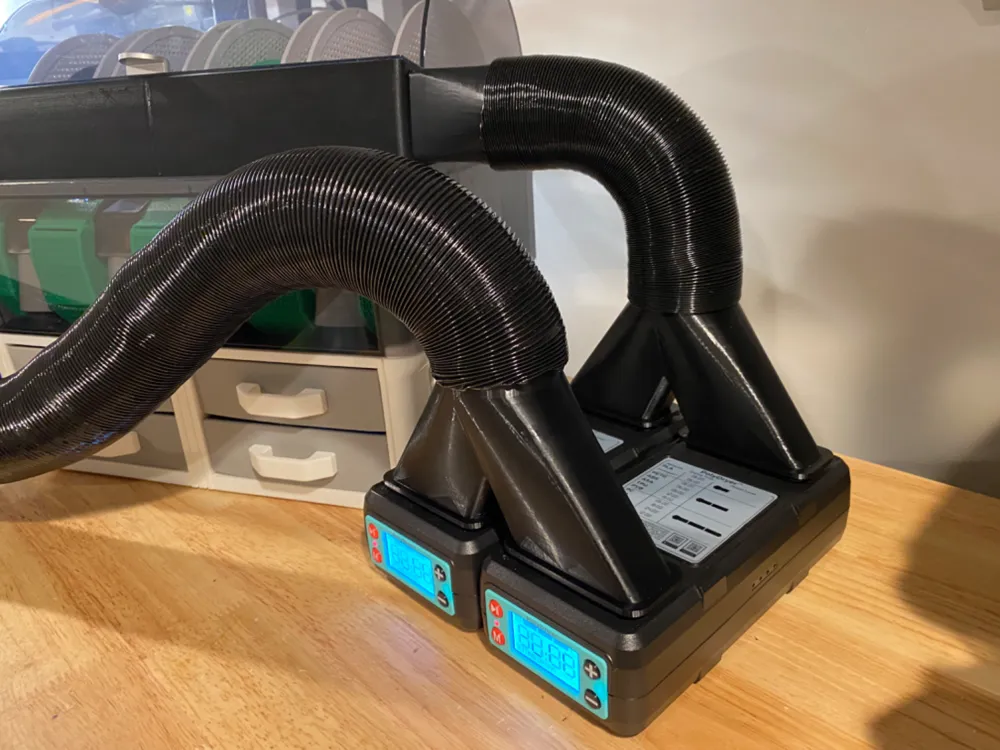

• Dual Dryer Support: The model now includes an additional splitter adapter that allows you to connect two Polymaker Dryers in parallel. This setup enhances airflow and drying efficiency by distributing the drying process between both dryers.
• Improved Adapter Design: The original Polymaker Dryer adapter has been redesigned to provide a more secure and precise fit with the Polymaker Dryer intakes. The improved adapter ensures a tighter connection, maximizing airflow efficiency and minimizing any leakage during operation.
• Flexible Configurations: With the new splitter adapter, you can configure your dryers in either parallel or series, giving you full control over how to balance the airflow and drying power for your specific filament types.

AMS Drying Chock Remix with Polymaker Dryer Adapter

Are you looking to simplify your filament drying process with your Polymaker Dryer? This remixed version of the AMS Drying Chock takes the original design to the next level by integrating a custom adapter specifically for the Polymaker Dryer. Now, you can seamlessly connect your Polymaker Dryer to the AMS system, ensuring continuous, active drying of your filaments right inside your setup.

What’s New in This Remix:

• Polymaker Dryer Adapter: This remix includes a newly designed adapter that perfectly fits the Polymaker Dryer, making it easy to integrate with the AMS Drying Chock setup. The adapter ensures a secure connection for optimal airflow, so you can enjoy hassle-free, consistent drying without needing additional modifications.
• Enhanced Compatibility: While the original model supported various dryer types, this remix specifically caters to Polymaker Dryer users, providing a tailored solution for those looking to optimize their filament management system.

Why This Remix is a Game-Changer:

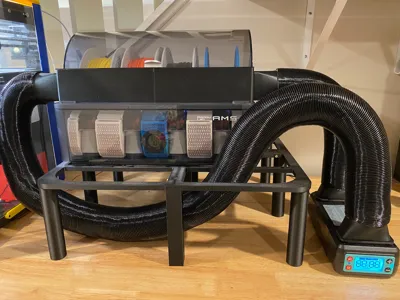

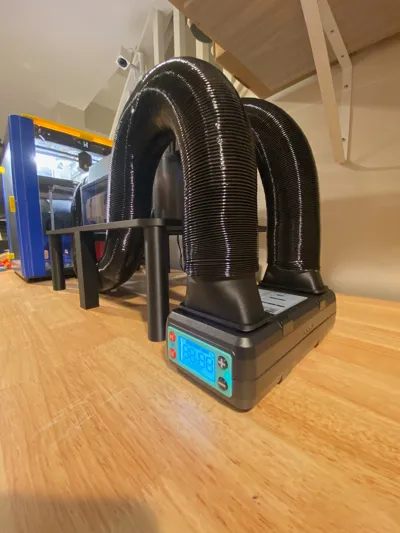

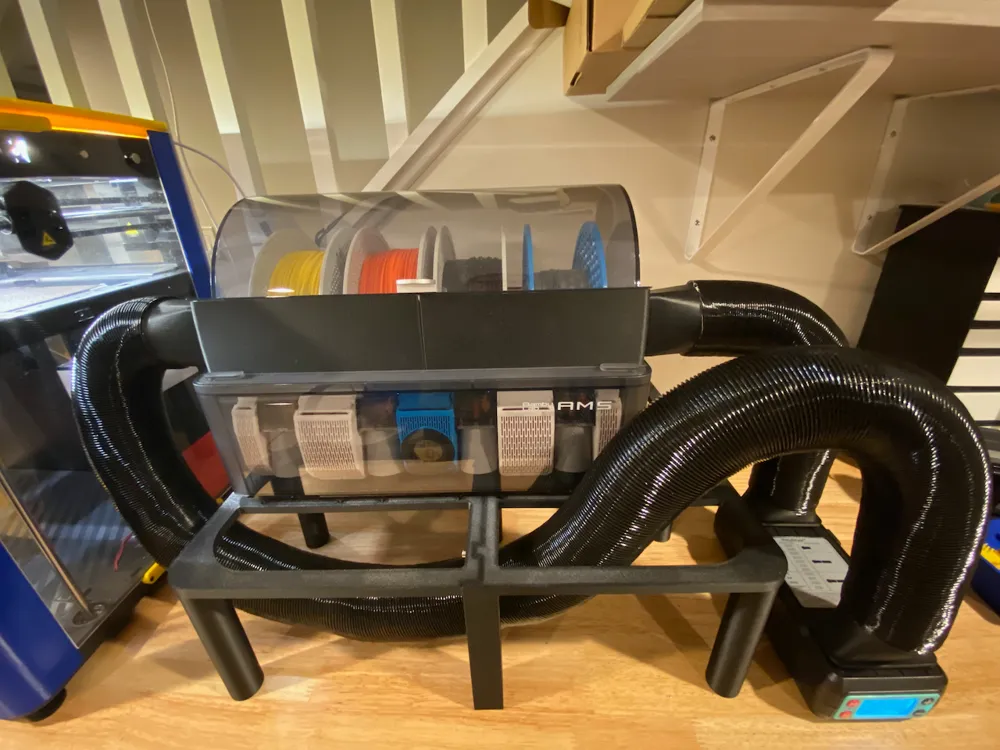

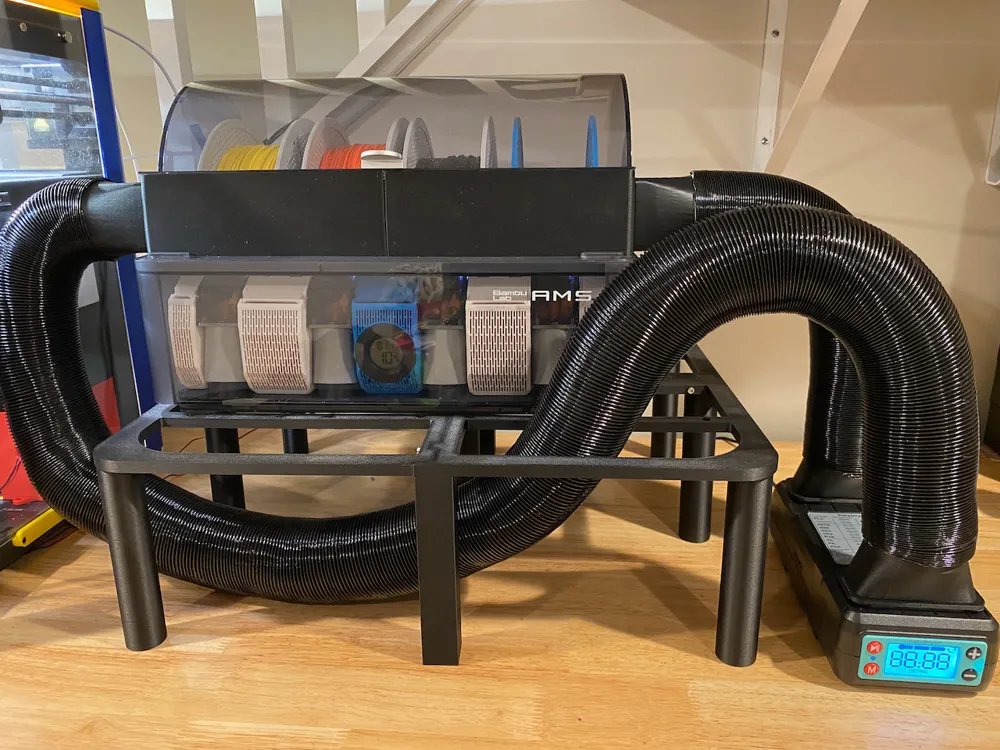

• Easy Installation: Simply print the included Polymaker Dryer Adapters along with the standard AMS Drying Chock (Right half), and the modified Left half. Attach the adapters to your Polymaker Dryer, connect the ducting, and you’re set for active filament drying directly in your AMS system.
• Improved Workflow: With this remix, you no longer need to worry about drying your filaments separately or dealing with the inconvenience of multiple adapters. This solution streamlines the process, allowing you to keep experimenting with different materials without the drying hassle.
• No AMS modifications needed: With this adapter, you don't need to modify your AMS or Polymaker Dryer.

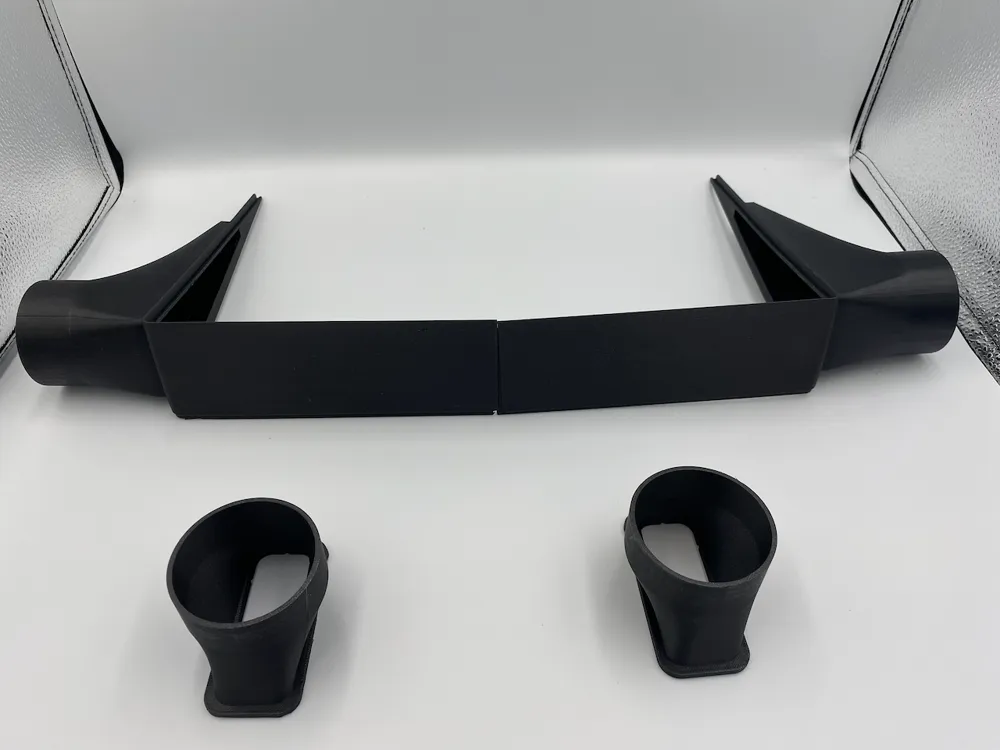

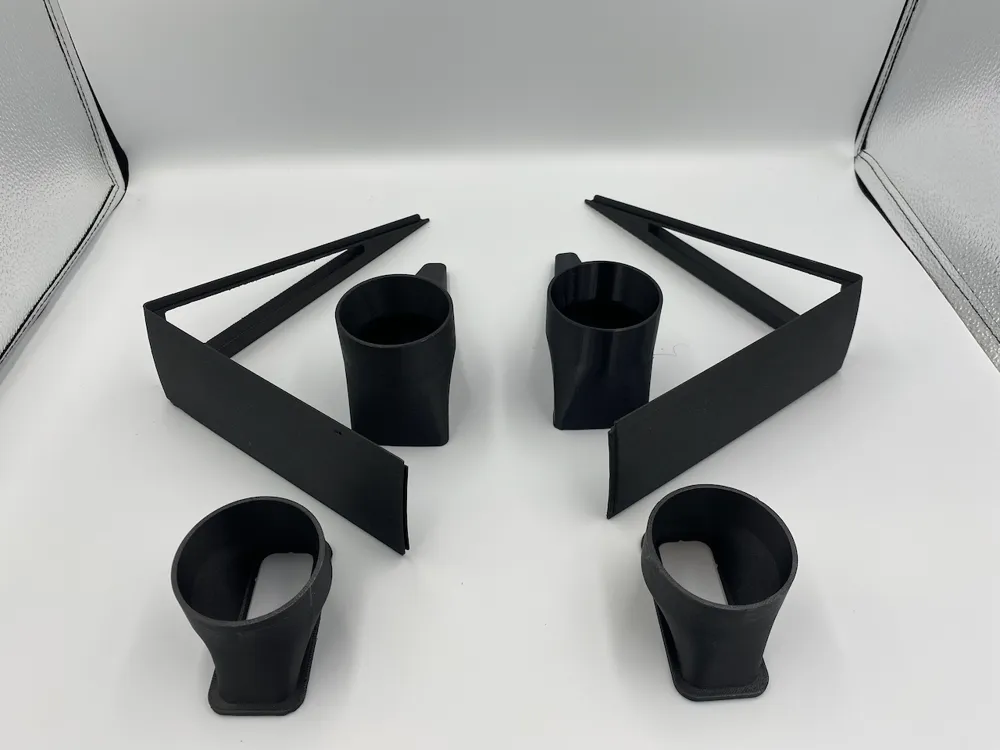

Parts List:

• 1 x AMS Modified Drying Chock (Left half)
• 1 x AMS Original Drying Chock (Right half)
• 2 x 60mm Original Duct Adapter
• 2 x Polymaker Dryer Adapter

Additional Items Needed:

• Polymaker 3D Printing Filament Dryer (https://amzn.to/3AYtqtt)
• 60 or 75 mm diameter semi-rigid ducting (recommended: 60mm): https://www.aliexpress.us/item/3256806061221783.html?gatewayAdapt=vnm2usa4itemAdapt
• Hose clamps or heavy-duty zip ties to secure the ducting

With this remixed AMS Drying Chock, you’ll have a more efficient, integrated drying solution tailored to the Polymaker Dryer, making your 3D printing experience smoother and more versatile than ever.

Check out the model files and start printing today to enhance your filament drying setup!
