Description

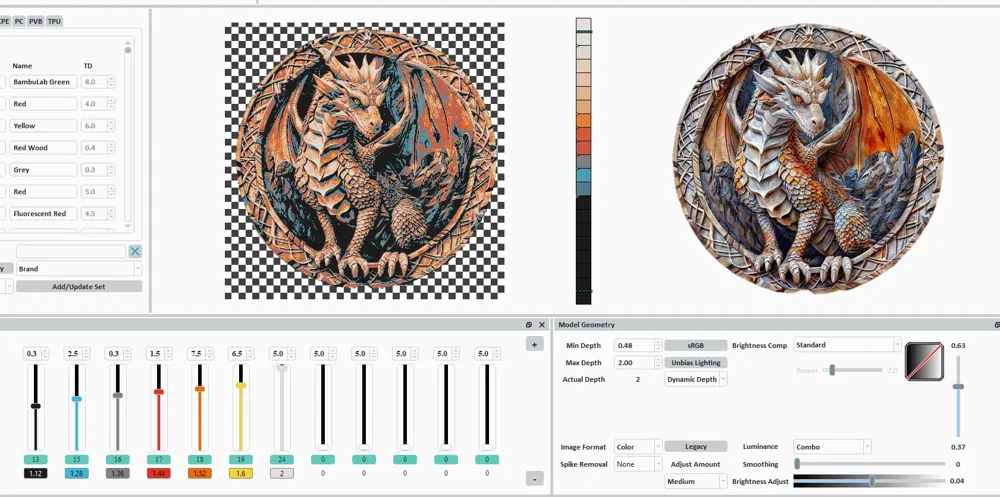

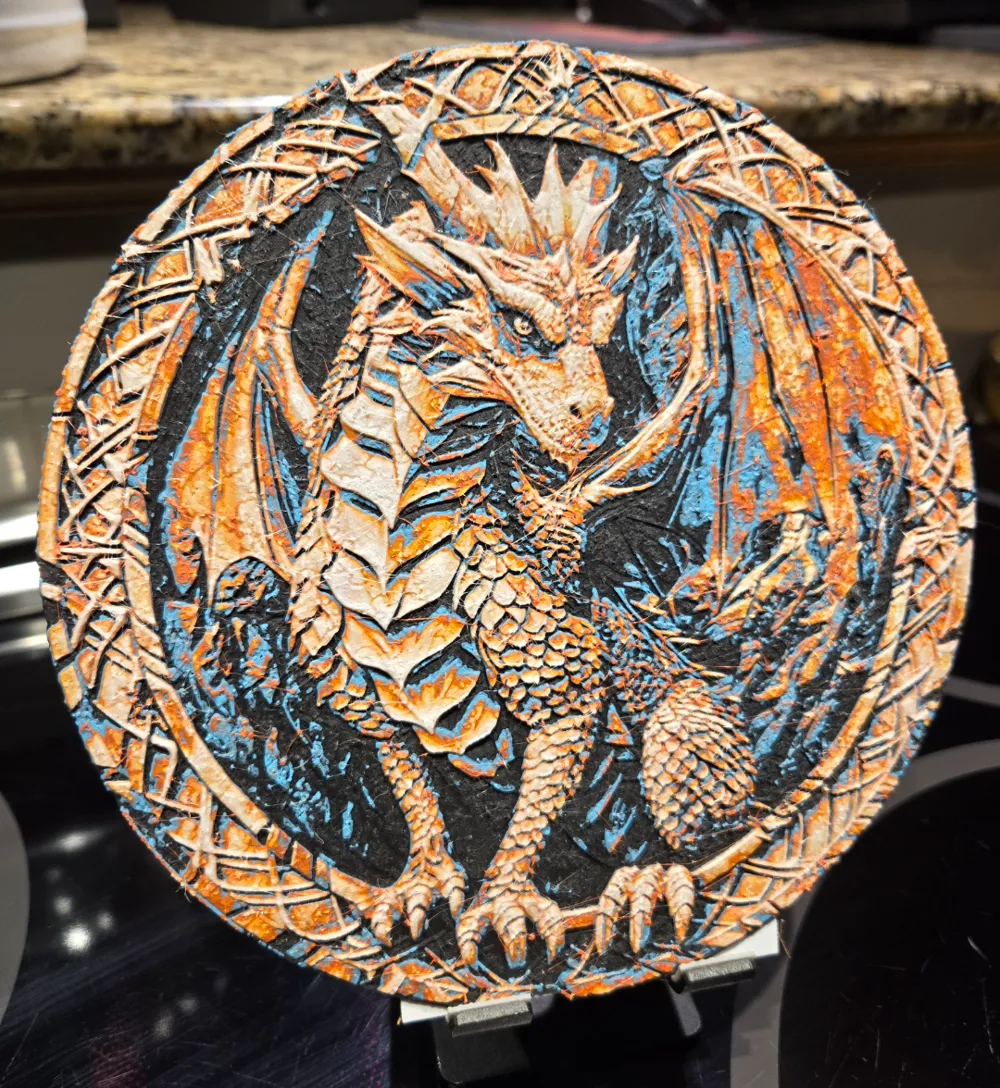

The image was captured from FB & processed in Hueforge. The result was brought into Bambu Studio where the 6 colors were added at the Hueforge defined layers. Save & print!!
- Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
- The Model is 200x198.47mm in size
- You may print at higher layer heights below the Min Depth of 0.48mm
- The Max Depth is 2mm and the Actual Depth is 2mm
Filaments Used:
PLA PolyTerra Charcoal Black Transmission Distance: 0.3
PLA PolyLite Aqua Blue Transmission Distance: 2.5
PLA EL3D Grey Transmission Distance: 0.3
PLA PolyLite Red Transmission Distance: 1.5
PLA PolyLite Pro Orange Transmission Distance: 7.5
PLA PolyLite Lemon Yellow Transmission Distance: 6.5
PLA PolyLite White Transmission Distance: 5
This print uses 7 unique filaments
Swap Instructions:
Start with Charcoal Black
At layer #13 (1.12mm) swap to Aqua Blue
At layer #15 (1.28mm) swap to Grey
At layer #16 (1.36mm) swap to Red
At layer #17 (1.44mm) swap to Orange
At layer #18 (1.52mm) swap to Lemon Yellow
At layer #19 (1.6mm) swap to White for the rest.
