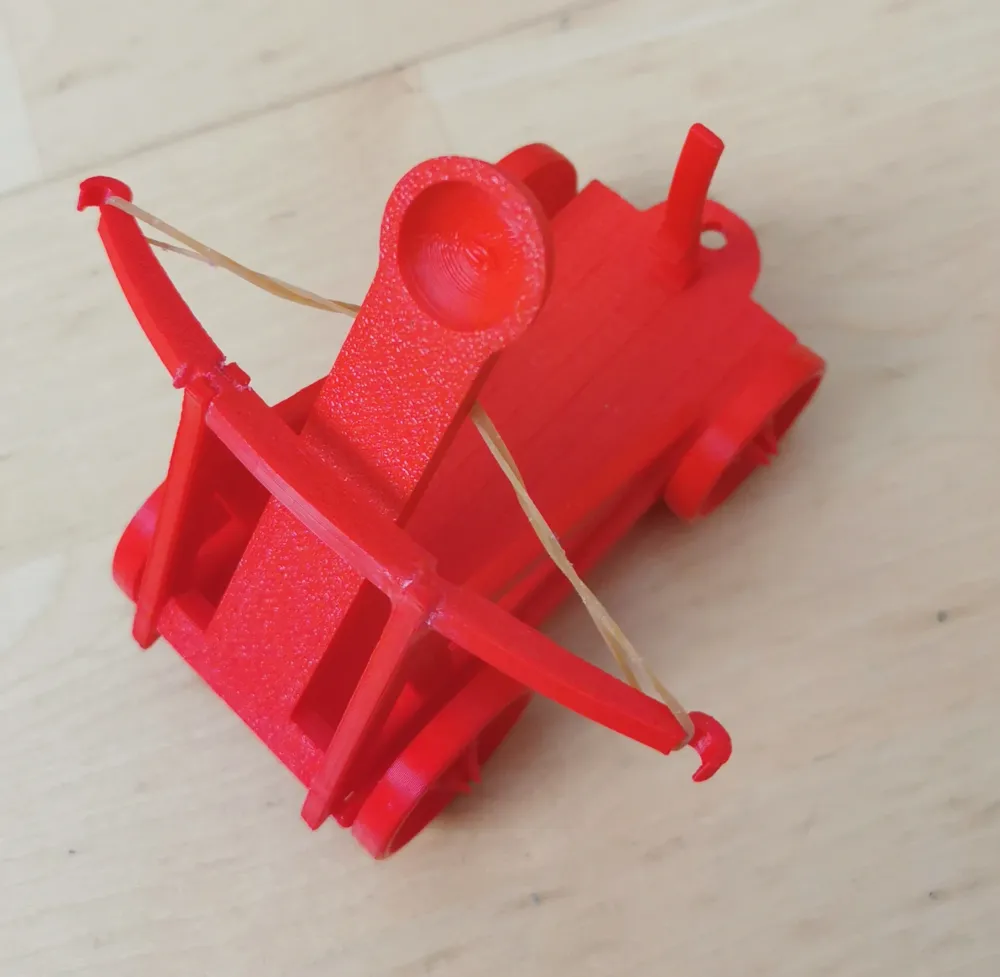

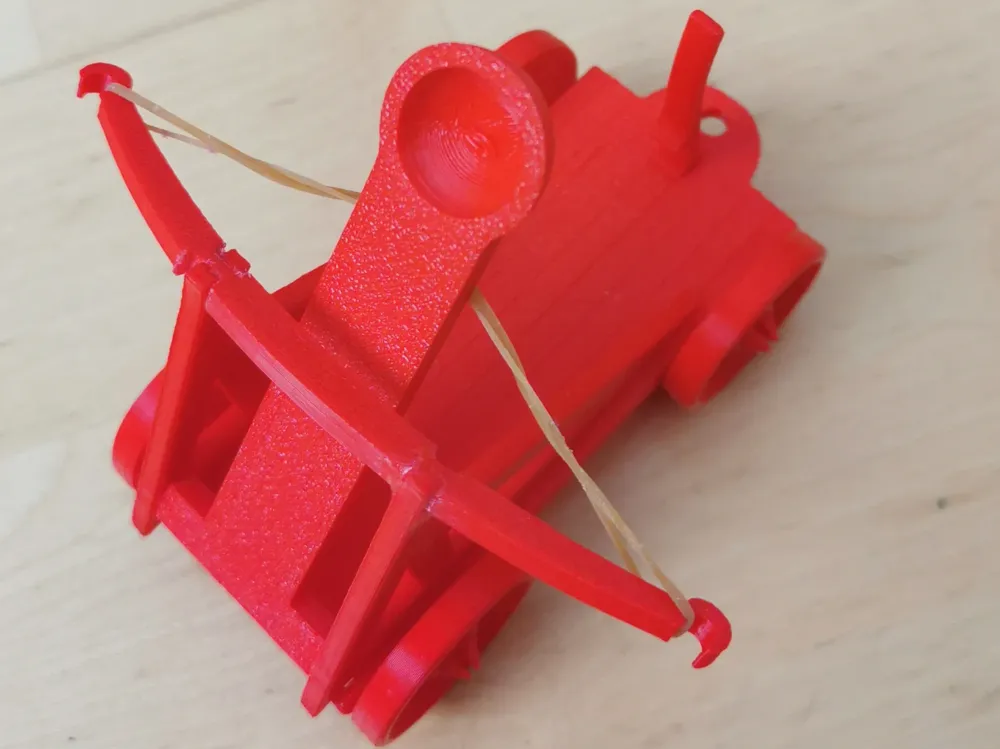

Mini Catapult

IP Report

Print Profile(1)

All
A1 mini
P1P
X1E
X1 Carbon
H2D
H2C
H2S
H2D Pro
P2S
P1S
A1
X1
X2D
A2L

0.2mm layer, 4 walls, 25% infill
0.2mm layer, 4 walls, 25% infill
1.8 h
1 plate

Open in Bambu Studio
Boost
28
43
1
1
61
26
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
1.4x16mm Basic (100PCS) - RA001

Description

Parts:

  • 1x base plate
  • 2x sides
  • 1x board
  • 4x wheels
  • 1x bow
  • 1x lever

ASSEMBLY

To assemble, you first put the two round pegs of the board into the holes in the sides and than slide the sides into the base plate.
Next push the wheels onto their axles, and push the lever through the slot in the back (make sure the notch to hold the board down is towards the base plate!)
Now add the bow on the top of the sides and add a rubber band between the hooks of the bow and under the board (held back by the hook on the bottom of the board).
