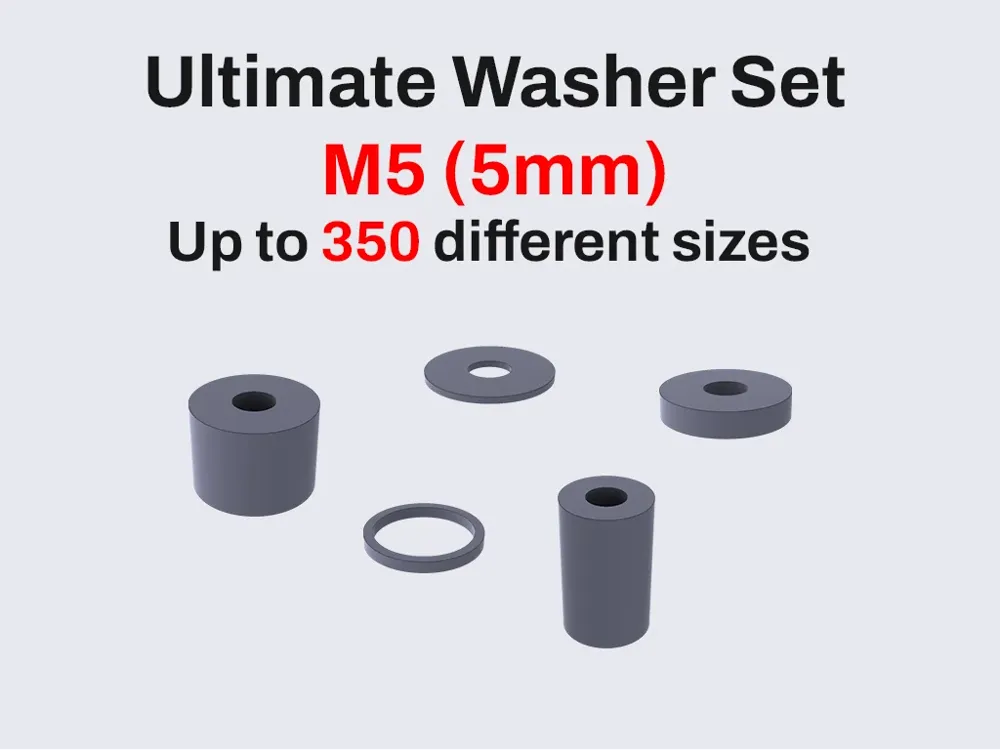

Ultimate Washer Set - M5 (5mm)

🔍 Overview

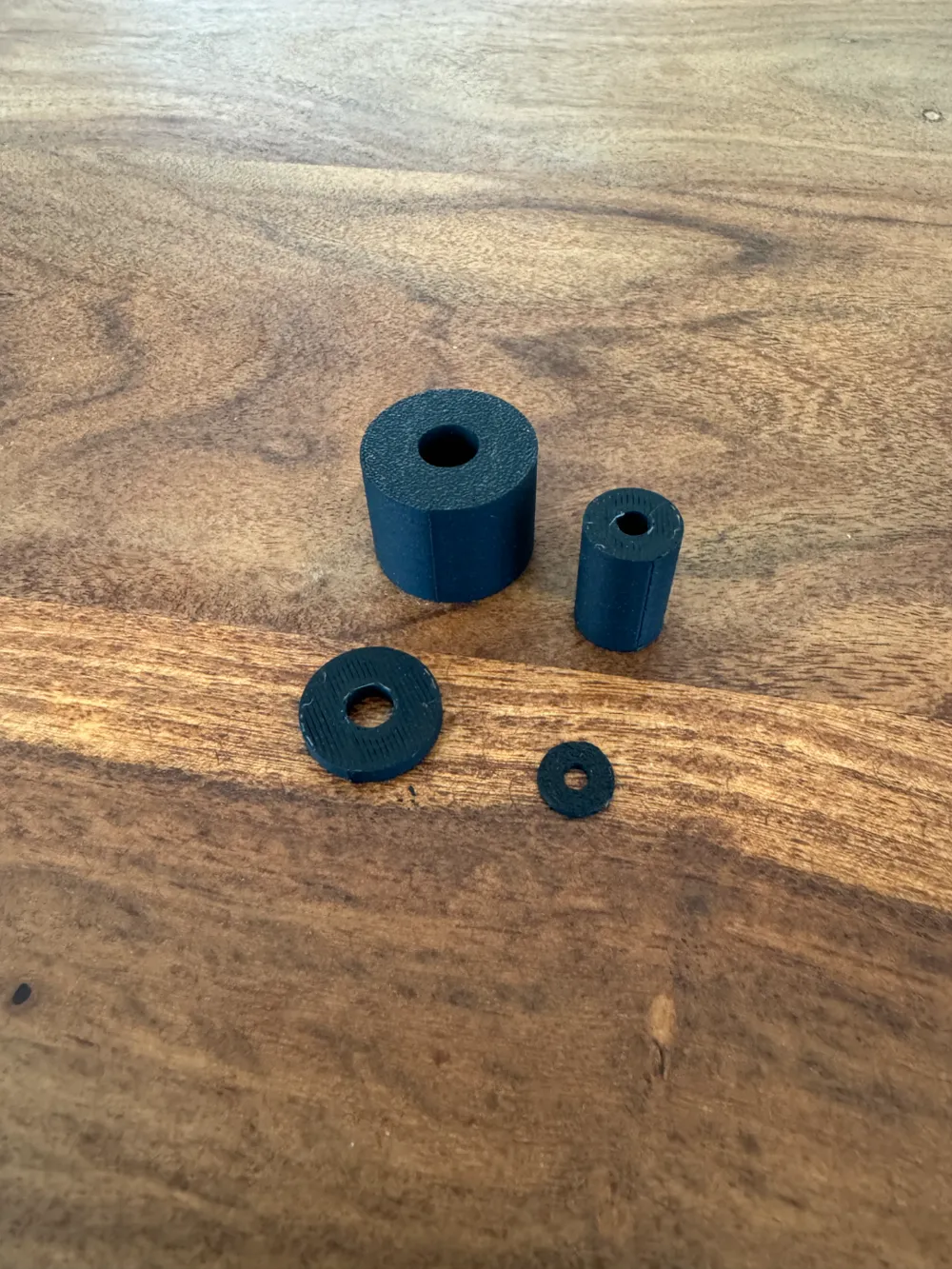

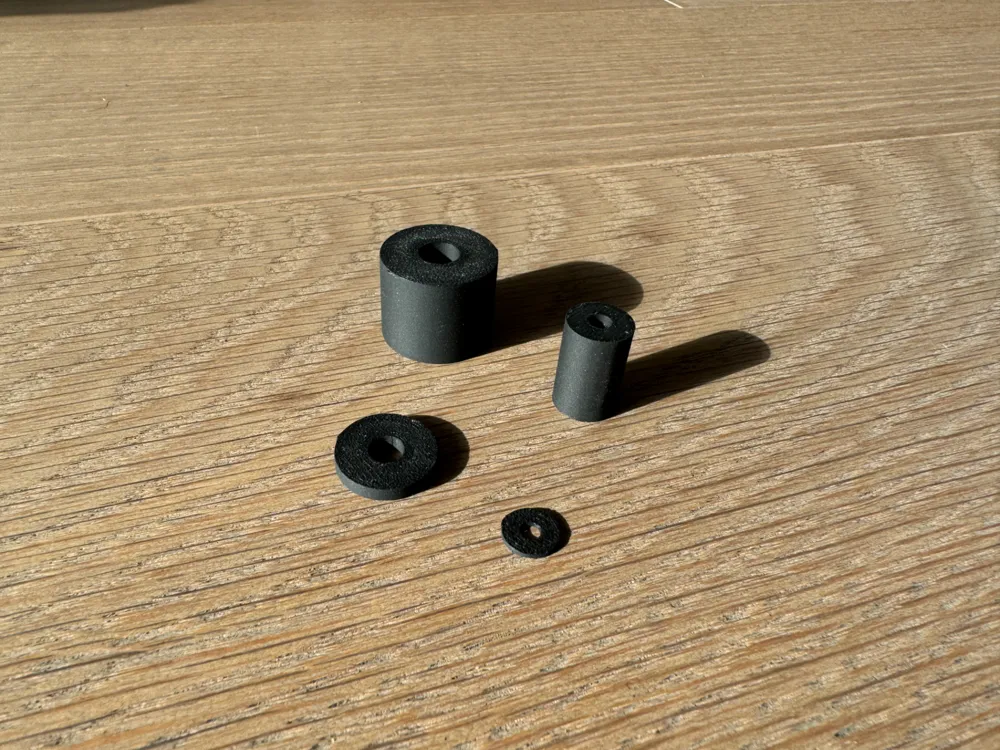

This set contains washers designed for M5 screws. Washers are organized by inner diameter (ID), outer diameter (OD), and height (HE) to ensure compatibility with a variety of uses.

📁 Folder Structure

• Outer Diameter (OD): Subfolders are organized by outer diameter.

• Files: Each washer file is named based on the washer’s nominal inner diameter (ID), outer diameter (OD), and height (HE).

M5/
├── OD_4mm/
│ ├── M5_ID_2mm_OD_4mm_HE_1mm.stl
│ └── M5_ID_2mm_OD_4mm_HE_2mm.stl
└── OD_5mm/
├── M5_ID_2mm_OD_5mm_HE_1mm.stl
├── M5_ID_2mm_OD_5mm_HE_2mm.stl

📂 Example Use Case

If you need an M5 washer with:

• Nominal Inner Diameter: 2mm

• Outer Diameter: 5mm

• Height: 10mm

Go to: OD_5mm > M5_ID_2mm_OD_5mm_HE_10mm.stl.

🔢 Washer Specifications

• Inner Diameter (ID): The inner diameter is listed as Nmm for washers, but the actual inner diameter is N + 0.4mm. This slight increase ensures the washer fits smoothly over the screw when 3D printed.


Why the 0.4mm Offset?

3D printing with standard 0.4mm nozzles can sometimes result in minor imperfections. The 0.4mm offset accounts for these variations, ensuring the washer is not too tight around the screw. By making the inner diameter slightly larger, the washer fits easily even with common printing inaccuracies.

• Height (HE): Washers are available in heights from 1mm to 20mm.
